STARTECH.COM 7-port industrial USB-C hub for wall or DIN rail mounting 3.2-GEN2 10GBPS 5XUSB-A 2XUSB-C HB31C5A2CME DSP0000042313

Features of the 7-Port Industrial USB Hub, 10Gbps, USB-A and USB-C HB31C5A2CME
The HB31C5A2CME USB hub lets you expand a single USB-C connection with a total of 7 USB 3.2 Gen 2 ports, comprising 5 USB-A ports and 2 USB-C ports. Its steel enclosure, desktop, wall or DIN rail mounting options, and electrical protection systems make it a particularly suitable solution for professional and industrial installations that require stable, well-organised connectivity.
7 USB ports with speeds of up to 10 Gbps
Thanks to its 10 Gbps USB 3.2 Gen 2 interface, the hub provides high-speed connectivity across all its downstream ports, with shared bandwidth of up to 10 Gbps. It is suitable for connecting SSDs, NVMe enclosures, RAID systems, printers and 3D scanners, as well as other high-performance USB peripherals.

5 USB-A ports up to 10 Gbps
2 USB-C ports up to 10 Gbps
Shared bandwidth of up to 10 Gbps
USB 3.2 Gen 2 interface
Chipset VIA/VLI VL822
Backward compatible with USB 3.0 at 5 Gbps, USB 2.0 and USB 1.x

Industrial design with versatile mounting options

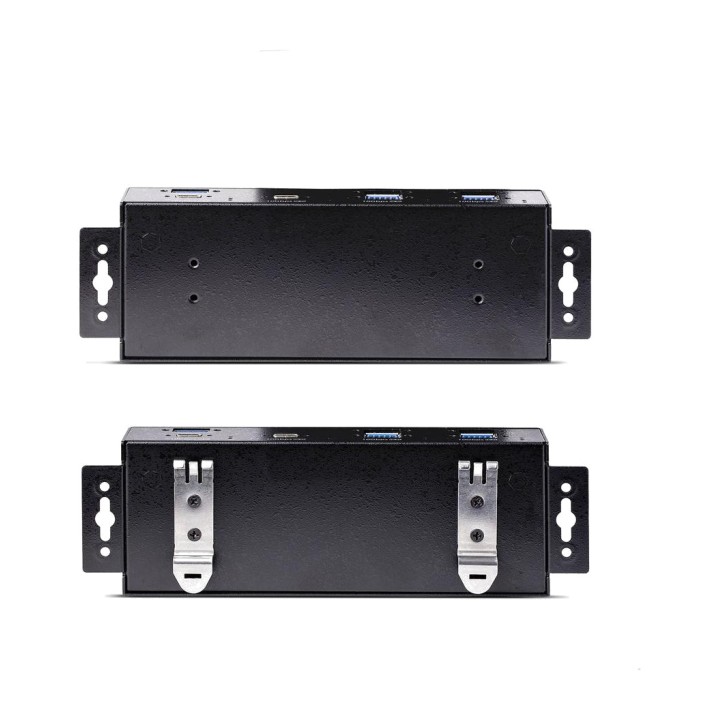

Its steel enclosure and industrial form factor are designed for installations where durability and secure mounting are important. The built-in mounting ears allow the hub to be installed on or under a desk or on a wall, while the included DIN rail mounting kit makes it easy to integrate into professional installations.

Steel enclosure
COLOR BLACK
Industrial form factor
Compatible with DIN rail mounting
Built-in mounting ears
Dimensions: 180 x 60 x 25 mm
Weight: 290 g

ESD and surge protection
To improve the safety of connected devices in demanding environments, this hub features protection against electrostatic discharge (ESD) of up to ±15 kV through air and ±8 kV through contact. It also provides 350 W surge protection, adding an extra layer of protection for the installation and peripherals.

ESD protection through air: ±15 kV
ESD protection through contact: ±8 kV
Surge protection : 350 W
MTBF: 163,021.7 hours

Flexible power supply and charging function
The hub includes a universal power adapter and also supports power via a 7-24 V DC terminal block. It can be used as a charging station when not connected to a host and is compatible with Battery Charging BC 1.2. It can provide up to 12 W, 2.4 A, per port, with a maximum total power consumption of 40 W.

Power adapter included
Adapter input : 100-240 V CA, 1,4 A
Adapter output : 20 V CC, 3,25 A

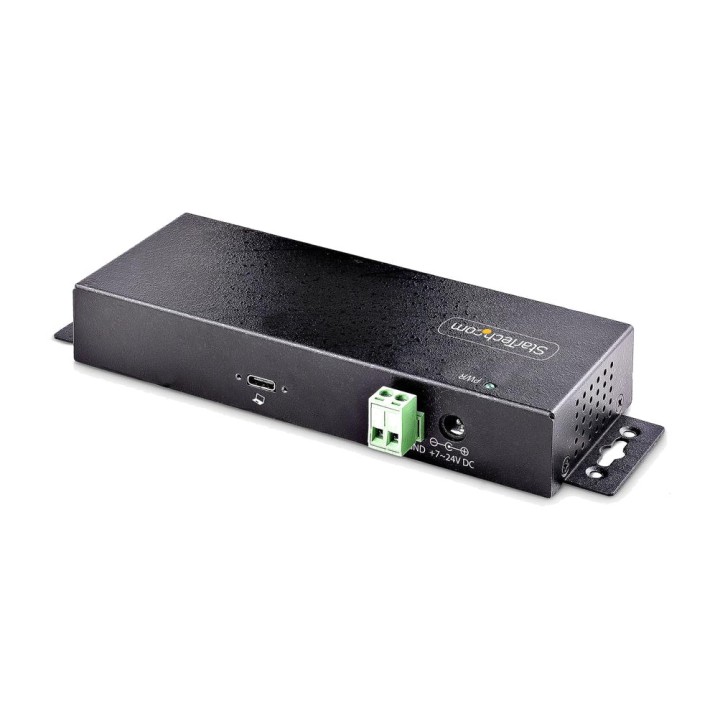

Alternative power supply via a 2-wire terminal block of 7-24 V CC
COMPATIBLE WITH BC 1.2, 1,5 A
7 ports support Battery Charging 1.2
Up to 12 W, 2.4 A, per port, with total power consumption of up to 40 W

Locking cables for more secure connections
To make it easy to connect to different equipment, two 1-metre host cables are supplied: one USB-C to USB-C and one USB-A to USB-C. Both feature a locking USB-C connector secured with a screw, designed to reduce the risk of accidental disconnection in fixed installations.

1 m locking USB-C to USB-C cable included
1 m USB-A to USB-C locking cable included
USB-C host connector with screw lock

Plug-and-Play cross-platform compatibility
Its operating system-independent operation allows it to be used with Windows, macOS, Linux and ChromeOS without installing drivers or additional software. It also features a USB event monitoring utility and is TAA compliant.

Compatible with Windows, macOS, Linux and ChromeOS
Plug-and-Play operation
No drivers or software required
USB event monitoring utility available
TAA compliant

LED indicators for status monitoring
The hub features 7 LED indicators for individually monitoring the USB ports, as well as a dedicated power LED. This makes it possible to visually check whether a peripheral is connected and whether the hub is receiving power.

7 USB port status LEDs
Solid green: USB peripheral connected
Off: no USB peripheral connected
1 power LED
Solid green: the hub is receiving power

Ready for different operating conditions
Its construction is designed to operate across a wide range of environmental conditions, with operating temperatures from 0 °C to 55 °C and storage temperatures from -20 °C to 85 °C. It supports relative humidity from 5 % to 95 % non-condensing.

Operating temperature: 0 °C to 55 °C
Storage temperature: -20 °C to 85 °C
Relative humidity: 5 % to 95 % non-condensing

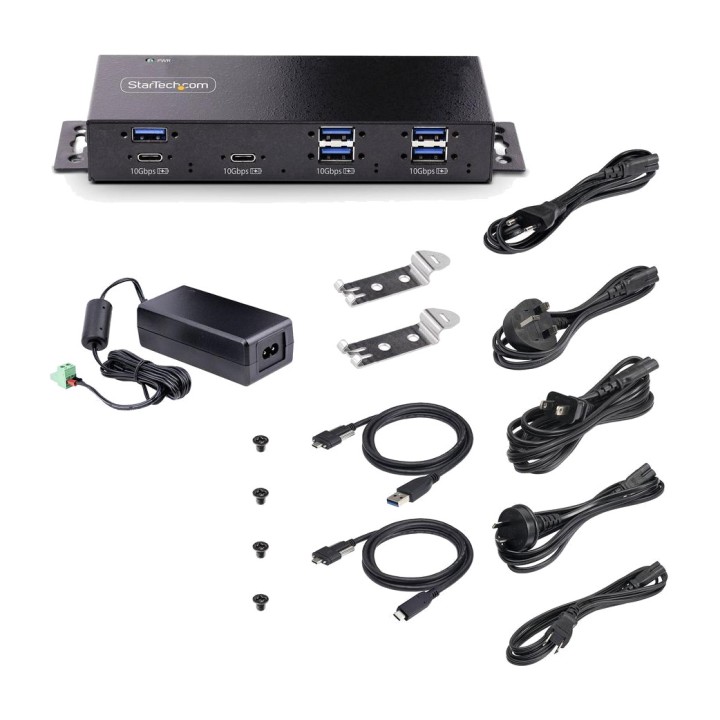

PACKAGE CONTENT
The package includes the accessories required for connection, power and mounting, including both types of host cable, a universal adapter and a DIN rail mounting kit.

1 industrial USB hub
1 1 m lockable USB-C to USB-C cable
1 1 m lockable USB-A to USB-C cable
1 universal power adapter with terminal block for NA/JP, UK, EU and ANZ
1 DIN mounting kit
1 product documentation

Other specifications
The HB31C5A2CME is supplied in an individual package with packaging dimensions of 187 x 290 x 70 mm and a total shipping weight of 1.350 g.

Product ID: HB31C5A2CME
UPC: 065030889810
Quantity per package : 1
Power connector: 2-wire terminal block
5 USB-A connectors, 10 Gbps , 4,5 W
2 USB-C connectors, 10 Gbps , 4,5 W
Package width: 187 mm
Package depth: 290 mm
Package height: 70 mm
Shipping weight: 1.350 g
Volume (m ³): 0.0039
