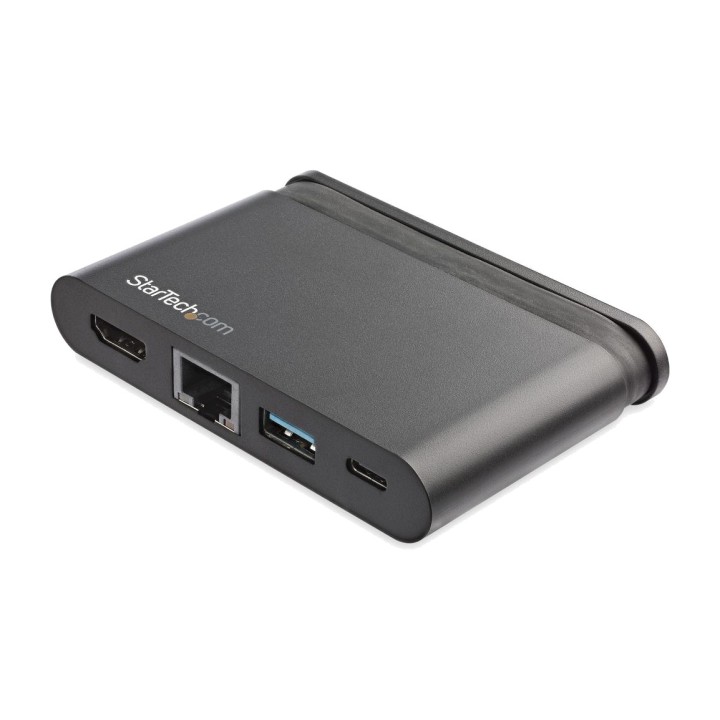

STARTECH.COM USB-C multiport adapter with HDMI, Gigabit Ethernet and braided cable 4K PD-100W DKT30CHCPD DSP0000042300

Multiport Adapter Features USB-C DKT30CHCPD
The DKT30CHCPD USB-C multiport adapter is a portable docking station designed to expand connectivity for laptops, ultrabooks, Chromebooks, tablets and smartphones compatible with USB-C. It integrates 4K HDMI output, Gigabit Ethernet, USB-A and USB-C, and also supports USB Power Delivery 3.0 power delivery of up to 100 W via passthrough. Its compact design and braided cable make it easy to carry and use at home, in offices and in meeting rooms.
4K HDMI output and support for UltraWide monitors
The HDMI connection lets you use an external display with a resolution of up to 4K, providing a practical solution for expanding your workspace, giving presentations or connecting your laptop to a larger monitor. It is also compatible with UltraWide monitors and lower resolutions.

Maximum resolution: 4096 x 2160p at 24 Hz
4K UHD resolution: 3840 x 2160p at 30 Hz
UltraWide: 3440 x 1440p at 60 Hz or 2560 x 1080p at 60 Hz
Compatible with lower resolutions such as 2560 x 1600p and 2560 x 1440p
Number of supported displays : 1

USB-C with Power Delivery 3.0 up to 100 W
Thanks to support for USB Power Delivery 3.0 up to 100 W, the adapter can receive power from a compatible USB-C charger and supply it to the computer while connected peripherals are in use. The adapter itself and its devices can consume up to 8 W, leaving up to 92 W available for charging the laptop, depending on the charger and the equipment used.

USB Power Delivery 3.0 passthrough up to 100 W
Up to 92 W of charging power available for the laptop
USB-powered
Compatible with USB-C power adapters
FRS "Fast Role Swap" function to help prevent interruptions in USB transmission when switching power sources

USB connectivity up to 5 Gbps
The adapter features USB connections capable of reaching a maximum transfer speed of up to 5 Gbps. The USB 3.0 standard, also known as USB 3.1 Gen 1, is backward compatible with USB 2.0 and USB 1.1, making it easy to connect different peripherals and devices.

1 x USB-C at 5 Gbps and 4,5 W
1 x USB-A with up to 7.5 W power delivery
USB-A port compatible with BC 1.2 charging up to 1,5 A
USB 3.0 at 5 Gbps
Backward compatible with USB 2.0 and USB 1.1
UASP compatible

Gigabit Ethernet for wired network connections
The RJ-45 Gigabit Ethernet port lets you connect the device directly to a wired network, an especially useful option for workstations that require a stable network connection. It supports full duplex and automatic MDIX.

1 x Port RJ-45
Gigabit Ethernet
Up to 2 Gbps over Ethernet with full duplex
Full duplex support
Automatic MDIX
IEEE 802.3, IEEE 802.3u and IEEE 802.3ab standards

Compact design for easy transport

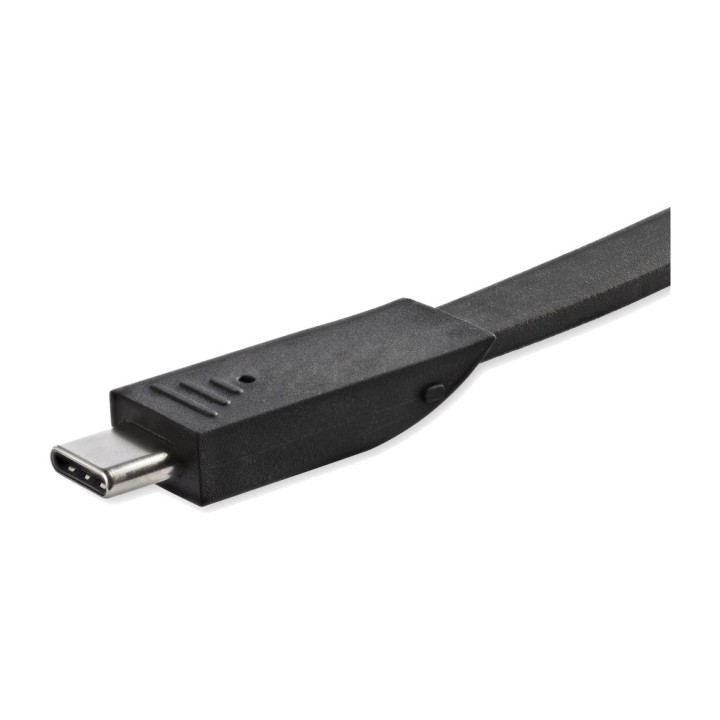

Weighing just 60 g and featuring a compact design, this docking station is ready to accompany your laptop on the go. Its approximately 15 cm braided USB-C cable can be wrapped around the adapter, helping prevent it from coming loose or getting caught inside your bag.

Product length: 250 mm
Width: 60mm
Height: 15.5 mm
Weight: 60g
COLOUR: BLACK
Plastic material
Braided cable approximately 15 cm long

Wide compatibility with devices and operating systems
The adapter is designed for devices equipped with USB-C and is compatible with Thunderbolt 3. It can be used with compatible laptops, ultrabooks, Chromebooks, tablets and smartphones, including device families such as MacBook Pro and Air, HP EliteBook, Dell XPS and Latitude, Lenovo ThinkPad X1, and Microsoft Surface Laptop 3 and Book 3.

Windows 11 and Windows 11 ARM
Windows 10, Windows 8 and Windows 7
macOS Tahoe 26.0
macOS Sequoia 15.0
macOS Sonoma 14.0
macOS Ventura 13.0
macOS Monterey 12.0
macOS Big Sur 11.0
macOS Catalina 10.15
macOS Mojave 10.14
macOS High Sierra 10.13
macOS Sierra 10.12
Mac OS X El Capitan 10.11
Chrome OS
Compatible with Android
Compatible with Thunderbolt 3

Requirements for using all its features
To access all video and power functions, the host computer must have a USB-C port compatible with DisplayPort Alt Mode and USB Power Delivery 2.0 or 3.0. Not all USB-C ports offer these functions, so it is important to check the device specifications before using the adapter.

Requires an available USB-C port on the host device
DisplayPort Alt Mode required to use video output
USB Power Delivery 2.0 or 3.0 required to use passthrough power
To obtain a resolution of 3840 x 2160p, a compatible display is required 4K
The adapter can be connected to a USB-C port without Power Delivery, but in that case it will not supply power to the host computer, even if a power adapter is connected to the hub
The USB-C power adapter is optional

Additional hardware and specifications
The DKT30CHCPD incorporates various controllers to manage its connectivity functions and is designed to operate across a wide range of environmental conditions. It also comes with a 3-year warranty.

Chipset VIA/VLI VL103
Chipset VIA/VLI VL817S
Synaptics chipset VMR7100
Realtek chipset RTL8153B
Bus type: USB-C
4K support: yes
Fast charging port: yes
Operating temperature: 0 °C to 45 °C
Storage temperature: -10 °C to 70 °C
Relative humidity: 10% to 85 %
UPC: 065030879187
Quantity per package : 1
Warranty: 3 years

PACKAGE CONTENT
The package includes the USB-C multiport adapter and its instruction manual, providing the items needed to install and set it up with a compatible device.

1 x multiport adapter
1 x Instruction Manual
Package width: 86 mm
Package depth: 107 mm
Package height: 18 mm
Shipping weight: 66 g
Volume (m ³): 0.0008
