STARTECH.COM 4-port industrial USB hub for DIN rail mounting 3.2-GEN1 5GBPS ST4300USBM DSP0000042298

Features of the StarTech.com ST4300USBM 4-Port USB 3.0 Hub

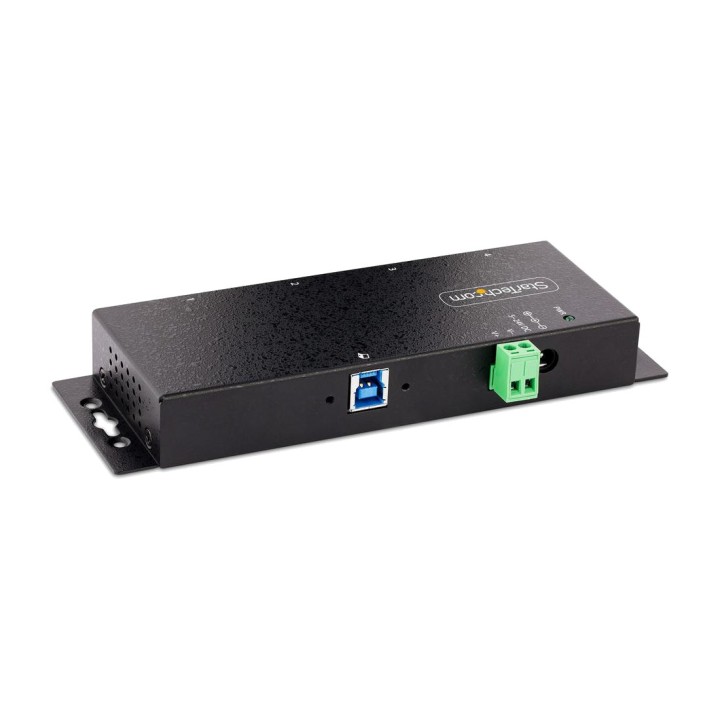

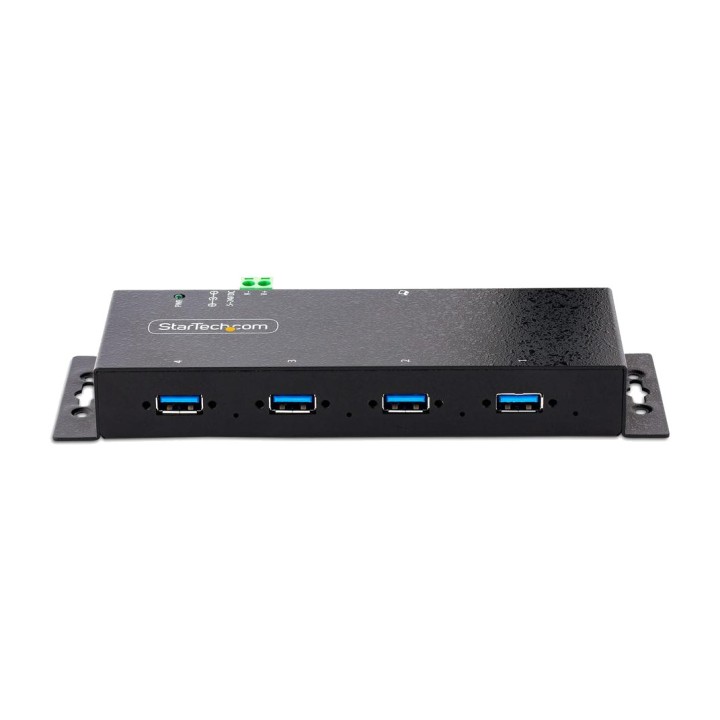

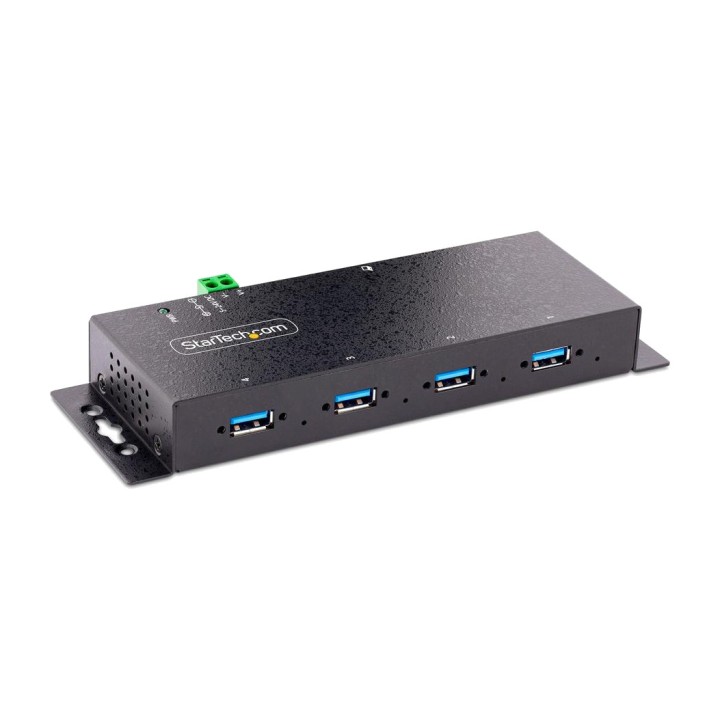

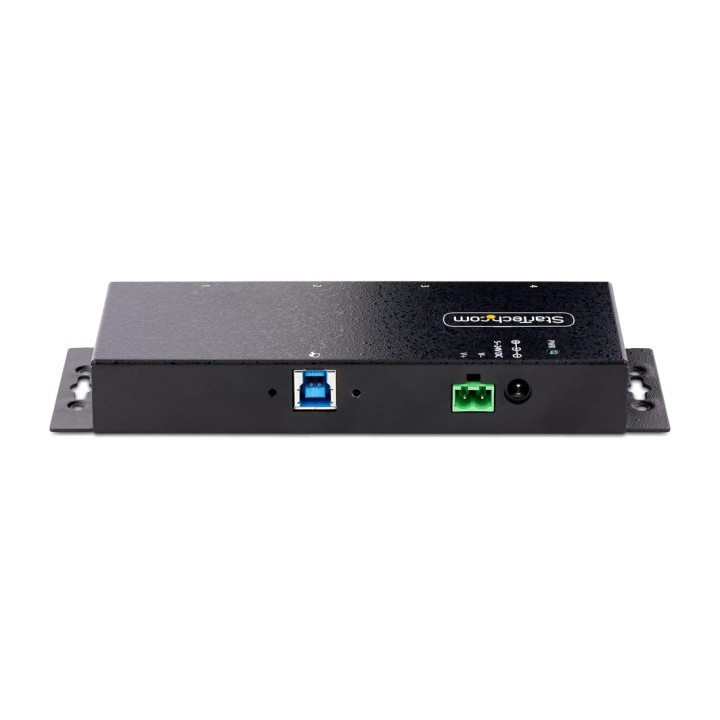

The StarTech.com ST4300USBM is an industrial-grade USB hub designed to expand the connectivity of professional equipment with 4 USB-A ports supporting speeds of up to 5 Gbps. Its robust steel construction, electrostatic discharge protection and various mounting options allow it to be integrated into industrial environments, workstations and other installations where a stable, durable USB connection is required.
4 USB 3.2 Gen 1 ports supporting speeds of up to 5 Gbps
Expands a single USB port on the computer to provide 4 additional USB-A connections. Its USB 3.2 Gen 1 interface provides a maximum data transfer rate of 5 Gbps, making it easy to connect different USB devices and peripherals through a single hub.

4 USB-A ports for devices
USB 3.2 Gen 1 interface at 5 Gbps
Host connection via 5 Gbps USB-B
Chipset VIA/VLI VL817
Requires an available USB 3.0 port

Industrial design with ESD protection
Its steel enclosure is designed for use in professional and industrial installations. It also features ESD protection of +/-8 kV for air discharge and +/-4 kV for contact discharge, helping protect connected devices from electrostatic discharge.

Industrial form factor
Material: Steel
COLOUR: BLACK
ESD protection: +/-8 kV air discharge
ESD protection: +/-4 kV contact
MTBF: 245,881 hours

Flexible installation in different environments
The ST4300USBM features integrated mounting brackets that make it easy to install wherever needed. It can be surface-mounted and is designed to fit DIN rail, wall or desktop installations, offering greater flexibility when organizing USB devices.

Surface-mounting options
Ready for DIN rail, wall or desktop installations
Compact and sturdy design
LENGTH: 179MM
Width: 59.6 mm
Height: 23,5 mm
Weight: 282 g

External power supply and device charging
The hub includes a 12 V DC, 3 A power adapter and also supports power input via a 7 to 24 V DC terminal block. Its four ports comply with the USB Battery Charging 1.2 specification, allowing up to 2.4 A to be supplied through one port, with the total available power indicated for the hub.

4 ports compatible with USB Battery Charging 1.2
Up to 2.4 A on any port
Total available power output : 18 W
Device power consumption : 24 W
Power adapter included : 12 V CC, 3 A
Specified power consumption : 36 W
Connector tip polarity: positive
Power connector type: M
Input via 7 to DC terminal block 24 V

LED indicators for monitoring connections
The integrated LED indicators provide a visual check of both the hub's power status and the connection of USB devices. This makes it easy to monitor the hub once installed at a workstation or in an industrial environment.

1 red power LED
4 green USB device connection LEDs

Ready to operate in different environmental conditions
Its industrial design allows the hub to operate within a temperature range of 0 °C to 55 °C. It also supports a wide storage temperature range and relative humidity levels of up to 95%.

Operating temperature: 0 °C to 55 °C
Storage temperature: -20 °C to 85 °C
Relative humidity: 5% to 95%

Connectors and package contents

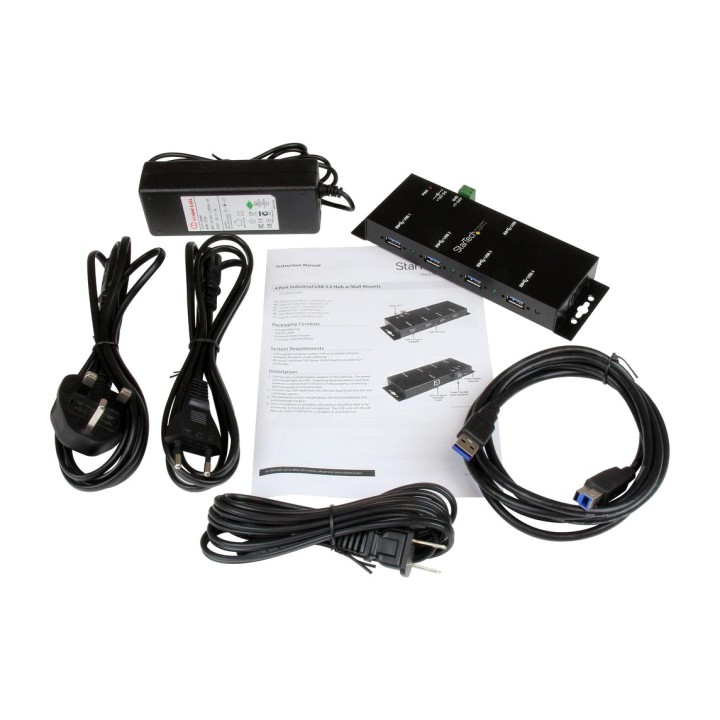

The StarTech.com ST4300USBM is supplied with the items needed for easy installation and connection, including a 1.8-metre USB 3.0 cable, universal power adapter and two-wire terminal block.

4 USB-A connectors at 5 Gbps and 4,5 W
1 5 Gbps USB-B connector and 4,5 W
1 2-wire terminal block
1 industrial-grade USB 3.0 hub
1 1.8 m USB 3.0 cable without lock
1 universal power adapter for NA/JP, EU, RU and ANZ
1 2-wire terminal block
1 INSTRUCTION MANUAL

Other specifications
The hub has 4 USB ports and USB-A/USB-B connectivity, with no USB-C connections. It comes with a stated 2-year warranty and is supplied in an individual package.

Product ID: ST4300USBM
UPC: 065030841603
Quantity per package : 1
Warranty: 2 years
USB-C ports for devices: no
USB-C host connection: no
Fast-charging ports: no
Package width: 190 mm
Package depth: 295 mm
Package height: 72 mm
Shipping weight: 1176 g
Volume (m ³): 0.0039
