STARTECH.COM 9-in-1 USB-C multiport adapter for laptop 117B-USBC-MULTIPORT DSP0000042297

Features of the USB-C Multiport Adapter for 3 Monitors - 4K 60Hz Dual + HDMI and DisplayPort 4K 30Hz - 3-Port USB Hub - 100W PD Pass-Through - Travel Docking Station - Win/Chrome
The 117B-USBC-MULTIPORT USB-C multiport adapter lets you create a complete mobile workstation from a computer compatible with USB-C. It provides connectivity for up to three 4K monitors, three 10 Gbps USB-A ports, Gigabit Ethernet and USB Power Delivery charging of up to 100 W. Its compact design, integrated 60 cm cable and compatibility with Windows and ChromeOS make it a particularly practical solution for workstations, hybrid offices and travel.

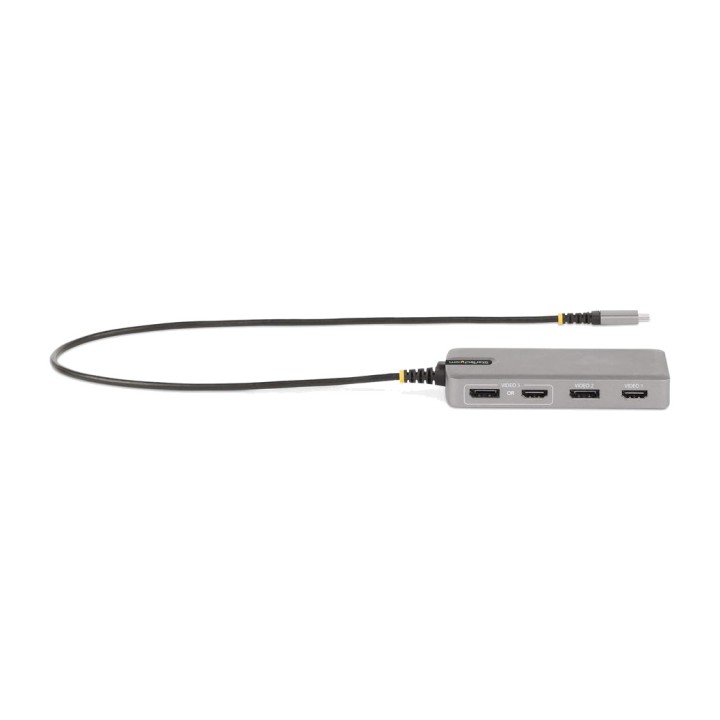

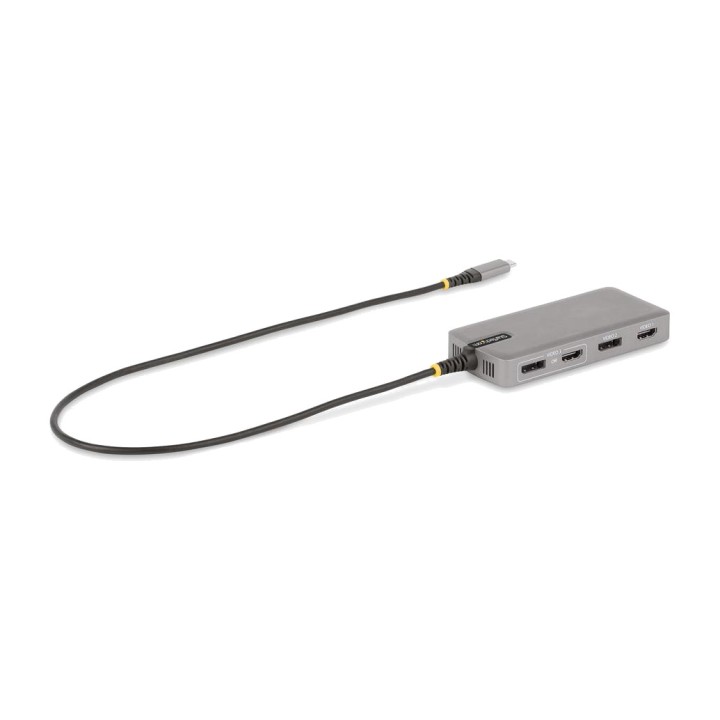

Up to three 4K displays with HDMI and DisplayPort
This docking station offers a flexible multi-monitor setup via two HDMI 2.0b and two DisplayPort 1.4 connections. Depending on the capabilities of the host computer, it supports one, two or three external displays, with up to two 4K monitors at 60 Hz and a third 4K monitor at 30 Hz. The adapter uses the computer’s integrated GPU to provide uncompressed video and reduce the load on the CPU.

Supports up to 3 displays
2 HDMI 2.0b connections
2 DisplayPort connections 1.4
Three-display configuration: 3840 x 2160 at 60 Hz + 3840 x 2160 at 60 Hz + 3840 x 2160 at 30 Hz
Two-display configuration: 3840 x 2160 at 60 Hz + 3840 x 2160 at 60 Hz
COMPATIBLE WITH 4K

Multi-monitor performance via DP Alt Mode, MST and DSC
To take advantage of all video capabilities, the computer’s USB-C port must support DisplayPort Alt Mode and MST. To achieve maximum performance with two or three 4K displays, DP 1.4 Alt Mode with DSC support is required; a computer with an 11th-generation Intel processor or later and a suitable GPU is recommended. DP 1.2 Alt Mode can also be used, but at lower resolutions.

Compatible with DisplayPort 1.4 Alt Mode with DSC
MST support required for multi-monitor configurations
DP 1.2 Alt Mode supported at lower resolutions
A discrete graphics card is recommended for maximum performance with two or three displays
The number of available displays depends on the computer's GPU capabilities
Some GPUs, such as certain Intel HD Graphics models, support a maximum of three displays and may disable the laptop screen when three external monitors are connected

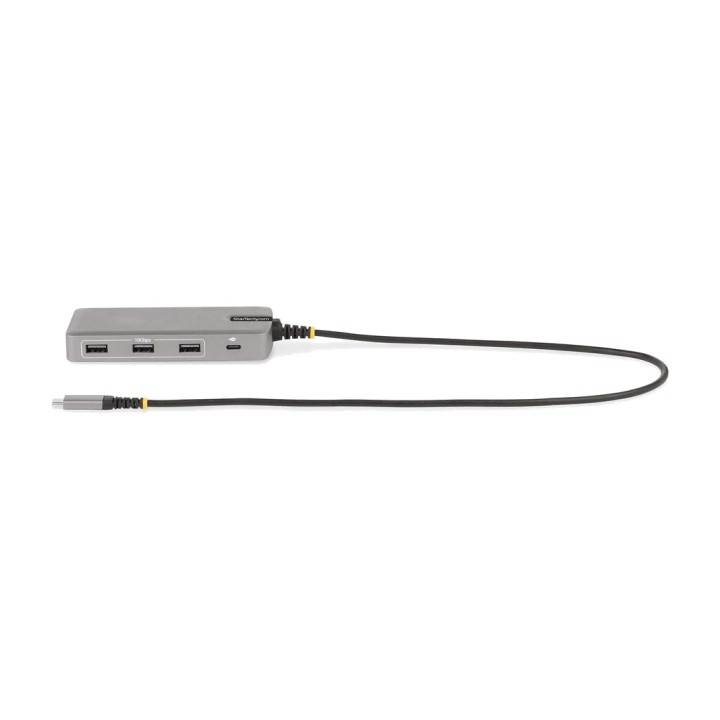

10 Gbps USB-A hub for peripherals and storage
Its three USB-A 3.2 Gen 2 ports provide transfer speeds of up to 10 Gbps, making it easy to connect external drives, USB flash drives and other high-performance peripherals. It also features UASP support to optimise transfers with compatible storage devices.

3 USB-A ports at 10 Gbps
USB 3.2 Gen 2
Maximum transfer speed: 10 Gbps
UASP support: yes
Power per port USB-A: 4,5 W
Dedicated fast-charging port: no

100 W Power Delivery to power the laptop
The USB-C port dedicated to power supports USB Power Delivery up to 100 W, allowing you to use the computer's USB-C power adapter to power both the docking station and the computer simultaneously. Of the 100 W available, the adapter reserves up to 15 W for its own operation, so it can provide up to 85 W to the host laptop.

USB Power Delivery: up to 100 W
Up to 85 W available for charging the host computer
Docking station power consumption : 15 W
USB Power Delivery Specification Rev. 3.0
Bus-powered and powered by the computer's USB-C power adapter
1 USB-C port dedicated exclusively to PD at 100 W

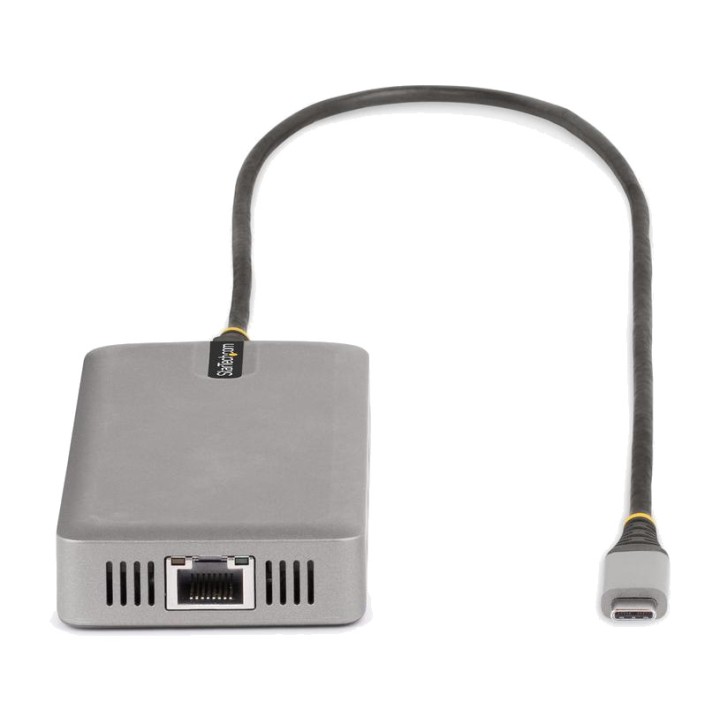

Gigabit Ethernet with features for professional environments
The RJ-45 Gigabit Ethernet connection provides stable access to 10/100/1000 Mbps wired networks and supports features especially useful in corporate environments, such as Wake-on-LAN, PXE boot and full duplex. It also features two LED indicators beneath the network port to show connection and activity status.

Ethernet 10/100/1000 Mbps
Full-duplex support
Wake-on-LAN (WOL)
PXE boot
IEEE 802.3, IEEE 802.3u and IEEE 802.3ab standards
2 connection and activity status LEDs beneath the GbE port

Compatible with USB-C, USB4 and Thunderbolt
The docking station is designed for computers with USB-C, USB4, Thunderbolt 3 or Thunderbolt 4 running Windows or ChromeOS. To access all its features, the host USB-C port must support USB-C Power Delivery, DisplayPort Alt Mode and MST.

Windows 11
Windows 11 ARM
Windows 10
Windows 8.1
Chrome OS
Compatible with USB-C, USB4, Thunderbolt 3 and Thunderbolt 4 devices that meet the stated requirements

Integrated 60 cm cable and travel-ready design
The integrated 600 mm USB-C host cable makes it easy to position the adapter on your desk and offers greater connection flexibility with different laptop form factors. It features a high-quality TPE jacket, strain relief and EMI shielding to reduce signal interference between electronic devices.

Cable length: 600 mm
TPE coating
Integrated strain relief
EMI shielding against interference
Gray
Plastic material
Weight: 113 g

Connectivity and management tools
The adapter includes tools designed to improve connection management in work environments. These include MAC address pass-through to facilitate certain network security policies, automatic WiFi switching, and various functions for monitoring and organizing the workspace.

MAC address pass-through
Automatic WiFi switching
USB event monitoring
Window layout configuration

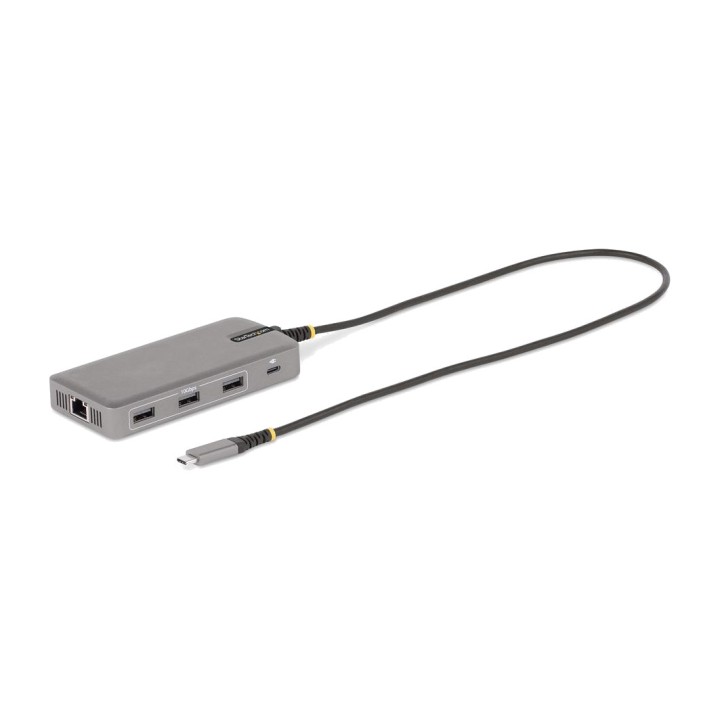

Available connections
The wide range of ports lets you centralize video, data, network, and power through a single USB-C connection to the host computer.

1 x 10 Gbps USB-C host and 4,5 W
3 x 10 Gbps USB-A and 4,5 W
1 x Gigabit Ethernet RJ-45
2 x DisplayPort
2 x HDMI
1 x USB-C up to 100 W, exclusively for Power Delivery
Bus type: USB-C
Interface: USB 3.2 Gen 2 at 10 Gbps

Integrated chipsets and standards
To manage the various video, USB, power and network functions, the adapter uses specialised controllers from Parade, Synaptics, VIA and Realtek, together with the main connectivity standards included in the device.

Parade PS8469
Synaptics VMM5322
VIA VL822
VIA VL103
Realtek RTL8153
HDMI 2.0b
DisplayPort 1.4
USB 3.2 Gen 2 at 10 Gbps
USB Power Delivery Specification Rev. 3.0

Dimensions and operating conditions
Measuring 122 x 56 x 18 mm and weighing just 113 g, this docking station offers numerous connections in an easy-to-carry format. It is designed to operate across a wide range of temperatures and humidity levels.

LENGTH: 122MM
Width: 56 mm
HEIGHT: 18MM
Weight: 113 g
Operating temperature: from 0 °C to 70 °C
Storage temperature: from -10 °C to 70 °C
Humidity: 5% to 90% RH, non-condensing

PACKAGE CONTENT
The product includes the USB-C multiport adapter and a quick start guide, with everything needed for initial installation on a compatible computer.

1 x USB-C Multiport Adapter
1 x Quick Start Guide
Package width: 132 mm
Package depth: 245 mm
Package height: 34 mm
Shipping weight: 238 g

Other specifications
Before using the docking station, it is recommended to check that the computer’s drivers, firmware and operating system are up to date to ensure proper compatibility and operation.

Product ID: 117B-USBC-MULTIPORT
UPC: 065030896078
Quantity per package : 1
Warranty: 3 years
Power source: bus-powered and powered by the host’s USB-C power adapter
Full functionality requirement: Windows or ChromeOS computer with a USB-C port compatible with Power Delivery, DisplayPort Alt Mode and MST
Volume (m ³): 0.0009
