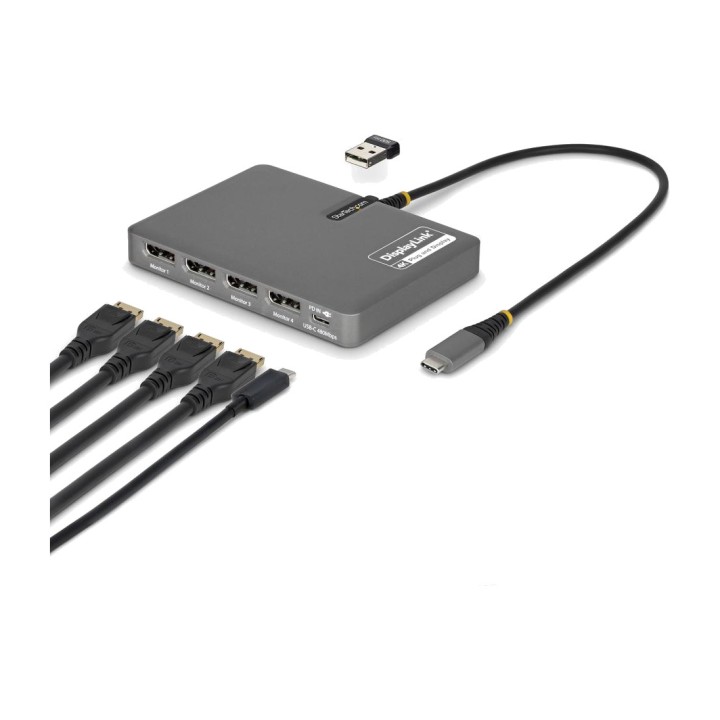

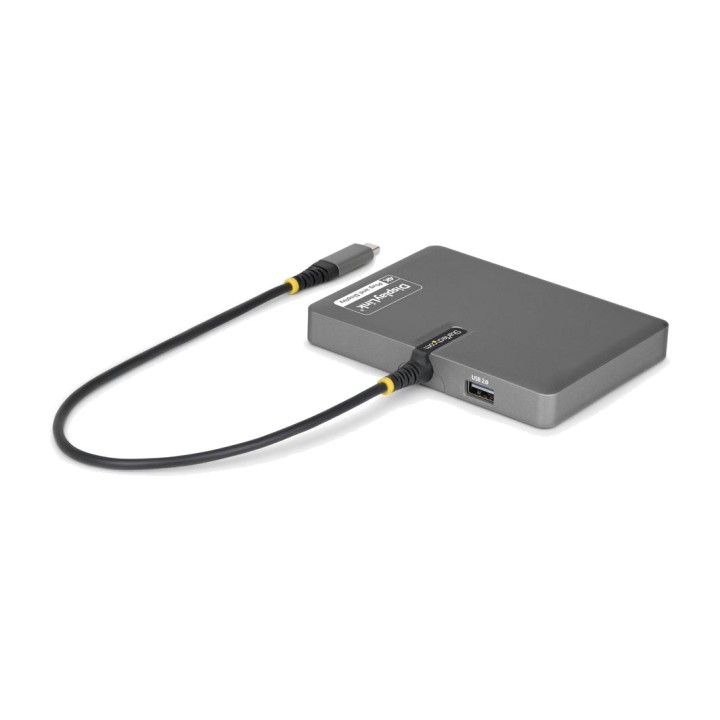

STARTECH.COM USB-C to 4 DisplayPort displays adapter 4K60HZ PD-140W QUAD-USBDP-ADAPT DSP0000042296

Features of the USB-C to 4x DisplayPort Displays 4K 60Hz Adapter with PD 140W
The QUAD-USB-DP-ADAPT USB-C to 4x DisplayPort adapter can turn a compatible laptop into a complete multi-monitor workstation with a single USB-C connection. It is designed to connect up to four DisplayPort monitors, power the laptop and add a USB-A peripheral, offering a particularly practical solution for professional, financial, educational and engineering environments.
Up to four DisplayPort displays to expand your workspace
Thanks to its four DisplayPort 1.4 outputs and DisplayLink DL7400 chipset, this adapter lets you significantly expand your available desktop space. It supports four-display 4K configurations at 60 Hz with 4:4:4 chroma subsampling, making it easy to work simultaneously with applications, documents and professional tools.

Up to 4 simultaneous displays
4x DisplayPort 1.4
Four displays: 4x 4K at 60 Hz 4:4:4
DisplayLink chipset DL7400
Ultrawide display compatible
Active adapter

Advanced resolutions up to 10K
In addition to its quad 4K configuration, the adapter offers various resolution and refresh rate combinations to suit workstations with high-performance displays. DisplayPort output 1 supports DSC 1.2a and enables specific configurations of up to 10K at 60 Hz.

4 displays: 4x 4K at 60 Hz 4:4:4
4 displays: 1x 4K at 144 Hz 4:2:0 on output 1 and 3x 4K at 120 Hz 4:2:0
2 displays: 2x 8K at 60 Hz 4:2:0
1 display: 1x 10K at 60 Hz 4:2:0, output 1 only
DisplayPort output 1 supports DSC 1.2a

Up to 140 W power delivery and USB pass-through
The power connection lets you charge the laptop through the adapter itself, reducing the number of connections required on the device. It provides up to 140 W of power and also features USB pass-through to expand the workstation’s connectivity options.

Power delivery : 140 W
USB-powered
USB pass-through: yes
Dual-Role USB-C port: 480 Mbps, 2.5 W / PD input of 100 W

USB-A port for keyboard, mouse and other peripherals
The adapter features a 480 Mbps USB-A port designed for connecting peripherals such as a keyboard, a mouse or its corresponding USB dongle. This makes it possible to expand the laptop setup without using another port for everyday peripherals.

1x USB-A
USB speed: 480 Mbps
POWER : 2,5 W
Suitable for mice, keyboards and USB dongles

Plug-and-Play installation with DisplayLink
DisplayLink drivers are installed automatically on most Windows and ChromeOS systems, speeding up setup and facilitating deployments in business environments. On macOS, the drivers must be installed manually.

Automatic driver installation on most Windows and ChromeOS systems
Manual driver installation required on macOS
DisplayLink chipset DL7400

Broad operating system compatibility
Its compatibility with Windows, macOS, Chrome OS and Ubuntu makes it easy to integrate into diverse IT environments, from corporate and educational workstations to professional setups used between home and office.

Windows 11, Windows 10, Windows 8.1, Windows 8 and Windows 7
macOS Tahoe 26.0
macOS Sequoia 15.0
macOS Sonoma 14.0
macOS Ventura 13.0
macOS Monterey 12.0
macOS Big Sur 11.0
macOS Catalina 10.15
macOS Mojave 10.14
macOS Sierra 10.12
Mac OS X El Capitan 10.11
Chrome OS
Ubuntu

Compact design for professional environments
With dimensions of just 119 x 87 x 16 mm and a weight of 146 g, it offers a compact form factor that makes it easy to transport between different workstations. Its design is intended for deployments in fields such as IT, finance, engineering and education, where multi-monitor configurations are required.

Dimensions: 119 x 87 x 16 mm
Weight: 146 g
Cable length: 304.8 mm
Color: Space Gray
Operating temperature: 0°C to 40°C
Storage temperature: -20°C to 70°C
Humidity: 0% to 95% non-condensing at 25°C

Connectivity and audio and video specifications
The main input uses USB-C and the four video outputs are DisplayPort 1.4. The adapter also supports audio via DisplayPort, providing an integrated audiovisual connection for compatible monitors.

AV input: USB-C
1x USB-C connector
4x DisplayPort connectors
AV output: DisplayPort 1.4
Video Revision: DisplayPort 1.2
Audio: yes
2-channel DisplayPort audio
Number of video ports : 4

Contents, packaging and warranty
The package includes the USB-C to four DisplayPort adapter and product documentation. It also comes with a 3-year warranty and compact packaging for easy storage and transport.

1x USB-C to 4x DisplayPort adapter
1x product documentation
Warranty: 3 years
UPC: 065030915908
Package width: 210 mm
Package depth: 145 mm
Package height: 40 mm
Shipping weight: 220 g
Volume (m ³): 0.0012
