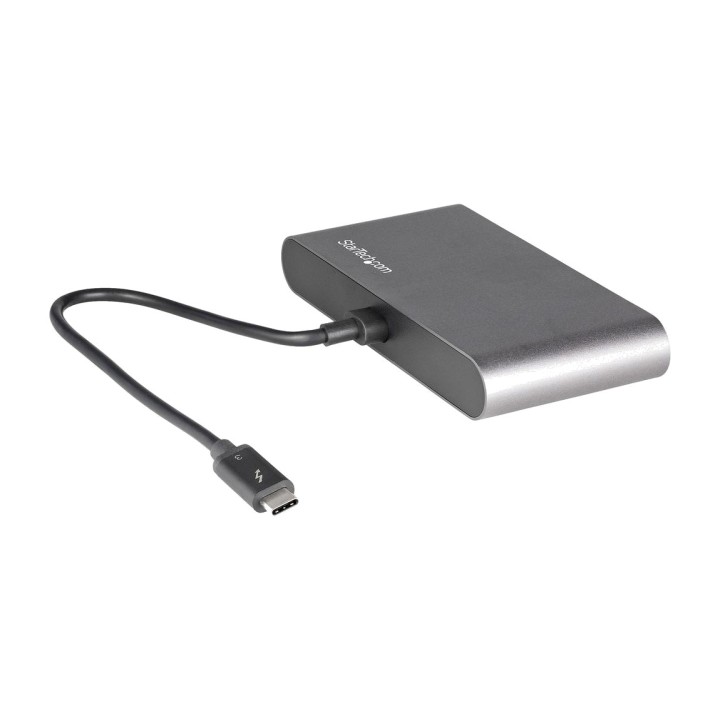

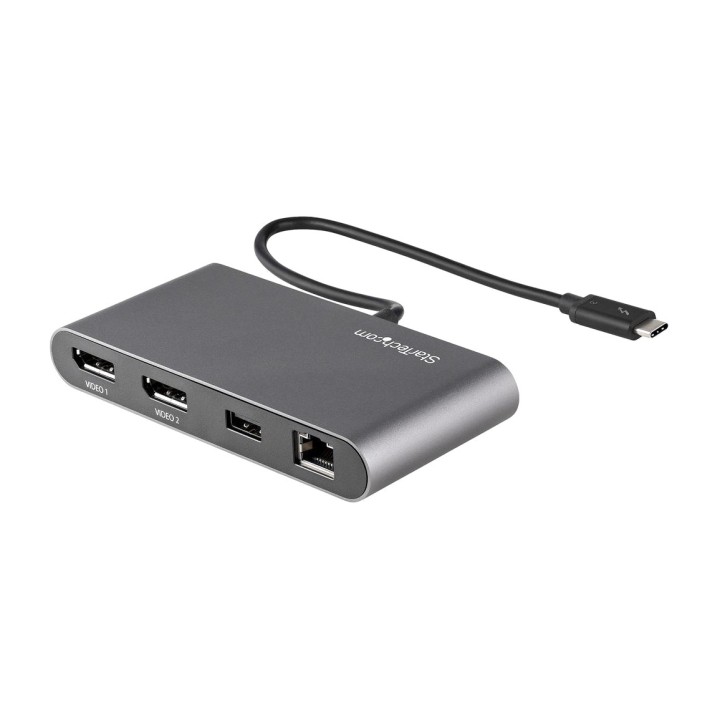

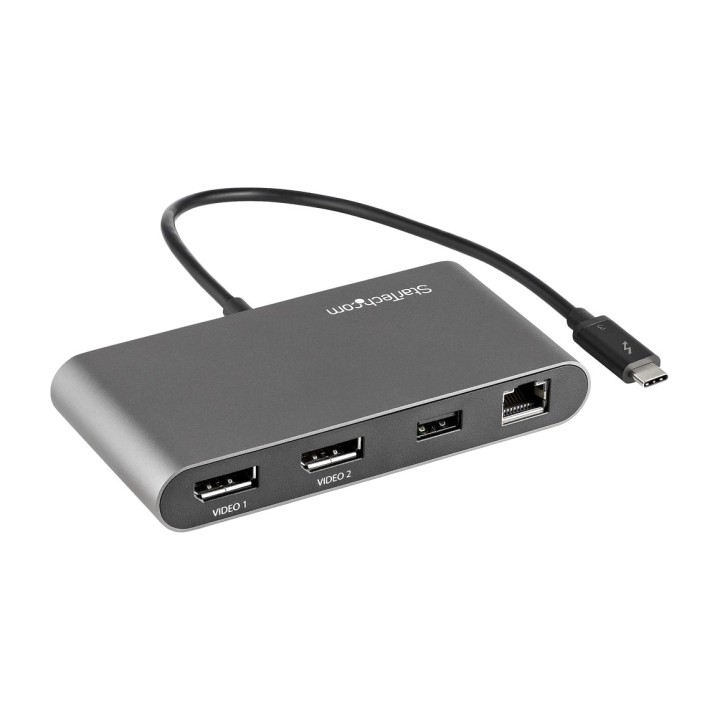

STARTECH.COM Thunderbolt 3 Mini Dock for 2 DisplayPort Monitors with Gigabit Network 4K60HZ 40GBPS TB3DKM2DPL DSP0000040096

Thunderbolt Mini Dock Features 3 TB3DKM2DPL
The TB3DKM2DPL Thunderbolt 3 Mini Dock is a compact, professional solution designed to expand connectivity for Thunderbolt and USB4 laptops without requiring driver installation. Thanks to its portable design and high-performance connectivity, it lets you connect up to two 4K DisplayPort monitors at 60 Hz, as well as USB peripherals and Gigabit Ethernet, through a single Thunderbolt 3 port. It is an ideal choice for professionals, mobile workstations and corporate environments that need productivity, stability and cross-platform compatibility.
High-performance Thunderbolt 3 connectivity
This mini dock harnesses Thunderbolt 3 bandwidth of up to 40 Gbps to deliver a smooth, uncompressed video experience. Its plug-and-play setup lets you use it immediately with Windows, macOS and Ubuntu, without installing additional software.

40 Gbps Thunderbolt 3 USB-C interface
Compatible with Thunderbolt laptops and USB4
Driverless operation on Windows and macOS

Support for dual 4K monitors at 60 Hz
The dock features two DisplayPort outputs capable of delivering 4K resolution at 60 Hz with direct GPU performance and no compression. This lets you work with multiple displays while maintaining excellent image quality and smooth performance, making it ideal for advanced productivity, design, editing and multitasking.

2 20-pin DisplayPort outputs
Maximum resolution 4K at 60 Hz
Compatible with multi-monitor setups

Advanced compatibility with Mac and Windows
The Thunderbolt 3 Mini Dock is designed to work with a wide range of operating systems and modern devices. It is compatible with Windows, macOS and Ubuntu systems, including Apple devices with M1, M2, M3 and M4 processors.

Compatible with Windows 11, 10, 8.1 and 7
Compatible with macOS 10.10 up to mac OS 15
Dual-monitor support on compatible MacBook Pro/Max

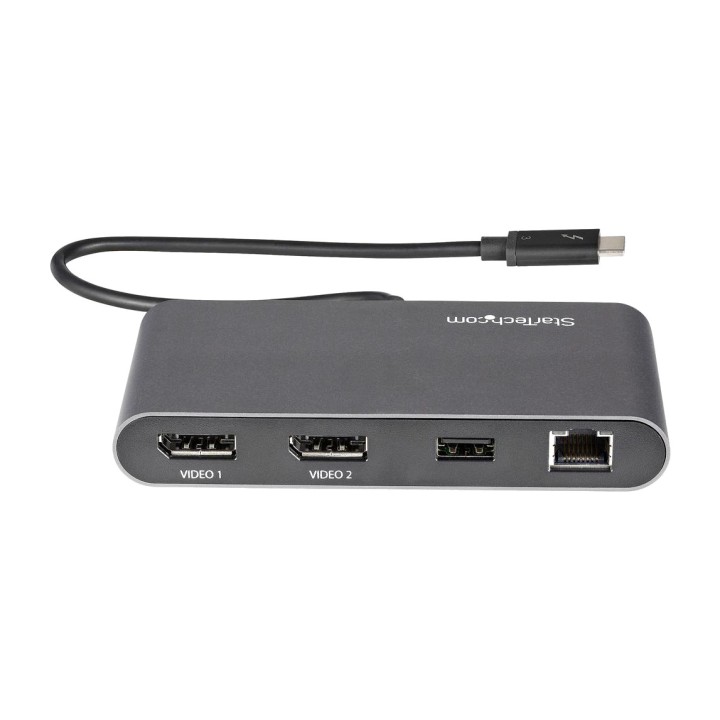

Additional connections for peripherals and network
In addition to the video outputs, the dock includes a 5 Gbps USB-A port for connecting peripherals and a Gigabit Ethernet RJ-45 port for stable, high-speed network connections. It also supports advanced network management features such as PXE and Wake-on-LAN.

1 USB 3.2 Gen 1 Type-A port at 5 Gbps
1 Gigabit Ethernet port RJ-45
PXE and Wake-on-LAN support

Compact design and extra-long integrated cable
Its compact form makes it easy to carry and use every day on desks or mobile workstations. The 28 cm integrated cable provides greater flexibility and prevents strain on the laptop port, especially on convertible devices or those placed on elevated stands.

Compact, lightweight design weighing 147,8 g
28 cm integrated cable
Aluminium and plastic construction

Reliability for professional environments
Designed for professional and business deployments, this dock has been validated to provide stability and compatibility in demanding environments. Bus-powered operation simplifies installation and reduces the need for additional adapters.

Thunderbolt bus-powered
Compatible with 10/100/1000 Mbps networks
3-year limited warranty

Other specifications

Intel JHL6540 (Alpine Ridge) chipset
Compatible with IEEE 802.3ab, IEEE 802.3u and IEEE 802.3i
Operating temperature from 5°C to 40°C
Storage temperature from -20°C to 70°C
Dimensions: 12.4 x 6.9 x 2.7 cm
Black and silver color
User manual included
Volume (m ³): 0.0011
