STARTECH.COM USB to Serial RS232 DB9 Adapter Cable with FTDI Chip 30 CM 1P1FFCUSB-SERIAL DSP0000040070
Regular price:
€59.41
-16.46%
Price:
€49.63
Tax included
DeliveryUpdating delivery estimate…Order within the next — to receive it approximately Updating delivery estimate…
Updating delivery estimate…
Cuándo es más probable que llegue
Calculado con 0 entregas recientes
Fechas estimadas para España peninsular; se ajustarán con tu código postal y forma de entrega.
The date corresponds to the item with the longest delivery time
IVA intracomunitario
La exención intracomunitaria puede aplicarse a una entrega a otro Estado miembro si el NIF-IVA es válido y el destino cumple los requisitos. La comprobación por sí sola no determina el tratamiento fiscal.
Cómo se comprueba el IVA¿Eres profesional del sector?
Puedes solicitar una cuenta profesional e indicar los datos de tu actividad. La solicitud queda pendiente de revisión; puedes consultar su estado en tu cuenta.
Más información sobre cuentas profesionalesCanarias, Ceuta y Melilla sin IVA español
El tratamiento depende del destino de entrega y de la coherencia de la dirección. Pueden corresponder IGIC, IPSI, aranceles u otros cargos locales.
Más información sobre destinos e impuestosFeatures of the StarTech.com USB to Serial RS232 DB9 Adapter Cable 1P1FFC-USB-SERIAL
The StarTech.com USB to Serial RS232 DB9 adapter is a reliable solution for adding an RS-232 serial port to laptops or desktop computers via an available USB-A port. Designed for professional and industrial environments, this converter features an FTDI FT232R chipset, COM port retention and advanced ESD protection, ensuring a stable connection and compatibility with a wide range of legacy and modern serial devices.
Stable, professional RS232 serial connection
Thanks to its USB 2.0 to DB9 RS-232 interface, this adapter lets you connect serial peripherals such as modems, printers, POS terminals, industrial equipment or network devices. In addition, the interchangeable DB9 nuts and screws make it easy to connect to different types of serial connections.
USB 2.0 Type-A male connector
DB9 male serial connector RS-232
Interchangeable DB9 screws and nuts included
30.5 cm cable length
FTDI chipset with COM port retention
The FTDI FT232R chipset provides reliable, stable communication, even in demanding applications. The COM port retention feature allows the system to automatically reassign the same COM port after the device is disconnected or restarted, avoiding repeated configuration.
Chipset FTDI FT232R
Maximum transfer rate of 921.6 Kbps
Automatic COM port retention
Compatible with protocols RS-232
Cross-platform compatibility
This adapter offers broad compatibility with modern and professional operating systems. Automatic driver installation simplifies setup on most platforms.
Compatible with Windows 7, 8/8.1 and Windows 11 ARM
Compatible with Windows Server 2008 R2 up to 2025
Support for macOS 10.9 to mac OS 14
Compatible with Linux LTS 4.15.x and later
Compatible with ChromeOS

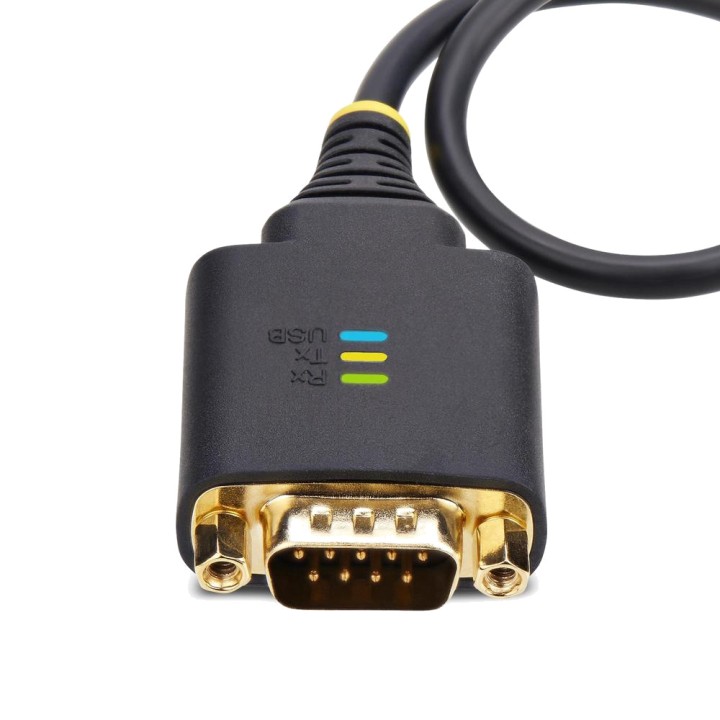

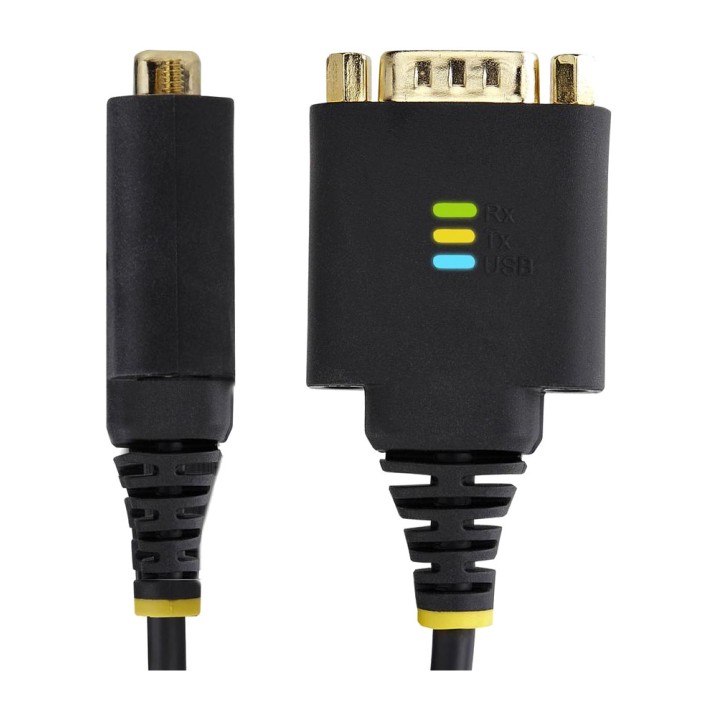

LED indicators for real-time monitoring
The integrated activity LEDs allow you to monitor the connection status and data transfer in real time, making it easier to diagnose and verify the adapter’s operation.
Green LED for data reception
Yellow LED for data transmission
Blue LED for USB connection status
Robust design and advanced protection
Its construction is designed to provide high durability in professional environments. The molded TPE housing and Level 4 ESD protection improve resistance to electrostatic discharge and intensive use.
Level 4 ESD protection: 15kV air / 8kV contact
Copper shielding for greater signal stability
Gold-plated connectors
Operating temperature from -40°C to 80°C
Advanced serial communication configuration
The adapter lets you adjust various communication parameters to suit a wide range of industrial and professional serial devices.
Data bits: 7 and 8
Stop bits: 1 and 2
Parity: Even, Odd, None, Space and Mark
FIFO: 128 bytes RX and 256 bytes TX
Other specifications
COLOUR: BLACK
Weight: 38g
Dimensions: 30,5 x 3,4 x 1,6 cm
USB bus-powered
COMPATIBLE WITH USB 2.0/1.1
Operating humidity: 0% ~ 95% non-condensing
Includes USB to Serial adapter, 2 DB9 screws and quick-start guide
Volume (m ³): 0.0005
The StarTech.com USB to Serial RS232 DB9 adapter is a reliable solution for adding an RS-232 serial port to laptops or desktop computers via an available USB-A port. Designed for professional and industrial environments, this converter features an FTDI FT232R chipset, COM port retention and advanced ESD protection, ensuring a stable connection and compatibility with a wide range of legacy and modern serial devices.
Stable, professional RS232 serial connection
Thanks to its USB 2.0 to DB9 RS-232 interface, this adapter lets you connect serial peripherals such as modems, printers, POS terminals, industrial equipment or network devices. In addition, the interchangeable DB9 nuts and screws make it easy to connect to different types of serial connections.
USB 2.0 Type-A male connector
DB9 male serial connector RS-232
Interchangeable DB9 screws and nuts included
30.5 cm cable length
FTDI chipset with COM port retention
The FTDI FT232R chipset provides reliable, stable communication, even in demanding applications. The COM port retention feature allows the system to automatically reassign the same COM port after the device is disconnected or restarted, avoiding repeated configuration.
Chipset FTDI FT232R
Maximum transfer rate of 921.6 Kbps
Automatic COM port retention
Compatible with protocols RS-232
Cross-platform compatibility
This adapter offers broad compatibility with modern and professional operating systems. Automatic driver installation simplifies setup on most platforms.
Compatible with Windows 7, 8/8.1 and Windows 11 ARM
Compatible with Windows Server 2008 R2 up to 2025
Support for macOS 10.9 to mac OS 14
Compatible with Linux LTS 4.15.x and later
Compatible with ChromeOS
LED indicators for real-time monitoring
The integrated activity LEDs allow you to monitor the connection status and data transfer in real time, making it easier to diagnose and verify the adapter’s operation.
Green LED for data reception
Yellow LED for data transmission
Blue LED for USB connection status
Robust design and advanced protection
Its construction is designed to provide high durability in professional environments. The molded TPE housing and Level 4 ESD protection improve resistance to electrostatic discharge and intensive use.
Level 4 ESD protection: 15kV air / 8kV contact
Copper shielding for greater signal stability
Gold-plated connectors
Operating temperature from -40°C to 80°C
Advanced serial communication configuration
The adapter lets you adjust various communication parameters to suit a wide range of industrial and professional serial devices.
Data bits: 7 and 8
Stop bits: 1 and 2
Parity: Even, Odd, None, Space and Mark
FIFO: 128 bytes RX and 256 bytes TX
Other specifications
COLOUR: BLACK
Weight: 38g
Dimensions: 30,5 x 3,4 x 1,6 cm
USB bus-powered
COMPATIBLE WITH USB 2.0/1.1
Operating humidity: 0% ~ 95% non-condensing
Includes USB to Serial adapter, 2 DB9 screws and quick-start guide
Volume (m ³): 0.0005
- Brand
- STARTECH.COM
- Reference
- DSP0000040070
- Weight
- 0,2 kg
