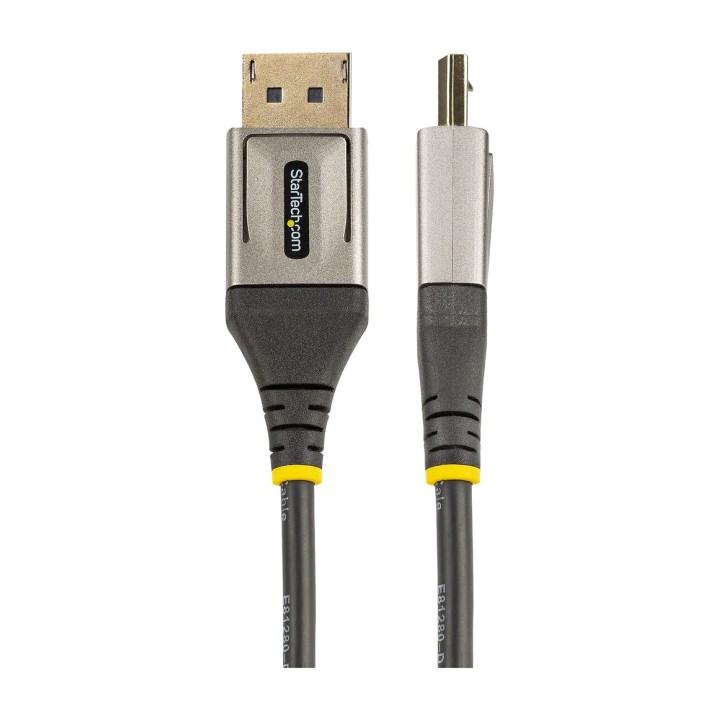

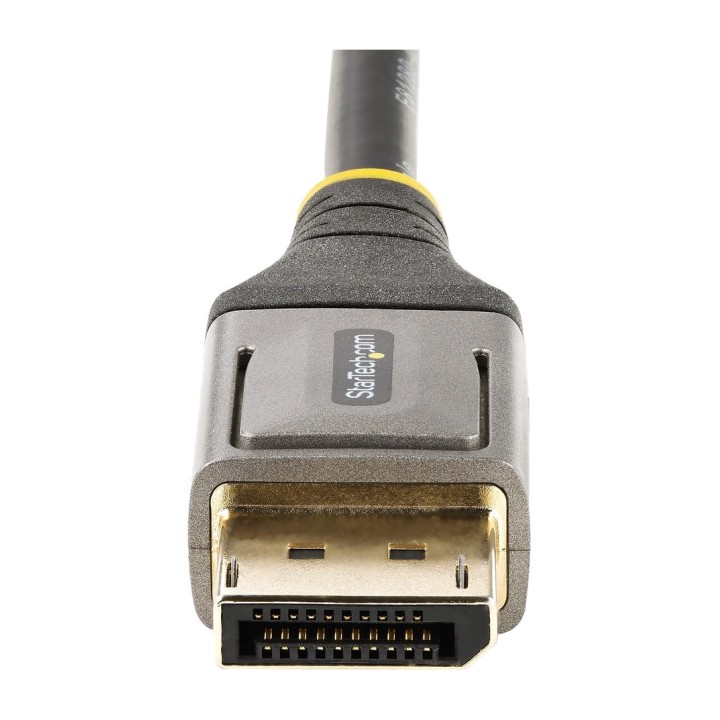

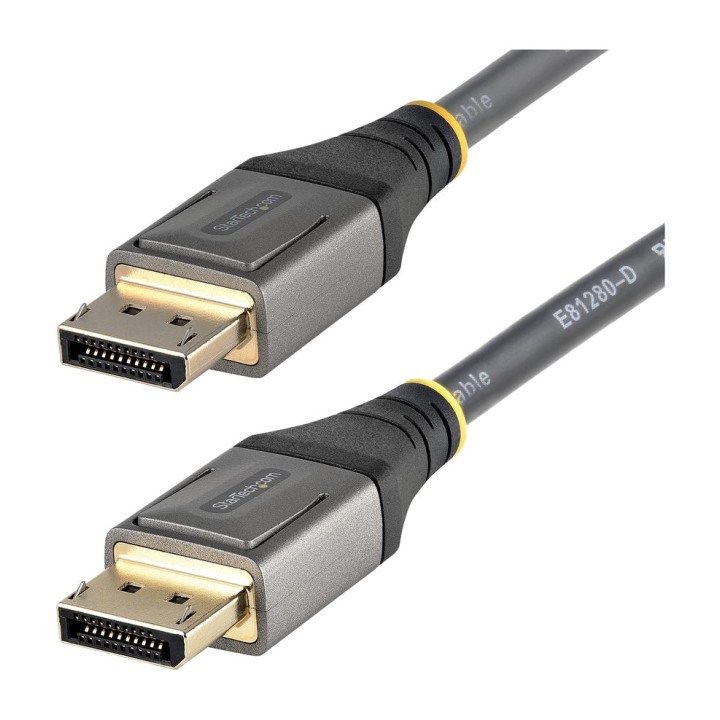

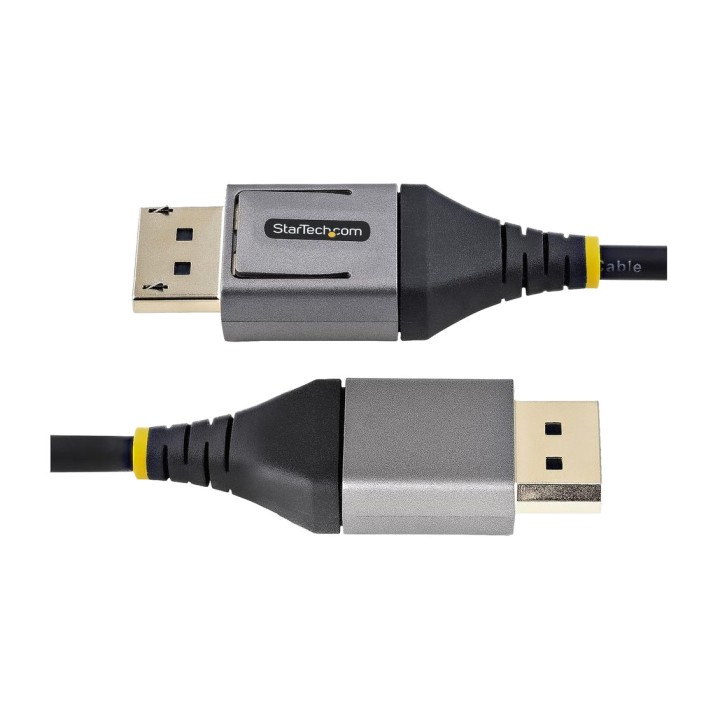

STARTECH.COM VESA-certified DisplayPort 1.4 cable 8K60HZ HDR10 30 CM DP14VMM1F DSP0000040029

Features of the StarTech.com 30cm DisplayPort 1.4 Cable DP14VMM1F
The StarTech.com DP14VMM1F DisplayPort 1.4 cable is designed to deliver high-performance video connectivity with maximum reliability between computers, workstations, docking stations and ultra-high-definition monitors. Supporting resolutions up to 8K at 60Hz and 4K at 120Hz, this cable is ideal for professional setups, advanced gaming and audiovisual environments that require stable, high-quality transmission.
Supports high-frequency 8K and 4K resolutions
Thanks to the DisplayPort 1.4 HBR3 standard, this cable provides bandwidth of up to 32.4 Gbps, allowing you to enjoy UHD content with excellent smoothness and detail. It also supports advanced technologies such as HDR10, DSC 1.2 and MST for multi-monitor setups.

Maximum resolution of 8K 60Hz (7680 x 4320)
Supports 4K 120Hz and HDR10
HBR3 bandwidth of up to 32.4 Gbps
4:4:4 chroma subsampling and HDCP 2.2
Supports MST for daisy-chaining monitors

Durable construction designed for intensive use
The cable features a flexible, durable TPE jacket designed to withstand frequent bending without compromising signal integrity. In addition, its latching, gold-plated connectors ensure a secure and stable connection during everyday use.

Tested for more than 5000 insertions
Withstands more than 300 bending cycles at 120°
Gold-plated connectors with locking system
Non-toxic, RoHS-certified TPE jacket
Integrated strain relief for greater durability

Advanced shielding for reliable transmission
Its internal structure features high-quality EMI shielding with aluminium-Mylar foil and braided mesh, reducing interference and preventing signal degradation even in environments with high electronic density.

Al-Mylar shielding with braided coverage of 85%
Metal substructure to improve signal integrity
Forward Error Correction (FEC)
Uncompressed digital audio with up to 32 channels
Compatible with 7.1 audio and 5.1

Ideal for professional equipment and advanced setups
This DisplayPort cable is an excellent choice for users working with UHD monitors, graphics workstations, high-performance GPU cards or multi-monitor setups. Its compact 30 cm format makes neat installations and short-distance connections easy.

Cable length: 0.3 metres
Compatible with DP monitors, TVs and projectors
Ideal for docking stations and AV stations
Backward compatible with DisplayPort 1.2 and earlier
20-pin male-to-male DisplayPort connection

Other specifications

COLOUR: BLACK
Conductor gauge : 34 AWG
Cable outer diameter: 4,5 mm
Number of conductors: 19
Adapter type: Passive
Product weight: 38 g
Operating temperature: 0°C to 50°C
Operating humidity : 0% ~ 85%
limited lifetime warranty
Volume (m ³): 0.0003
