GIGABYTE Micro ATX motherboard for AMD B850M FORCE WIFI6E AM5 DSP0000042009

Features of the GIGABYTE B850M FORCE WIFI6E (Rev. 1.0) motherboard

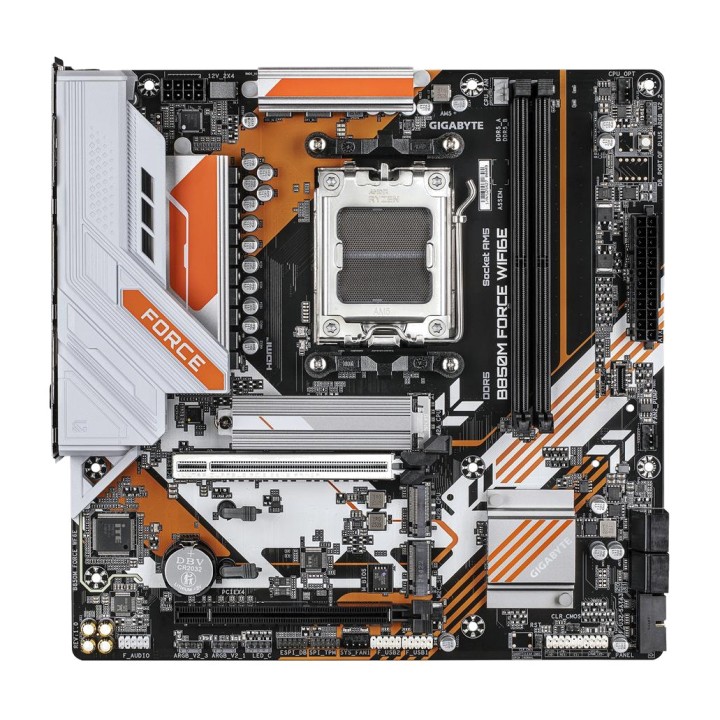

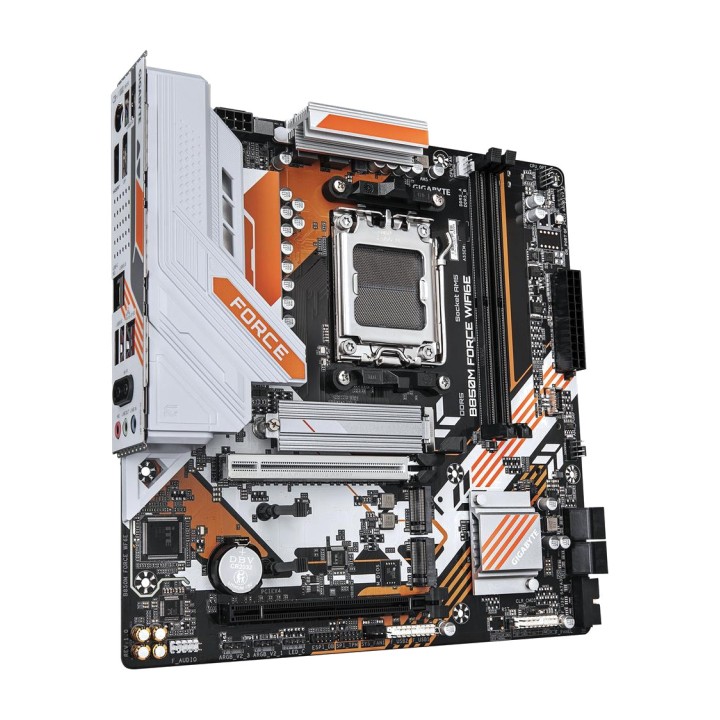

The GIGABYTE B850M FORCE WIFI6E (Rev. 1.0) is a Micro ATX motherboard designed to get the most out of AMD Ryzen™ 9000, 8000 and 7000 Series processors with the AM5 socket. Equipped with the AMD B850 chipset, it offers support for high-speed DDR5 memory, next-generation connectivity, ultra-fast PCIe 5.0 storage and a comprehensive selection of ports, making it an excellent foundation for gaming, content creation or advanced productivity systems.
Compatible with AMD Ryzen processors AM5
Thanks to the AM5 socket and AMD B850 chipset, this motherboard supports the latest generations of AMD Ryzen processors, providing a platform ready for high-performance configurations and future upgrades.

Socket AMD AM5.
Compatible with AMD Ryzen™ 9000, 8000 series and 7000.
Chipset AMD B850.

High-performance DDR5 memory
Support for DDR5 memory and AMD EXPO™ and XMP profiles enables very high frequencies to maximize system performance in games and demanding applications.

2 DDR5 DIMM slots with a maximum capacity of 128 GB.
Support for speeds of up to DDR5-9600 (OC).
Dual Channel architecture compatible with AMD EXPO™ and XMP.

Ready for next-generation graphics cards and PCIe SSDs
Its primary PCIe 5.0 x16 slot lets you install high-performance graphics cards, while M.2 connectivity supports the latest-generation NVMe SSDs.

1 PCI Express x16 PCIe 5.0 slot (depending on processor).
1 PCI Express x16 PCIe slot 4.0 x4.
3 M.2 connectors for NVMe SSDs.
Up to PCIe 5.0 x4 for compatible M.2 drives.
4 SATA 6 Gb/s ports.
Support for RAID 0, 1, 5 and 10 for NVMe SSDs (RAID 5 available with Ryzen™ 9000) and RAID 0, 1 and 10 for SATA.

High-speed network connectivity
It features a 2.5 Gigabit Ethernet wired connection, along with Wi-Fi 6E wireless connectivity and Bluetooth 5.3 for fast, stable connections.

Realtek® 2.5GbE LAN controller.
MediaTek Wi-Fi 6E MT7902.
Support for 2.4 GHz, 5 GHz and 6 GHz bands.
Bluetooth 5.3.
Compatible with the IEEE 802.11ax standard at 160 MHz.

Video output for processors with integrated graphics
AMD Ryzen processors with integrated graphics can make use of the high-resolution video connections for modern monitors.

1 HDMI 2.1 port with a maximum resolution of 4096 x 2160 at 60 Hz.
Compatible with HDR and HDCP 2.3.
1 DisplayPort 1.4 with a resolution of up to 3840 x 2160 at 144 Hz.

Extensive USB connectivity and internal connections
Features a comprehensive selection of USB ports and internal connectors to facilitate the assembly of modern systems and the connection of peripherals.

Rear USB Type-C® USB 3.2 Gen 1.
Internal USB Type-C® USB 3.2 Gen 1.
USB 3.2 Gen 2 Type-A.
USB 3.2 Gen 1 and USB 2.0 on both the rear panel and via internal headers.
24-pin ATX connector and 8-pin CPU power connector.
Connectors for fans, liquid-cooling pump, RGB lighting and Addressable RGB Gen 2.
Integrated Q-Flash Plus button.

High-definition audio and system monitoring
The Realtek® HD Audio codec provides multichannel sound, while the monitoring functions let you check system status and cooling.

Realtek® HD Audio with 2/4/5.1/7.1 channels.
Voltage and temperature monitoring.
Fan speed control.
Liquid cooling system flow rate detection.
Fan failure alert.

Advanced GIGABYTE features
Includes various proprietary GIGABYTE tools to facilitate system updates and motherboard management.

Compatible with GIGABYTE Control Center (GCC).
Q-Flash.
Q-Flash Plus.
Smart Backup.
256 Mbit AMI UEFI BIOS.

Other specifications

Micro ATX form factor.
Dimensions: 24,4 x 24,4 cm.
Compatible with 64-bit Windows 11.
Compatible with 64-bit Windows 10.
iTE® I/O controller.
Included software: Norton® Internet Security (OEM version).

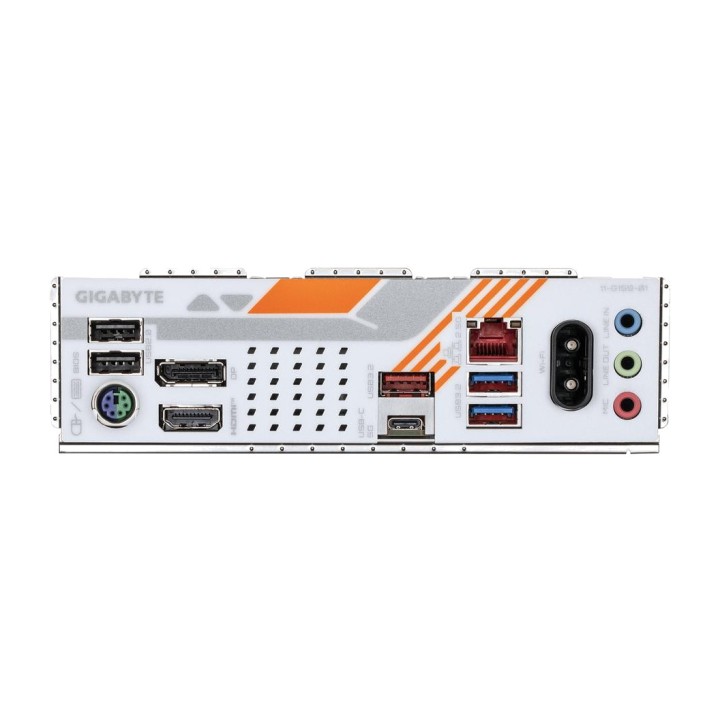

Rear panel with HDMI, DisplayPort, PS/2, USB Type-C®, USB 3.2 Gen 2, USB 3.2 Gen 1, USB 2.0, RJ-45, Wi-Fi antenna connectors and three audio connectors.
Volume (m ³): 0.0091
