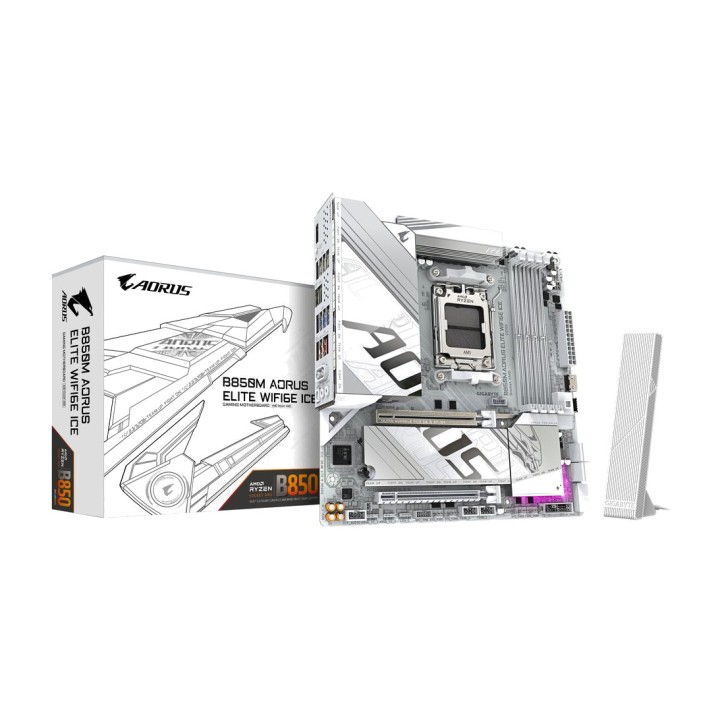

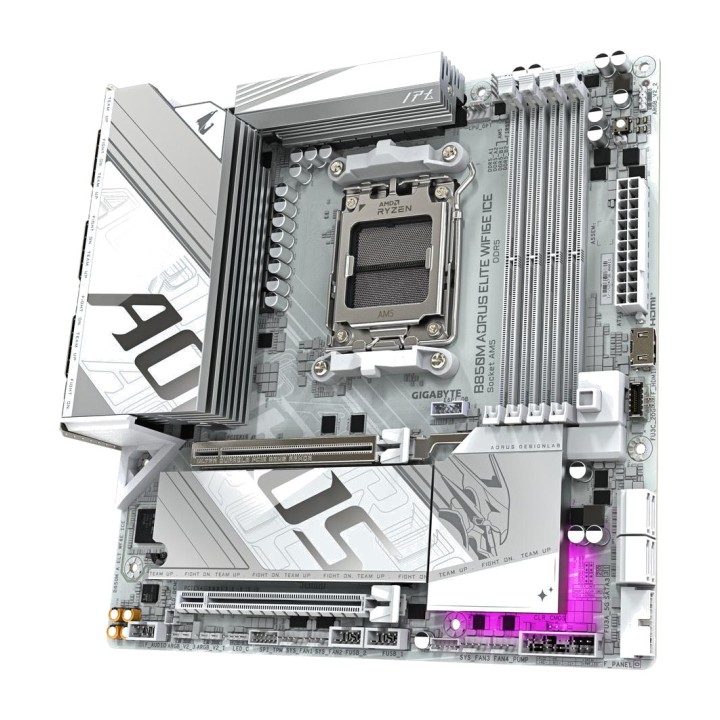

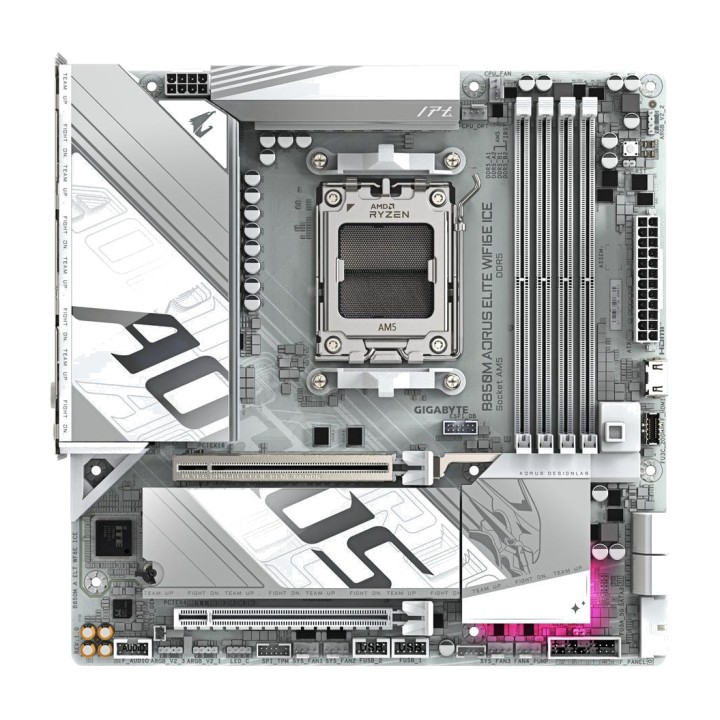

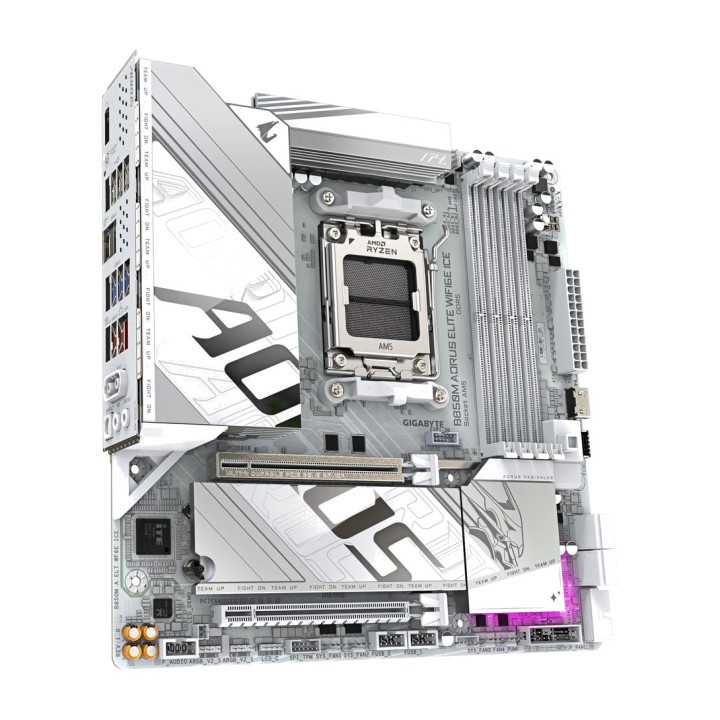

GIGABYTE Micro ATX motherboard for AMD B850M AORUS ELITE WIFI6E ICE AM5 DSP0000041919

Features of the GIGABYTE B850M AORUS ELITE WIFI6E ICE
The GIGABYTE B850M AORUS ELITE WIFI6E ICE is a Micro ATX motherboard designed to get the most out of AMD Ryzen™ Series 9000, 8000 and 7000 processors with the AM5 socket. Equipped with the AMD B850 chipset, it offers an excellent combination of performance, connectivity and expandability for gaming PCs, workstations and high-performance computers. Its compatibility with DDR5 memory up to 8200 MT/s (OC), PCIe 5.0 storage and high-speed connectivity make it a platform ready for the most demanding configurations.
Ready for the new generation of AMD processors
Compatible with the latest AMD platforms, this motherboard features a 12+2+1-phase digital VRM to provide stable power even under intensive loads. It also lets you make the most of memory overclocking technologies thanks to support for AMD EXPO™ and XMP profiles.

AM5 socket compatible with AMD Ryzen™ 9000, 8000 and 7000.
Chipset AMD B850.
12+2+1-phase digital VRM.
Compatible with AMD EXPO™ and XMP.

High-performance DDR5 memory
It has four DDR5 slots supporting up to 256 GB of memory in a Dual Channel configuration. It also supports speeds of up to 8200 MT/s through overclocking, providing ideal bandwidth for demanding applications and the latest games.

4 slots DDR5 DIMM.
Up to 256 GB total capacity.
Speeds of up to 8200 MT/s (OC).
Dual Channel architecture.

PCIe 5.0 storage and expansion options
The motherboard features two M.2 connectors, one of which supports PCIe 5.0 x4 for next-generation SSDs, as well as four SATA 6 Gb/s ports to expand storage capacity. It also offers a PCIe x16 slot ready for high-performance graphics cards.

1 M.2 PCIe connector 5.0 x4.
1 M.2 PCIe connector 4.0.
4 SATA 6 Gb/s ports.
1 PCIe 5.0 x16 slot and 1 PCIe slot 3.0 x4.
RAID support for NVMe and SATA drives.

Fast connectivity for networks and peripherals

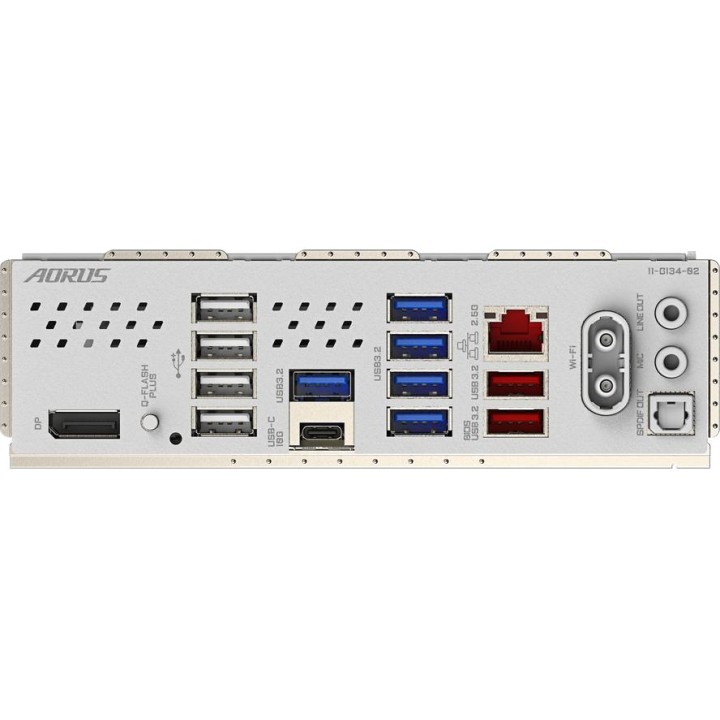

Thanks to its comprehensive connectivity, this motherboard lets you enjoy 2.5 GbE wired networking, Wi-Fi 6E wireless connectivity and Bluetooth 5.3. It also features high-speed USB ports, including USB Type-C® with USB 3.2 Gen 2 support and an internal USB 3.2 Gen 2x2 header.

Realtek® 2.5GbE LAN.
Tri-band Wi-Fi 6E (2.4 / 5 / 6 GHz).
Bluetooth 5.3.
Rear USB Type-C® USB 3.2 Gen 2.
USB Type-C® USB 3.2 Gen header 2x2.
Multiple USB 3.2 Gen 1, Gen 2 and USB 2.0.

High-definition audio and video outputs
It features high-definition audio with a Realtek® codec, supporting configurations of up to 7.1 channels and optical S/PDIF output. For AMD processors with integrated graphics, it offers DisplayPort 1.4 output with HDR support and a front HDMI connection.

HD audio with up to 7.1 channels.
S/PDIF optical output.
DisplayPort 1.4 up to 3840x2160 at 144 Hz.
Front HDMI port compatible with CPU.

Cooling, control and smart features
The GIGABYTE B850M AORUS ELITE WIFI6E ICE features numerous options for keeping the system under control, with connectors for fans and liquid-cooling pumps, advanced hardware monitoring and exclusive tools such as Q-Flash Plus for updating the BIOS without installing a processor.

Connectors for fans and cooling pumps.
Monitoring of temperature, voltage, flow rate and speed.
Q-Flash Plus button on the rear panel.
Compatible with GIGABYTE Control Center.
256 Mbit AMI UEFI BIOS.

Other specifications

Micro ATX form factor, 24.4 x 24.4 cm.
1 24-pin ATX connector and 1 8-pin ATX 12V connector.
3 ARGB Gen2 connectors and 1 RGB connector.
1 TPM header.
Reset button, Reset jumper and Clear CMOS.
Compatible with 64-bit Windows 11 and 64-bit Windows 10.
Included software: Norton® Internet Security (OEM) and LAN bandwidth management utility.
Volume (m ³): 0.0091
