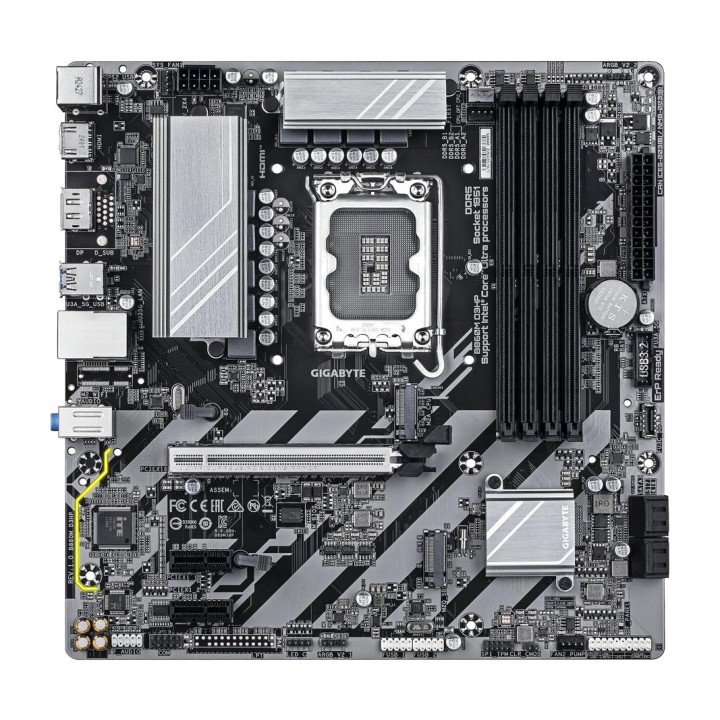

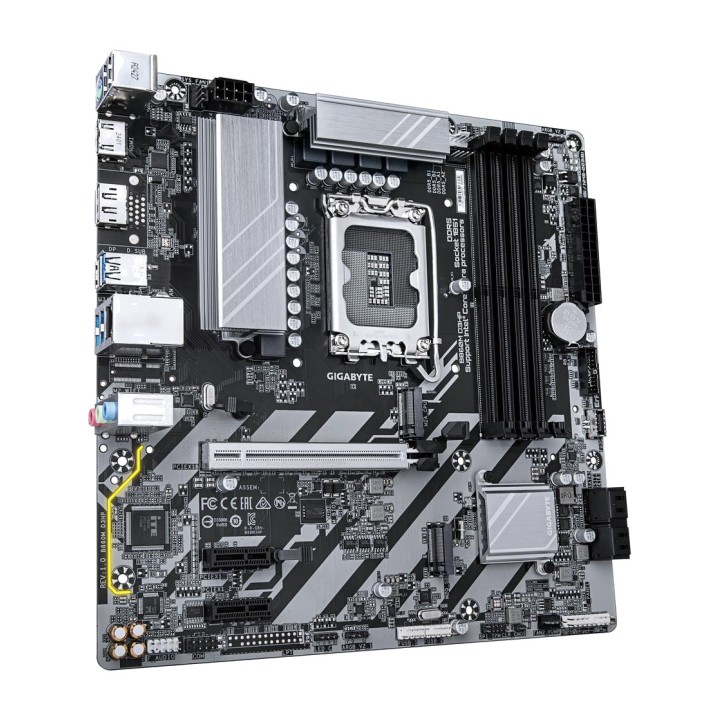

GIGABYTE Micro ATX motherboard for Intel B860M D3HP LGA1851 DSP0000029151

- FEEDING PHASES
Hybrid phases 4+1+2+1 50A PPAK VRM

- MEMORY
Memory channels: Dual channel
Compatibility ECC: ECC and non-ECC
Maximum internal memory : 256 GB
Maximum internal memory per slot : 64 GB
Number of memory slots : 4
Memory slot type: DIMM
Maximum memory clock speed supported: 9066 MHz
Supported clock speeds: 5600, 6400, 9066 MHz
compatible memory types: DDR5-SDRAM

- PROCESSOR
Manufacturer: Intel
Compatible processors: Intel Core Ultra (Series 1 and 2)
Processor socket: LGA 1851 (Socket V1)

- EXPANSION SLOTS
PCIe 5.0 x16 slot with UD PCIE slot and EZ-Latch
PCI Express x16 slots (Gen 5.x): 1
PCI Express x1 slots (Gen 3.x): 2
Slots M.2 (M): 2
1st M.2: PCIe 4.0, maximum size 2280
2nd M.2: PCIe 4.0, maximum size 2280

- STORAGE
Supported interfaces : M.2, SATA III
Supported unit types: HDD & SSD
Number of compatible storage drives : 6
Number of supported HDDs : 4
RAID compatibility: Yes
Levels RAID: 0, 1, 5, 10

- CONNECTIVITY
1GbE LAN (Realtek RTL8111H)

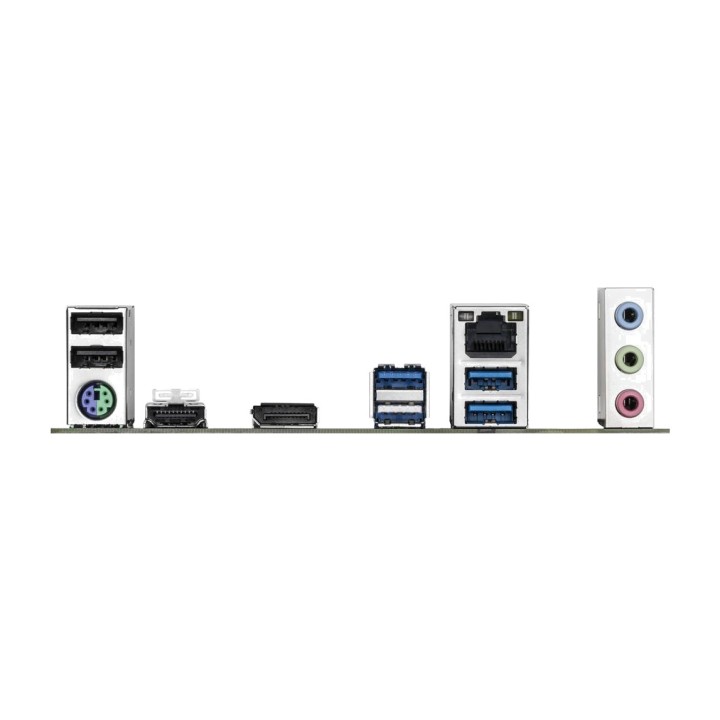

- REAR PANEL PORTS
USB 3.2 Gen 1 Type -C: 1
USB 3.2 Gen 1 Type -A: 3
USB 2.0: 3
Ethernet port LAN (RJ-45): 1
DisplayPort 2.1: 1
HDMI 2.1: 1
Headphone output : 1
Line entry: Yes
Port PS/2: 1

- INTERNAL PORTS
USB 3.2 Gen 1 (3.1 Gen 1): 2
USB 3.2 Gen 2 (3.1 Gen 2): 0
USB 2.0: 2
ATX power connector (24 pins): Yes
EPS power connector (8-pin) : 1
Fan connectors CPU: 2
Chassis fan connectors : 2
Water pump connectors : 2
connectors RGB LED: 3
TPM Connector: Yes

- AUDIO
Sound chip: Realtek ALC897
Audio output channels: 7.1

- BIOS
BIOS Type: UEFI AMI
Memory size BIOS: 256 MB
ACPI version: 5.0
SMBIOS version: 2.7
Jumper Clear CMOS: Yes

- SYSTEM MONITORING
Temperature sensors, voltage sensors, fan and liquid cooling

- DIMENSIONS AND WEIGHT
Form factor: micro ATX
Dimensions: 244 mm x 244 mm x 35 mm
Weight: 1.1 kg

- COMPATIBILITY
Supported operating system: Windows 10 x64, Windows 11 x64

- PACKAGE CONTENT
Screws included: Yes
Batteries included: Yes (CR2032, Lithium-Manganese Dioxide)
Software included: Norton Internet Security (OEM)

- WARRANTY
Warranty period: 3 years
Volume (m ³): 0.0044
