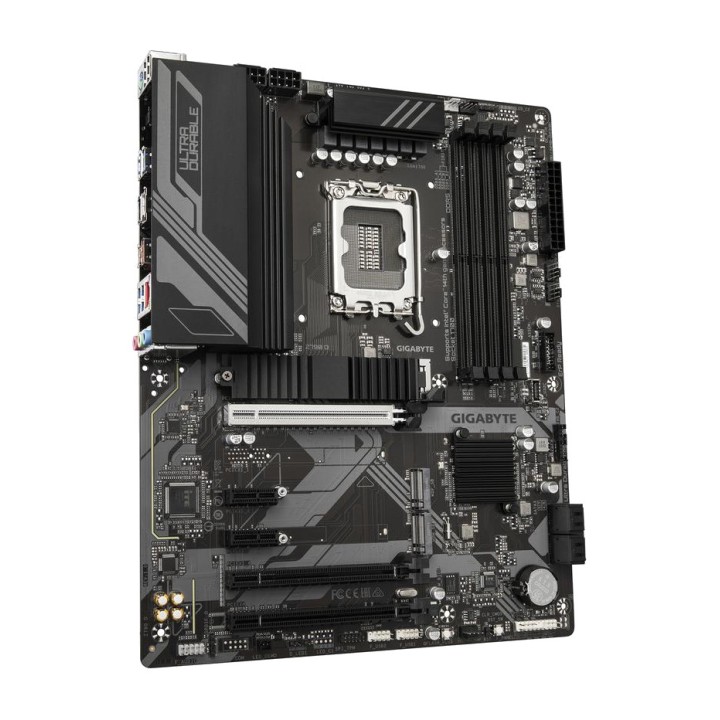

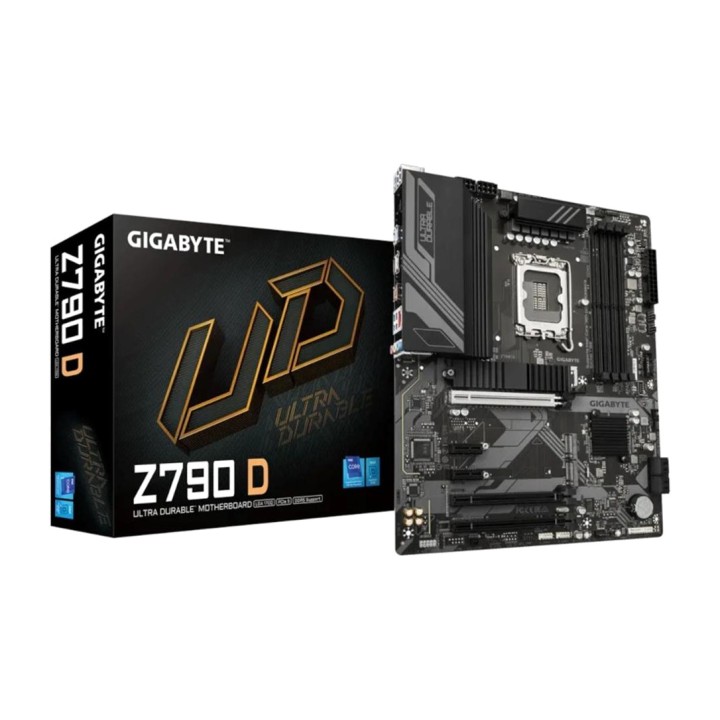

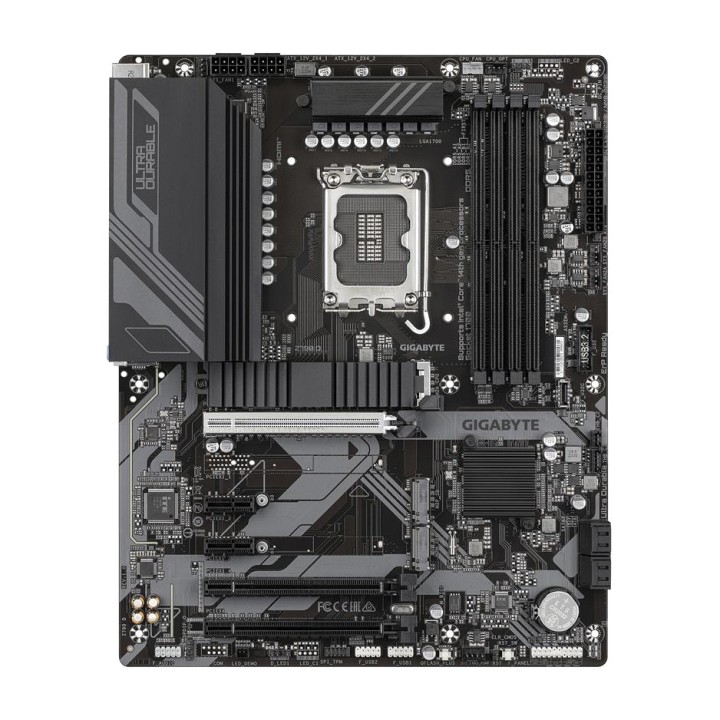

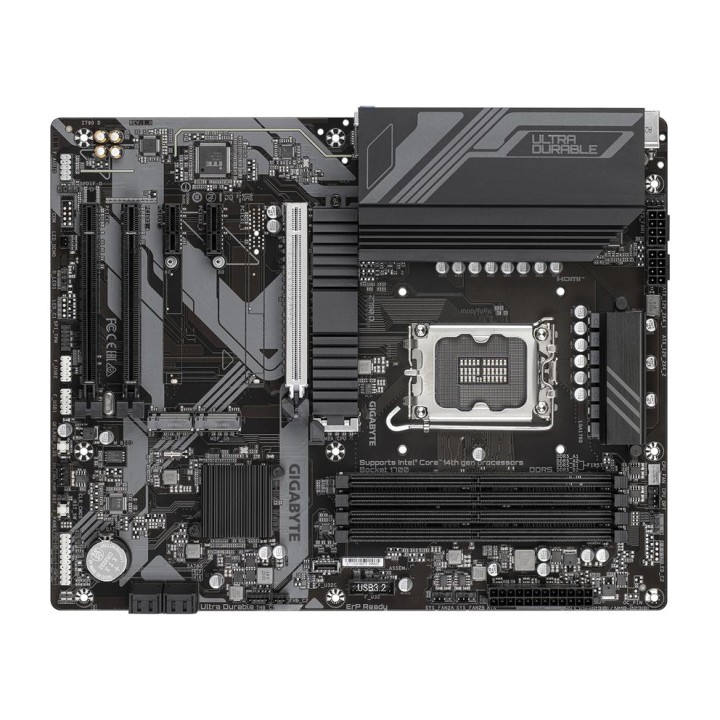

GIGABYTE ATX motherboard for Intel Z790 D LGA1700 DSP0000028870
DeliveryUpdating delivery estimate…Order within the next — to receive it approximately Updating delivery estimate…
Updating delivery estimate…
Cuándo es más probable que llegue
Calculado con 0 entregas recientes
Fechas estimadas para España peninsular; se ajustarán con tu código postal y forma de entrega.
The date corresponds to the item with the longest delivery time
IVA intracomunitario
La exención intracomunitaria puede aplicarse a una entrega a otro Estado miembro si el NIF-IVA es válido y el destino cumple los requisitos. La comprobación por sí sola no determina el tratamiento fiscal.
Cómo se comprueba el IVA¿Eres profesional del sector?
Puedes solicitar una cuenta profesional e indicar los datos de tu actividad. La solicitud queda pendiente de revisión; puedes consultar su estado en tu cuenta.
Más información sobre cuentas profesionalesCanarias, Ceuta y Melilla sin IVA español
El tratamiento depende del destino de entrega y de la coherencia de la dirección. Pueden corresponder IGIC, IPSI, aranceles u otros cargos locales.
Más información sobre destinos e impuestosBrand: GIGABYTE
MODEL : Z790 D
PLATFORM
Form factor: ATX (30.5 cm x 24.4 cm)
Chipset: Intel Z790 Express Chipset
CPUs
Socket: LGA1700
Compatibility: 14th, 13th and 12th generation Intel Core, Pentium Gold and Celeron processors
L3 cache: Varies by CPU
MEMORY
14th- and 13th-generation Intel Core i9/i7 processors: Support for DDR5 up to 7600 MT/s (OC)
13th- and 12th-generation Intel Core i5/i3 processors: Support for DDR5 up to 4800 MT/s
Sockets: 4 x DDR5, up to 256 GB
Architecture: Dual channel
Compatibility:
Unbuffered ECC modules (operate in non-ECC mode)
Extreme Memory Profile (XMP) modules
Expansion slots
CPU:
1 x PCIe x16 (PCIe 5.0, operating at x16)
Chipset:
1 x PCIe x16 (PCIe 4.0, operating at x4)
1 x PCIe x16 (PCIe 3.0, operating at x1)
2 x PCIe x1 (PCIe 3.0)
Graphics
Intel HD integrated graphics:
1 x HDMI (maximum resolution 4096x2160@60 Hz , HDMI 2.1, HDCP 2.3)
1 x DisplayPort (maximum resolution 4096x2304@60 Hz, DisplayPort 1.2, HDCP 2.3)
Storage
connectors M.2:
1 x M.2 (PCIe 4.0 x4/x2, type 22110/2280)
2 x M.2 (PCIe 4.0 x4/x2, type 2280, one of which is SATA)
SATA connectors: 4 x 6 Gb/s SATA
RAID: Support for RAID 0, 1, 5 and 10 for NVMe and SATA SSDs
Audio
Audio codec: Realtek HD
Channels: 2/4/5.1/7.1
S/PDIF support
GRID
LAN: Realtek 2.5GbE
USB
Rear panel:
1 x USB Type-C (USB 3.2 Gen 2)
1 x USB 3.2 Gen 2 Type-A
4 x USB 3.2 Gen 1
2 x USB 2.0/1.1
Internal:
1 x USB Type-C (USB 3.2 Gen 1)
1 x USB 3.2 Gen 1
2 x headers USB 2.0/1.1
Internal connectors
1 x 24-pin ATX connector
2 x 8-pin ATX 12V connectors
1 x CPU fan header
1 x CPU fan/liquid cooling pump header
3 x system fan headers
1 x system fan/liquid cooling pump header
2 x addressable LED headers
1 x USB Type-C header
3 x connectors M.2
4 x SATA connectors

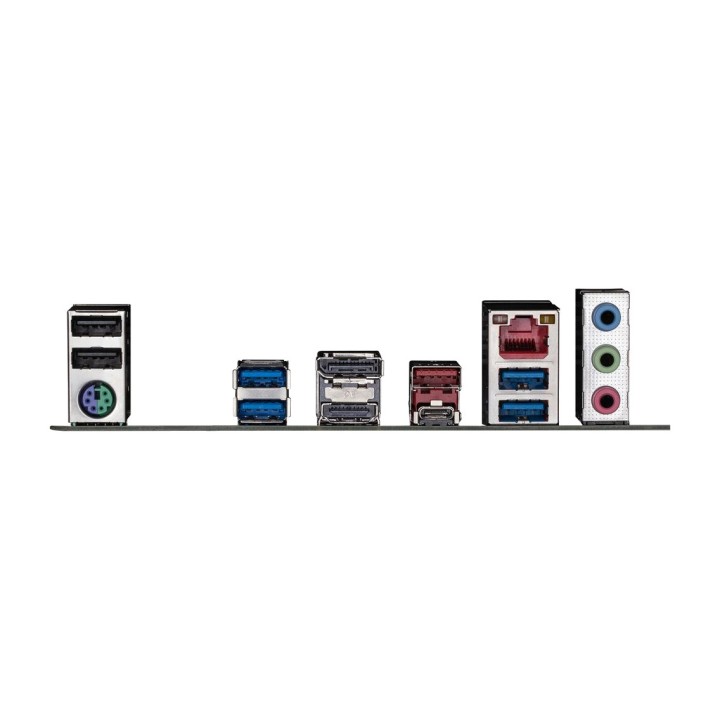

Back panel
1 x PS/2 keyboard/mouse
1 x USB Type-C (USB 3.2 Gen 2)
1 x HDMI
1 x DisplayPort
1 x RJ-45
3 x audio connectors
DIMENSIONS AND OPERATING SYSTEM
Dimensions: ATX (30.5 cm x 24.4 cm)
Compatibility: 64-bit Windows 11/10
Volume (m ³): 0.0073
- Brand
- GIGABYTE
- Reference
- DSP0000028870
- EAN-13
- 4719331861186
- Weight
- 1,563 kg
