ASROCK ATX motherboard X870 PRO RS AM5 DSP0000035063

Features of the ASRock X870 Pro RS ATX Motherboard for Socket AM5

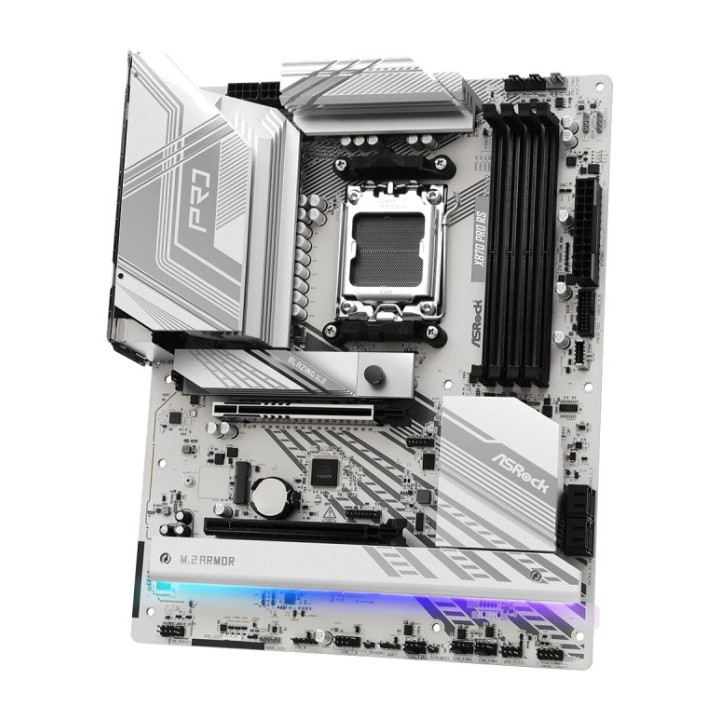

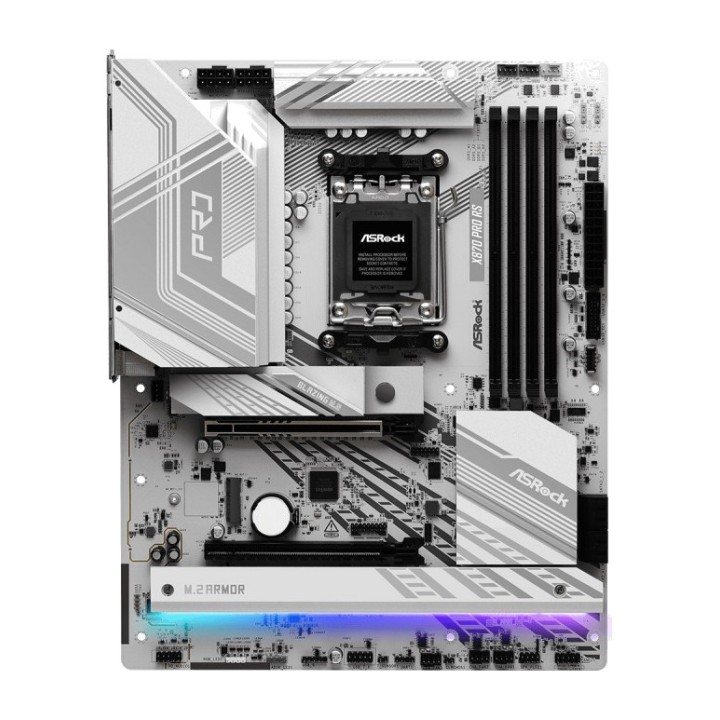

The **ASRock X870 Pro RS** is an advanced ATX motherboard designed for users seeking **maximum performance in the latest-generation AMD configurations**. Compatible with AMD Ryzen 7000, 8000 and 9000 Series processors, it features the powerful **AMD X870** chipset and is designed for high-end systems, whether for gaming, content creation or workstations. It offers a **robust structure, extensive expandability** and modern connectivity to meet today's demands.
Compatibility and power for the future
With support for **AMD Socket AM5** processors, this motherboard is ideal for anyone looking to build a system based on the latest platforms. It also supports **DDR5 memory up to 8000 MHz** and up to **256 GB** in dual-channel configurations, ensuring responsive performance in demanding tasks.

AM5 socket compatible with Ryzen 7000, 8000 and 9000 Series
4 DDR5-SDRAM slots (up to 256 GB)
Maximum memory speed: 8000 MHz

Ultra-fast connectivity and versatile storage
Features next-generation connectivity options, including support for **PCIe 5.0**, **high-speed M.2** and up to **7 storage devices** across SSDs and HDDs. It also supports **RAID 0, 1 and 10**, making it ideal for professional setups.

3 M.2 slots (PCIe Gen 5.0, 4.0 and 3.0)
4 SATA III ports
Storage interfaces: PCIe 3.0, 4.0, 5.0 and SATA III
SUPPORT RAID 0/1/10

Integrated graphics, audio and networking
Includes an HDMI 2.1 output supporting resolutions of up to **7680 x 4320 pixels**, ideal for users who make use of integrated graphics. Audio is handled by the **Realtek ALC1220** chip, delivering an immersive **7.1-channel** sound experience, while network connectivity is provided by a **Dragon RTL8125BG 2.5 GbE LAN chip** for fast, stable transfers.

HDMI 2.1 (1 output)
Maximum resolution: 8K (7680 x 4320 pixels)
7.1-channel Realtek ALC1220 audio
2.5 Gigabit LAN with Dragon controller RTL8125BG

Design, cooling and expandability
The ASRock X870 Pro RS is not only powerful, but also designed to provide **effective thermal management** and extensive customisation options. It includes multiple fan connectors, addressable RGB headers and support for LED strips. Its **white ATX** form factor adds a modern touch, ideal for building systems with a side window.

Form factor: ATX (305 x 244 mm)
2 EPS 8-pin connectors + 1 ATX 24-pin connector
2 CPU fan connectors + 4 chassis fan connectors + 1 water pump connector
5 RGB LED headers (ARGB and RGB)
1 integrated temperature sensor

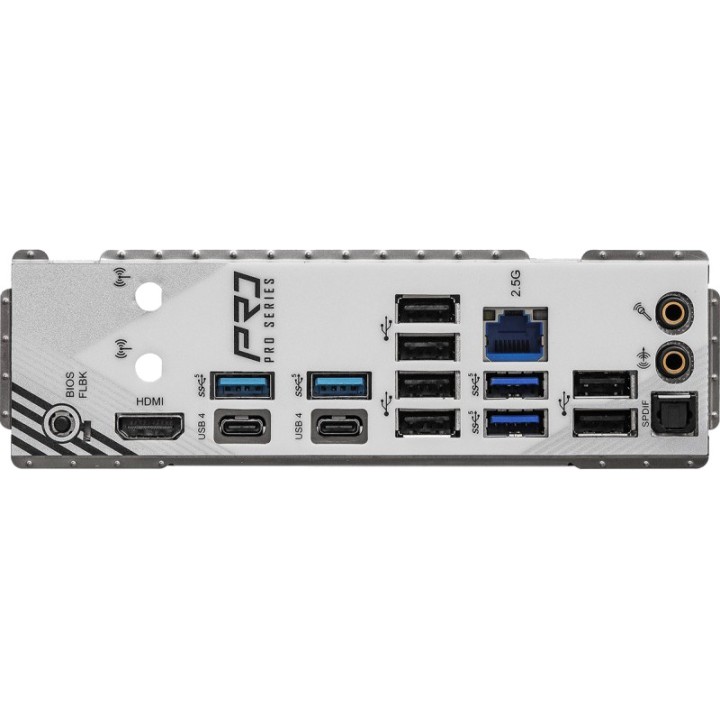

USB connectivity and external ports
It offers a wide range of USB connections, including **USB 3.2 Gen 2x2**, and up to **13 USB ports** in total. This makes it easy to connect high-performance peripherals, external storage and accessories without compromising speed or stability.

1 x USB 3.2 Gen 2x2
4 x USB 3.2 Gen 1 Type-A
2 x USB 4 Gen 2x2
6 x USB 2.0
2 internal connectors USB 2.0

Reliability, BIOS and operating system
The 256 MB AMI UEFI BIOS ensures a robust system that is easy to update and configure. It also has **FCC and CE10ErPEuP certifications** and is fully compatible with **Windows 10 and 11 (64-bit)**.

256 MB AMI UEFI BIOS
Certifications: FCC, CE10ErPEuP
Supported systems: Windows 10 x64 and Windows 11 x64

Other specifications

Compatible with ECC and non-ECC memory
Compatible with AMD CrossFire parallel processing
Unbuffered memory
S/PDIF digital optical audio output
Supports memory types: DDR5-SDRAM
Available colours: White
No integrated Wi-Fi connectivity
Volume (m ³): 0.0091
