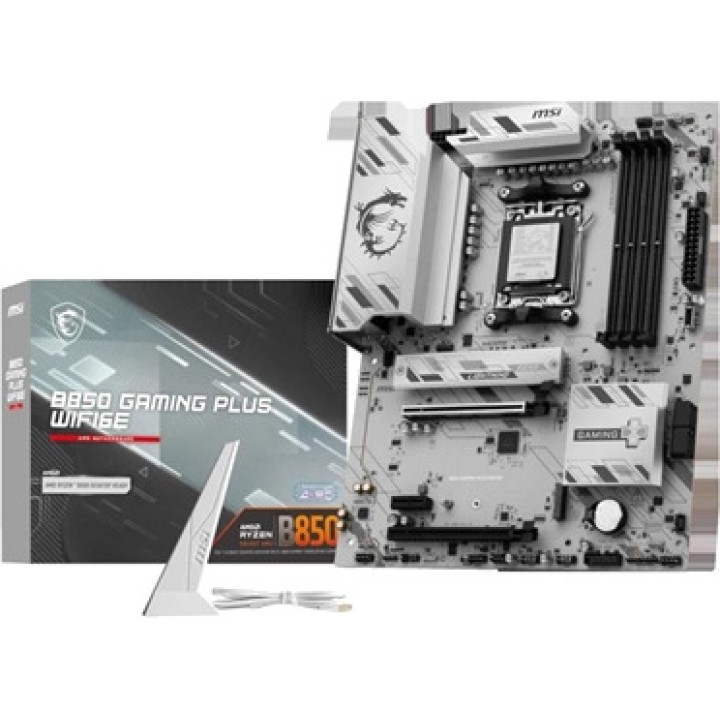

MSI ATX motherboard B850-GAMING PLUS WIFI6E AM5 DSP0000033156

Features of the MSI B850 GAMING PLUS WIFI6E ATX AM5
The **MSI B850 GAMING PLUS WIFI6E** is an **ATX** motherboard designed for those looking to build a high-performance PC with **latest-generation AMD Ryzen processors**. Equipped with the **AMD B850** chipset, support for **DDR5 memory up to 8200+ MT/s (OC)** and advanced connectivity, it is an ideal choice for **demanding gamers and content creators** who need speed, stability and expandability.
Full compatibility with Ryzen 9000, 8000 and 7000
Thanks to its **AM5** socket, this motherboard is ready to unleash the full potential of **AMD Ryzen desktop processors**, from the 7000 series to the new 9000 series. This ensures a scalable, long-lasting platform for demanding tasks such as AAA gaming, video editing or 3D design.

Support for AMD Ryzen series CPUs 9000/8000/7000
AMD B850 chipset with advanced features
Robust design for sustained high performance

Extreme memory performance with DDR5
The MSI B850 GAMING PLUS is equipped with **four DDR5 DIMM slots** that support speeds of **up to 8200+ MT/s with overclocking**, delivering an ultra-fast response in games, multitasking workloads and professional applications.

Compatible with dual-channel DDR5 memory
Extreme speeds: 8200+ MT/s (OC)
Up to 4 DIMM modules for expansion

Ultra-fast M.2 Gen5 and Gen4 storage
With support for the latest-generation M.2 drives, this motherboard enables fast loading and transfers. The **M.2 Gen5 x4** slot reaches up to **128 Gbps**, ideal for operating systems or demanding games. It also includes an **M.2 Gen4 x4** slot and four SATA ports.

1 x M.2 Gen5 x4 at 128 Gbps
1 x M.2 Gen4 x4 at 64 Gbps
4 x SATA 6 Gbps ports

Next-generation connectivity: Wi-Fi 6E, 2.5G LAN and more
Designed for connected environments, it integrates **Wi-Fi 6E** for faster, more stable wireless networks, together with a **Realtek 2.5G LAN** network card for high-speed wired connections. It also includes **Bluetooth 5.3** for modern peripherals and a comprehensive range of USB ports.

Integrated Wi-Fi 6E + Bluetooth 5.3
2.5G LAN for lag-free online gaming
USB 10 Gbps Type-A and Type-C

Gaming-oriented design and easy maintenance
Includes features designed for gaming environments and enthusiast users: physical **Flash BIOS and Clear CMOS** buttons, **HDMI 2.1 and DisplayPort 1.4** outputs, and reinforced HD audio connectors for an immersive sound experience.

BIOS Flash Button for quick updates
Clear CMOS button
7.1 HD audio with dedicated amplification

Extensive PCIe expansion options
With three PCIe slots, this motherboard offers versatility for graphics cards, capture cards or other devices. The main **PCIe 4.0 x16** slot lets you install high-performance graphics cards with the bandwidth needed for gaming or work without bottlenecks.

1 x PCIe 4.0 x16 for GPU
1 x PCIe 4.0 x4
1 x PCIe 3.0 x1

Other specifications

ATX form factor
MODEL: 911-7E80-001
Video outputs: HDMI 2.1 and DisplayPort 1.4 (requires a processor with integrated graphics)
Up to 15 USB ports in total (USB 10 Gbps, 5 Gbps and 2.0)
HD audio connectors for configuration 7.1
Volume (m ³): 0.0064
