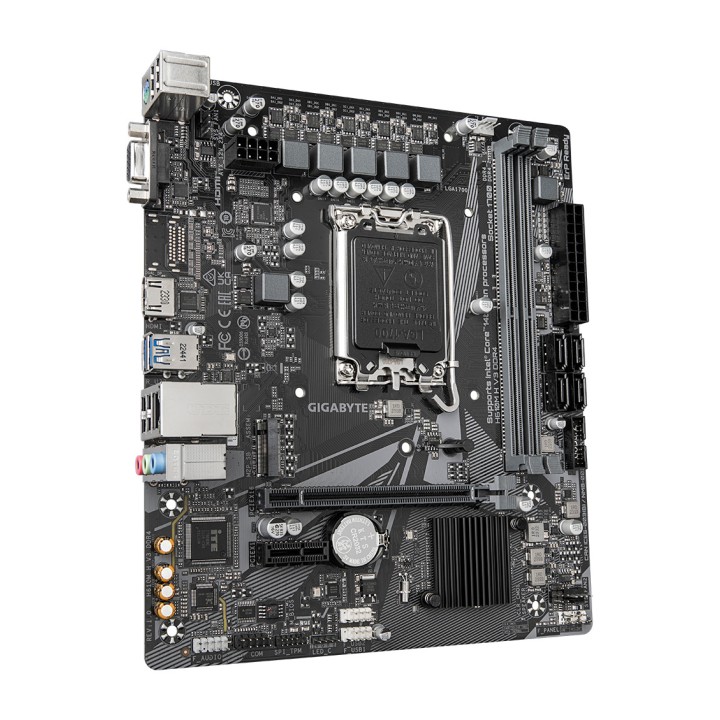

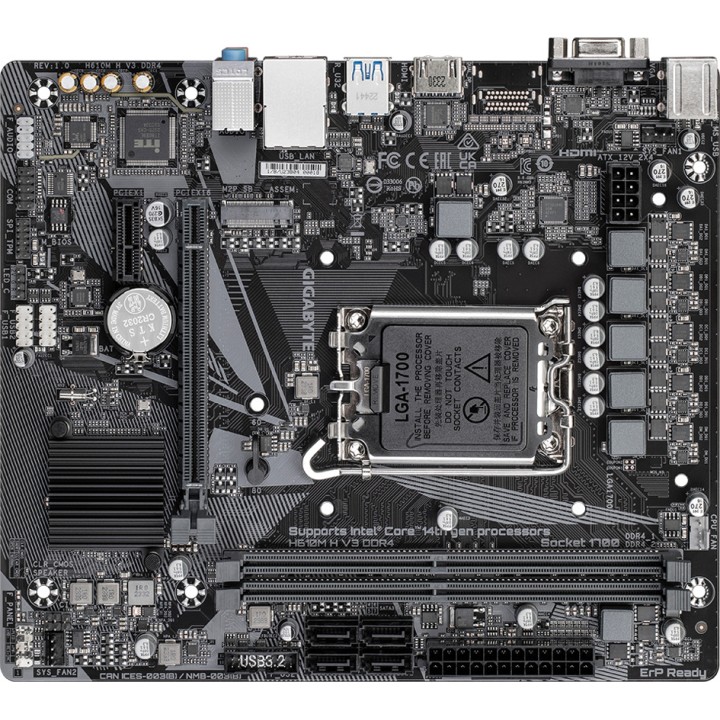

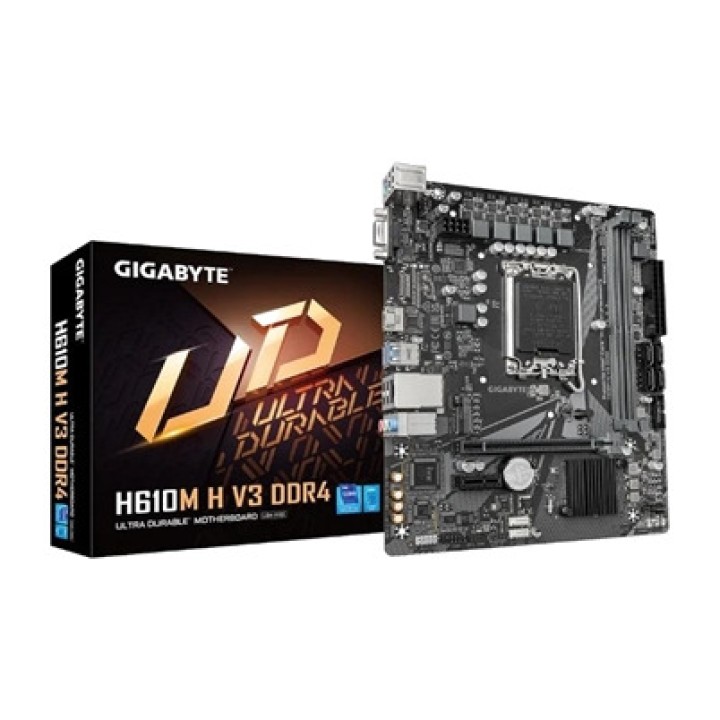

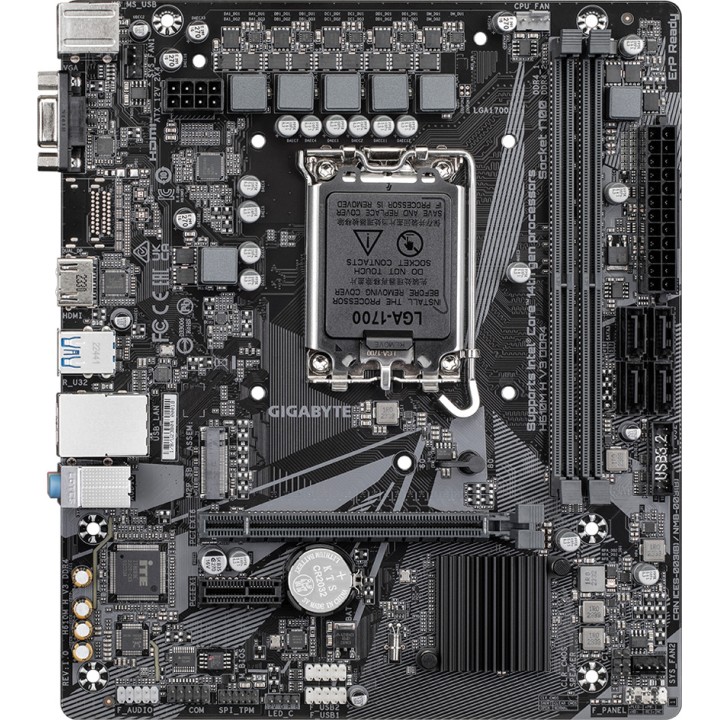

GIGABYTE Micro ATX motherboard for Intel H610M H V3 DDR4 LGA1700 DSP0000023989

GIGABYTE H610M H V3 DDR4 MATX 1700 MOTHERBOARD
MODEL H610M H V3 DDR4
Platform - Micro ATX Form Factor, 22.3cm x 19.3cm
Chipset - Intel H610 Express Chipset
CPUs
supported
- LGA1700 socket: Compatible with 13th-generation Intel Core processors and 12th-generation Intel Core, Pentium Gold and Celeron processors
- L3 cache varies by CPU
* See the "CPU Support List" for more information.
Memory - Supports DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
- 2 x DDR4 DIMM slots supporting up to 64 GB (32 GB per individual DIMM) of system memory
- Dual-channel memory architecture
- Support for unbuffered ECC DIMM memory modules 1Rx8/2Rx8 (operate in non-ECC mode)
- Support for unbuffered non-ECC DIMM memory modules 1Rx8/2Rx8/1Rx16
- Support for Extreme Memory Profile (XMP) memory modules
* Refer to the "Memory Support List" for more information.
Expansion Slots
- CPU: 1 x PCI Express x16 slot, compatible with PCIe 4.0 and operating at x16
- Chipset: 1 x PCI Express x1 slot, compatible with PCIe 3.0 and operating at x1
Graphics - Integrated graphics processor: Intel HD Graphics support:
1 D-Sub port, supporting a maximum resolution of 1920x1200 at 60 Hz
1 HDMI port, supporting a maximum resolution of 4096x2160 at 60 Hz
* Support for HDMI version 2.1 and HDCP 2.3.
** Supports native ports compatible with HDMI 2.1 TMDS
(Graphics specifications may vary depending on CPU support).
I/O Ports,
connectors

Internal
- 1 x 24-pin ATX main power connector
- 1 x 8-pin 12 V ATX power connector
- 1 x CPU fan header
- 2 x system fan headers
- 1 x M.2 socket 3 connector
- 4 x 6 Gb/s SATA connectors
- 1 x RGB LED strip header
- 1 x front panel header
- 1 x front panel audio header
- 1 x speaker header
- 1 x USB 3.2 Gen 1 connector
- 2 x headers USB 2.0/1.1
- 1 x Trusted Platform Module (TPM) header (for the module only GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2)
- 1 x serial port header
- 1 x clear CMOS jumper
- 1 x chassis intrusion header

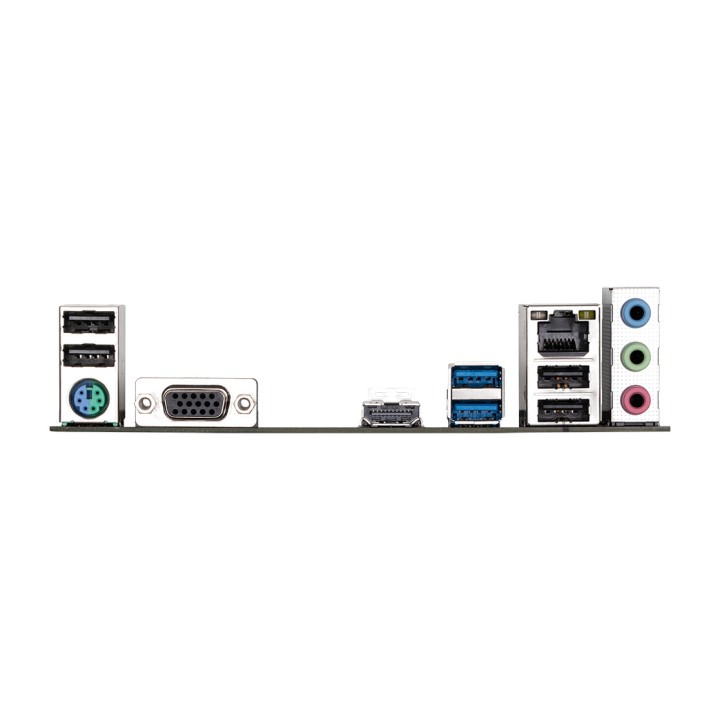

Rear
- 1 x keyboard port PS/2
- 1 x mouse port PS/2
- 1 x D-Sub port
- 1 x HDMI port
- 2 x USB 3.2 Gen 1 ports
- 4 x ports USB 2.0/1.1
- 1 x Port RJ-45
- 3 x audio connectors
I/O Controller
- iTE I/O Controller Chip
Others
Characteristic

Storage
- Chipset:
1 x M.2 connector (socket 3, M key, supports 2280/2260 PCIe type SSDs 3.0 x4/x2)
4 x SATA 6Gb/s connectors
USB
- Chipset:
4 x USB 3.2 Gen 1 ports (2 ports on the rear panel, 2 ports available via the internal USB header)
4 x USB 2.0/1.1 ports on the rear panel
- Chipset + USB 2.0 Hub:
4 x USB 2.0/1.1 ports available via the internal USB headers
GRID
- Realtek GbE LAN chip (1 Gbps/100 Mbps)
Audio
- Realtek CODEC audio
- High-definition audio
- 2/4/5.1/7.1 channels
OPERATING SYSTEM
- Compatible with 64-bit Windows 10
- Compatible with 64-bit Windows 11
Volume (m ³): 0.0031
