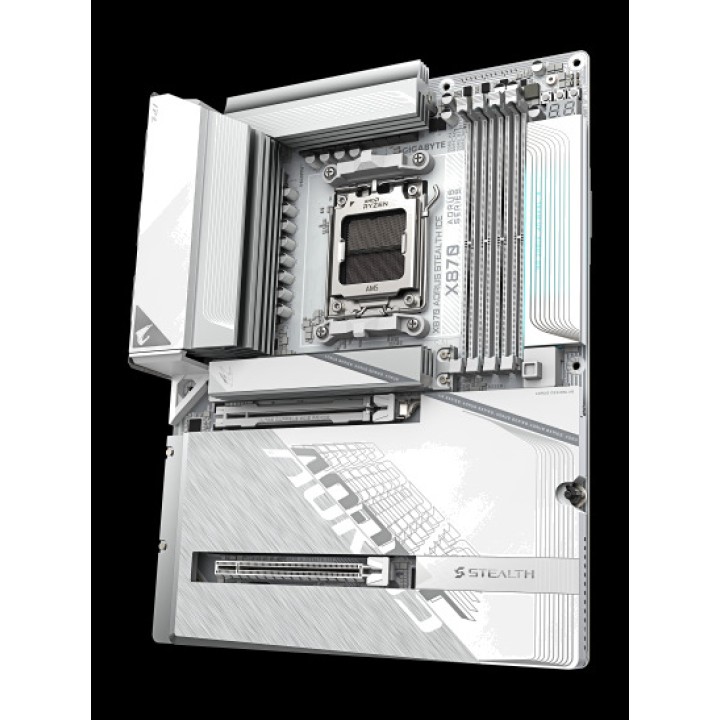

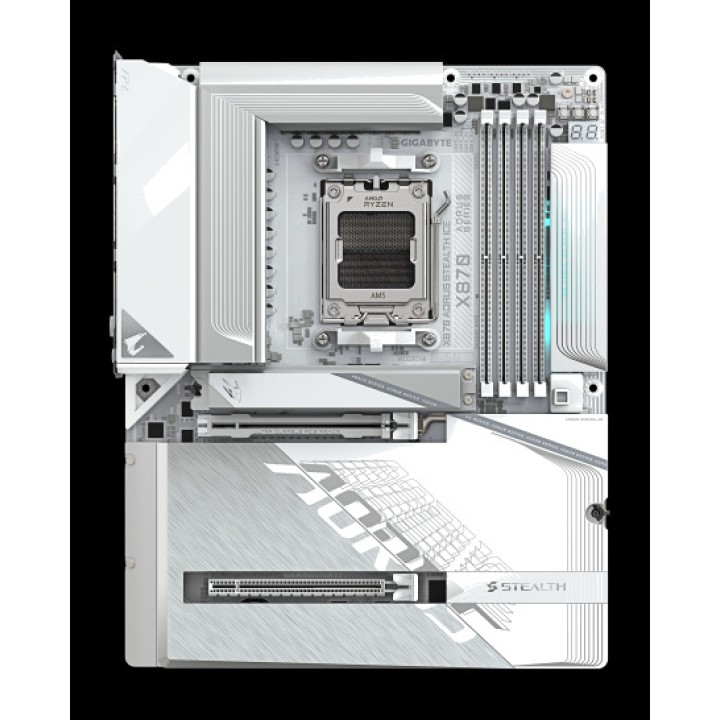

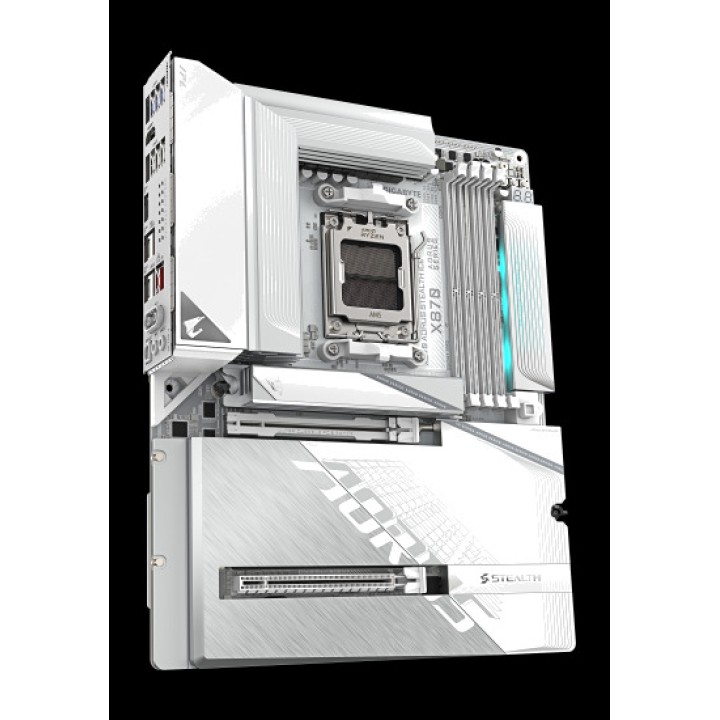

GIGABYTE ATX motherboard for AMD X870 AORUS STEALTH ICE AM5 DSP0000043232

Features of the GIGABYTE X870 AORUS STEALTH ICE
The GIGABYTE X870 AORUS STEALTH ICE is a high-performance ATX motherboard designed for building gaming PCs and workstations with AMD Ryzen processors. Equipped with the AMD X870 chipset, AM5 socket and a 16+2+2-phase digital power system, it provides a platform ready for next-generation components. Its support for DDR5 memory up to 8200 MHz via overclocking, PCIe 5.0 storage, Wi-Fi 7 connectivity and 5 GbE Ethernet networking lets you configure a powerful, versatile computer with extensive expansion options. All this comes in an elegant white AORUS STEALTH ICE finish.
AMD AM5 platform with chipset X870
Thanks to the AMD X870 chipset and AM5 socket, this motherboard lets you take advantage of the capabilities of compatible AMD Ryzen processors. Its 16+2+2-phase digital power system is designed to provide stable power delivery for demanding configurations, whether for gaming, productivity or content creation.

Chipset : AMD X870.
Socket : AMD AM5.
Compatible processors: AMD Ryzen 7000, 8000 and series 9000.
Power system: 16+2+2-phase digital VRM.
FORMAT: ATX.
Compatible operating system: 64-bit Windows 11.

DDR5 memory up to 8200 MHz and 256 GB capacity
The GIGABYTE X870 AORUS STEALTH ICE features four DDR5 DIMM slots with dual-channel architecture, allowing up to 256 GB of RAM to be installed. Support for frequencies up to 8200 MHz via overclocking offers configuration options for systems requiring high memory bandwidth, such as advanced gaming PCs and workstations running demanding applications.

Memory type: DDR5-SDRAM.
Slots : 4 DIMM.
Maximum capacity : 256 GB.
Maximum capacity per slot : 64 GB.
Architecture: dual-channel.
Maximum frequency: 8200 MHz (OC).
Compatible frequencies: 4400, 4800, 5200, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000 and 8200 MHz.
Supported memory: non-ECC and unbuffered.

Ultra-fast storage with PCIe 5.0 and four slots M.2
This motherboard offers a comprehensive storage configuration with four M.2 slots and two SATA III connectors. It stands out by featuring two M.2 slots compatible with PCI Express 5.0, allowing next-generation SSDs to be installed, along with two additional PCIe 4.0 slots to expand system capacity. In addition, its compatibility with different RAID levels makes it easy to configure storage solutions tailored to different performance and redundancy requirements.

Slots M.2: 4.
First M.2 slot: PCIe 5.0, maximum size 25110.
Second M.2 slot: PCIe 5.0, maximum size 22110.
Third M.2 slot: PCIe 4.0, maximum size 22110.
Fourth M.2 slot: PCIe 4.0, maximum size 22110.
SATA III connectors: 2.
Compatible storage drives: up to 6.
Storage types: SSD and HDD.
Supported interfaces: M.2, PCIe 4.0, PCIe 5.0 and SATA III.
Compatible HDD hard drives: up to 2.
RAID compatibility: levels 0, 1, 5 and 10.

PCI Express slots for graphics cards and expansion
The motherboard features a fifth-generation PCI Express x16 slot, ready for graphics cards and devices compatible with this standard. It also has an additional PCIe 4.0 x16 slot, providing flexibility for installing expansion cards and adapting the system to different uses.

PCI Express x16 5.0: 1 slot.
PCI Express x16 4.0: 1 slot.
Parallel graphics processing support: not supported.

Wi-Fi 7, Bluetooth 5.3 and 5 GbE Ethernet connectivity
The GIGABYTE X870 AORUS STEALTH ICE integrates advanced connectivity options to take advantage of high-speed home and professional networks. Its Wi-Fi 7 with Qualcomm QCNCM865 controller supports wireless networks compatible with the 802.11be standard, while the Ethernet connection of up to 5 GbE provides a high-capacity wired alternative. In addition, Bluetooth 5.3 makes it easy to connect wireless peripherals and accessories.

Wireless connectivity: Wi-Fi 7 (802.11be).
WLAN controller: Qualcomm QCNCM865.
Ethernet controller: Realtek RTL8126.
Ethernet speed: up to 5 GbE, compatible with 2.5 GbE, Gigabit Ethernet and Fast Ethernet.
Network port : 1 RJ-45.
Bluetooth: version 5.3.
Wi-Fi antenna connectors : 2.
Wi-Fi antenna: included.

USB4 connectivity and high-speed ports

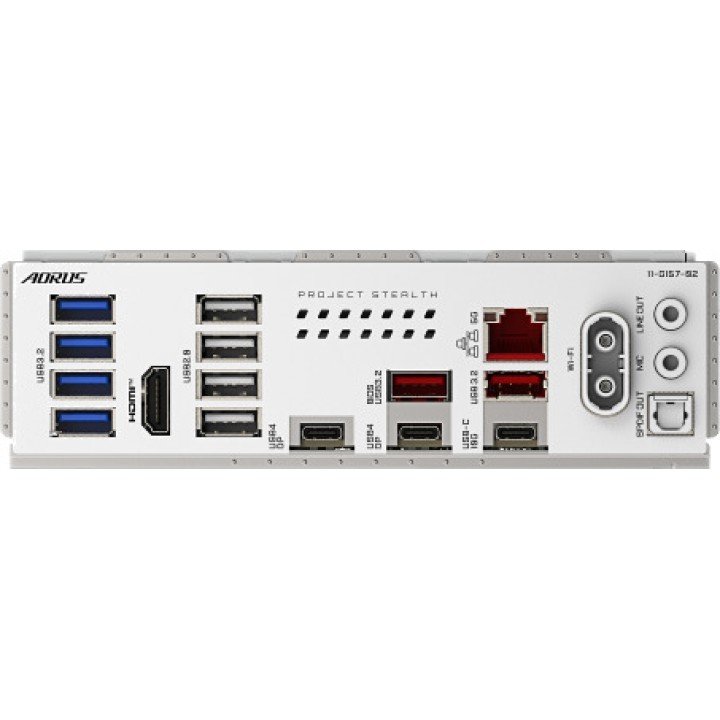

Its rear panel offers two USB4 ports, as well as USB 3.2 and USB 2.0 connections for using external storage, peripherals and other devices. This range of interfaces lets you connect different accessories without relying exclusively on additional USB hubs.

USB4 Gen 3x2: 2 ports.
USB 3.2 Gen 2 Type-A: 2 ports.
USB 3.2 Gen 2 Type-C: 1 port.
USB 3.2 Gen 1: 4 ports.
USB 2.0: 4 ports.
USB 3.2 Gen 1 Type-C: 0 additional ports.

Internal connectors for expansion and cooling
The internal design provides numerous connections for building custom systems with air or liquid cooling, RGB lighting and front USB ports. The availability of connectors for fans, water pumps and sensors makes it possible to organise a cooling setup tailored to the installed components.

Internal USB 3.2 Gen connector 2x2: 1.
Internal USB 3.2 Gen connector 1: 1.
Internal connectors USB 2.0: 2.
USB 3.2 Gen internal connectors 2: 0.
CPU fan connectors: 2.
Chassis fan connectors: 6.
Connectors for liquid cooling pumps: 3.
RGB LED connectors: 4.
Temperature sensor connectors: 2.
Noise detection connector: 1.
ATX power connector: 24-pin.
EPS power connector: 1 x 8-pin.
12 V power connector: available.
Molex peripheral power connector: 1 x 4-pin.
Front audio connector: incluido.
Front panel connector: incluido.
TPM connector: disponible.
SATA II and mSATA connectors: not included.

7.1-channel audio and video outputs
The integrated sound system uses the Realtek ALC1220-VB codec, with support for up to 7.1-channel audio, suitable for multimedia and gaming setups. It also features optical S/PDIF digital audio output and analogue connections. For image output, it includes HDMI 2.1 and DisplayPort 1.4 compatibility, making use of the graphics capabilities of the installed processor when it has integrated graphics.

Audio chip: Realtek ALC1220-VB.
Audio channels: 7.1.
Digital output: 1 optical S/PDIF.
Audio connections: line-in and headphone jack.
HDMI output: 1 port HDMI 2.1.
DisplayPort compatibility: version 1.4.
Maximum resolution specified: 4096 x 2160 pixels.
HDCP compatibility: sí.
DirectX compatibility: 12.0.
Onboard graphics adapter: not included.
VGA and DVI-D connectors: not included.

UEFI BIOS and system monitoring
The motherboard features an AMI UEFI BIOS that allows you to manage the hardware configuration and the computer’s operating parameters. It also includes monitoring functions for temperatures, voltages, fans and liquid cooling, making it easier to control the computer’s operating conditions.

BIOS type: UEFI AMI.
ACPI version: 5.0.
SMBIOS version: 2.7.
DMI version: 2.7.
Clear CMOS jumper: incluido.
Monitoring: fans, temperature, voltage and liquid cooling.
Motherboard cooling: pasiva.

White ATX design for custom builds
Its white AORUS STEALTH ICE finish lets you create visually uniform setups with cases and components in light shades. Measuring 305 x 244 mm, it uses the ATX form factor, commonly found in gaming PCs and workstations that need space for multiple storage drives, expansion cards and advanced cooling systems.

COLOR: blanco.
Form factor: ATX.
Width: 305 mm.
Depth: 244 mm.
Listed height: 35 mm.
Specified weight: 4.4 kg.
Packaging dimensions: 315.5 x 375 x 118.5 mm.
Packaging weight: 5.07 kg.

Package contents and warranty
The GIGABYTE X870 AORUS STEALTH ICE includes a wireless antenna, screws and a battery, as well as Norton Internet Security security software in the OEM version. The product specifications state a 3-year warranty period.

Wi-Fi antenna: included.
Screws: incluidos.
BATTERY: incluida.
Software: Norton Internet Security (OEM version).
Stated warranty: 3 years.

Other technical specifications
The motherboard incorporates a CR2032 lithium manganese dioxide battery to maintain the system configuration. The following features complete the technical information provided for this model.

Battery type: CR2032.
Composition: lithium manganese dioxide (LiMn O2).
Number of cells: 1.
Battery weight: 3 g.
Lithium weight per battery: 0.07 g.
Chipset family: AMD.
Device type: PC.
Feeding: ATX.
Additional SATA connectors: standard SATA and SATA II not included.
