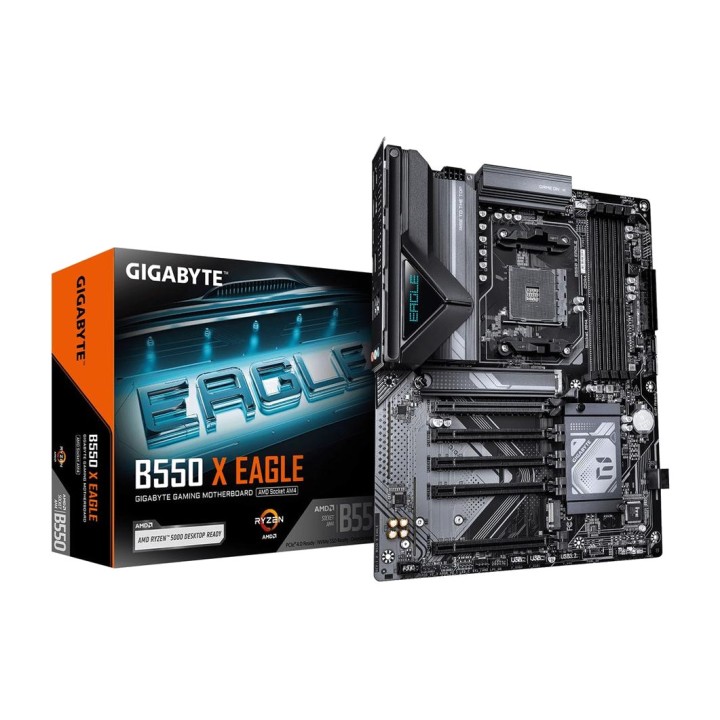

GIGABYTE ATX motherboard for AMD B550 X EAGLE AM4 DSP0000043231

Motherboard Features GIGABYTE B550 X EAGLE AM4 DDR4

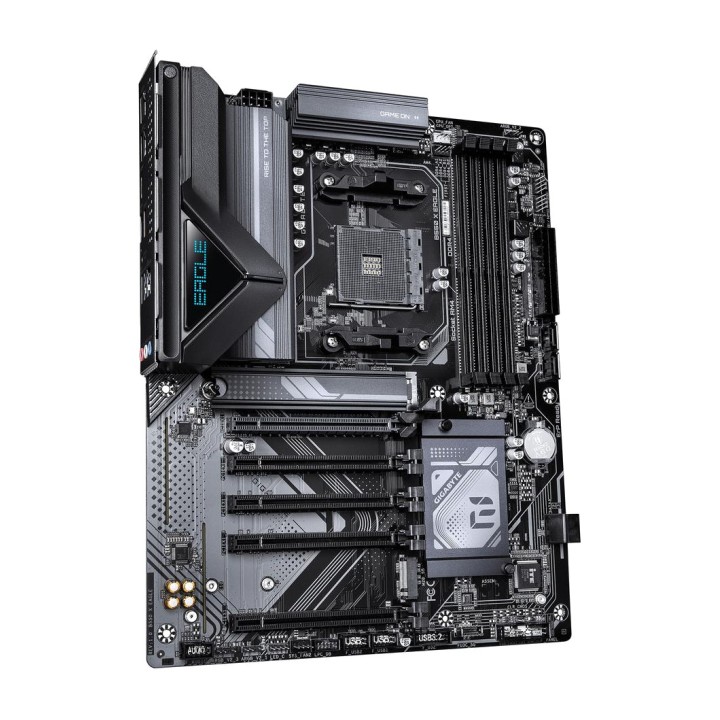

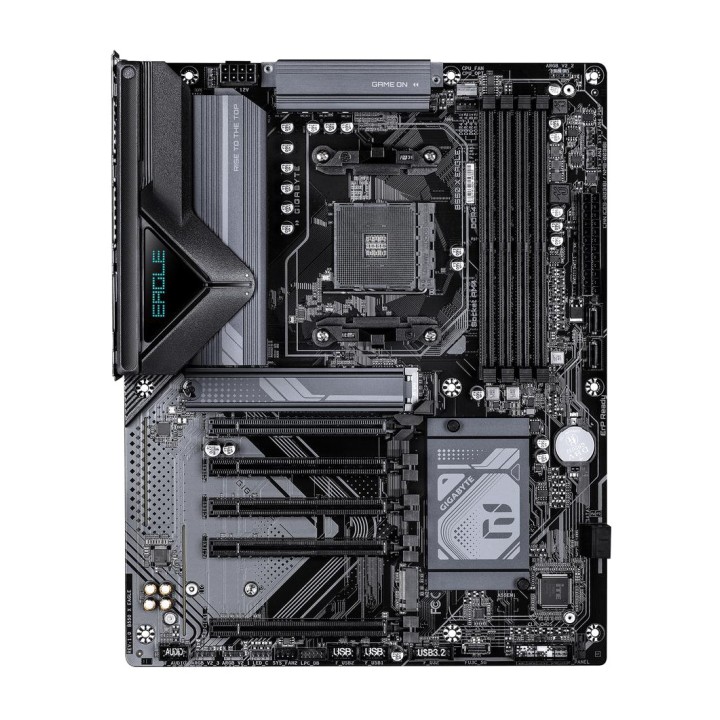

The GIGABYTE B550 X EAGLE is an ATX motherboard designed for building or upgrading a computer with AMD Ryzen processors and DDR4 memory. Equipped with the AMD B550 chipset, 8+2-phase digital hybrid VRM power delivery, M.2 PCIe 4.0 storage and 2.5 GbE LAN, it offers a versatile platform for work, home and gaming systems. It also features cooling systems and screwless mounting mechanisms that make component installation easier.
Compatibility with AMD Ryzen processors and stable power delivery
Thanks to the AMD AM4 socket and B550 chipset, this motherboard supports AMD Ryzen processors from the 3000, 4000 and 5000 series. Its 8+2-phase digital hybrid VRM solution manages processor power delivery, while the VRM Thermal Armor system helps dissipate heat from the power components.

Socket : AMD AM4.
Chipset : AMD B550.
Compatible processors: AMD Ryzen series 3000, 4000 and 5000.
8+2-phase digital hybrid VRM power delivery.
VRM Thermal Armor for cooling the power components.
Power connectors: 24-pin ATX and 8-pin EPS.

Dual-channel DDR4 memory with XMP support
The GIGABYTE B550 X EAGLE has 4 DDR4 DIMM slots with a total capacity of up to 128 GB, allowing you to configure systems ready for multitasking and demanding applications. Its dual-channel architecture and compatibility with XMP profiles make it easy to get the most out of compatible memory modules.

4 slots DIMM DDR4-SDRAM.
Maximum capacity: 128 GB, up to 32 GB per slot.
Dual-channel memory architecture.
Supported speeds: 2133, 2400, 2667, 2933 and 3200 MHz.
Maximum speed specified: 3200 MHz.
Compatibility with ECC and non-ECC, unbuffered memory.
Support for XMP memory profiles.

M.2 PCIe 4.0 storage and SATA III connectivity
The motherboard lets you combine high-speed NVMe SSDs and SATA storage devices. It features two M.2 slots, one with a PCIe 4.0 x4 interface, as well as four SATA III connections. It also supports RAID 0, 1 and 10 configurations to adapt storage to the system’s needs.

2 M.2 slots supporting drives up to 22110.
First M.2 slot: PCI Express 4.0 x4.
Second M.2 slot: PCI Express 3.0.
4 SATA III connectors.
Compatibility with HDD hard drives and SSDs.
Up to 4 HDDs and 6 compatible storage drives.
Supported interfaces: M.2, NVMe, PCIe 3.0, PCIe 4.0 and SATA.
Compatibility with RAID 0, 1 and 10.

PCI Express slots and easy installation with EZ-Latch
To make component installation and upgrades easier, it features PCI Express expansion slots and GIGABYTE EZ-Latch technology. The PCIe EZ-Latch system lets you release the installed card more easily, while M.2 EZ-Latch Plus/Click simplifies securing M.2 drives and their heatsinks with screwless mechanisms.

1 PCI Express x16 Gen slot 4.x.
4 PCI Express x16 Gen 3.x slots listed in the specifications.
PCIe EZ-Latch with quick release.
M.2 EZ-Latch Plus/Click for screwless installation.
M.2 Thermal Guard to help control storage temperatures.

2.5 GbE LAN connection
2.5 Gigabit Ethernet connectivity lets you take advantage of high-speed wired networks when using compatible devices. Its Realtek RTL8125 controller provides a wired connection suitable for downloads, online gaming, file transfers and networking.

Network controller: Realtek RTL8125.
2.5 GbE Ethernet connection.
1 port RJ-45.
No integrated Wi-Fi connectivity.

USB, HDMI 2.1 and surround sound connectivity

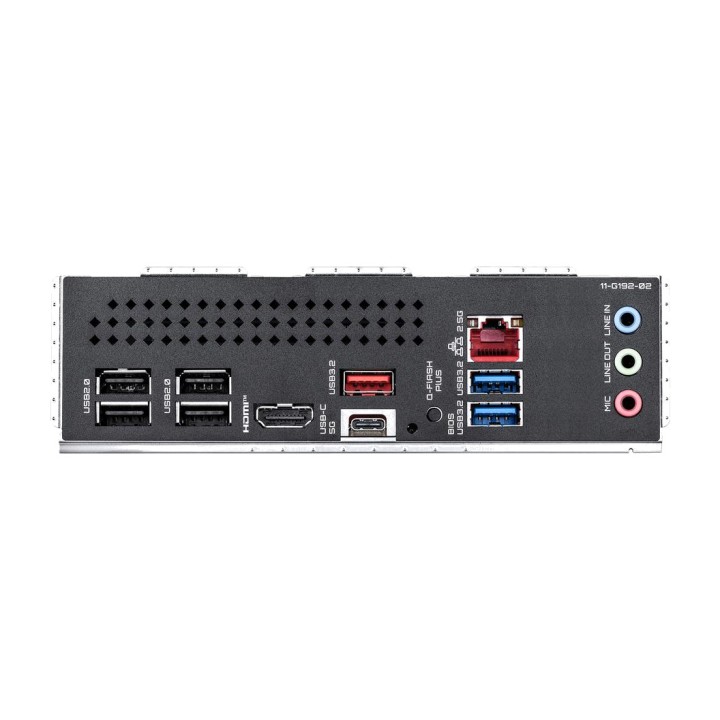

The rear panel brings together USB ports from different generations, an HDMI 2.1 connection and audio connections for integrating peripherals, displays and external devices. The motherboard includes the Realtek ALC897 sound chip with 7.1-channel audio support and video output with a stated maximum resolution of 4096 x 2160 pixels, provided a processor with compatible integrated graphics is used.

2 USB-A 3.2 Gen ports 1.
1 USB-A 3.2 Gen port 2.
1 USB-C 3.2 Gen port 1.
4 ports USB 2.0.
1 port HDMI 2.1.
Maximum resolution: 4096 x 2160 pixels.
1 line input and 1 headphone output.
7.1-channel Realtek ALC897 audio.
HDCP 2.3 and Direct compatibility X 12.0.
No VGA, DVI-D or USB-C 3.2 Gen ports 2.

Advanced cooling and internal connections
The GIGABYTE B550 X EAGLE offers connections for fans, liquid-cooling pumps and RGB LED strips, making it easy to customise the system. Its passive cooling design incorporates thermal protection for the VRM and M.2 areas, while monitoring functions let you keep track of important system parameters.

4 chassis fan connectors.
2 CPU fan connectors.
2 water pump connectors.
4 RGB LED strip connectors.
2 internal USB 3.2 Gen 1 connectors and 2 internal connectors USB 2.0.
No internal USB 3.2 Gen connectors 2.
Front audio connector and front panel connector.
Electrical connection of 12 V.
Monitoring of CPU, fans, temperature, voltage and liquid cooling.
Passive cooling with VRM Thermal Armor and M.2 Thermal Guard.

ATX form factor, UEFI BIOS and Windows compatibility
Its ATX form factor of 305 x 244 mm makes it easy to integrate into compatible cases and leaves room for installing various components. It also features an AMI UEFI BIOS, Clear CMOS function and compatibility with 64-bit Windows 10 and Windows 11, offering system configuration and maintenance options.

Form factor: ATX.
Dimensions: 305 x 244 x 35 mm (width x depth x height).
Weight: 1.33 kg.
Colour: dark brown (Dark Brown).
BIOS: AMI UEFI.
Clear CMOS jumper included.
ACPI 5.0, SMBIOS 2.7 and DMI 2.7.
Compatible operating systems: Windows 10 x64 and Windows 11 x64.
Stated warranty: 3 years.

Other specifications and package contents
The motherboard includes a CR2032 CMOS battery, screws and Norton Internet Security software in the OEM version. Its packaging is designed for individual product transport and has the following additional specifications.

Included battery: CR2032 lithium manganese dioxide (LiMn O2).
Battery capacity: 220 mAh.
Number of cells: 1.
Battery weight: 3 g.
Lithium content per battery: 0,07 g.
Bolts included.
Included software: Norton Internet Security (OEM version).
Packaging dimensions: 335 x 270 x 80 mm.
Package weight: 2.76 kg.
Quantity per shipping box: 1 unit.
Component intended for PC computers.
No support for parallel graphics processing.
