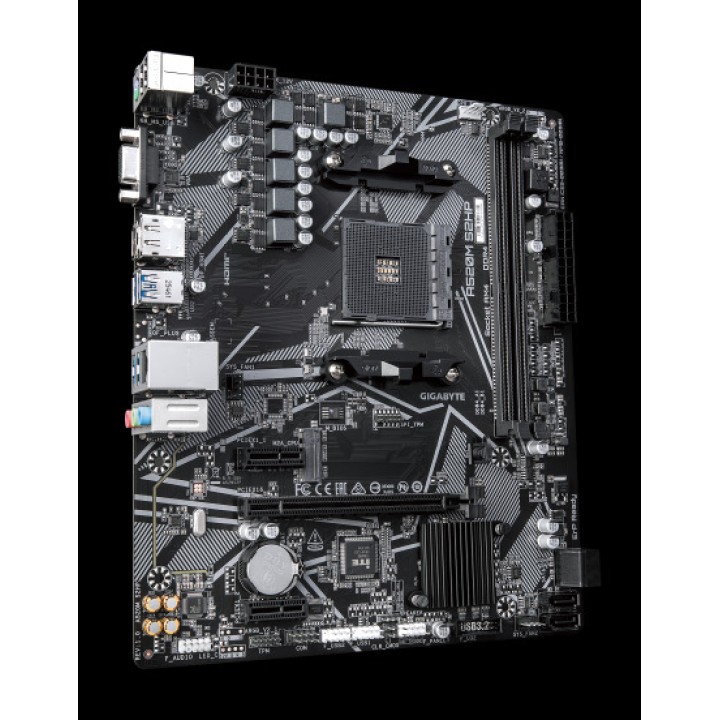

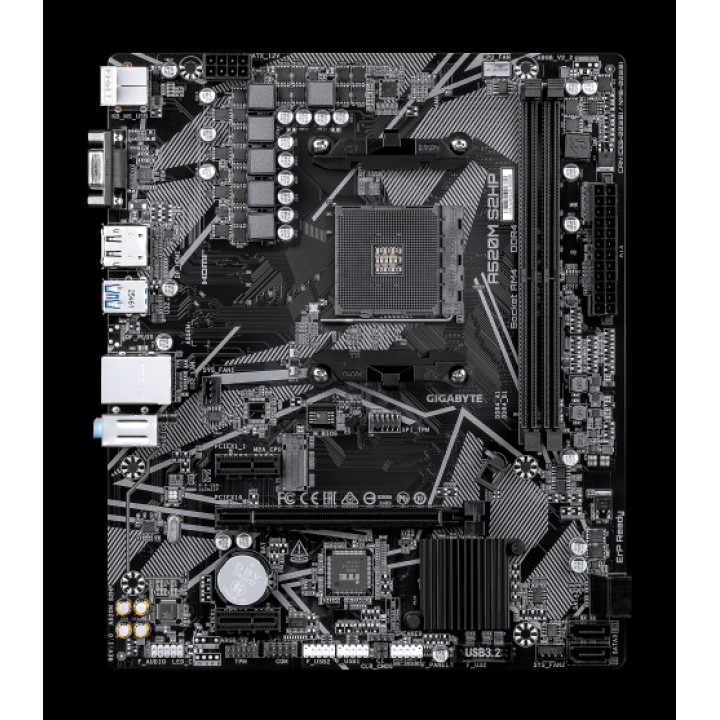

GIGABYTE Micro ATX motherboard for AMD A520M S2HP AM4 DSP0000043171

GIGABYTE A520M S2HP Motherboard Features
The GIGABYTE A520M S2HP is a Micro ATX motherboard with an AMD A520 chipset and AM4 socket, designed for building desktop computers with compatible AMD Ryzen processors. It combines support for dual-channel DDR4 memory, M.2 and SATA III storage, Gigabit Ethernet connectivity and various expansion options. Its compact form factor and internal connections make it a practical choice for computers used for everyday tasks, work and entertainment.
AMD A520 chipset and compatibility with Ryzen processors
Thanks to the AMD A520 chipset and AM4 socket, this motherboard lets you build a system with compatible AMD processors, including the Ryzen 3000 series specified in its specifications. Its architecture provides a functional platform for computers intended for productivity, browsing, everyday applications and entertainment.

Chipset : AMD A520.
Processor manufacturer: AMD.
Socket: AM4.
Specified compatible processors: AMD Ryzen series 3000.
Maximum number of processors: 1.

Dual-channel DDR4 memory and up to 64 GB
The GIGABYTE A520M S2HP has two DDR4 DIMM slots that support up to 64 GB of RAM. Its dual-channel architecture helps make the most of memory bandwidth, while support for different frequencies lets you adapt the configuration to the system’s requirements and processor compatibility.

Memory type: DDR4-SDRAM.
Slots : 2 DIMM.
Maximum capacity : 64 GB.
Architecture: dual-channel.
Specified frequencies: 2133, 2400, 2667, 2933, 3200, 3333, 3600 and 4866 MHz.
Specified maximum standard frequency: 3200 MHz.
Compatibility: ECC and non-ECC memory.

M.2 and SATA III storage with RAID support
This motherboard offers M.2 connectivity and four SATA III ports, making it easy to combine different storage drives in one computer. It also supports RAID 0, 1 and 10 configurations, providing different options for organizing drives according to performance or data redundancy requirements.

M.2 slots: 1 with M key.
SATA III connectors: 4.
Supported interfaces: M.2, PCI Express 3.0 and SATA.
RAID compatibility: sí.
RAID levels: 0, 1 and 10.
SATA II connectors: 0.
Additional SATA connectors: 0.

PCI Express slots for expanding the system
The GIGABYTE A520M S2HP features one PCI Express 3.0 x16 slot and two PCI Express 3.0 x1 slots, offering expansion options with compatible cards. This layout lets you adapt the computer to different needs, from installing a dedicated graphics card to adding controllers or other expansion cards.

PCI Express 3.0 x16: 1 slot.
PCI Express 3.0 x1: 2 slots.
Form factor: Micro ATX.

USB, HDMI and Gigabit Ethernet connectivity

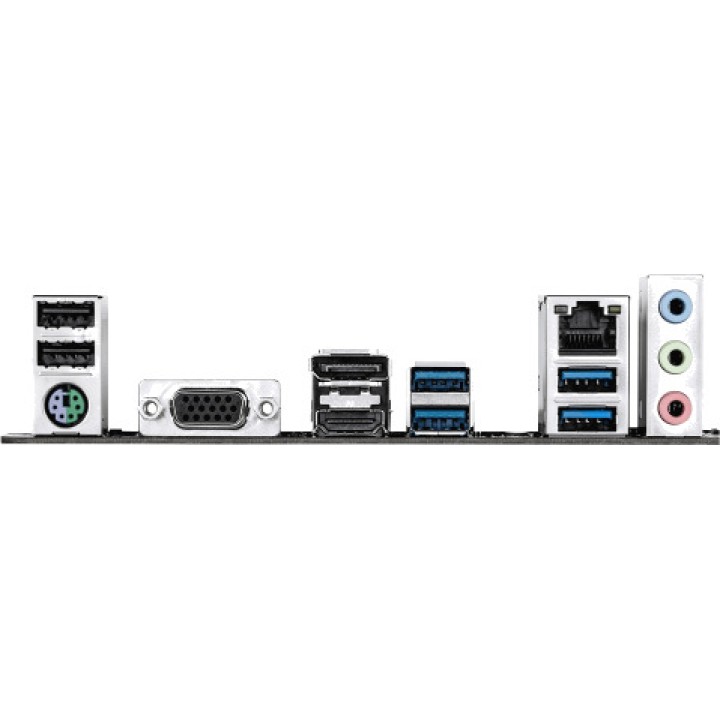

Its rear panel integrates six USB ports, an HDMI output and a Gigabit Ethernet RJ-45 connection, making it easy to connect peripherals, compatible monitors and wired networks. It also has a PS/2 port for compatible peripherals. The HDMI video output requires a processor with compatible integrated graphics.

USB 3.2 Gen 1: 4 rear ports.
USB 2.0: 2 rear ports.
HDMI: 1 port.
Ethernet: 1 Gigabit Ethernet RJ-45 port.
PS/2: 1 port for a compatible keyboard or mouse.
Integrated Wi-Fi: no.
USB 3.2 Gen 2 Type A: 0 ports.
USB 3.2 Gen 2 Type-C: 0 ports.
USB 3.2 Gen 1 Type-C: 0 ports.
VGA and DVI-D: no ports.

Internal connectors for cooling, USB and RGB lighting
The motherboard has internal connectors for fans, front USB ports and RGB lighting, making it easy to integrate different components into the computer case. Its power and cooling connections help organise the build and adapt system airflow to the installed components.

Power connector: 24-pin ATX.
CPU fan connector: sí.
Chassis fan connectors: 2.
Fan connector: sí.
Internal connectors USB 2.0: 2.
USB 3.2 Gen internal connectors 1: 1.
USB 3.2 Gen internal connectors 2: 0.
RGB LED headers indicated: 4.
RGB LED strip connector: sí.

7.1-channel audio and HDCP support
The GIGABYTE A520M S2HP offers audio with up to 7.1 channels, suitable for configuring compatible multichannel sound systems. It also includes HDCP support for managing protected digital content through compatible devices and connections. It does not have an integrated graphics processor.

Audio channels: 7.1.
HDCP compatibility: sí.
Integrated graphics adapter: no.

AMI UEFI BIOS and maintenance options
The motherboard features an AMI UEFI BIOS that lets you manage system configuration parameters and control various hardware options. It also includes functions for resetting the CMOS settings, useful when performing maintenance or adjusting components.

BIOS type: UEFI AMI.
ACPI version: 5.0.
SMBIOS version: 2.7.
DMI version: 2.7.
Clear CMOS jumper: sí.
Clear CMOS button: yes, according to the supplied specification sheet.

Compact micro ATX design
Measuring 244 x 205 mm and finished in black, this motherboard is designed for desktop computers compatible with the Micro ATX form factor. Its size makes it easy to integrate into configurations where a balance between internal space, expansion options and connectivity is desired.

Form factor: micro ATX.
COLOR: negro.
Width: 244 mm.
Depth: 205 mm.
Listed height: 35 mm.
Component type: PC motherboard.

Other technical specifications
The GIGABYTE A520M S2HP includes additional information about packaging, the CMOS battery and warranty conditions, relevant to product identification, distribution and maintenance.

Stated warranty: 3 years.
Country of origin: China.
Package dimensions: 265 x 235 x 52 mm.
Package weight: 772 g.
Battery included: sí.
Battery model: CR2032.
Composition: lithium manganese dioxide (LiMn O2).
Battery capacity: 220 mAh.
Battery weight: 3 g.
Lithium content per battery: 0,07 g.
Number of cells: 1.
Quantity per shipping box: 1 unit.
Volume (m ³): 0.0091
