GIGABYTE ATX motherboard for Intel B860 DS3H LGA1851 DSP0000043168

Motherboard Features GIGABYTE B860 DS3H

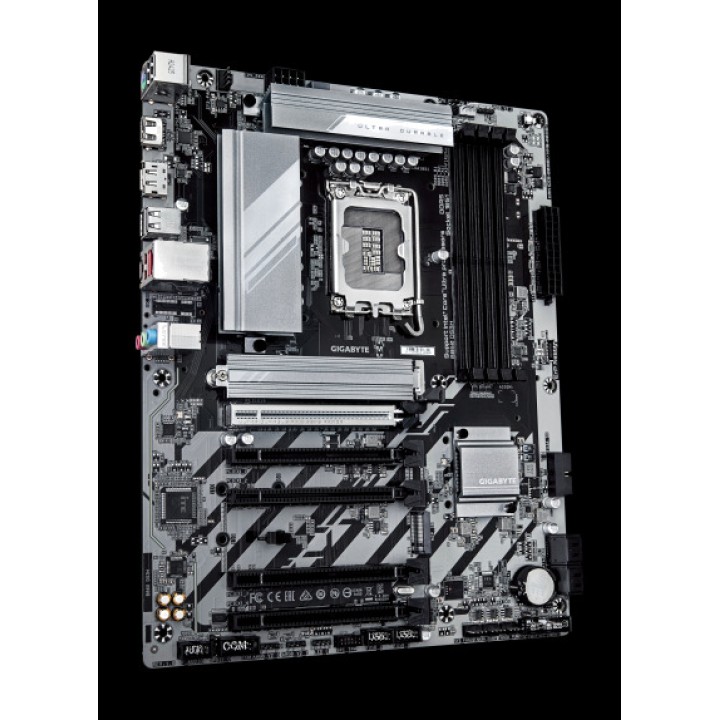

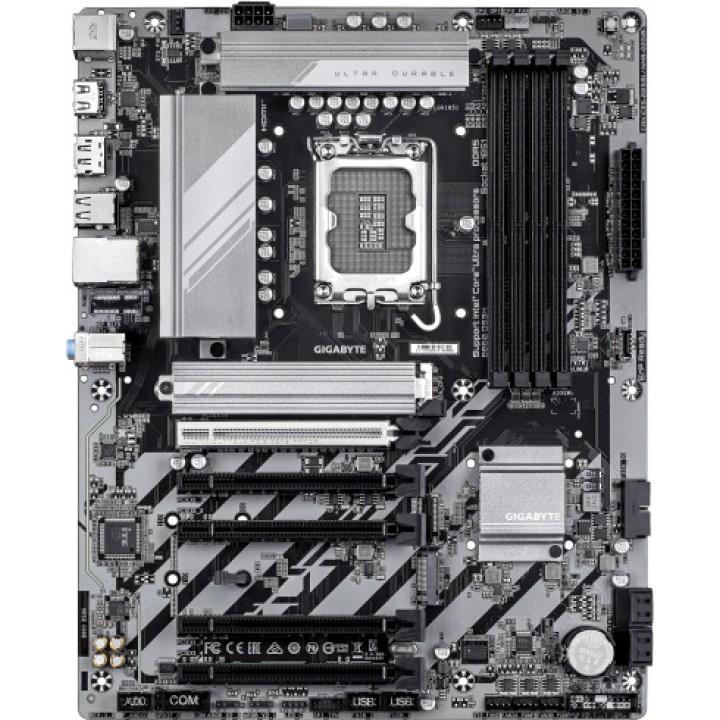

The GIGABYTE B860 DS3H is an ATX motherboard designed for building high-performance systems with Intel Core Ultra processors and DDR5 memory. Equipped with the Intel B860 chipset, LGA 1851 socket and an 8+1+2+2-phase VRM power system, it offers a versatile platform for users seeking power, stability and expansion options. Its support for DDR5 memory up to 9066 MHz, M.2 PCIe 5.0 storage and 2.5 GbE LAN makes it a suitable choice for gaming PCs, workstations and professional-use computers.
Compatibility with Intel Core Ultra processors and chipset B860
The GIGABYTE B860 DS3H features the Intel B860 chipset and LGA 1851 socket, providing a platform ready for compatible Intel Core Ultra processors. Its 8+1+2+2-phase VRM power system manages power delivery to the main components, helping to maintain system stability during demanding tasks.

Chipset: Intel B860.
Socket: LGA 1851 (Socket V1).
Processor manufacturer: Intel.
Supported processors listed: Intel Core Ultra Series 1 and Series 2.
VRM design: 8+1+2+2 phases.
FORMAT: ATX.

DDR5 memory up to 9066 MHz and 256 GB capacity
Thanks to its four DDR5 DIMM slots, this motherboard supports systems with large amounts of RAM for demanding applications, multitasking and gaming. It supports up to 256 GB of dual-channel DDR5 memory, with speeds of up to 9066 MHz, depending on the memory configuration and processor used.

Memory type: DDR5-SDRAM.
Slots : 4 DIMM.
Maximum capacity : 256 GB.
Maximum capacity per slot : 64 GB.
Listed speeds: 5600, 6400 and up to 9066 MHz.
Architecture: dual-channel.
Compatibility: ECC and non-ECC memory.
Supported memory type: unbuffered.

M.2 PCIe 5.0 storage and SATA III connectivity
The GIGABYTE B860 DS3H lets you create fast, flexible storage configurations thanks to its two M.2 slots and four SATA III connectors. The primary M.2 slot uses the PCIe 5.0 interface, while the second supports PCIe 4.0, making it easy to install NVMe SSDs. It also supports RAID configurations to adapt storage to different performance and data organization needs.

M.2 slots: 2 M-Key connectors.
First M.2 slot: PCI Express 5.0, up to form factor 25110.
Second M.2 slot: PCI Express 4.0, up to form factor 25110.
SATA III connectors: 4.
Compatible storage drives: HDD and SSD.
Maximum number of drives indicated: 6.
Supported HDDs: up to 4.
RAID compatibility: levels 0, 1, 5 and 10.

PCI Express slots for graphics cards and expansion
This motherboard supports PCI Express 5.0 and PCI Express 4.0, allowing you to install graphics cards and other expansion components. Its primary PCIe 5.0 x16 slot provides a high-speed interface for compatible graphics cards, while the additional slots expand the system's configuration options.

PCI Express slot 5.0 x16: 1.
PCI Express 4.0 x16 slots: 4, according to the specifications provided.
Slots M.2: 2.
Parallel graphics processing support: not supported.

2.5 GbE Ethernet network for high-speed connections
Network connectivity is managed by the Realtek RTL8125 controller with 2.5 Gigabit Ethernet, enabling high-speed wired networks to be used with compatible equipment. This connection is particularly useful for downloading large files, online gaming and transferring data over local networks.

LAN controller: Realtek RTL8125.
Ethernet speed: 2.5 Gigabit Ethernet.
Port RJ-45: 1.
Integrated Wi-Fi connectivity: no.

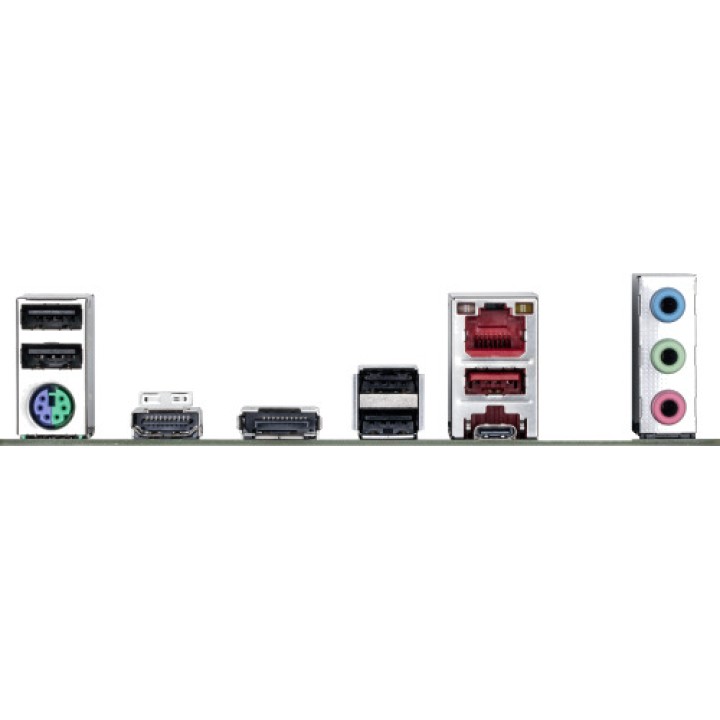

USB 3.2 Gen 2x2 connectivity and video connections
The GIGABYTE B860 DS3H features USB 3.2 Gen 2x2 Type C for connecting high-speed storage devices and peripherals. In addition, its HDMI 2.1 and DisplayPort 2.1 outputs allow compatible monitors to be connected when the installed processor has integrated graphics capabilities. The motherboard also includes traditional USB ports and a PS/2 connection for compatible peripherals.

USB 3.2 Gen 2x2 Type C: 1 rear port.
USB 3.2 Gen 2 Type A: 1 rear port.
USB 2.0: 4 rear ports.
HDMI: 1 port, version 2.1.
DisplayPort: 1 port, version 2.1.
Port PS/2: 1.
Maximum resolution specified: 4096 x 2160 pixels.
Graphics compatibility: HDCP and Direct X 12.0.
VGA and DVI-D ports: not included.
Rear USB 3.2 Gen 1: not included.
Additional USB 3.2 Gen 2 Type C: not included.

7.1-channel audio with Realtek chip ALC897
The integrated sound system features the Realtek ALC897 codec, which supports audio configurations of up to 7.1 channels. This solution provides connectivity for headphones, microphones and speaker systems, making it suitable for multimedia, gaming and communications.

Audio chip: Realtek ALC897.
Audio channels: up to 7.1.
Headphone connector: 1.
Microphone input: sí.
Line-in: sí.
Front audio connector: incluido.
Internal S/PDIF output connector: included.

Internal connections for cooling, lighting and peripherals
The motherboard integrates multiple internal connectors for fans, liquid-cooling pumps and RGB LED strips, making it easier to assemble custom computers. It also features internal USB connections and ATX and EPS power connectors for integrating the system's various components.

CPU fan connectors: 2.
Chassis fan connectors: 4.
Connectors for liquid cooling pumps: 3.
RGB LED connectors: 4.
Internal connectors USB 2.0: 2.
USB 3.2 Gen internal connectors 1: 2.
USB 3.2 Gen internal connectors 2: 0.
Main power connector: 24-pin ATX.
EPS power connector: 1 x 8-pin.
Front panel connector: incluido.
TPM connector: incluido.
Serial port header: 1.

UEFI BIOS and system monitoring
The AMI UEFI BIOS provides a setup environment for managing the main hardware parameters. The motherboard features temperature, voltage, fan and liquid cooling monitoring functions, making it easier to monitor system operation. It also has a Clear CMOS jumper to reset the BIOS settings when necessary.

BIOS type: UEFI AMI.
ACPI version: 5.0.
SMBIOS version: 2.7.
DMI version: 2.7.
Clear CMOS jumper: sí.
Monitoring: fans, temperature, voltage and liquid cooling.
Chipset cooling: pasiva.

ATX design and Windows compatibility
With an ATX form factor of 305 x 244 mm, the GIGABYTE B860 DS3H is ready for installation in cases compatible with this format. Its dark brown finish and expansion options allow it to be integrated into various desktop configurations. It also has declared compatibility with 64-bit Windows 10 and Windows 11, according to the specifications provided.

Form factor: ATX.
Dimensions: 305 x 244 mm.
Listed height: 35 mm.
Colour: dark brown.
Component for: PC.
Operating systems listed: Windows 10 x64 and Windows 11 x64.
Feeding: ATX.

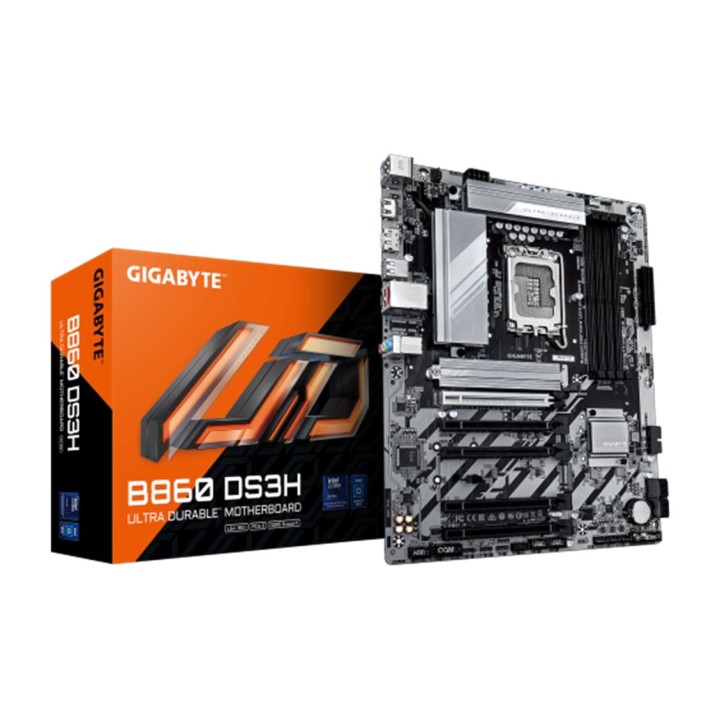

Other specifications and package contents
The GIGABYTE B860 DS3H includes installation accessories and additional software to complete the system build. It comes with a CR2032 battery to maintain the system configuration and has a stated 3-year warranty.

Packaging dimensions: 335 x 270 x 80 mm.
Stated weight: 2 kg.
battery included: sí.
Battery type: CR2032.
Composition: lithium manganese dioxide (LiMn O2).
Number of cells: 1.
Battery weight: 3 g.
Lithium content per battery: 0.07 g.
screws included: sí.
Included software: Norton Internet Security (OEM version) and LAN bandwidth management software.
Stated warranty period: 3 years.
Volume (m ³): 0.0091
