Más información sobre destinos e impuestosFeatures of the GIGABYTE B550 EAGLE WIFI6

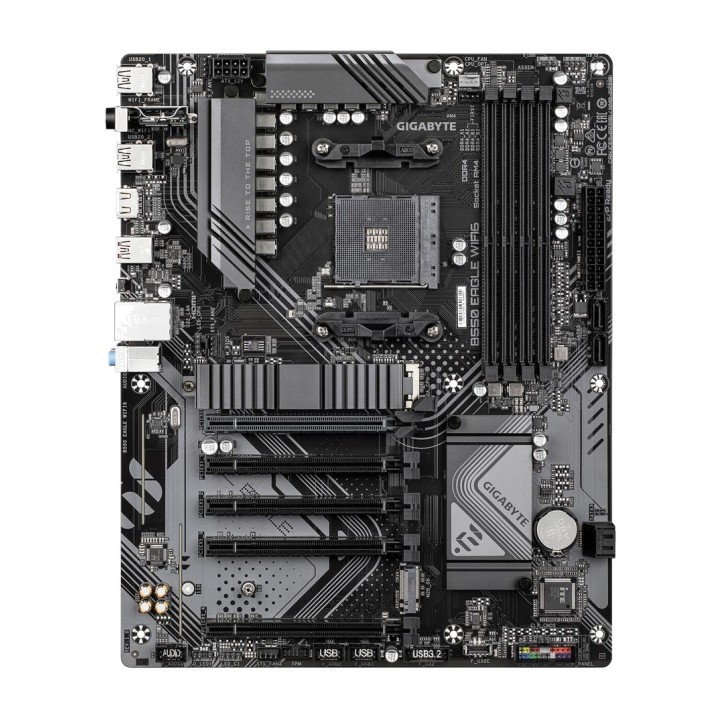

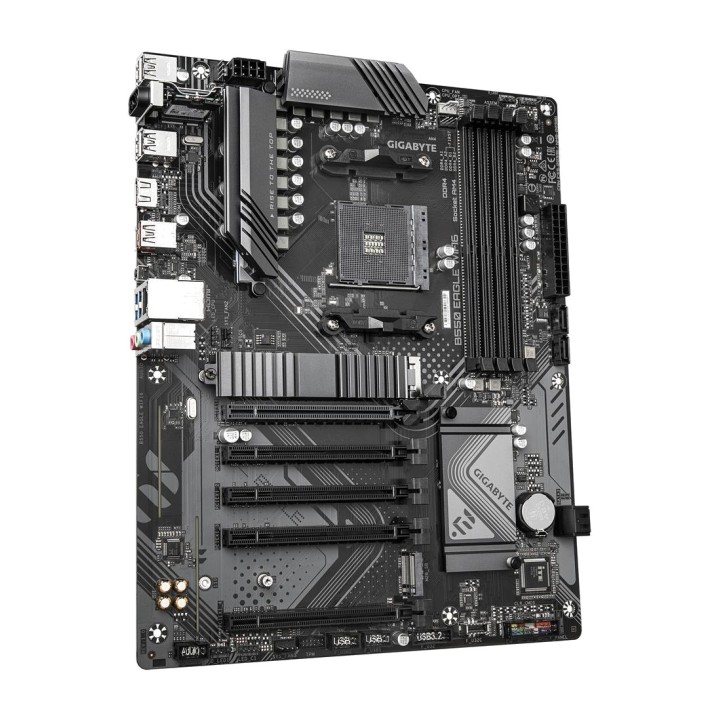

The GIGABYTE B550 EAGLE WIFI6 is an ATX motherboard designed to get the most out of AMD Ryzen processors with an AM4 socket. Compatible with the Ryzen 3000, 4000 G and 5000 series, it offers an excellent combination of performance, connectivity and expansion options. Thanks to its 10+3+1-phase VRM, Wi-Fi 6 connectivity, PCIe 4.0 storage and comprehensive selection of ports, it is an ideal choice for gaming, productivity and advanced-use systems.
Compatible with AMD Ryzen processors AM4
This motherboard is compatible with a wide range of AMD Ryzen processors, offering flexibility for both new builds and upgrades to existing systems. The AMD B550 chipset lets you take advantage of the latest AM4 platform technologies.
Socket AMD AM4.
Compatible with AMD Ryzen 5000, 5000 G, 4000 G, 3000 series and 3000 G.
Chipset AMD B550.
High-capacity DDR4 memory
Equipped with four DDR4 DIMM slots, it supports up to 128 GB of memory in Dual Channel configuration. It is also compatible with XMP profiles to make it easier to use high-performance memory.
Up to 128 GB of memory DDR4.
Supports speeds of 3200, 2933, 2667, 2400 and 2133 MT/s.
Supports ECC and non-ECC memory, depending on configuration.
Fast storage with PCIe 4.0
The GIGABYTE B550 EAGLE WIFI6 features two M.2 connectors, one of which supports PCIe 4.0 to deliver maximum performance with compatible NVMe SSDs. It also has four SATA ports to expand storage capacity.
1 M.2 PCIe 4.0 x4/x2 connector (depending on processor).
1 M.2 PCIe connector 3.0 x4/x2.
4 SATA 6 Gb/s ports with RAID 0, 1 and support 10.
Modern connectivity with Wi-Fi 6 and Bluetooth 5.3
Enjoy high-speed wireless connections thanks to the Wi-Fi 6 module, compatible with 2,4 and 5 GHz networks. It also features Bluetooth 5.3 for connecting peripherals reliably and efficiently.
Wi-Fi 6 IEEE 802.11 a/b/g/n/ac/ax.
Compatible with 2.4 GHz and 5 GHz bands.
Integrated Bluetooth 5.3.
Ready for next-generation cards
Thanks to its primary PCI Express x16 slot, this motherboard allows you to install high-performance graphics cards. Depending on the installed processor, it offers compatibility with PCIe 4.0 or PCIe 3.0.
1 PCIe x16 slot compatible with PCIe 4.0 or PCIe 3.0 depending on the CPU.
4 PCIe x1 PCIe slots 3.0.
Compatible with graphics cards and NVMe drives.
Integrated graphics with output HDMI 2.1
When using an AMD Ryzen processor with integrated graphics, the motherboard provides HDMI 2.1 video output with support for resolutions up to 4K at 60 Hz, as well as HDR and HDCP 2.3 compatibility.
Output HDMI 2.1.
Maximum resolution of 4096 x 2160 at 60 Hz.
Compatible with HDR and HDCP 2.3.
Audio and networking for a complete experience
The Realtek High Definition Audio codec provides high-quality multichannel sound, while the Gigabit Ethernet network connection ensures stable communication for online gaming, work or streaming.
Realtek High Definition Audio.
Compatible with 2.0, 4.0, 5.1 and 7.1-channel configurations.
Realtek 1 GbE Gigabit Ethernet port.

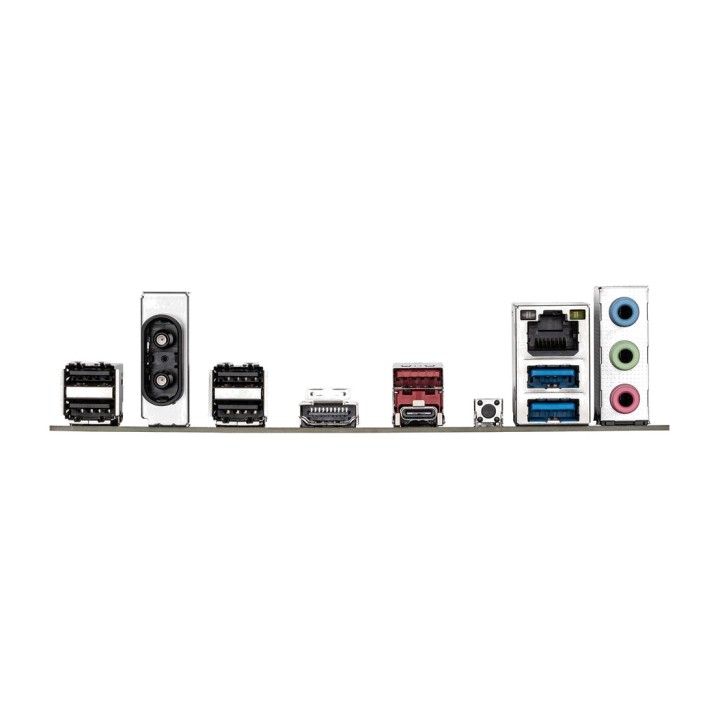

Extensive USB connectivity and advanced features
Features a comprehensive selection of rear and internal USB ports, as well as exclusive GIGABYTE features such as Q-Flash Plus, which makes it easy to update the BIOS even without a processor installed.
USB 3.2 Gen 2 Type-A and USB Type-C.
USB Type-C and USB 3.2 Gen 1 headers for the front panel.
Q-Flash Plus button for updating the BIOS.
Cooling and customization
The motherboard features several connectors for fans, liquid-cooling pumps and RGB lighting, allowing you to build quiet, fully customized systems.
5 fan and cooling pump connectors.
RGB and addressable ARGB headers.
Monitoring of temperature, voltage, fan speed and liquid-cooling flow.
Other specifications
10+3+1-phase VRM.
iTE I/O controller.
128 Mbit AMI UEFI BIOS.
Compatible with 64-bit Windows 11 and 64-bit Windows 10.
GIGABYTE APP Center, RGB Fusion, EasyTune, Smart Backup and System Information Viewer software.
Includes Norton Internet Security (OEM version).
Header TPM (GC-TPM2.0_S).
ATX form factor.
Dimensions: 30.5 x 24.4 cm.
Volume (m ³): 0.0091
The GIGABYTE B550 EAGLE WIFI6 is an ATX motherboard designed to get the most out of AMD Ryzen processors with an AM4 socket. Compatible with the Ryzen 3000, 4000 G and 5000 series, it offers an excellent combination of performance, connectivity and expansion options. Thanks to its 10+3+1-phase VRM, Wi-Fi 6 connectivity, PCIe 4.0 storage and comprehensive selection of ports, it is an ideal choice for gaming, productivity and advanced-use systems.
Compatible with AMD Ryzen processors AM4
This motherboard is compatible with a wide range of AMD Ryzen processors, offering flexibility for both new builds and upgrades to existing systems. The AMD B550 chipset lets you take advantage of the latest AM4 platform technologies.
Socket AMD AM4.
Compatible with AMD Ryzen 5000, 5000 G, 4000 G, 3000 series and 3000 G.
Chipset AMD B550.
High-capacity DDR4 memory
Equipped with four DDR4 DIMM slots, it supports up to 128 GB of memory in Dual Channel configuration. It is also compatible with XMP profiles to make it easier to use high-performance memory.
Up to 128 GB of memory DDR4.
Supports speeds of 3200, 2933, 2667, 2400 and 2133 MT/s.
Supports ECC and non-ECC memory, depending on configuration.
Fast storage with PCIe 4.0
The GIGABYTE B550 EAGLE WIFI6 features two M.2 connectors, one of which supports PCIe 4.0 to deliver maximum performance with compatible NVMe SSDs. It also has four SATA ports to expand storage capacity.
1 M.2 PCIe 4.0 x4/x2 connector (depending on processor).
1 M.2 PCIe connector 3.0 x4/x2.
4 SATA 6 Gb/s ports with RAID 0, 1 and support 10.
Modern connectivity with Wi-Fi 6 and Bluetooth 5.3
Enjoy high-speed wireless connections thanks to the Wi-Fi 6 module, compatible with 2,4 and 5 GHz networks. It also features Bluetooth 5.3 for connecting peripherals reliably and efficiently.
Wi-Fi 6 IEEE 802.11 a/b/g/n/ac/ax.
Compatible with 2.4 GHz and 5 GHz bands.
Integrated Bluetooth 5.3.
Ready for next-generation cards
Thanks to its primary PCI Express x16 slot, this motherboard allows you to install high-performance graphics cards. Depending on the installed processor, it offers compatibility with PCIe 4.0 or PCIe 3.0.
1 PCIe x16 slot compatible with PCIe 4.0 or PCIe 3.0 depending on the CPU.
4 PCIe x1 PCIe slots 3.0.
Compatible with graphics cards and NVMe drives.
Integrated graphics with output HDMI 2.1
When using an AMD Ryzen processor with integrated graphics, the motherboard provides HDMI 2.1 video output with support for resolutions up to 4K at 60 Hz, as well as HDR and HDCP 2.3 compatibility.
Output HDMI 2.1.
Maximum resolution of 4096 x 2160 at 60 Hz.
Compatible with HDR and HDCP 2.3.
Audio and networking for a complete experience
The Realtek High Definition Audio codec provides high-quality multichannel sound, while the Gigabit Ethernet network connection ensures stable communication for online gaming, work or streaming.
Realtek High Definition Audio.
Compatible with 2.0, 4.0, 5.1 and 7.1-channel configurations.
Realtek 1 GbE Gigabit Ethernet port.
Extensive USB connectivity and advanced features
Features a comprehensive selection of rear and internal USB ports, as well as exclusive GIGABYTE features such as Q-Flash Plus, which makes it easy to update the BIOS even without a processor installed.
USB 3.2 Gen 2 Type-A and USB Type-C.
USB Type-C and USB 3.2 Gen 1 headers for the front panel.
Q-Flash Plus button for updating the BIOS.
Cooling and customization
The motherboard features several connectors for fans, liquid-cooling pumps and RGB lighting, allowing you to build quiet, fully customized systems.
5 fan and cooling pump connectors.
RGB and addressable ARGB headers.
Monitoring of temperature, voltage, fan speed and liquid-cooling flow.
Other specifications
10+3+1-phase VRM.
iTE I/O controller.
128 Mbit AMI UEFI BIOS.
Compatible with 64-bit Windows 11 and 64-bit Windows 10.
GIGABYTE APP Center, RGB Fusion, EasyTune, Smart Backup and System Information Viewer software.
Includes Norton Internet Security (OEM version).
Header TPM (GC-TPM2.0_S).
ATX form factor.
Dimensions: 30.5 x 24.4 cm.
Volume (m ³): 0.0091
- Brand
- GIGABYTE
- Reference
- DSP0000041864
- EAN-13
- 4719331868406
- Weight
- 1,28 kg
