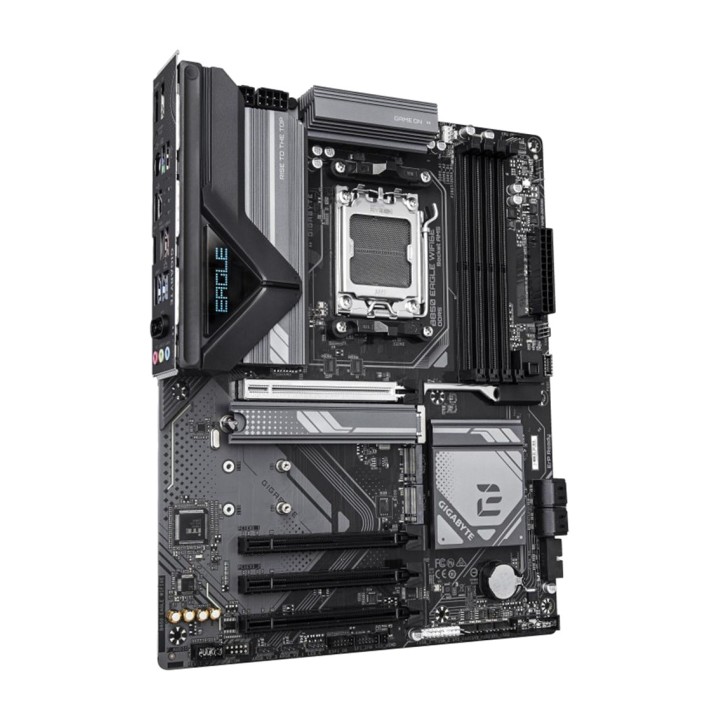

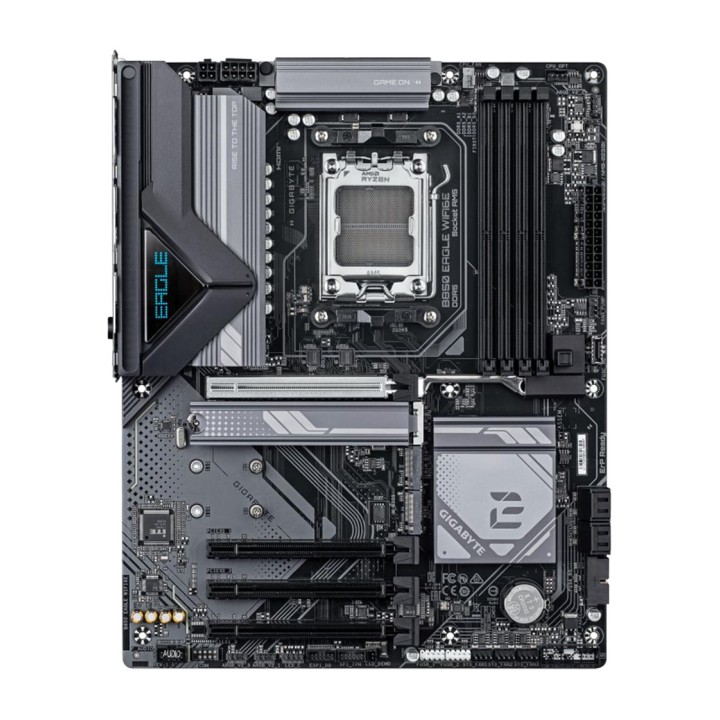

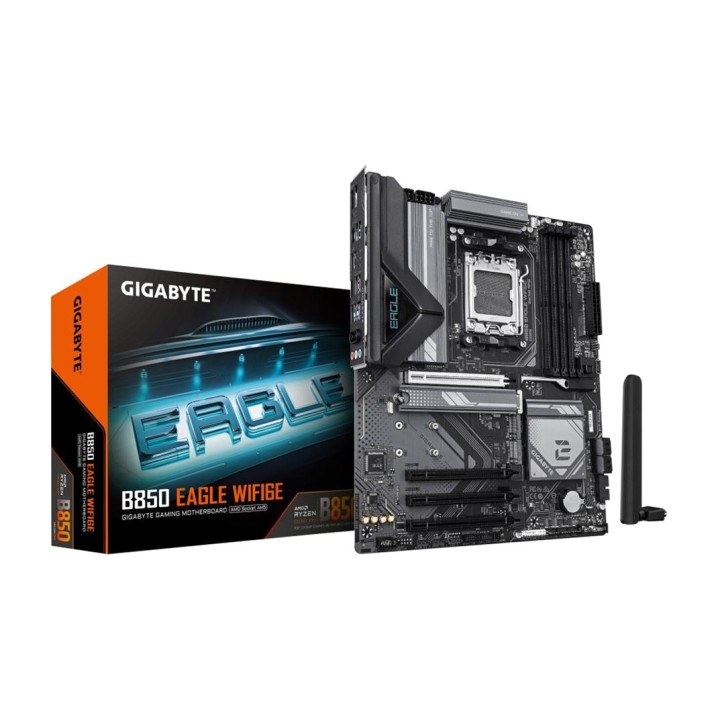

GIGABYTE ATX motherboard for AMD B850 EAGLE WIFI6E AM5 DSP0000029142
DeliveryUpdating delivery estimate…Order within the next — to receive it approximately Updating delivery estimate…
Updating delivery estimate…
Cuándo es más probable que llegue
Calculado con 0 entregas recientes
Fechas estimadas para España peninsular; se ajustarán con tu código postal y forma de entrega.
The date corresponds to the item with the longest delivery time
IVA intracomunitario
La exención intracomunitaria puede aplicarse a una entrega a otro Estado miembro si el NIF-IVA es válido y el destino cumple los requisitos. La comprobación por sí sola no determina el tratamiento fiscal.
Cómo se comprueba el IVA¿Eres profesional del sector?
Puedes solicitar una cuenta profesional e indicar los datos de tu actividad. La solicitud queda pendiente de revisión; puedes consultar su estado en tu cuenta.
Más información sobre cuentas profesionalesCanarias, Ceuta y Melilla sin IVA español
El tratamiento depende del destino de entrega y de la coherencia de la dirección. Pueden corresponder IGIC, IPSI, aranceles u otros cargos locales.
Más información sobre destinos e impuestos8+2+2 phase digital VRM with DrMOS
- MEMORY
Memory channels: Dual channel
ECC compatibility: No-ECC
Maximum internal memory : 256 GB
Maximum internal memory per slot : 64 GB
Number of memory slots : 4
Memory slot type: DIMM
Maximum memory clock speed supported: 8200 MHz
Supported clock speeds: 4400, 4800, 5200, 8200 MHz
compatible memory types: DDR5-SDRAM
- PROCESSOR
Manufacturer: AMD
Compatible processors: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor socket: Socket AM5
- EXPANSION SLOTS
PCIe Gen5 x16 slot with PCIe UD slot and EZ-Latch Plus
PCI Express x16 slots (Gen 5.x): 1
PCI Express x16 slots (Gen 3.x): 3
Slots M.2 (M): 3
1st M.2: PCIe 5.0, maximum size 25110
2nd M.2: PCIe 4.0, maximum size 22110
3rd M.2: PCIe 4.0, maximum size 22110
EZ-Latch Plus for SSD installation M.2
- STORAGE
Supported interfaces : M.2, SATA III
Supported unit types: HDD & SSD
Number of compatible storage drives : 7
Number of supported HDDs : 4
RAID compatibility: Yes
Levels RAID: 0, 1, 10
- CONNECTIVITY
Gigabit Ethernet LAN (Realtek RTL8111H)
Wi-Fi 6E with WIFI EZ-Plug
Bluetooth 5.3

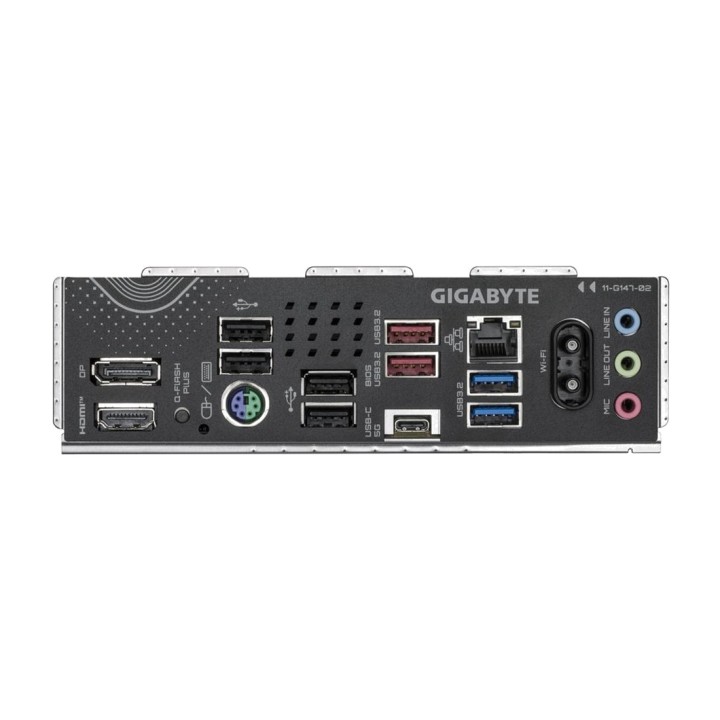

- REAR PANEL PORTS
USB 3.2 Gen 2 Type -C: 1
USB 3.2 Gen 2 Type -A: 2
USB 3.2 Gen 1 Type -A: 2
USB 2.0: 4
Ethernet port LAN (RJ-45): 1
Wi-Fi antenna connectors : 2
DisplayPort : 1
HDMI: 1
Headphone output : 1
Microphone input: Yes
- INTERNAL PORTS
USB 3.2 Gen 1 (3.1 Gen 1): 1
USB 3.2 Gen 2 (3.1 Gen 2): 1
USB 2.0: 2
ATX power connector (24 pins): Yes
EPS power connector (8-pin) : 1
Fan connectors CPU: 2
Chassis fan connectors : 3
Water pump connectors : 2
connectors RGB LED: 4
TPM Connector: Yes
- AUDIO
Sound chip: Realtek ALC897
Audio output channels: 7.1
- BIOS
BIOS Type: UEFI AMI
Memory size BIOS: 256 MB
ACPI version: 5.0
SMBIOS version: 2.7
Jumper Clear CMOS: Yes
CMOS cleaning button: Yes
- SYSTEM MONITORING
Temperature sensors, voltage sensors, fan and liquid cooling
- DIMENSIONS AND WEIGHT
Form factor: ATX
Dimensions: 305 mm x 244 mm x 35 mm
Weight: 1,68 kg
- COMPATIBILITY
Supported operating system: Windows 10 x64, Windows 11 x64
- PACKAGE CONTENT
Antenna included: Yes
Screws included: Yes
Batteries included: Yes (CR2032, Lithium-Manganese Dioxide)
Software included: Norton Internet Security (OEM)
- WARRANTY
Warranty period: 3 years
Volume (m ³): 0.0080
- Brand
- GIGABYTE
- Reference
- DSP0000029142
- EAN-13
- 4719331866587
- Weight
- 1,9 kg
