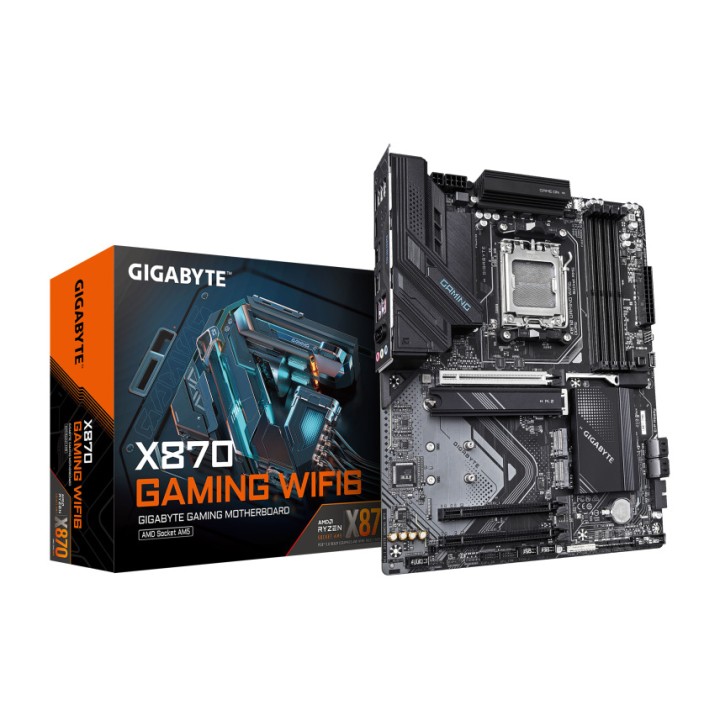

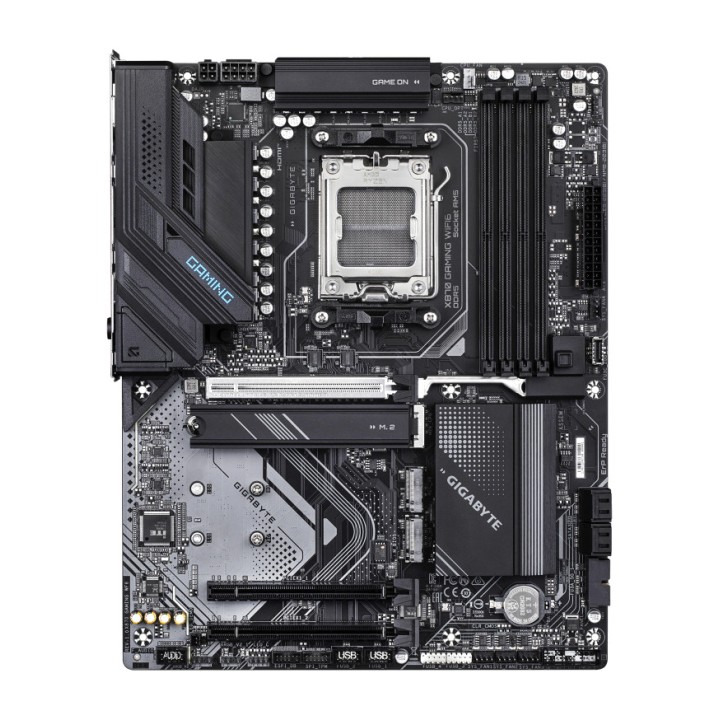

GIGABYTE ATX motherboard for AMD X870-GAMING WIFI6 AM5 DSP0000027396

- PROCESSOR
Processor manufacturer: AMD
Compatible processor: AMD Ryzen 7
Processor socket: Socket AM5
Supported processor sockets: Socket AM5
Maximum internal memory supported by the processor : 256 GB

- MEMORY
compatible memory types: DDR5-SDRAM
Number of memory slots : 4
Memory slot type: DIMM
Maximum internal memory : 256 GB
Maximum memory clock speed supported: 8000 MHz
Supported memory clock speeds: 4400, 4800, 5200, 5600, 6000, 6200, 6400, 6600, 6666, 6800, 7000, 7200, 7600, 7800, 8000 MHz
Memory channels: Dual channel
Supported memory module capacities : 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB

- storage
Supported storage drive interfaces : M.2, SATA III
Supported storage unit types: HDD & SSD
Number of compatible storage drives : 4
Number of supported HDDs : 7
Total number of connectors SATA: 4
Number of connectors SATA III: 4

- Raid
RAID compatibility: Yes
Levels RAID: 0, 1, 10

- CONNECTIVITY
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet: Yes
Wifi: Yes
Standard Wi-Fi: Wi-Fi 6 (802.11ax)
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be)
Bluetooth: Yes
Bluetooth version: 5.3
WLAN controller model: Realtek RTL8851BE

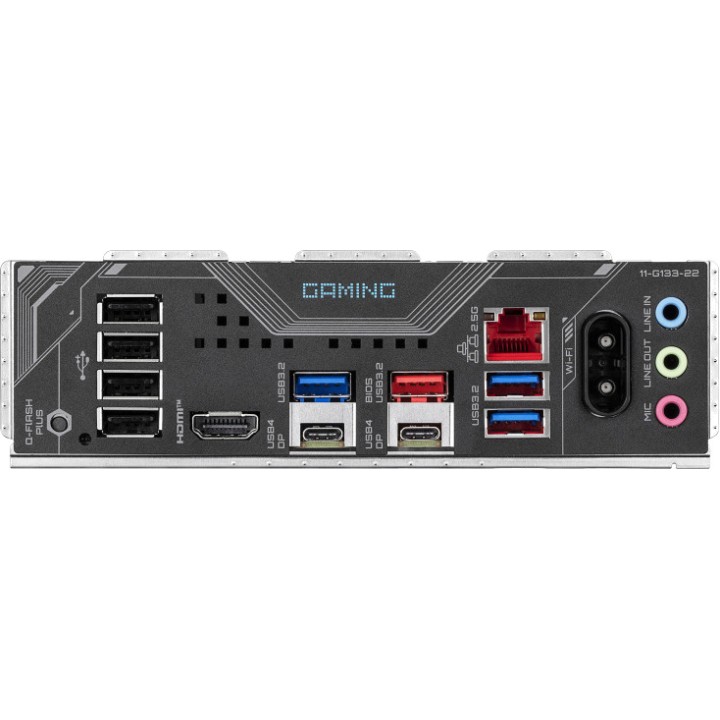

- REAR PANEL PORTS
Number of USB 3.2 Gen 1 (3.1 Gen Type-A ports 1): 3
Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports 2): 1
Number of USB4 Gen ports 2x2: 2
Number of ports USB 2.0: 4
Number of DisplayPorts : 2
Number of ports HDMI: 1
Microphone, input jack: Yes
S/PDIF output port: Yes
Ethernet LAN (RJ-45) port quantity : 1

- INTERNAL PORTS
USB 3.2 Gen 1 (3.1 Gen) connectors 1): 1
USB 3.2 Gen connectors 2x2: 1
USB 2.0, connectors : 4
12V electrical connector: Yes
ATX power connector (24 pins): Yes
EPS power connector (8-pin): Yes
TPM Connector: Yes
Connector for RGB LED strips: Yes

- Audio
Audio output channels: 7.1 channels

- EXPANSION
Number of slots M.2 (M): 3
PCI Express x16 slots (Gen 5.x): 1
x4 PCI Express slots : 2

- FORM FACTOR AND DESIGN
Component for: PC
Form factor: ATX
Product color: Black
Chipset family: AMD
Chipset : AMD X870

- MONITORING AND MANAGEMENT
PC Health Monitoring: Fan, Temperature, Voltage

- OPERATING SYSTEM
Supported Windows operating systems: Windows 10 x64, Windows 11 x64

- Dimensions
Height: 35 mm
Width: 305 mm
Depth: 244 mm
Weight: 2,23 kg

- PACKAGING
Batteries included: Yes
Software included: Norton Internet Security (OEM version), LAN bandwidth management software
Quantity per shipping box: 1 piece(s)

- BIOS
Types of BIOS: UEFI AMI
BIOS, memory size: 256 MB/s
System management BIOS version (SMBIOS): 2.7
ACPI version: 5.0
CMOS cleaning button: Yes
Jumper Clear CMOS: Yes
Desktop management interface version (DMI): 2.7

- GRAPHICS
DirectX version: 12.0

- Battery
BATTERY TYPE: CR2032
Number of battery cells : 1
Battery weight: 3 g
Lithium weight per battery: 0,07 g
Battery technology: Lithium-Manganese Dioxide (LiMn O2)

- PACKAGING
Package height: 80 mm
Package width: 335 mm
Package depth: 270 mm
Package weight: 2,53 kg
Volume (m ³): 0.0076
