BIOSTAR Micro ATX motherboard for Intel LGA 1700 with DDR5 B760MXC PRO 8XSATA3 DSP0000033753

Motherboard Features B760MXC PRO

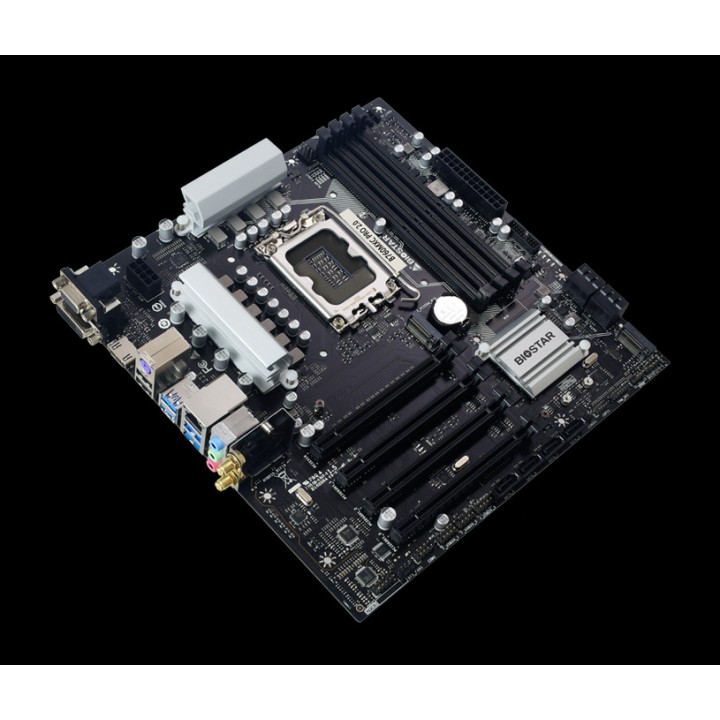

The B760MXC PRO is a high-performance Micro ATX motherboard designed to get the most out of 12th, 13th and 14th generation Intel® processors. Ideal for powerful desktop computers, it combines extensive storage options, excellent connectivity and compatibility with high-speed memory, providing a solid platform for gaming, content creation or professional use.
Next-generation performance and compatibility
Equipped with the Intel® B760 chipset and LGA1700 socket, this motherboard supports a wide range of Intel® Core™, Pentium® and Celeron® processors, ensuring an optimal balance between power and efficiency.

Supports Intel® Core™ i9/i7/i5/i3, Pentium® and Celeron® processors (12th, 13th and 14th generation)

Intel chipset ® B760
Micro ATX form factor (24,4 cm x 24,4 cm)

High-speed memory
Its 4-slot DDR5 configuration allows up to 128 GB of RAM to be installed in dual-channel mode, with frequencies reaching 4600 MHz when overclocked, delivering greater responsiveness in demanding tasks.

Compatible with DDR5 6000+(OC) up to 1866 MHz

Supports Intel® Extreme Memory Profile (XMP)
Supports 4/8/16/32 GB non-ECC modules

Versatile, fast storage
Features 2 M.2 sockets and 8 SATA III ports, allowing you to combine PCIe 4.0 and 3.0 NVMe SSDs with traditional hard drives in RAID configurations to achieve the ideal balance between speed and capacity.

1 x M.2 PCIe 4.0 x4 (NVMe)

1 x M.2 PCIe 3.0 x4 / SATA III (NVMe/AHCI)
8 x SATA III (RAID 0, 1, 5, 10)

Integrated graphics and sound

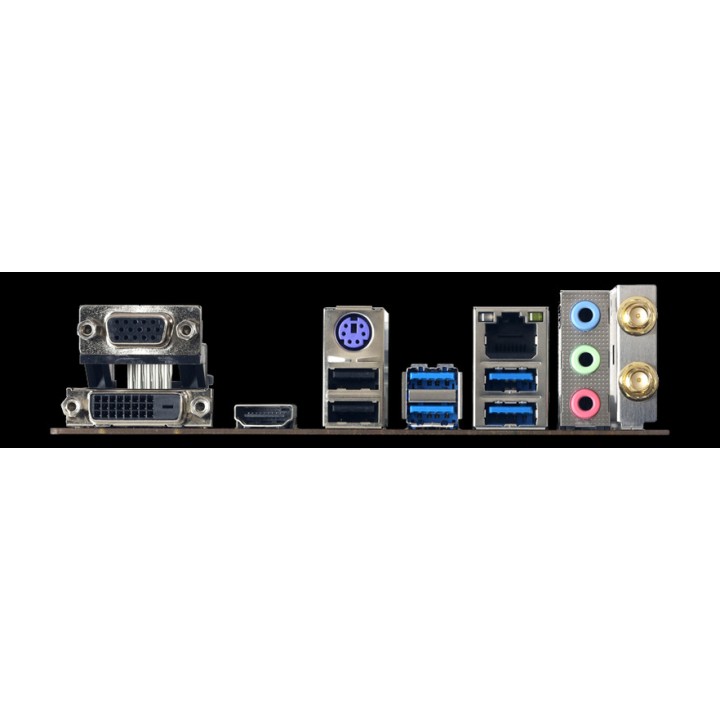

The motherboard supports DirectX 12 and HDCP protection, and offers HDMI, VGA and DVI outputs for connecting multiple displays. In addition, the ALC897 audio codec provides 7.1-channel high-definition sound, ideal for immersive experiences.

HDMI®, VGA and DVI outputs

HDCP support
7.1-channel audio with codec ALC897

Connectivity and expansion
Offers a wide range of USB ports, Intel Gigabit network connectivity and expansion slots for graphics cards and peripherals.

1 x PCIe 4.0 x16 and 3 x PCIe 3.0 x1

Intel® I219V 10/100/1000 Mb/s LAN
4 x USB 3.2 Gen2, 2 x USB 3.2 Gen 1, 8 x USB 2.0

Design and reliability
It features thermal and voltage monitoring options, intelligent fan control, and support for 64-bit Windows 10 and 11 operating systems.

Temperature and voltage monitoring

Intelligent/manual fan control
Compatible with 64-bit Windows 10/11

Included accessories

2 x SATA cables

1 x I/O shield
1 x driver DVD
1 x quick guide
WiFi antenna accessories
Volume (m ³): 0.0044
