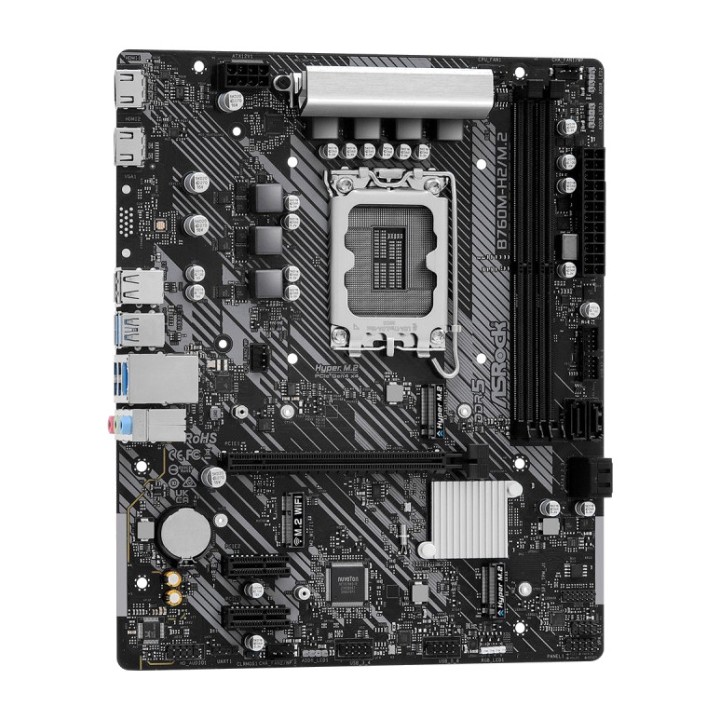

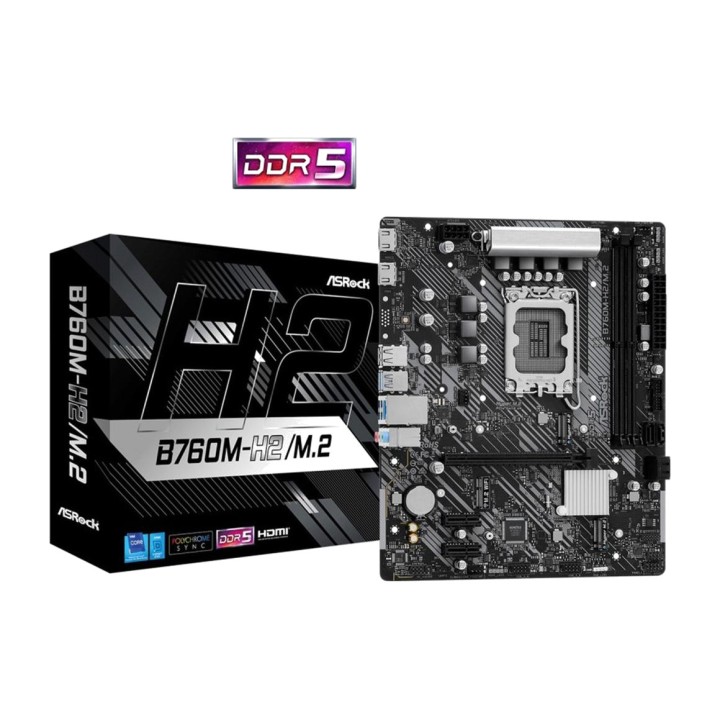

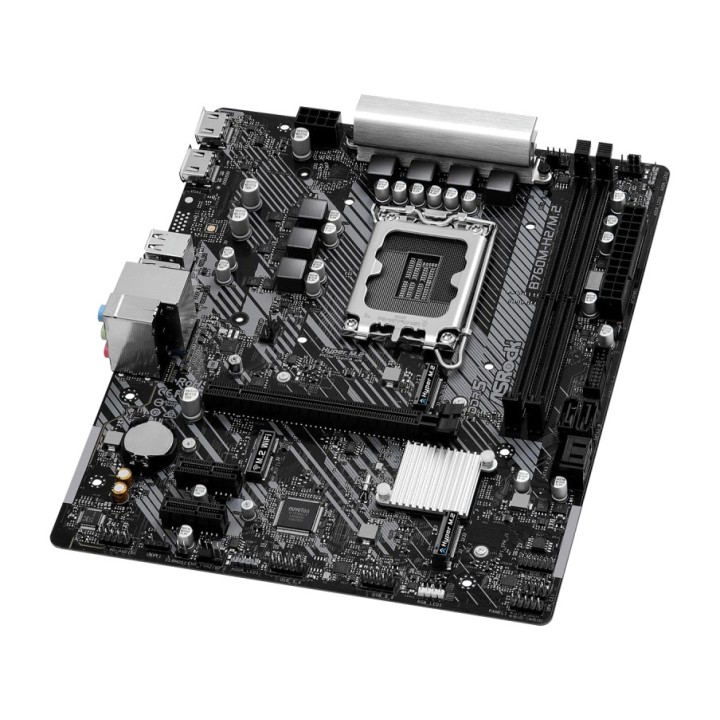

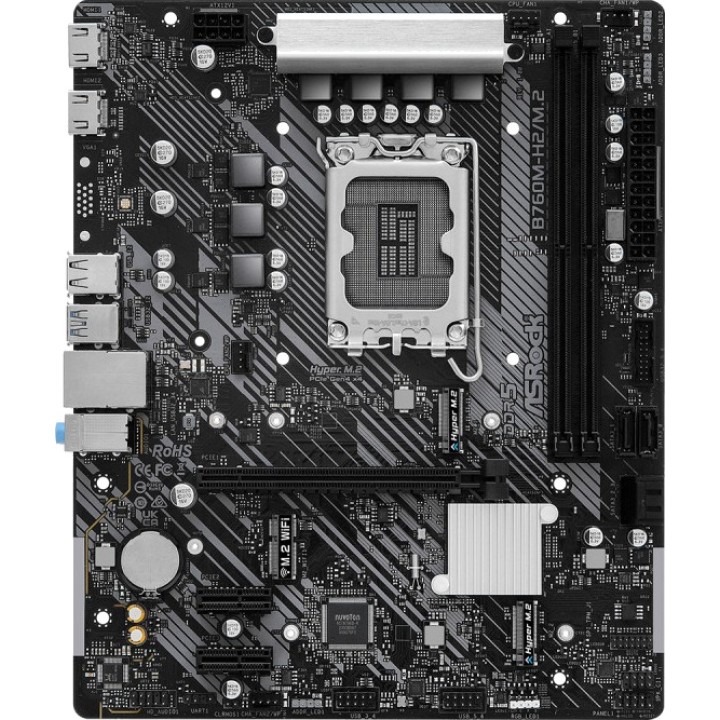

ASROCK Micro ATX motherboard B760M-H2/M.2 LGA1700 DSP0000031421
DeliveryUpdating delivery estimate…Order within the next — to receive it approximately Updating delivery estimate…
Updating delivery estimate…
Cuándo es más probable que llegue
Calculado con 0 entregas recientes
Fechas estimadas para España peninsular; se ajustarán con tu código postal y forma de entrega.
The date corresponds to the item with the longest delivery time
IVA intracomunitario
La exención intracomunitaria puede aplicarse a una entrega a otro Estado miembro si el NIF-IVA es válido y el destino cumple los requisitos. La comprobación por sí sola no determina el tratamiento fiscal.
Cómo se comprueba el IVA¿Eres profesional del sector?
Puedes solicitar una cuenta profesional e indicar los datos de tu actividad. La solicitud queda pendiente de revisión; puedes consultar su estado en tu cuenta.
Más información sobre cuentas profesionalesCanarias, Ceuta y Melilla sin IVA español
El tratamiento depende del destino de entrega y de la coherencia de la dirección. Pueden corresponder IGIC, IPSI, aranceles u otros cargos locales.
Más información sobre destinos e impuestosnon-ECC
-PROCESSOR
Processor manufacturer
Intel
Processor socket
LGA 1700
Compatible processor
Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9
Maximum internal memory supported by the processor
128 GB
-MEMORY
Maximum supported memory clock speed
7200 MHz
Memory channels
Double channel
Unbuffered memory
YES
Memory slot type
DIMM
compatible memory types
DDR5-SDRAM
Number of memory slots
2
Maximum internal memory
128 GB
Supported memory clock speeds
5600, 6800, 7200 MHz
-STORAGE
Number of supported HDDs
6
Number of compatible storage drives
4
Supported storage drive interfaces
M.2, SATA III
Total number of SATA connectors
4
Number of SATA III connectors
4
RAID support
YES
RAID levels
0, 1, 5, 10
-GRAPHICS
DisplayPort version
1.4
Number of HDMI ports
2
HDMI version
2.1
Number of VGA (D-Sub) ports
0
Number of DVI-D ports
0
HDCP
YES
-NETWORK
Ethernet interface type
2.5 Gigabit Ethernet
Ethernet LAN (RJ-45) port quantity
1
Ethernet
YES
-FORM FACTOR
Form factor
Micro ATX
WIDTH
244 mm
DEPTH
201 mm
-FEATURES
Sound chip
Realtek ALC897
Audio output channels
7.1 channels
Microphone, input jack
YES
Line-in
YES
TPM connector
YES
CPU fan connector
YES
Chassis intrusion connector
YES
Front panel connector
YES
-PORTS AND INTERFACES
Number of USB 3.2 Gen 1 (3.1 Gen Type-A ports 1)
4
Number of USB Type-C 3.2 Gen 1 (3.1 Gen 1)
1
Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports 2)
0
Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports 2)
0
Number of VGA (D-Sub) ports
0
Number of ports USB 2.0
2
USB 2.0, connectors
4
USB 3.2 Gen 1 (3.1 Gen) connectors 1)
2
USB 3.2 Gen 2 (3.1 Gen connectors 2)
0
-NUMBER OF SLOTS
PCI Express x1 (Gen 3.x) slots
2
PCI Express x16 slots (Gen 4.x)
1
Number of slots M.2 (M)
2
-SUPPORT AND CERTIFICATIONS
CERTIFICATION
FCC, CE10- ErPEuP ready (ErPEuP ready power supply is required)
Max. number of SMP processors
1
Supported Windows operating system
Windows 10 x64, Windows 11 x64
Support for parallel processing
Not supported
-BIOS TYPE
BIOS types
UEFI AMI
BIOS, memory size
128 MBs
-ADDITIONAL PORTS
Mouse port PS/2
1
-CHIPSET
Chipset family
Intel
Chipset
Intel B760
-CABLES INCLUDED
Cables included
SATA
-WIFI
WiFi
NOT
Volume (m ³): 0.0040
- Brand
- ASROCK
- Reference
- DSP0000031421
- EAN-13
- 4710483944215
- Weight
- 0,792 kg
