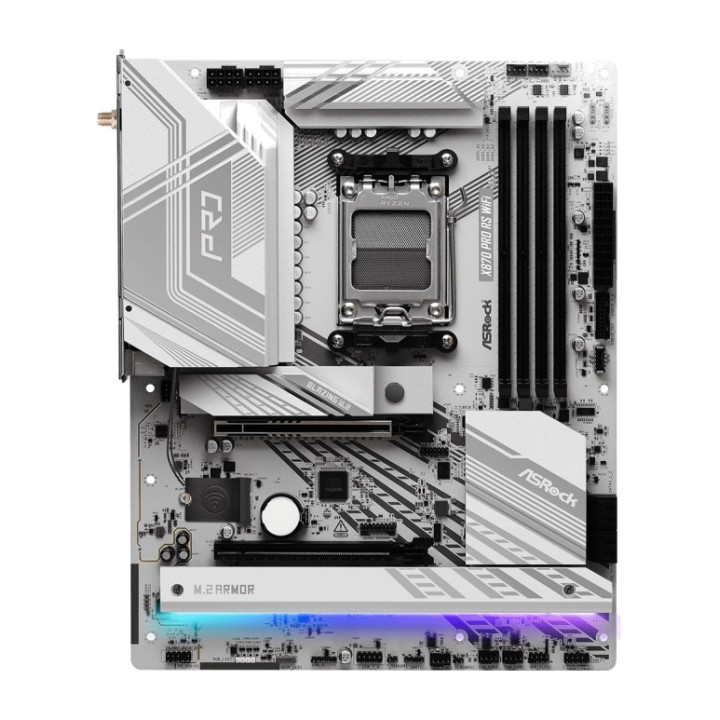

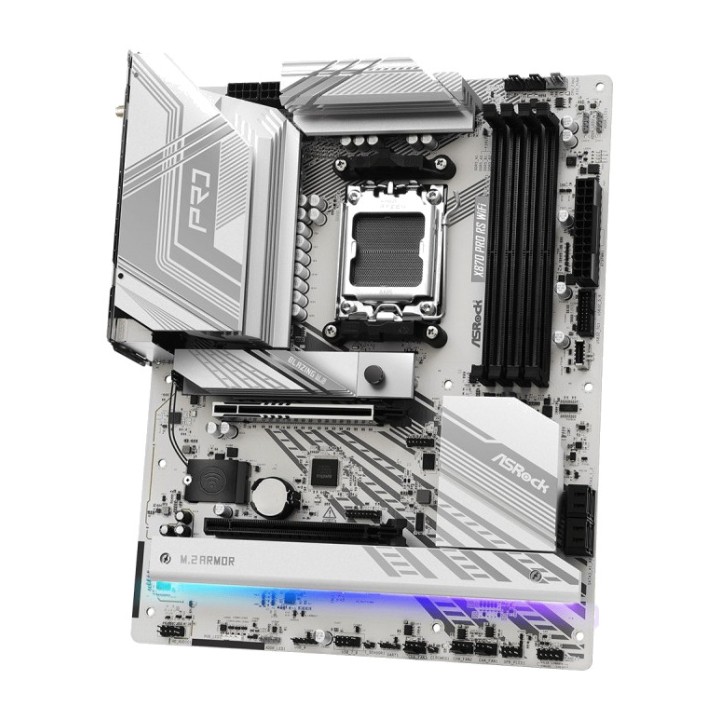

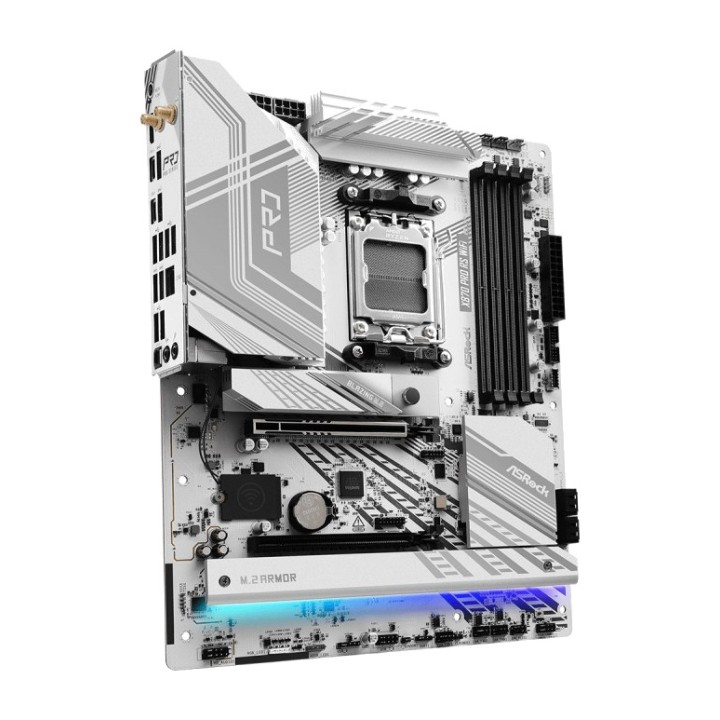

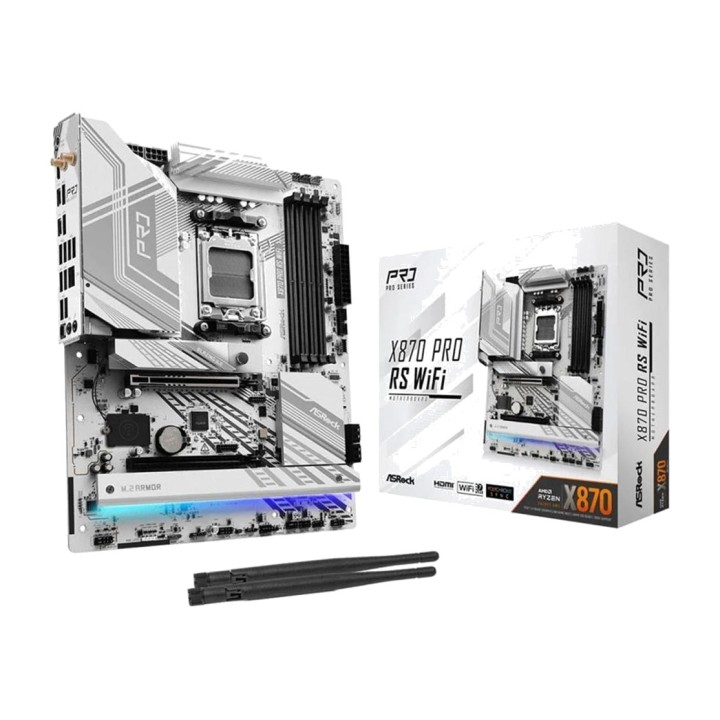

ASROCK ATX motherboard X870 PRO RS-WIFI AM5 DSP0000031419

- TECHNICAL SPECIFICATIONS

-PROCESSOR
Processor manufacturer
AMD

Processor socket
Socket AM5

Compatible processor
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

-Component for
PC

-FORM FACTOR AND DESIGN
Form factor
ATX

Product color
WHITE

Cooling type
passive

-Electrical connector of 12 V
YES

-ATX power connector (24-pin)
YES

-EPS power connector (8-pin)
YES

-BIOS Flashback button
YES

-WiFi-AP antenna connector
2

-SIZE
WIDTH
305 mm

DEPTH
244 mm

-MEMORY
ECC compatibility
ECC and non-ECC

Memory channels
Double channel

Maximum internal memory
256 GB

Memory slot type
DIMM

Maximum supported memory clock speed
8000 MHz

Supported memory clock speeds
8000 MHz

Unbuffered memory
YES

Number of memory slots
4

-GRAPHICS CARD
Graphics chipset
AMD

DisplayPort version
1.4

Number of DisplayPorts
1

Number of HDMI ports
1

HDMI version
2.1

Integrated graphics adapter
YES

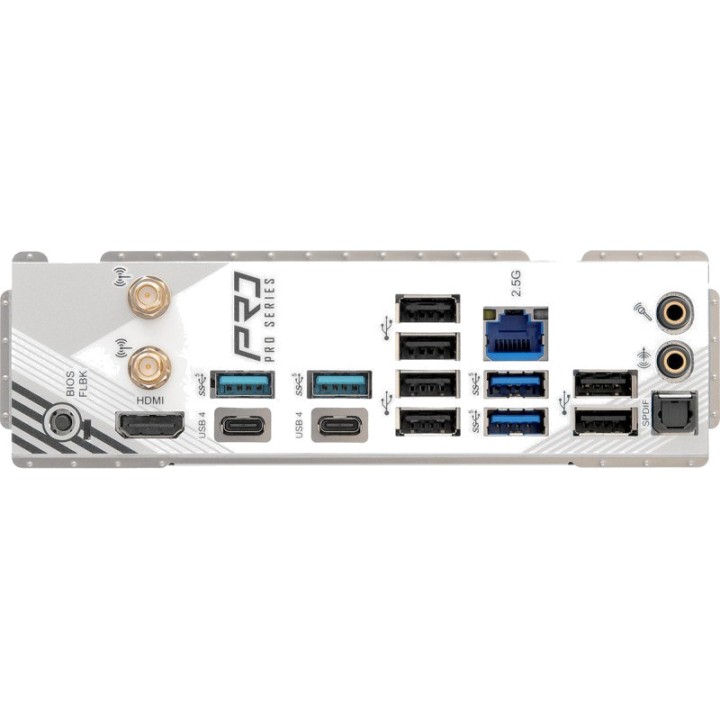

-PORTS AND INTERFACES
Number of USB 3.2 Gen 1 (3.1 Gen Type-A ports 1)
4

USB 3.2 Gen 1 (3.1 Gen) connectors 1)
1

Number of ports USB 2.0
6

USB 2.0, connectors
2

Number of USB4 Gen ports 2×2
2

Number of USB 3.2 Gen ports 2x2
1

Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports 2)
0

Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports 2)
0

Number of USB Type-C 3.2 Gen 1 (3.1 Gen 1)
0

Number of VGA (D-Sub) ports
0

Number of DVI-D ports
0

S/PDIF output port
YES

-Front panel audio connector
YES

Microphone, input jack
YES

Line-in
YES

-STORAGE
Supported storage drive interfaces
M.2, SATA III

Number of SATA III connectors
4

Number of compatible storage drives
7

Number of supported HDDs
4

-RAID LEVELS
0, 1

RAID support
YES

-EXPANSION SLOTS
PCI Express x16 slots (Gen 5.x)
1

PCI Express x16 slots (Gen 4.x)
1

PCI Express x1 slots (Gen 4.x)
2

Number of slots M.2 (M)
3

Number of slots M.2 (E)
1

-NETWORKS
Ethernet interface type
2.5 Gigabit Ethernet

Ethernet LAN (RJ-45) port quantity
1

Ethernet
YES

LAN controller
DRAGON RTL8125BG

Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)

Wi-Fi standard
Wi-Fi 7 (802.11be)

Bluetooth
YES

Bluetooth version
5.4

-AUDIO FEATURES
Sound chip
Realtek ALC1220

Audio output channels
7.1 channels

-CONNECTIVITY
Antenna included
YES

TPM connector
YES

-CPU fan connector
YES

Number of chassis fan connectors
4

Number of CPU fan connectors
2

Number of water pump connectors
1

-Connector for RGB LED strips
YES

Number of RGB LED pin headers
3

-SUPPORT FOR PARALLEL PROCESSING
Crossfire

-BIOS TYPE
UEFI AMI

BIOS, memory size
256 MBs

-CERTIFICATIONS
FCC, CE10ErPEuP ready (ErPEuP-ready power supply required)

-ACCESSORIES
Cables included
SATA
Volume (m ³): 0.0091
