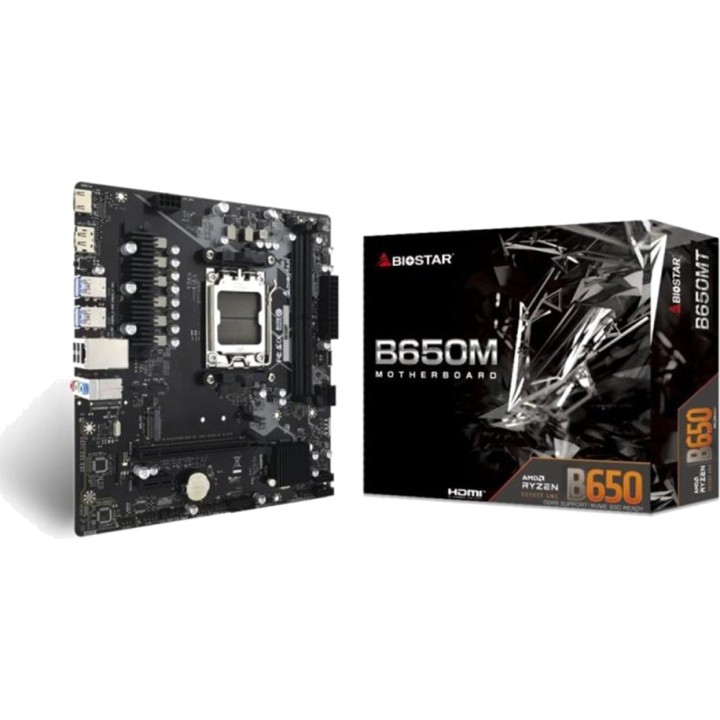

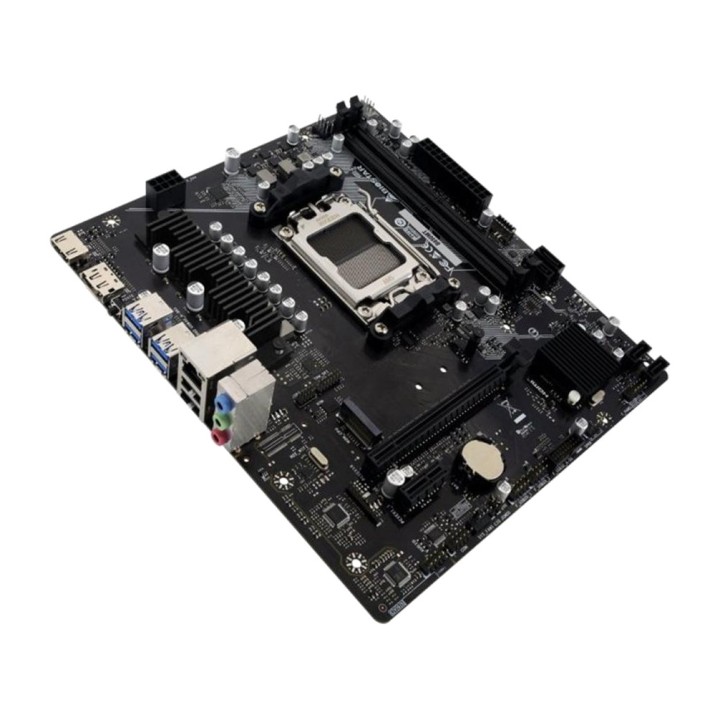

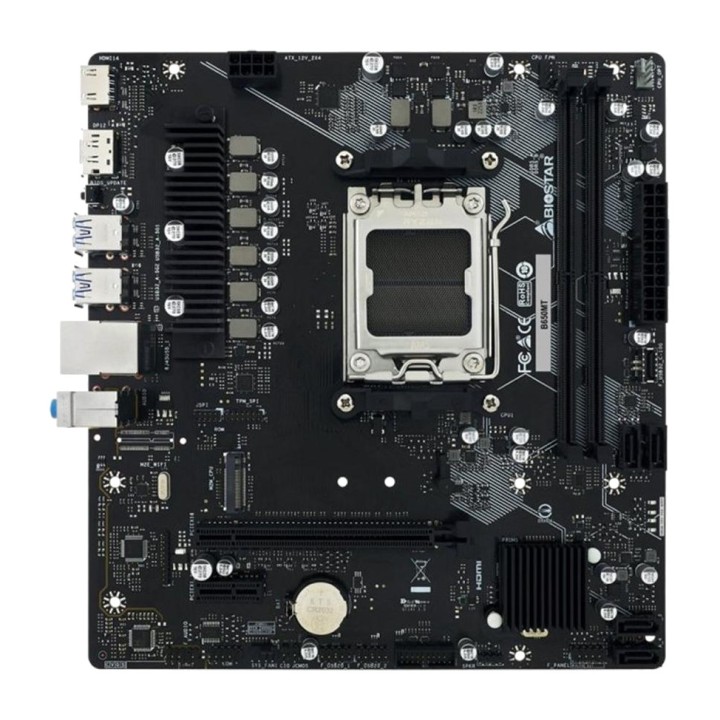

BIOSTAR Micro ATX motherboard for AMD AM5 with DDR5 B650MT DSP0000029125

- MODEL AND FORM FACTOR
Model: Biostar B650MT
Form factor: Micro ATX (mATX)
Chipset : AMD B650
Socket: AM5

- CPU COMPATIBILITY
Processor manufacturer: AMD
Compatible with: AMD Ryzen ™ 7

- MEMORY
Memory type: DDR5-SDRAM
Number of slots : 2 x DIMM
Maximum capacity : 96 GB
Memory Channels: Dual Channel
ECC Support: No
Supported speeds: 4800, 5200, 5400, 5600, 6000 MHz
Compatible module capacities : 8 GB, 16 GB, 32 GB, 48 GB

- STORAGE
Compatible unit types: HDD, SSD
Supported drive interfaces: M.2, PCIe 4.0, SATA III
RAID compatibility: Yes
Levels RAID: 0, 1, 10

- GRAPHICS
Maximum resolution: 4096 x 2160 pixels
HDCP Support: Yes
DirectX: version 12.0
Video ports:
- 1 x HDMI (version 1.4)
- 1 x DisplayPort (version 1.2)

- CONNECTIVITY
Ethernet: Yes (Gigabit Ethernet)
LAN controller: Realtek RTL8111H

- AUDIO
Sound chip: Realtek ALC897
Audio output channels: 7.1 channels

- Internal I/O Ports
2 x USB 2.0
1 x USB 3.2 Gen 1 (3.1 Gen 1)
1 x USB 3.2 Gen 2 (3.1 Gen 2)
4 x SATA III
1 x CPU fan connector
1 x chassis fan connector
1 x ATX connector (24 pins)
1 x power connector 12 V

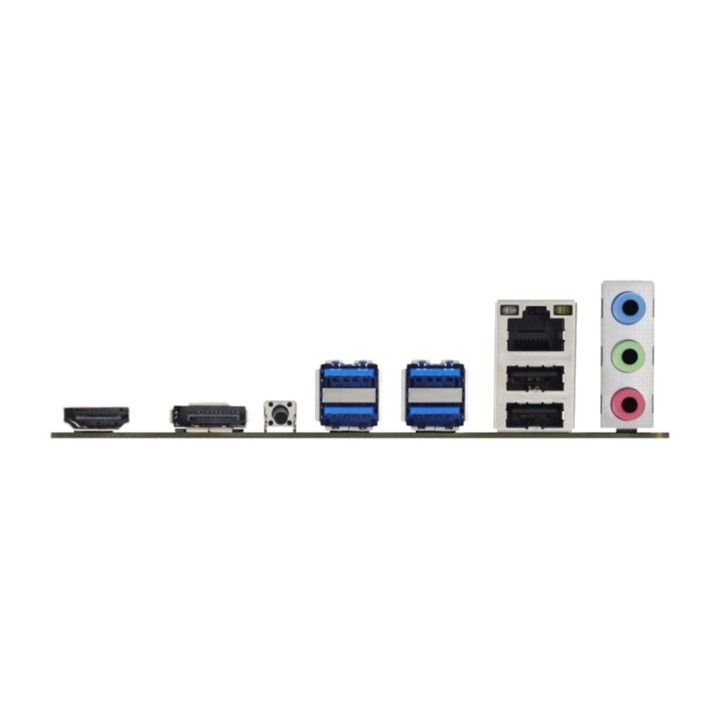

- EXTERNAL I/O PORTS
2 x USB 2.0
4 x USB 3.2 Gen 1 Type A (3.1 Gen 1)
1 x Ethernet LAN (RJ-45)
1 x HDMI
1 x DisplayPort

- EXPANSION
1 x PCIe x16 slot (Gen 4.0)
1 x PCIe x1 slot (Gen 3.0)
1 x slot M.2

- MONITORING AND MANAGEMENT
Monitoring: CPU, fan, temperature, voltage
BIOS: Jumper for Clear CMOS Support

- DIMENSIONS
Width: 221 mm
Depth: 235 mm

- PACKAGE CONTENT
Cables included: SATA
Controllers included: Yes
Software included: BullGuard

- SUPPORTED OPERATING SYSTEM
Windows 10 x64
Windows 11 x64

- RECOMMENDED USE
Designed for compact systems and users looking for a reliable motherboard with support for the latest AMD technologies and DDR5 memory. Ideal for general-purpose PCs, light gaming and workstations.
Volume (m ³): 0.0031
