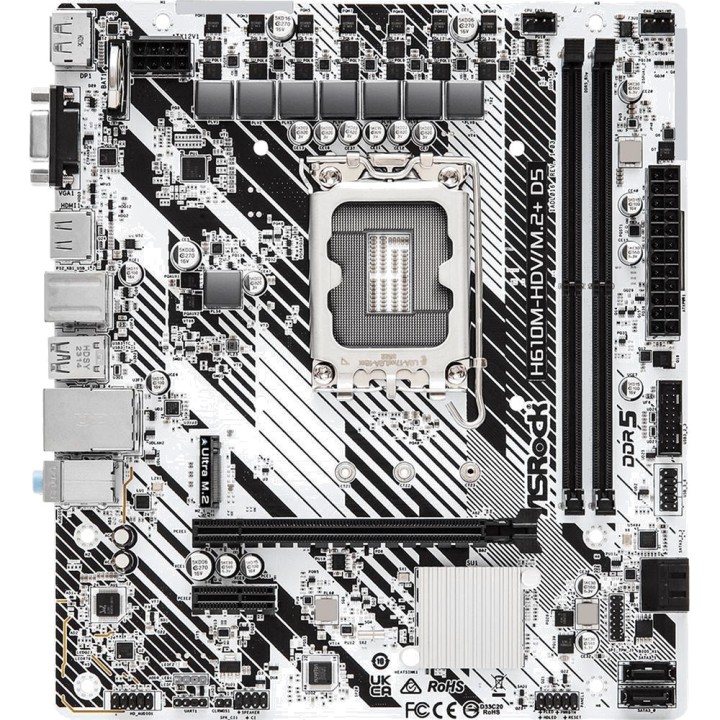

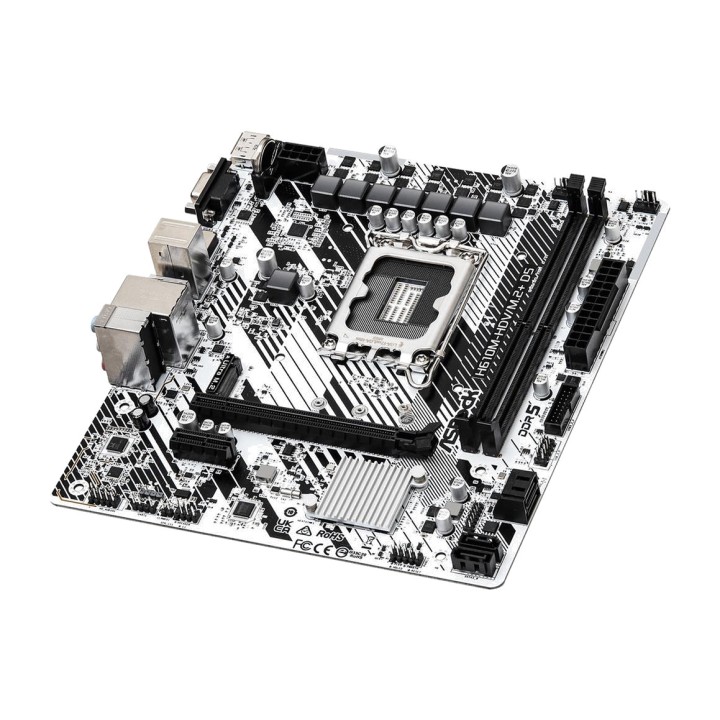

ASROCK Micro ATX motherboard H610M-HDV/M.2+ D5 LGA1700 DSP0000028565

SPECIAL FEATURES
Unmatched productivity
- Dual Channel DDR5
Tough and solid as a rock
- 6+1 Power Phase
EZ Updater
- ASRock Driver Installer Automatic Driver Installer
CPUs
- Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700)
- Supports Intel Hybrid Technology
- Supports Intel Turbo Boost Max 3.0 Technology
Chipset
- Intel H610
MEMORY
- Dual Channel DDR5 Memory Technology
- 2 x DDR5 DIMM slots
- 13th Gen Intel Core Processors Supports DDR5 non-ECC, un-buffered up to 5600*
- 12th Gen Intel Core Processors Supports DDR5 non-ECC, un-buffered up to 4800*
- Maximum system memory capacity : 96GB
- Supports Intel Extreme Memory Profile (XMP) 3.0

* Current support may vary depending on the CPU.
BIOS
- 128Mb AMI UEFI Legal BIOS with GUI support
Graphics
- Intel Xe graphics architecture (Gen 12)*
- 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and maximum resolution up to 8K 60Hz / 5K 120Hz
- 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz

*Integrated Intel UHD graphics visuals and VGA outputs may be compatible only with processors that have an integrated GPU.
Audio
- 7.1-channel HD Audio (Realtek ALC897 Audio Codec)
LAN
- Gigabit LAN 10/100/1000 Mb/s
- Realtek 8111H
Expansion slots
CPU:
- 1 x PCIe 4.0 x16 Slot (PCIE1), supports mode x16*
Chipset:
- 1 x PCIe 3.0 x1 Slot (PCIE2)*

*Supports NVMe SSDs as boot drives
STORAGE
Chipset:
- 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode*
- 4 x SATA3 6.0 Gb/s connectors

*Supports NVMe SSDs as boot drives
USB
- 1 x USB 3.2 Gen1 Type-C (Rear)
- 3 x USB 3.2 Gen1 Type-A (1 rear, 2 front)
- 6 x USB 2.0 (4 rear, 2 front)

*All USB ports support ESD protection
connectors
- 1 x SPI TPM header
- 1 x chassis intrusion and speaker header
- 1 x addressable LED header*
- 1 x CPU fan connector (4-pin)**
- 1 x chassis water pump fan connector (4-pin) (Smart Fan speed control)***
- 1 x 24-pin ATX power connector
- 1 x 8-pin power connector 12V
- 1 x front panel audio connector
- 1 x USB 2.0 header (supports 2 ports USB 2.0)
- 1 x USB 3.2 Gen1 header (supports 2 USB 3.2 Gen ports 1)

*Supports up to 5V/3A in total, strips LED 15W
** CPU_FAN1 supports fan power up to 1A (12W).
*** CHA_FAN1/WP supports fan power up to 2A (24W).
CHA_FAN1/WP can automatically detect whether a 3-pin or 4-pin fan is in use.

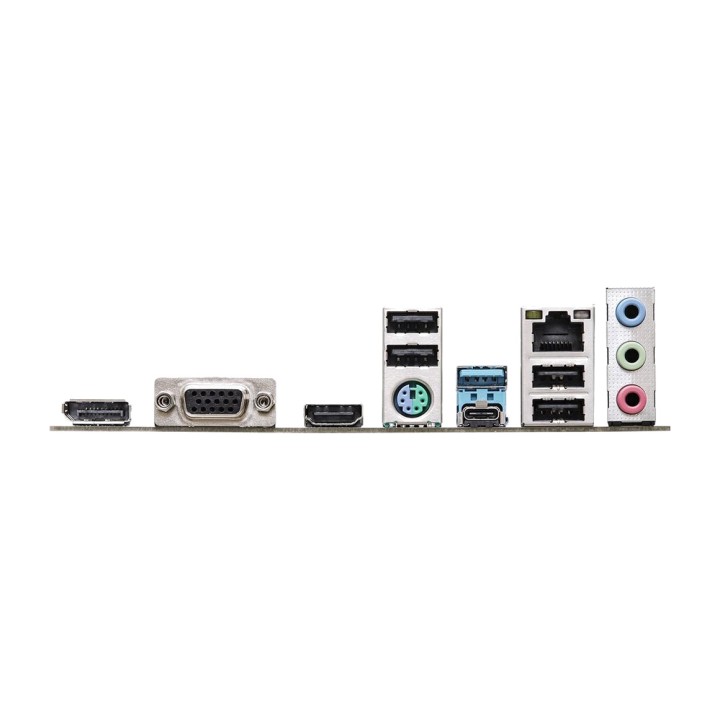

Rear I/O panel
- 1 x PS/2 keyboard/mouse port
- 1 x D-Sub port
- 1 x HDMI port
- 1 x DisplayPort 1.4
- 1 x USB 3.2 Gen1 Type-C port
- 1 x USB 3.2 Gen1 Type-A port
- 4 x ports USB 2.0
- 1 x Port RJ-45
- HD Audio Connectors: Line In / Front Speaker / Microphone
Software and UEFI
SOFTWARE
- ASRock Motherboard Utility (A-Tuning)
- ASRock Polychrome SYNC*
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Driver Installer Automatic Driver Installer
- ASRock Instant Flash

*This utility can be downloaded from the ASRock Live Update & APP Shop.
ACCESSORIES
- 1 x user manual
- 1 x I/O Shield
- 2 x SATA data cables
- 1 x Socket screw M.2
FORMAT
- Micro ATX format: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm
OPERATING SYSTEM
- Compatible with Microsoft Windows 10 64-bit / 11 64-bit
Certifications
- FCC, CE
- ErP/EuP compliant (ErP/EuP requires a compliant power supply)
Volume (m ³): 0.0040
