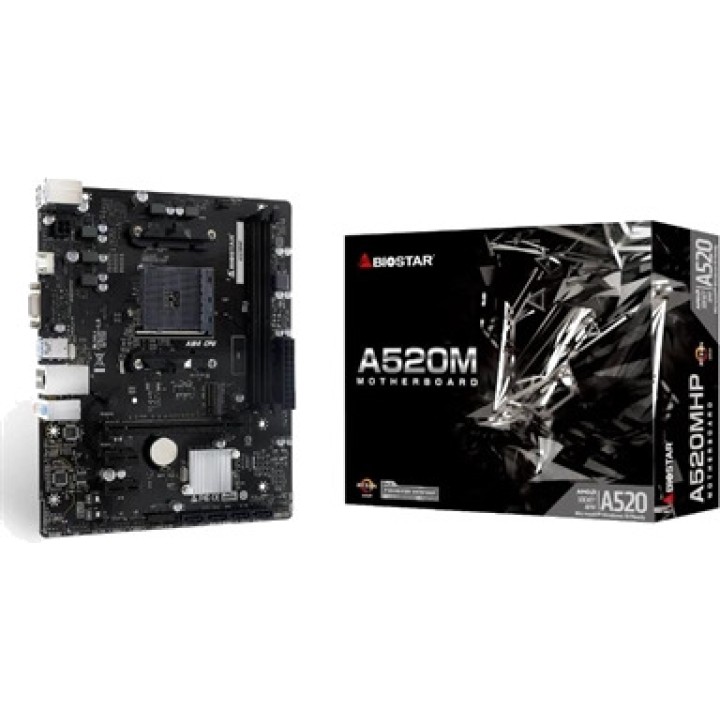

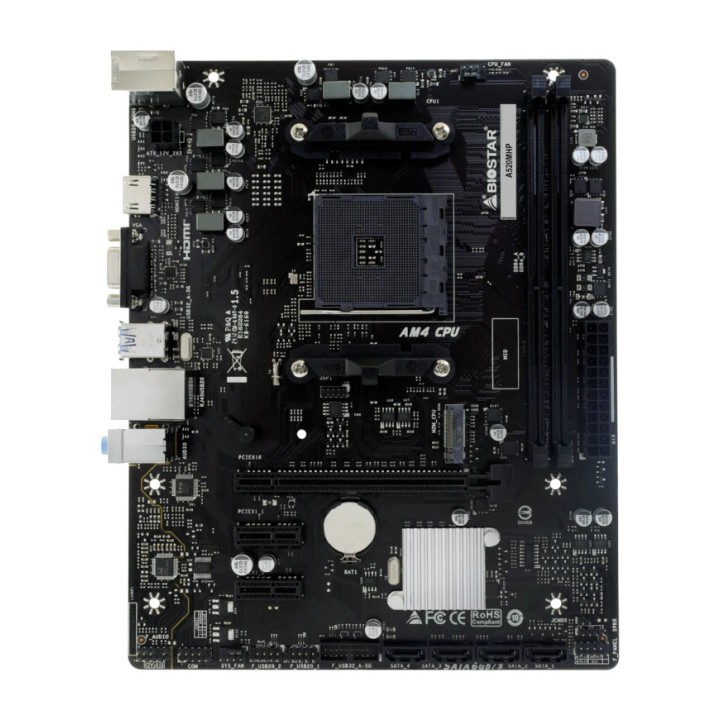

BIOSTAR Micro ATX motherboard for AMD AM4 with DDR4 A520MHP DSP0000028104

BIOSTAR AM4 A520MHP MATX MOTHERBOARD

Platform - Micro ATX: (19.0 cm x 23.5 cm)
Chipset - AMD A520
CPU - Compatible with AMD Ryzen series processors 5000/5000G/4000G/3000/3000G
- Support for future AMD Ryzen processors with BIOS update
* See for the CPU support list.
Memory - 4th Generation AMD Ryzen processors (Vermeer CPU): Supports dual-channel DDR4: 4266+(OC)/4133(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/2667/ 2400/2133
- 4th Generation AMD Ryzen with Radeon Graphics processors (Cezanne APU): supports dual-channel DDR4 - 4400+(OC)/ 4266(OC)/4133(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200 /2933/ 2667/
2400/2133
- 3rd Generation AMD Ryzen processors (Matisse CPU): Supports dual-channel DDR4: 4266+(OC)/4133(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/2667/ 2400/2133
- 3rd Generation AMD Ryzen with Radeon Graphics processors (Renoir APU): Supports dual-channel DDR4: 4400+(OC)/ 4266(OC)/4133(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/2933/ 2667/
2400/2133
- 2 x DDR4 DIMM memory slots, max. Supports up to 64 GB of memory
- Each DIMM supports non-ECC DDR4 modules of 8/16/32 GB
* See for the memory support list.
Expansion Slots - AMD Ryzen processors 5000/3000
1 x PCIe 3.0 x16 slot (x16 mode or x4/x4/x4/x4)
- AMD Ryzen Processors 5000G/4000G/3000G
1 x PCIe 3.0 x16 slot (x16 mode or x8/x4/x4)
- Chipset AMD A520
2 PCIe slots 3.0 x1
* Depending on the different CPUs, speeds will vary.
* Specifications vary depending on the CPU type
I/O Ports,
connectors
Internal
- 4 x 6.0 Gb/s SATA III connectors
- 1 x USB 3.2 (Gen1) header (each header supports 2 USB 3.2 (Gen 1))
- 2 x USB 2.0 headers (each header supports 2 ports USB 2.0)
- 1 x 4-pin power connector
- 1 x 24-pin power connector
- 1 x CPU fan connector
- 1 x system fan connector
- 1 x front panel header
- 1 x front audio header
- 1 x clear CMOS header
- 1 x COM serial header
- 1 x internal stereo speaker header

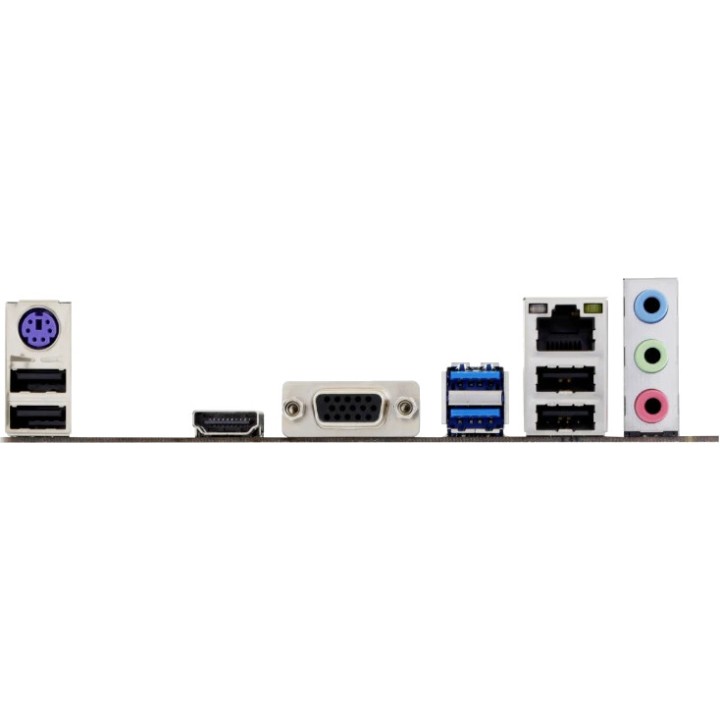

Rear
- 1 x keyboard/mouse PS/2
- 1 x VGA port
- 1 x HDMI port
- 1 x LAN port
- 2 x USB 3.2 ports (Gen 1)
- 4 x ports USB 2.0
- 3 x audio connectors
Others
Characteristic
Storage
- Fully compatible with 1 M.2 socket and 4 SATA III ports (6 Gb/s)
- AMD Ryzen Processors 5000/5000G/4000G/3000/3000G
- 1 x M.2 connector (M key):
- Supports M.2 SSD module type 2260/2280
- Supports PCIe 3.0 x4 (32Gb/s) - NVMe/AHCI SSD
- Supports SATA III SSD (6.0 Gb/s)
- Chipset AMD A520
- 4 x SATA III connectors (6 Gb/s):
- Supports AHCI and RAID 0, 1, 10
* Specifications vary depending on the CPU type
LAN
- Realtek RTL8111H
- 10/100/1000 Mb/s auto-negotiation, Half/Full Duplex capability
Audio
- Realtek ALC897
- 7.1-channel, high-definition audio, Hi-Fi (front)
USB
- 4 x USB 3.2 ports (Gen 1)
2 on rear I/O
2 via internal headers
- 8 x ports USB 2.0
4 on rear I/O
4 via internal headers
Supported OS
- Supports Windows 10(64bit)/ 11(64bit)
Volume (m ³): 0.0036
