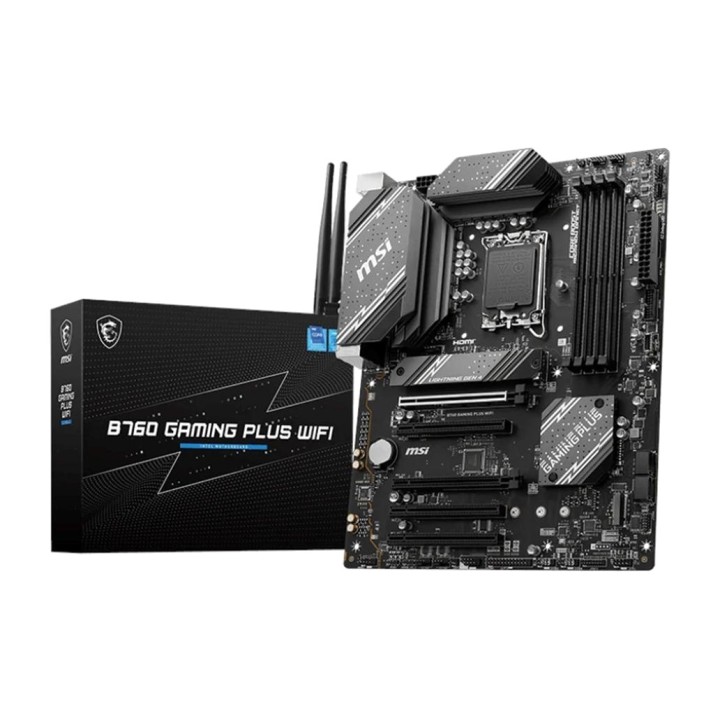

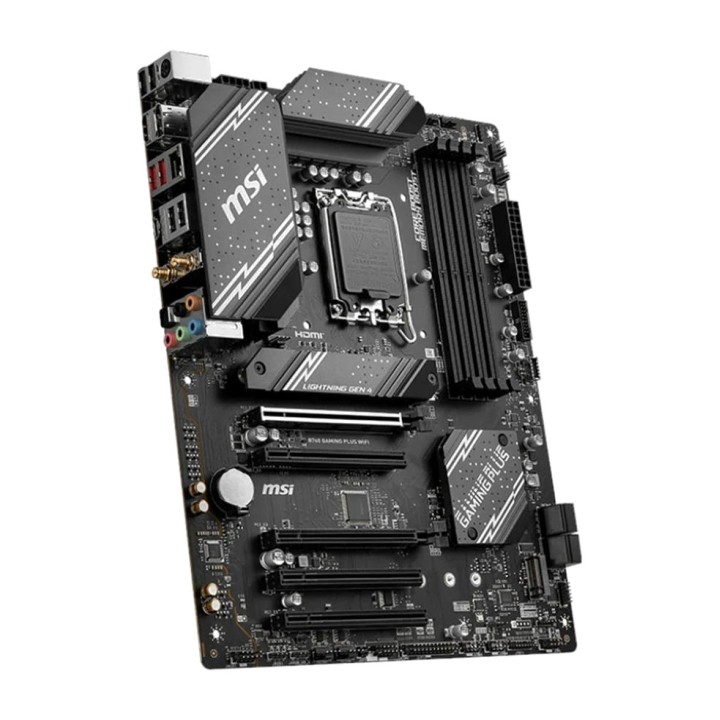

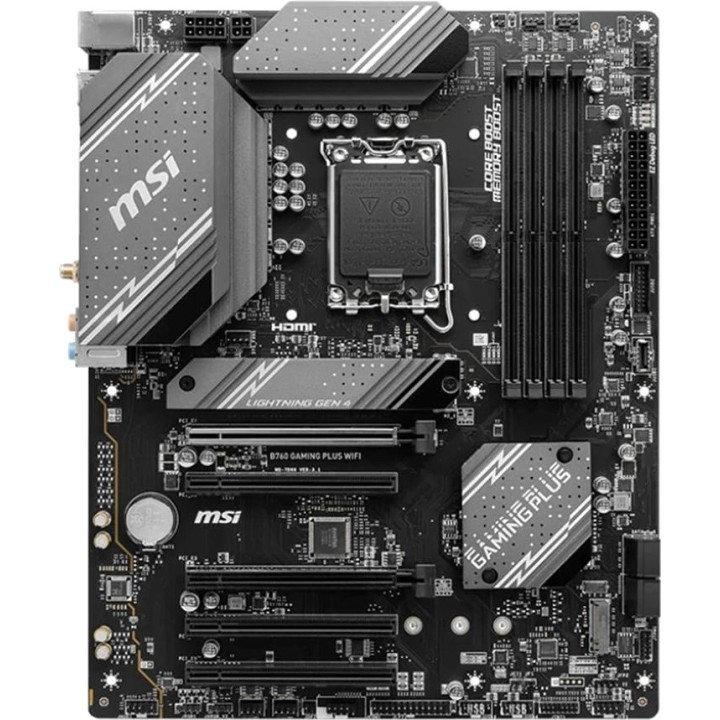

MSI ATX motherboard B760-GAMING PLUS-WIFI DDR4 LGA1700 DSP0000026232

MSI 1700 B760 GAMING PLUS WIFI ATX MOTHERBOARD / 4 X DDR4 / 4 X SATA 6 / 4 X USB 2.0 / 2 X USB 3.2 / 1 X USB TYPE C
MSI Motherboard B760 GAMING PLUS WIFI DDR4 1700
Brand MSI
MODEL 007D98-043R
Platform - ATX (24.3 cm x 304.8 cm)
Chipset - Intel B760
Supported CPUs - Compatible with 14th/13th/12th generation Intel Core processors, Intel Pentium Gold and Celeron processors
- LGA 1700
Memory - 4 x DDR4, maximum memory capacity 128 GB
- Supports DDR4 memory at 2133,2400,2666,2933,3200,3333,3400,3466,3600,3733,3800,4000,4200,4266,4400,4600,4800,5000,5066,5200,5333 MHz
- Max. overclocking frequency:
1DPC 1R Maximum speed up to 6800+ MHz
1DPC 2R Maximum speed up to 6400+ MHz
2DPC 1R Maximum speed up to 6000+ MHz
2DPC 2R Maximum speed up to 5600+ MHz
- Supports Intel XMP 3.0 OC
- Supports dual-channel mode and dual controller
- Supports unbuffered, non-ECC memory
Expansion Slots
- 5 x PCI-E x16 slots (Qty.)
PCI_E1 Gen PCIe 4.0 supports up to x16 (from CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (from the chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (from the chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (from the chipset)
PCI_E5 Gen PCIe 3.0 supports up to x1 (from the chipset)
Graphics - 1 x HDMI 2.1 with HDR, maximum resolution of 4K 60 Hz
- 1 x DisplayPort DP1.4 maximum resolution of 4K 60 Hz
I/O Ports,
connectors

Internal I/O Connectors
- 1 x power connector (ATX_PWR)
- 2 x power connectors (CPU_PWR)
- 1 x CPU fan
- 1 x pump fan.
- 5 x system fans.
- 2 x front panel (JFP)
- 1 x chassis intrusion (JCI)
- 1 x front audio (JAUD)
- 1 x printer port (JLPT)
- 1 x COM port (JCOM)
- 1 x TBT connector (JTBT, compatible with RTD3)
- 2 x addressable RGB LED V2 connectors (JARGB_V2)
- 1 x RGB LED connector (JRGB)
- 1 x TPM pin header (compatible with TPM 2.0)
- 4 x ports USB 2.0
- 2 x 5 Gbps Type-A USB ports
- 1 x 5 Gbps Type-C USB port

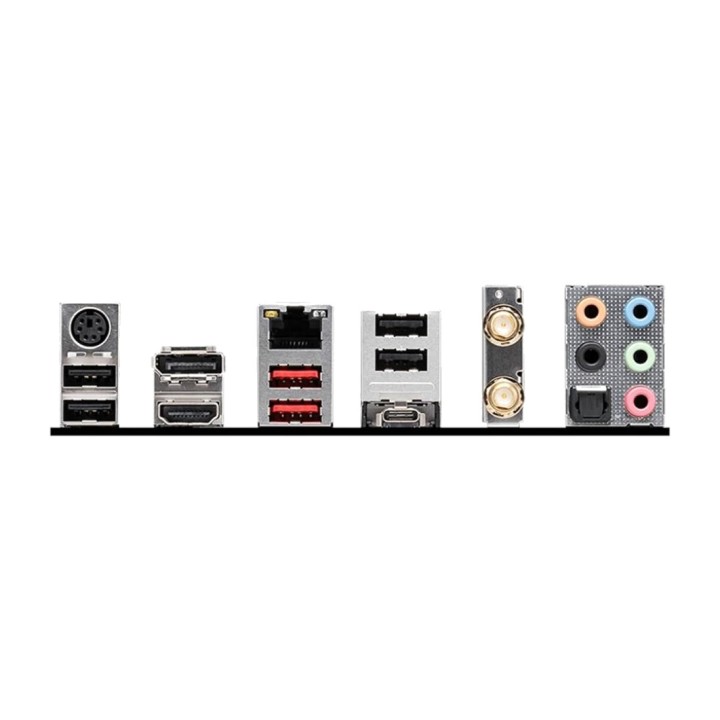

Rear I/O Panel
- Keyboard/mouse
- DisplayPort
- 2.5G LAN
- USB 2.0
- Wi-Fi/Bluetooth
- Audio connectors
- USB 2.0
- HDMI
- USB 3.2 Gen 2 10 Gbps (Type-A)
- USB 3.2 Gen 2 10 Gbps (Type-C)
- S/PDIF OUT
Others
Characteristic
USB
- 4 x USB 2.0 (Rear)
- 4 x USB 2.0 (Front)
- 2 x 5 Gbps Type-A USB (Front)
- 1 x USB 5Gbps Type-C (Front)
- 2 x USB 10Gbps Type-A (Rear)
- 1 x USB 10Gbps Type-C (Rear)
RAID
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Storage
- 2 x M.2 (Quantity):
M.2_1 source (from CPU) supports up to PCIe 4.0 x4, supports devices 22110/2280/2260/2242
The M.2_2 source (from the chipset) supports up to PCIe 4.0 x4 / SATA mode and supports devices 2280/2260/2242
- 4 x SATA 6G (Quantity)
* SATA8 will not be available when installing an M.2 SATA SSD in the slot M2_2.
Connectivity
- Intel Wi-Fi 6E:
The wireless module is preinstalled in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4 GHz / 5 GHz / 6 GHz* (160 MHz) up to 2.4 Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
- Bluetooth compatible 5.3, FIPS, FISMA
* Wi-Fi 6E 6GHz may depend on the regulations in each country and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Ethernet
- Realtek RTL8125BG 2.5Gbps LAN
Audio
- Realtek codec ALC897
- 7.1-channel high-definition audio
- Supports S/PDIF output
LAN
- Realtek RTL8125BG 2.5Gbps LAN
OPERATING SYSTEM
- Windows 11, Windows 10 64-bit
Volume (m ³): 0.0066
