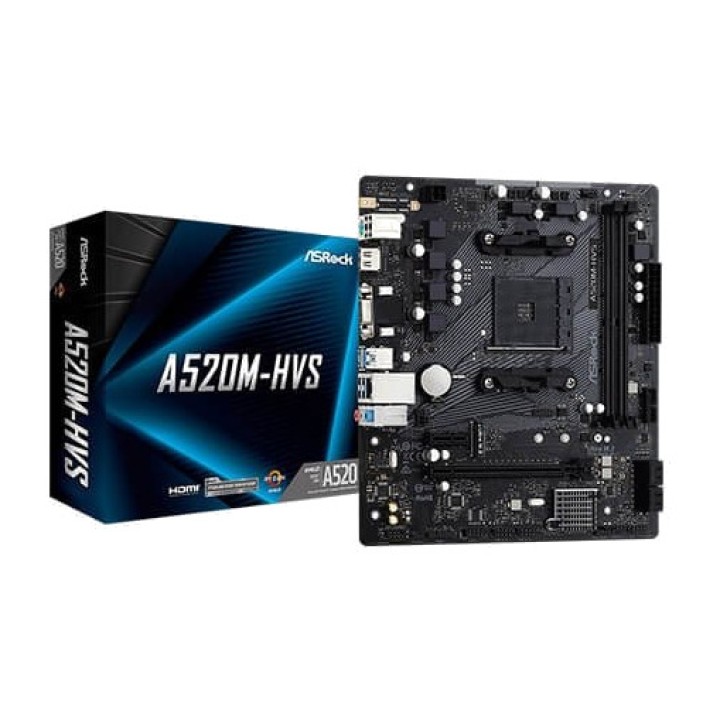

ASROCK Micro ATX motherboard A520M-HVS AM4 DSP0000000791

The PCIe Gen3 x4 Ultra M.2 interface delivers data transfer speeds of
data of up to 32 Gb/s. In addition, it also supports SATA
3 6Gb/s M.2. Complete with the two most commonly used connector types!
Equipped with a D-Sub + HDMI combo. In addition, the HDMI port supports
4K resolution. Supports the latest HDMI 4K 60Hz graphics output specification
With greater bandwidth and a higher frame rate,
on-screen motion becomes smoother and less blurry. ASRock Live Update APP Shop is designed for ease of
blurry. ASRock Live Update APP Shop is designed for ease of
use. Several applications and support software are provided for
users to download. You can also easily optimise your system
and keep the motherboard up to date with ASRock Live Update APP Shop.
High-density glass fabric PCB design that reduces the gaps
between PCB layers to protect the motherboard against electrical short circuits
caused by moisture. Some sensitive digital components
on the motherboard are vulnerable to power surges; excessive
current can cause your system to malfunction immediately.
ASRock Full Spike Protection includes several technologies to
prevent these spikes from damaging the components of your motherboard
Format:  Micro ATX

general
Brand
ASROCK
warranty
2
Part Number
90-MXBE60-A0UAYZ
Categories
Base Plates
Volumetric Weight
1.28 Kg.
Technical details
FORMAT
Micro ATX
Chipset
AMD A520
Number of PCI Express slots
2
Component for
PC/server
Processor family
AMD
Supported hard drive interfaces
M.2 PCIe, M.2. SATA, Serial ATA III
Number of supported processors
1
Number of DIMM slots
2
PROCESSOR
Processor socket
Socket AM4
Processor family
AMD Ryzen 3000
MEMORY
Memory slots
2x DIMM
Memory slot type
DIMM
Maximum internal memory
64 GB
Supported memory module capacities
32 GB
ECC
YES
Non-ECC
YES
Unbuffered memory
YES
Memory channel support
DUAL
compatible memory types
DDR4-SDRAM
Supported memory clock speeds
2133 MHz, 2400 MHz, 2667 MHz, 2933 MHz, 3200 MHz , 3466 (OC),
3733 (OC), 3800 (OC), 3866 (OC), 4000 (OC), 4133(OC), 4200 (OC), 4266(OC),
4333 (OC), 4400 (OC) , 4466 (OC), 4533 (OC), 4600 (OC), 4666 (OC), 4733 (OC)
VIDEO
Maximum resolution
4096 x 2160 pixels
Audio
Audio output channels
7.1
Audio system
Realtek ALC887
Expansion slots
PCI Express configurations
1 x1, 1 x16
Number of PCI Express slots (total)
2
PCI Express x1 slots
1
PCI Express x16 slots
1
PCI Express entry version
3.0
Internal I/O
CPU fan connector
YES
ATX power connector (24-pin)
YES
Front panel audio connector
YES
Chassis intrusion connector
YES
TPM connector
YES
connectors USB 2.0
2
connectors USB 3.2
1
Number of chassis fan connectors
2
Number of COM connectors
1
Number of connectors SATA 3
4
Rear panel I/O (Input/Output) ports
Speaker, headphone, line-out jack
3
VGA (D-Sub)
1
Number of HDMI ports
1
Number of ports USB 2.0
2
Number of ports USB 3.2
4
Ethernet (RJ-45)
1
Mouse/keyboard port PS/2
1
Storage controllers
RAID levels
0, 1, 10
GRID
Bluetooth
NOT
Network connection
YES
LAN controller
Realtek RTL8111H
Ethernet
YES
WI-FI
NOT
BIOS
BIOS, memory size
128 MB
BIOS types
AMI UEFI
ACPI version
5.1
WEIGHT AND DIMENSIONS
WIDTH
23 cm
DEPTH
21 cm
Volume (m ³): 0.0040
