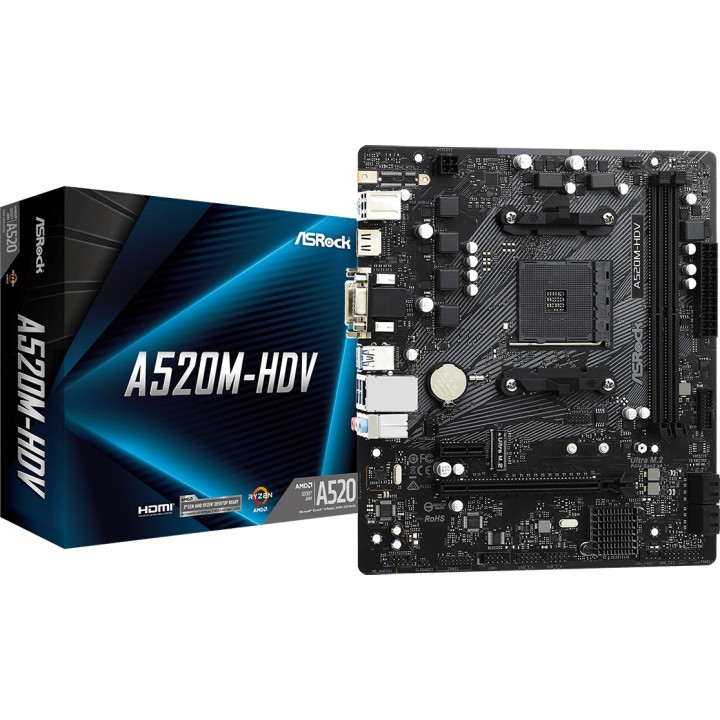

ASROCK Micro ATX motherboard A520M-HDV AM4 DSP0000000783
Price:
€71.50
Tax included
DeliveryUpdating delivery estimate…Order within the next — to receive it approximately Updating delivery estimate…
Updating delivery estimate…
Cuándo es más probable que llegue
Calculado con 0 entregas recientes
Fechas estimadas para España peninsular; se ajustarán con tu código postal y forma de entrega.
The date corresponds to the item with the longest delivery time
IVA intracomunitario
La exención intracomunitaria puede aplicarse a una entrega a otro Estado miembro si el NIF-IVA es válido y el destino cumple los requisitos. La comprobación por sí sola no determina el tratamiento fiscal.
Cómo se comprueba el IVA¿Eres profesional del sector?
Puedes solicitar una cuenta profesional e indicar los datos de tu actividad. La solicitud queda pendiente de revisión; puedes consultar su estado en tu cuenta.
Más información sobre cuentas profesionalesCanarias, Ceuta y Melilla sin IVA español
El tratamiento depende del destino de entrega y de la coherencia de la dirección. Pueden corresponder IGIC, IPSI, aranceles u otros cargos locales.
Más información sobre destinos e impuestosASROCK AM4 A520M-HDV M-ATX MOTHERBOARD 90-MXBE50-A0UAYZ
NOT COMPATIBLE WITH RYZEN 5 3400G AND RYZEN 3 3200G
The PCIe Gen3 x4 Ultra M.2 interface delivers data transfer speeds of
data of up to 32 Gb/s. In addition, it also supports SATA
3 6Gb/s M.2 modules. Complete with the three most commonly used connector types!
Equipped with a D-Sub + DVI-D + HDMI combo. In addition, the HDMI port
supports 4K resolution. ASRock Live Update APP Shop is designed for ease of use. Various applications and support software are provided
for users to download. You can also easily optimize your
system and keep the motherboard up to date with ASRock Live Update
system and keep the motherboard firmware up to date with ASRock Live Update
up to 32 Gb/s. In addition, it also supports
SATA 3 6Gb/s M.2 modules. Some sensitive digital components
on the motherboard are vulnerable to power surges; excessive current
can cause your system to stop working properly
immediately. ASRock Full Spike Protection includes various technologies to
prevent your motherboard components from being damaged by these unexpected voltage
prevent these spikes from damaging the components of your motherboard
Format: Micro ATX
Format: Micro ATX
Chipset : AMD A520
Number of PCI Express slots : 2
Component for: PC/server
Processor family: AMD
Supported hard drive interfaces: M.2 PCIe, M.2. SATA, Serial ATA III
Number of supported processors : 1
Number of slots DIMM: 2
PROCESSOR
Processor socket: Socket AM4
Processor family: AMD Ryzen 3000
MEMORY
Memory slots : 2x DIMM
Memory slot type: DIMM
Maximum internal memory : 64 GB
Supported memory module capacities : 32 GB
ECC: Yes
Non-ECC: Yes
Unbuffered memory: Yes
Memory channel support: Dual
compatible memory types: DDR4
Supported memory clock speeds: 2133 MHz, 2400 MHz, 2667 MHz, 2933 MHz, 3200 MHz, 3466 (OC), 3600 (OC), 3733 (OC), 3800 (OC), 3866 (OC), 4000 (OC), 4133(OC), 4200 (OC),
4266(OC), 4333 (OC), 4400 (OC) , 4466 (OC), 4533 (OC), 4666 (OC), 4733 (OC)
VIDEO
Maximum resolution: 4096 x 2160 Pixels
Audio
Audio output channels: 7.1
Audio system: Realtek ALC887
Expansion slots
PCI Express configurations : 1 x1, 1 x16
Number of PCI Express slots (total) : 2
PCI Express x1 slots : 1
PCI Express x16 slots : 1
PCI Express entry version: 3.0
Internal I/O
CPU fan connector: Yes
ATX power connector (24-pin): Yes
Front panel audio connector: Yes
Chassis intrusion connector: Yes
Fan connector: Yes
TPM connector: Yes
connectors USB 2.0: 2
connectors USB 3.2: 1
Number of chassis fan connectors : 2
Number of connectors COM: 1
Number of connectors SATA 3: 4
connectors M.2: 1
Rear panel I/O (Input/Output) ports
Speaker, headphone, line-out jack : 3
Number of ports DVI-D: 1
VGA (D-Sub) : 1
Number of ports HDMI: 1
Number of ports USB 2.0: 2
Number of ports USB 3.2: 4
Ethernet (RJ-45): 1
Mouse/keyboard port PS/2: 1
Storage controllers
Levels RAID: 0, 1, 10
GRID
Bluetooth: No
Network connection: Yes
LAN controller: Realtek RTL8111H
Ethernet: Yes
Wi-Fi: No
BIOS
BIOS, memory size : 128 MB
BIOS types: AMI UEFI
ACPI version: 5.1
WEIGHT AND DIMENSIONS
Width: 23 cm
Depth: 21 cm
Package contents
Included materials: Driver CD, screws M.2
Quick installation guide: Yes
Volume (m ³): 0.0040
NOT COMPATIBLE WITH RYZEN 5 3400G AND RYZEN 3 3200G
The PCIe Gen3 x4 Ultra M.2 interface delivers data transfer speeds of
data of up to 32 Gb/s. In addition, it also supports SATA
3 6Gb/s M.2 modules. Complete with the three most commonly used connector types!
Equipped with a D-Sub + DVI-D + HDMI combo. In addition, the HDMI port
supports 4K resolution. ASRock Live Update APP Shop is designed for ease of use. Various applications and support software are provided
for users to download. You can also easily optimize your
system and keep the motherboard up to date with ASRock Live Update
system and keep the motherboard firmware up to date with ASRock Live Update
up to 32 Gb/s. In addition, it also supports
SATA 3 6Gb/s M.2 modules. Some sensitive digital components
on the motherboard are vulnerable to power surges; excessive current
can cause your system to stop working properly
immediately. ASRock Full Spike Protection includes various technologies to
prevent your motherboard components from being damaged by these unexpected voltage
prevent these spikes from damaging the components of your motherboard
Format: Micro ATX
Format: Micro ATX
Chipset : AMD A520
Number of PCI Express slots : 2
Component for: PC/server
Processor family: AMD
Supported hard drive interfaces: M.2 PCIe, M.2. SATA, Serial ATA III
Number of supported processors : 1
Number of slots DIMM: 2
PROCESSOR
Processor socket: Socket AM4
Processor family: AMD Ryzen 3000
MEMORY
Memory slots : 2x DIMM
Memory slot type: DIMM
Maximum internal memory : 64 GB
Supported memory module capacities : 32 GB
ECC: Yes
Non-ECC: Yes
Unbuffered memory: Yes
Memory channel support: Dual
compatible memory types: DDR4
Supported memory clock speeds: 2133 MHz, 2400 MHz, 2667 MHz, 2933 MHz, 3200 MHz, 3466 (OC), 3600 (OC), 3733 (OC), 3800 (OC), 3866 (OC), 4000 (OC), 4133(OC), 4200 (OC),
4266(OC), 4333 (OC), 4400 (OC) , 4466 (OC), 4533 (OC), 4666 (OC), 4733 (OC)
VIDEO
Maximum resolution: 4096 x 2160 Pixels
Audio
Audio output channels: 7.1
Audio system: Realtek ALC887
Expansion slots
PCI Express configurations : 1 x1, 1 x16
Number of PCI Express slots (total) : 2
PCI Express x1 slots : 1
PCI Express x16 slots : 1
PCI Express entry version: 3.0
Internal I/O
CPU fan connector: Yes
ATX power connector (24-pin): Yes
Front panel audio connector: Yes
Chassis intrusion connector: Yes
Fan connector: Yes
TPM connector: Yes
connectors USB 2.0: 2
connectors USB 3.2: 1
Number of chassis fan connectors : 2
Number of connectors COM: 1
Number of connectors SATA 3: 4
connectors M.2: 1
Rear panel I/O (Input/Output) ports
Speaker, headphone, line-out jack : 3
Number of ports DVI-D: 1
VGA (D-Sub) : 1
Number of ports HDMI: 1
Number of ports USB 2.0: 2
Number of ports USB 3.2: 4
Ethernet (RJ-45): 1
Mouse/keyboard port PS/2: 1
Storage controllers
Levels RAID: 0, 1, 10
GRID
Bluetooth: No
Network connection: Yes
LAN controller: Realtek RTL8111H
Ethernet: Yes
Wi-Fi: No
BIOS
BIOS, memory size : 128 MB
BIOS types: AMI UEFI
ACPI version: 5.1
WEIGHT AND DIMENSIONS
Width: 23 cm
Depth: 21 cm
Package contents
Included materials: Driver CD, screws M.2
Quick installation guide: Yes
Volume (m ³): 0.0040
- Brand
- ASROCK
- Reference
- DSP0000000783
- EAN-13
- 4710483932267
- Weight
- 0,795 kg
