GIGABYTE Micro ATX motherboard for AMD B850M EAGLE WIFI7 AM5 DSP0000041920

Features of the GIGABYTE B850M EAGLE WIFI7
The GIGABYTE B850M EAGLE WIFI7 is a Micro ATX motherboard designed to get the most out of AMD Ryzen Series 7000, 8000 and 9000 processors with the AM5 socket. It combines a powerful power delivery system, support for high-speed DDR5 memory, next-generation connectivity and extensive storage options, making it an excellent choice for high-performance, gaming, content creation or productivity systems.
AMD Ryzen compatibility and stable power delivery
Thanks to its AMD B850 chipset and 8+2+2-phase digital VRM, this motherboard provides efficient and stable power delivery for the latest AMD Ryzen processors. It also supports the latest and upcoming technologies of the AM5 platform.

AM5 socket compatible with AMD Ryzen Series 7000, 8000 and 9000.
Chipset AMD B850.
8+2+2-phase digital VRM.

High-performance DDR5 memory
Equipped with four DDR5 slots, it supports up to 256 GB of memory in Dual Channel configuration. It is compatible with AMD EXPO and Intel XMP profiles, reaching speeds of up to 8200 MT/s through overclocking.

Up to 256 GB of memory DDR5.
Speeds of up to 8200 MT/s (O.C.).
AMD EXPO and XMP compatibility.

Next-generation connectivity
Connectivity is one of its strengths, thanks to Wi-Fi 7, Bluetooth 5.4 and a 2.5 GbE LAN connection, providing fast and stable wireless and wired connections for online gaming, streaming or file transfers.

Wi-Fi 7 compatible with 2.4 GHz, 5 GHz and 6 GHz bands.
Bluetooth 5.4.
Realtek 2.5 GbE LAN port.

Future-ready storage
The motherboard features two M.2 connectors, including one compatible with PCIe 5.0 x4 for next-generation SSDs and another PCIe 4.0 connector, as well as four SATA ports to expand storage capacity.

1 M.2 PCIe connector 5.0 x4.
1 M.2 PCIe connector 4.0 x4.
4 SATA 6 Gb/s ports with RAID support.

Ready for graphics cards and upgrades
It features a PCI Express 5.0 x16 slot to take advantage of the latest graphics cards, as well as an additional PCIe slot to expand the system's capabilities.

1 PCIe 5.0 x16 (depending on processor).
1 PCIe 3.0 x4.
Compatible with graphics cards and NVMe SSDs.

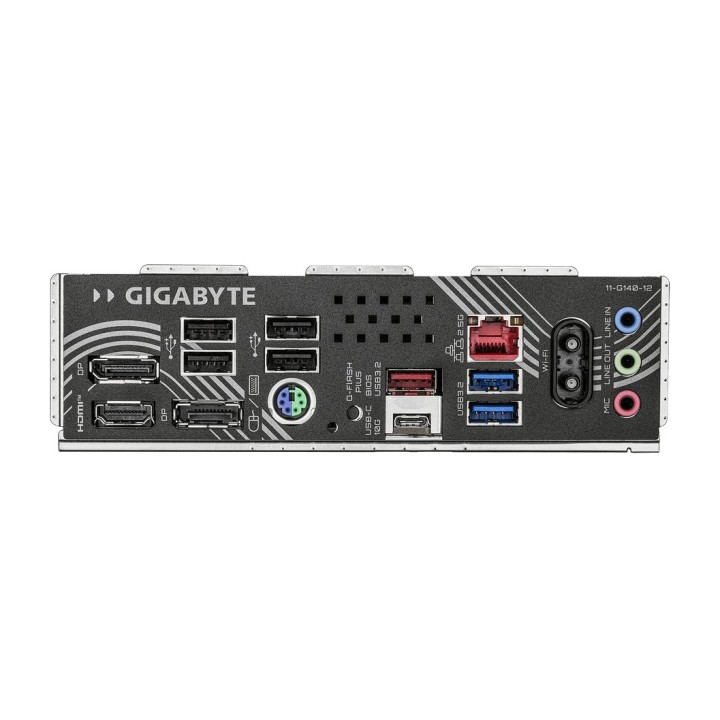

Extensive USB and video connectivity options
Its comprehensive rear panel offers high-speed connections, video outputs and exclusive GIGABYTE features such as Q-Flash Plus, which makes it easy to update the BIOS without installing a processor.

USB Type-C® USB 3.2 Gen 2.
USB 3.2 Gen 2 Type-A and USB 3.2 Gen 1.
1 HDMI 2.1 and 2 DisplayPort 1.4.
Q-Flash Plus button.

Cooling and system control
The GIGABYTE B850M EAGLE WIFI7 features multiple connectors for fans and liquid cooling pumps, along with monitoring tools that help keep the system running efficiently.

Smart fan control.
Temperature, voltage and speed monitoring.
Flow rate detection for liquid cooling systems.

Other specifications

Micro ATX form factor (24.4 x 24.4 cm).
Integrated graphics compatible with AMD Radeon Graphics processors.
Up to three simultaneous displays.
HDMI resolution up to 4096 x 2160 at 60 Hz.
DisplayPort resolution up to 3840 x 2160 at 144 Hz.
Realtek® High Definition Audio, 2/4/5.1/7.1 channels.
4 SATA 6 Gb/s connectors.
3 Addressable RGB Gen2 connectors and 1 RGB LED.
Front USB Type-C® USB 3.2 Gen connector 2.
Compatible with GIGABYTE Control Center (GCC).
Compatible with Q-Flash, Q-Flash Plus and Smart Backup.
256 Mbit AMI UEFI BIOS.
Compatible with 64-bit Windows 11.
Includes Norton® Internet Security (OEM version).
Volume (m ³): 0.0091
