GIGABYTE ATX motherboard for AMD X870E AERO X3D WOOD AM5 DSP0000039424

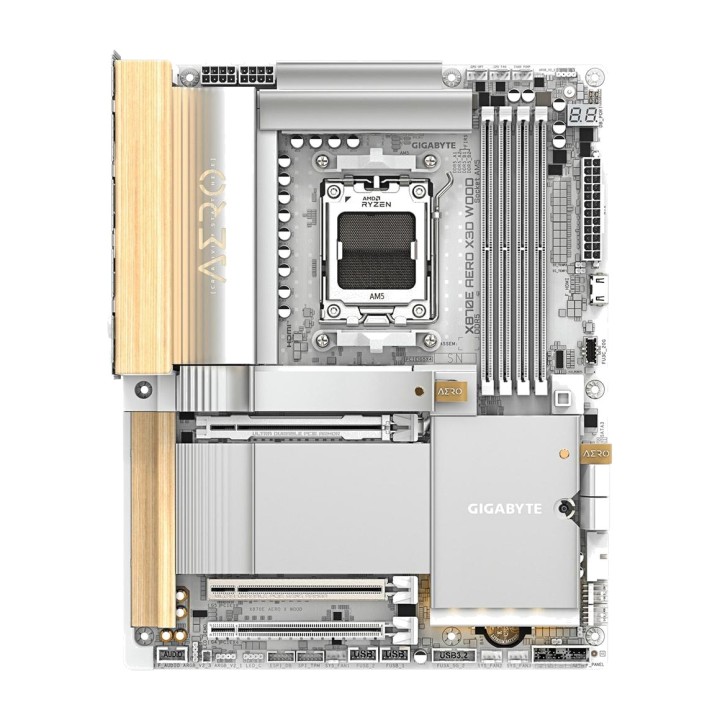

Gigabyte motherboard features X870E AERO X WOOD AM5 ATX
The Gigabyte X870E AERO X WOOD is a motherboard designed for demanding users seeking high performance, advanced connectivity and a distinctive design. Compatible with the latest-generation AMD Ryzen processors on the AM5 socket, it combines support for DDR5 memory, PCIe 5.0 and next-generation connectivity, all in an ATX form factor ideal for high-end productivity and gaming setups.
Power and compatibility with AMD Ryzen
Thanks to its AMD X870E chipset, this motherboard is compatible with a wide range of Ryzen processors from the 7000, 8000 and 9000 series. It is designed to deliver maximum performance and stability in next-generation systems, including support for future architectures.

AM5 socket compatible with Ryzen 7000, 8000 and 9000
High-performance AMD X870E chipset
Support for 1 CPU

High-speed DDR5 memory
DDR5 memory support up to 256 GB lets you work with demanding applications and intensive multitasking. It also supports extreme overclocked speeds, delivering a smooth and fast experience.

4 DDR5 slots up to 256 GB
Speeds of up to 9000 MT/s (O.C.)
Dual-channel architecture

Next-generation expansion with PCIe 5.0
Equipped with the latest-generation PCI Express slots, this motherboard lets you install graphics cards and high-performance devices with greater bandwidth. Ideal for advanced gaming setups or workstations.

3 PCIe slots x16 (x16 / x8 / x4)
PCIe compatibility 5.0
Ready for high-speed GPUs and storage

Versatile, ultra-fast storage
It offers excellent storage capacity thanks to its multiple M.2 and SATA connections, allowing flexible configurations with the latest-generation SSDs and traditional drives.

4 M.2 slots (PCIe 5.0 and 4.0)
4 SATA III ports
RAID 0, 1, 5 and support 10

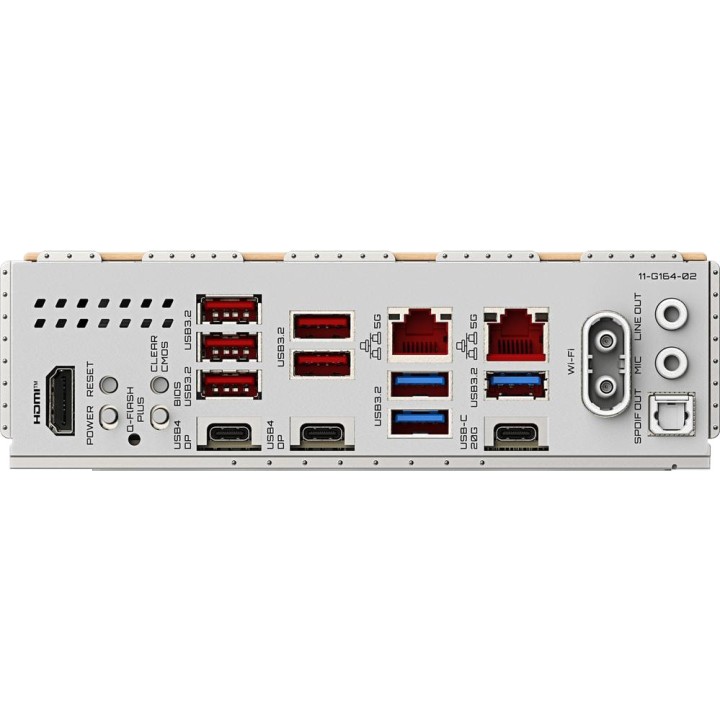

Advanced connectivity and high-speed networking
Connectivity is one of its strengths, featuring USB4, Wi-Fi 7 and dual 5GbE LAN to ensure fast, stable wired and wireless connections.

2 USB4 ports and high-speed USB-C
Integrated Wi-Fi 7 + Bluetooth 5.4
2 Realtek 5GbE LAN ports

Exclusive design and multimedia connectivity
Its silver finish with wood details adds a distinctive style, ideal for customised setups. It also features high-quality video and audio outputs for a complete multimedia experience.

HDMI output
Realtek ALC1220 audio with S/PDIF output
Customisable RGB Fusion lighting

ATX form factor and comprehensive internal connectivity
With its ATX form factor, this motherboard offers extensive expansion and internal connectivity, making it easy to build complete, well-organised systems.

Dimensions: 244 x 305 mm
Internal USB, RGB and TPM connectors
EPS 24 + 2x8-pin power supply

Other specifications

256 Mb AMI UEFI BIOS
Compatible with Windows 11
CPU + ASMedia USB controllers
Integrated Bluetooth
Support for CPUs with integrated graphics (HDMI output)
Volume (m ³): 0.0091
