GIGABYTE ATX motherboard for AMD B850 EAGLE WIFI7 ICE AM5 DSP0000038530

Gigabyte motherboard features B850 EAGLE WF7 ICE

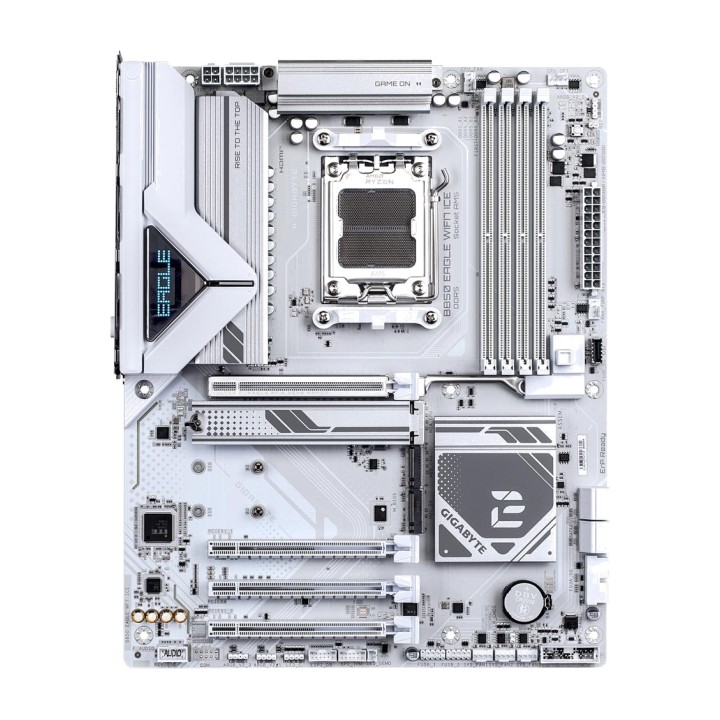

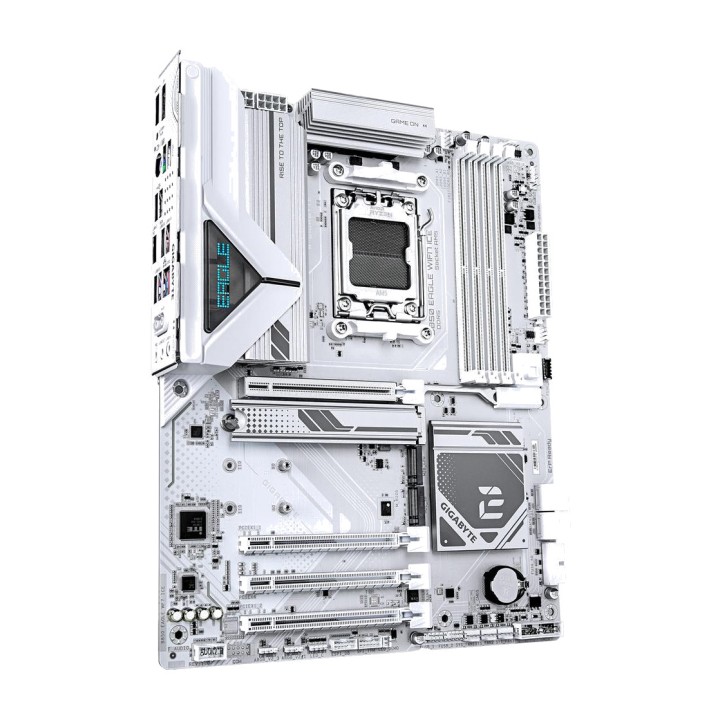

The Gigabyte B850 EAGLE WIFI7 ICE is an ATX motherboard designed to get the most out of AMD Ryzen 7000, 8000 and 9000 series processors. It combines high performance, next-generation connectivity and an architecture built for gaming and high-performance systems. With support for high-speed DDR5 memory, PCIe 5.0 storage and Wi-Fi 7 connectivity, it provides a modern foundation ready for demanding configurations.
AMD Ryzen and platform compatibility AM5
This motherboard features an AM5 socket, allowing you to use next-generation AMD Ryzen processors. Together with its 8+2+2-phase digital VRM, it provides stable power delivery to maintain performance even under heavy loads or with advanced configurations.

Socket AMD AM5
Compatible with AMD Ryzen 7000, 8000 and series 9000
8+2+2-phase digital VRM
Chipset AMD B850

High-performance DDR5 memory
The Gigabyte B850 EAGLE WIFI7 ICE supports dual-channel DDR5 memory with overclocked frequencies of up to 8200 MHz. Its four DIMM slots allow memory capacity to be expanded to up to 256 GB, providing plenty of scope for professional, gaming or intensive multitasking configurations.

4 slots DIMM DDR5
Maximum memory capacity : 256 GB
Memory frequency up to 8200 MHz (OC)
Compatible with AMD EXPO profiles

Ultra-fast PCIe 5.0 storage and M.2
This motherboard is ready for high-speed storage systems thanks to its three M.2 slots, including one with PCIe 5.0 x4 support for next-generation SSDs. It also features SATA III connectors for additional drives and RAID support.

1 M.2 PCIe slot 5.0 x4
2 PCIe M.2 slots 4.0
4 SATA III ports
RAID 0, 1 and compatibility 10

Advanced connectivity with Wi-Fi 7 and 2.5GbE LAN
Connectivity is one of this motherboard’s strong points, with Wi-Fi 7 (802.11be), Bluetooth 5.4 and 2.5 Gigabit Ethernet wired networking. This enables faster, more stable connections for both online gaming and data transfers.

Wi-Fi 7 (802.11be)
Bluetooth 5.4
Realtek 2.5GbE LAN RTL8125

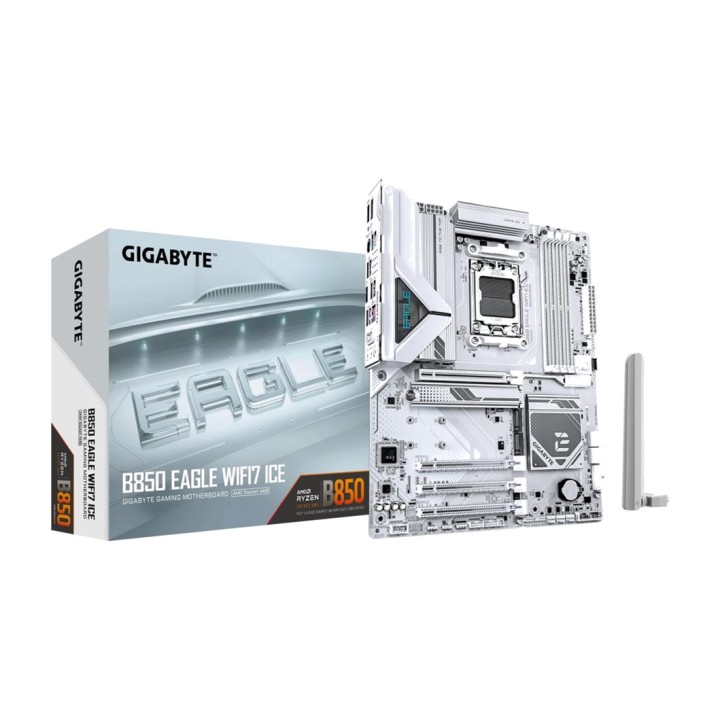

Wi-Fi antenna included

Optimized design and efficient cooling
The motherboard integrates various Gigabyte technologies designed to simplify installation and improve heat dissipation. Features such as EZ-Latch Plus and EZ-Latch Click allow components to be installed without screws, while the VRM thermal armor and M.2 heatsinks help maintain stable temperatures.

EZ-Latch Plus for PCIe and M.2
M.2 heatsinks without screws
VRM thermal armor
Fan, temperature and voltage monitoring

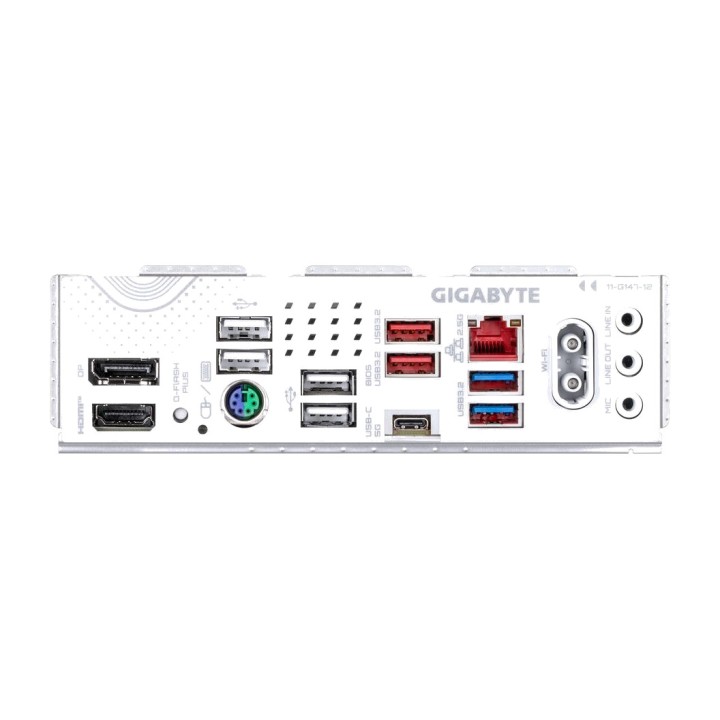

Extensive connectivity and expansion ports
The Gigabyte B850 EAGLE WIFI7 ICE offers comprehensive connectivity for peripherals, storage and multimedia devices. It includes USB ports of various generations, HDMI and DisplayPort video outputs, and several internal options for system expansion.

2 x USB 3.2 Gen 2 Type-A
2 x USB 3.2 Gen 1 Type-A
1 x USB 3.2 Gen 1 Type-C
4 x USB 2.0
1 x HDMI 1.4
1 x DisplayPort 1.4
1 x Ethernet port RJ-45

ATX design ready for advanced configurations
With an ATX form factor and a white design, this motherboard is intended for modern systems with high-performance components. It includes support for RGB lighting, multiple fan connectors and compatibility with liquid cooling systems.

ATX form factor
7.1 HD audio with Realtek chip ALC897
4 chassis fan connectors
2 liquid cooling pump connectors
4 connectors for RGB LED strips

Other specifications

Dimensions: 305 x 244 x 35 mm
Weight: 1,69 kg
AMI UEFI BIOS (256 MB)
Compatible with Windows 11 x64
Warranty: 3 years
Volume (m ³): 0.0078
