GIGABYTE Micro ATX motherboard for AMD B550M DS3H AC R2 AM4 DSP0000038095

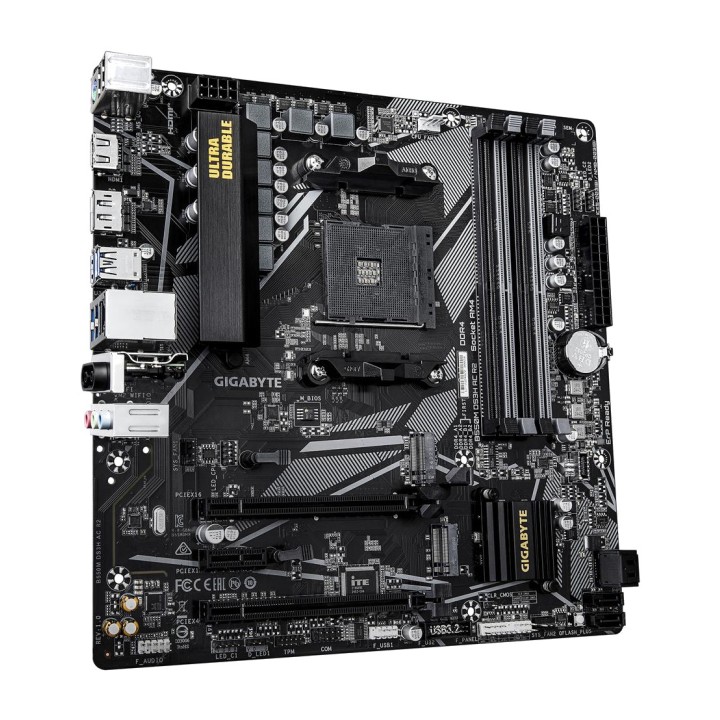

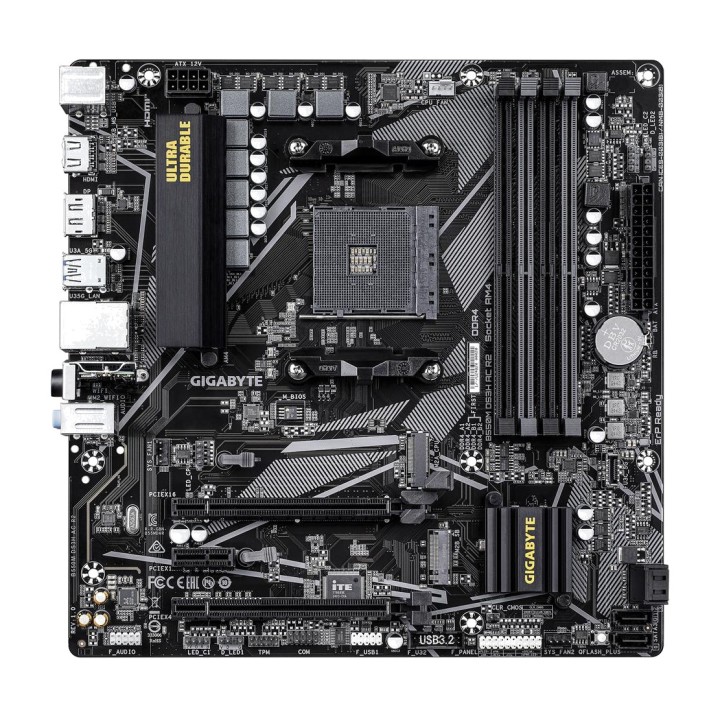

Features of the Gigabyte B550M DS3H AC R2 AM4 mATX Motherboard
The Gigabyte B550M DS3H AC R2 is a micro ATX motherboard designed to get the most out of AMD Ryzen 3000, 4000 and 5000 processors with an AM4 socket. Equipped with an AMD B550 chipset, integrated Wi-Fi connectivity and PCIe 4.0 compatibility, it is a well-balanced solution for gaming setups, workstations and high-performance upgrades, offering excellent value for money.
AMD Ryzen compatibility and 5+3-phase digital VRM
Thanks to its AM4 socket and 5+3-phase digital VRM power solution, this motherboard delivers stable power and reliable performance, even with high-performance processors. The advanced VRM thermal armor improves heat dissipation and contributes to greater system durability.

Compatible with AMD Ryzen 3000 / 4000 / 5000 Series
Chipset AMD B550
5+3-phase digital VRM design
Passive cooling with thermal protection for the VRM

DDR4 memory up to 4733 MHz (O.C.)
Features 4 dual-channel DDR4 DIMM slots, supporting up to 128 GB of memory. Supports frequencies up to 4733 MHz with overclocking, ideal for configurations requiring high bandwidth, such as demanding gaming or content creation tasks.

4 x DDR4-SDRAM DIMM
Up to 128 GB (32 GB per slot)
Maximum frequency: 4733 MHz (O.C.)
Compatible with ECC and non-ECC memory

Ultra-fast storage with PCIe 4.0
Offers versatile storage options with its 2 M.2 slots, one of which is compatible with PCIe 4.0 x4 for next-generation NVMe SSDs. It also features 4 SATA III ports with RAID support for high-performance or data-redundancy configurations.

1 x M.2 PCIe 4.0 (up to 2280)
1 x M.2 PCIe 3.0 (up to 2280)
4 x SATA III
RAID 0, 1 and support 10

Complete connectivity: Wi-Fi 5, Bluetooth 5.0 and GbE LAN
Equipped with Wi-Fi 5 (802.11ac) and Bluetooth 5.0 integrated via the Realtek RTL8821CE controller, it enables stable, fast wireless connections without the need for additional cards. It also features a Realtek RTL8111H Gigabit LAN for high-performance wired networks.

Wi-Fi 5 (802.11ac), compatible with 802.11a/b/g/n
Bluetooth 5.0
1 x Gigabit Ethernet RJ-45 port
Includes Wi-Fi antenna

Advanced graphics and video connectivity
Features HDMI 2.1 and DisplayPort 1.4 outputs, supporting resolutions up to 5120 x 2880 pixels, ideal for making the most of Ryzen processors with integrated graphics.

1 x HDMI 2.1
1 x DisplayPort 1.4
Maximum resolution: 5120 x 2880 pixels
HDCP compatible

Reinforced PCIe expansion and practical design
The PCIe 4.0 x16 slot features a reinforced design with up to 10 times greater strength, improving support for heavy graphics cards and heat dissipation. The EZ-Latch system also makes it easier to install and remove components.

1 x PCIe 4.0 x16
1 x PCIe x16 (Gen 3.x)
1 x PCIe x1 Gen 3.x
EZ-Latch quick-release system

USB connectivity and rear panel
Features a balanced selection of USB ports for peripherals and external devices, as well as internal connectors for front-panel expansion in the case.

4 x USB 3.2 Gen 1 Type A (rear)
2 x USB 2.0 (rear)
2 x internal USB 3.2 Gen 1 connectors
1 x internal connector USB 2.0
Combined PS/2 port

7.1 audio and system monitoring
Integrates a Realtek ALC1220-VB sound chip with support for 7.1-channel multichannel audio, delivering an immersive experience for both gaming and multimedia content. It also enables monitoring of system fans, temperature and voltage.

7.1-channel HD audio
Realtek chip ALC1220-VB
Fan, temperature and voltage monitoring

Format and compatibility
With a micro ATX form factor (244 x 244 mm), it is compatible with a wide range of cases and configurations. It supports Windows 10 x64 and Windows 11 x64 and comes with a 3-year warranty.

Form factor: Micro ATX
Dimensions: 244 x 244 x 35 mm
WEIGHT: 980 g
Warranty: 3 years
Volume (m ³): 0.0055
