GIGABYTE Micro ATX motherboard for Intel H610M D3W LGA1700 DSP0000036850

Features of the Gigabyte H610M D3W DDR5 mATX Socket 1700
The Gigabyte H610M D3W motherboard is designed to provide a balanced, future-ready platform, ideal for those looking to build a system with 12th, 13th or 14th generation Intel processors. Its micro ATX form factor makes it perfect for compact configurations without sacrificing connectivity or performance, while its DDR5 memory compatibility lets you take advantage of the benefits of the new generation of RAM.
Compatible with the latest-generation Intel processors
This motherboard features the LGA1700 socket and Intel H610 chipset, supporting a wide range of Intel processors, from efficient Celeron models to powerful Core i9 models. It is optimised for versatile desktop systems, whether for home, professional or educational use.

Compatible with 14th, 13th and 12th generation Intel Core, Pentium Gold and Celeron processors
Intel H610 Express chipset
Micro ATX form factor (24,4 x 22,0 cm)

Next-generation performance with memory DDR5
Equipped with 2 DDR5 DIMM slots, this motherboard supports up to 128 GB of RAM at speeds of up to 5600 MT/s, depending on the installed processor. It also supports XMP profiles for easy memory overclocking configuration.

DDR5 support up to 5600 MT/s*
Dual channel, up to 128 GB
Compatible with ECC/Non-ECC memory (non-ECC mode)

*Maximum speeds depend on the type of processor installed

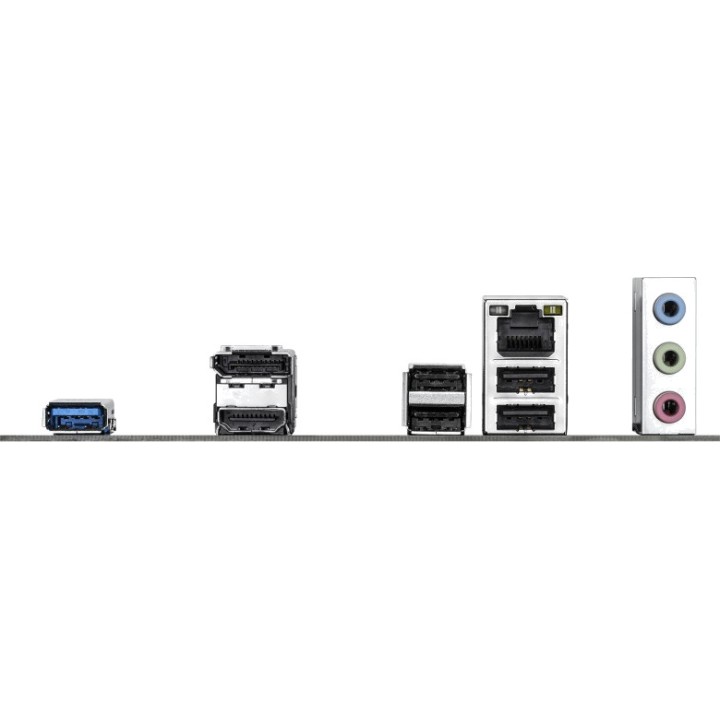

Integrated graphics and modern digital outputs
Thanks to support for integrated graphics in Intel processors, you can connect your monitors via the DisplayPort and HDMI outputs, with 4K resolutions and support for modern standards such as HDCP 2.3 and HDMI 2.1.

1 x DisplayPort (up to 4096 x 2304 at 60 Hz)
1 x HDMI (up to 4096 x 2160 at 60 Hz)
Compatibility with DisplayPort 1.2 and HDMI 2.1

Balanced internal and external connectivity
The Gigabyte H610M D3W includes all the connections needed for a modern system, from fast M.2 storage to USB 3.2 Gen1 ports, as well as addressable RGB connectors for a touch of customisation.

1 x M.2 PCIe 3.0 x4/x2 slot for SSD
4 x SATA 6 Gb/s ports
1 x internal USB-C (USB 3.2 Gen 1)
1 x USB 3.2 Gen1 + 4 x rear USB 2.0
2 x Gen2 addressable RGB connectors

Integrated network and audio connectivity
It includes a Gigabit network controller and high-definition multichannel audio, ideal for working, gaming or enjoying multimedia content.

Realtek Gigabit LAN (1 Gbps)
7.1-channel high-definition audio (Realtek Audio CODEC)
Software jack configuration

Guaranteed compatibility and durability
This board is designed to work with the latest operating systems and features quality components to ensure long-term stability and reliability.

Compatible with Windows 11 and Windows 10 (64-bit)
iTE I/O controller
Clear CMOS jumper to restore settings

Other specifications

1 x PCIe x16 (4.0), 1 x PCIe x1 (3.0)
1 x TPM connector (compatible GC-TPM2.0 SPI V2)
1 x serial port connector
Connectors for CPU fan, system fan and front audio
Volume (m ³): 0.0039
