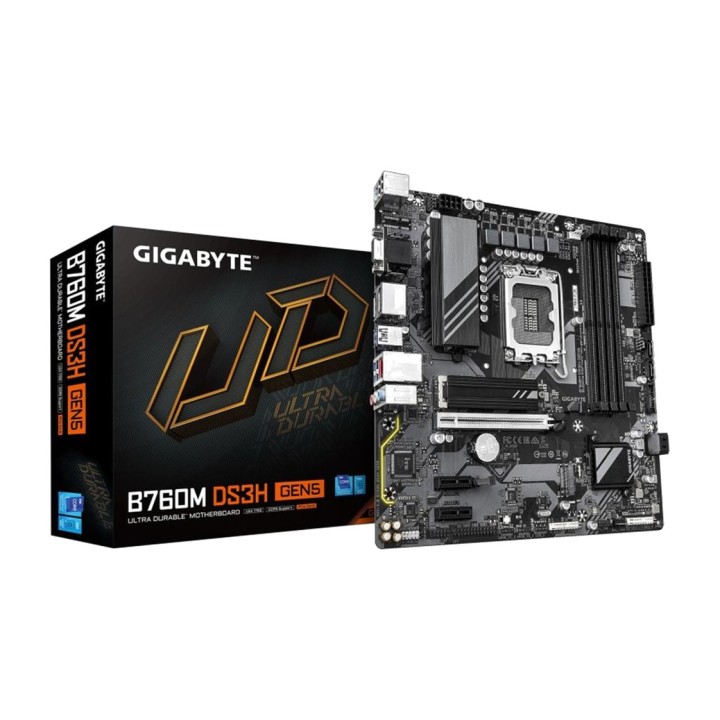

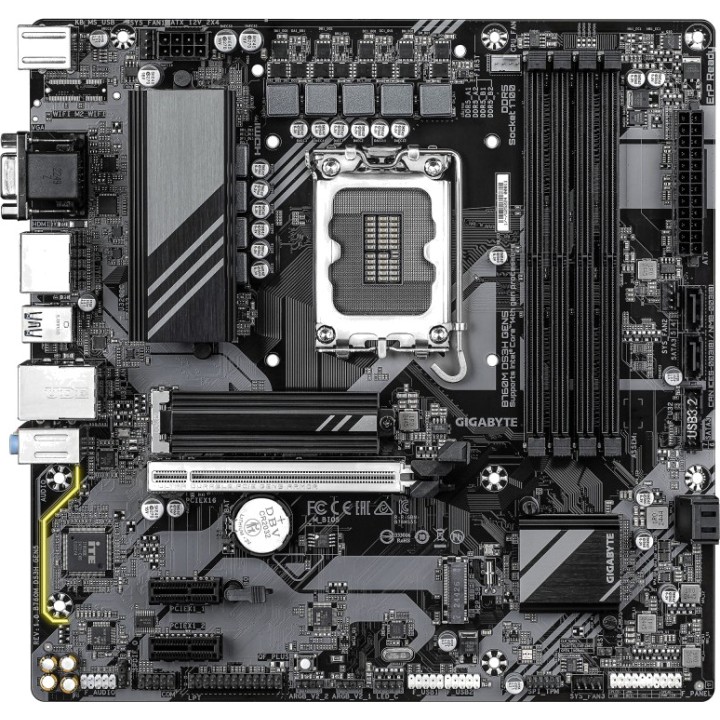

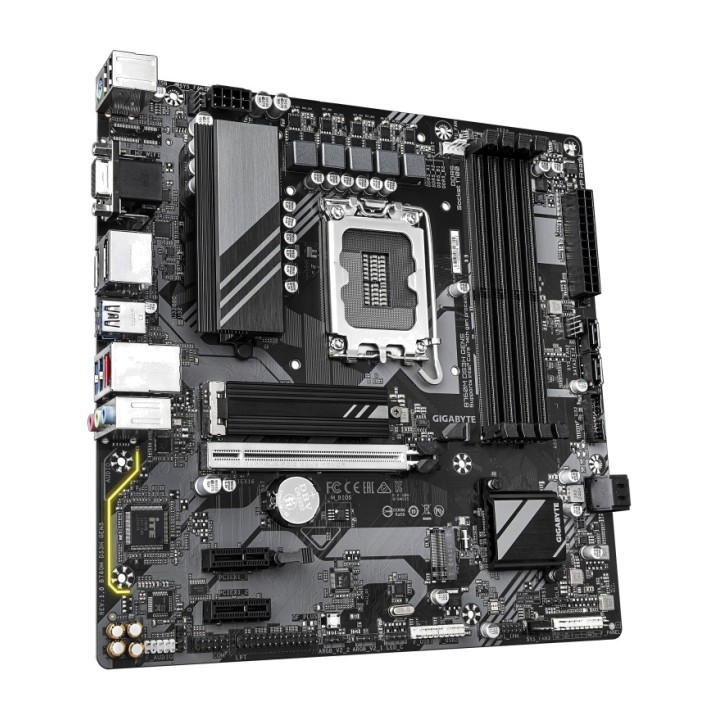

GIGABYTE ATX motherboard for Intel B760 DS3H GEN5 LGA1700 DSP0000036839

Features of the Gigabyte B760 DS3H GEN5
The **Gigabyte B760 DS3H GEN5 motherboard** is designed to get the most out of 12th, 13th and 14th generation Intel processors, offering an ideal balance of **performance, modern connectivity and compatibility with high-speed DDR5 memory**. Its ATX form factor and robust construction make it ideal for high-performance systems aimed at gaming, content creation or advanced professional use.
Full compatibility with next-generation Intel processors
Thanks to its **LGA 1700** socket, this motherboard supports **14th, 13th and 12th generation** Intel® Core™, Pentium® Gold and Celeron® processors, allowing versatile configurations for both demanding environments and general use.

LGA1700 socket for up to 14th generation Intel® Core™ processors
Intel® B760 Express chipset
Compatible with advanced cooling solutions

Ultra-fast, high-capacity DDR5 memory
The B760 DS3H GEN5 supports **up to 256 GB of DDR5 memory** at speeds of up to **7600 MT/s (O.C.)**, enabling extremely fast and smooth configurations. It also supports XMP profiles and dual-channel architecture.

4 DDR5 DIMM slots (up to 256 GB)
Compatible with speeds from 4000 to 7600 MT/s (O.C.)
Supports Intel XMP profiles

Cutting-edge connectivity and PCIe expansion 5.0
Equipped with a **PCIe 5.0 x16 slot**, this motherboard lets you get the most out of the latest high-end graphics cards or ultra-fast NVMe SSDs. It also includes several PCIe 3.0 slots for additional expansion cards.

1 x PCIe 5.0 x16 (ideal for graphics cards or SSDs)
4 x PCIe 3.0 x1 for peripherals or additional cards
Optimized design for cooling and airflow

Ultra-fast and secure storage
It features two M.2 connectors with PCIe 4.0 x4 support for high-performance NVMe drives, alongside four SATA ports for traditional storage. Compatible with RAID configurations.

2 x M.2 PCIe 4.0 x4/x2 for NVMe SSDs
4 x SATA 6Gb/s ports
Support for RAID 0/1/5/10

Integrated graphics and output 4K
When using a processor with integrated graphics, the motherboard provides output via HDMI 2.1 and DisplayPort 1.2, both supporting 4K resolutions at 60 Hz, ideal for multimedia environments or working with multiple displays.

1 x HDMI 2.1 up to 4096x2160@60 Hz
1 x DisplayPort 1.2 up to 4096x2304@60 Hz
Compatibility with HDCP 2.3

High-definition audio and Gigabit networking
Thanks to the Realtek® audio codec and support for up to **7.1 channels**, the sound experience is immersive. In addition, Gigabit network connectivity enables smooth transmission during online gaming or remote work.

HD audio with support for 2/4/5.1/7.1 channels
Digital S/PDIF output
Realtek® Gigabit LAN

Extensive USB connectivity with USB-C 20 Gbps support

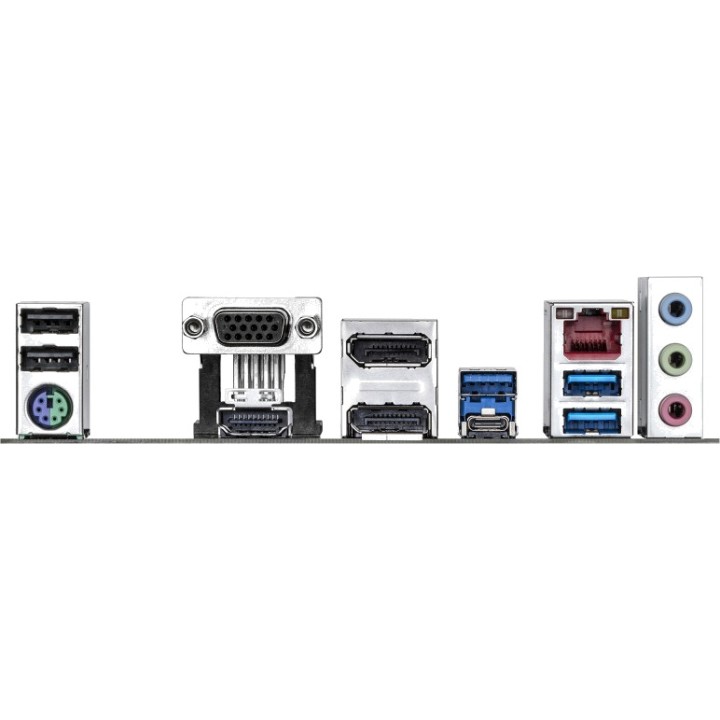

Features numerous USB ports, including **USB 3.2 Gen 2x2 Type-C** on the rear panel, offering speeds of up to 20 Gbps, ideal for fast storage devices or demanding peripherals.

1 x USB-C 3.2 Gen 2x2 (rear)
1 x USB-C 3.2 Gen 1 (internal header)
1 x USB-A 3.2 Gen 2 + 2 x USB-A 3.2 Gen 1
8 x USB 2.0 (4 rear + 4 internal)

Optimised design and exclusive GIGABYTE features
Includes proprietary features such as **Q-Flash Plus** for updating the BIOS without a CPU installed, and compatibility with **GIGABYTE Control Center** to customise RGB, fans and more. Ideal for enthusiasts seeking stability and customisation.

Integrated Q-Flash and Q-Flash Plus
Support for RGB and ARGB Gen2 LED strips
Smart fan control and temperature sensors

Compatibility and format
Designed in the standard ATX form factor, this motherboard is compatible with most cases on the market and supports modern operating systems.

ATX form factor: 30.5 cm x 24.4 cm
Compatible with 64-bit Windows 10 and 11
UEFI BIOS with support for secure updates

Other specifications

I/O chip: iTE®
TPM support (module header GC-TPM2.0)
Q-Flash button and Clear CMOS jumper on the motherboard
Included software: Norton® Security (OEM) and LAN bandwidth management
Volume (m ³): 0.0073
