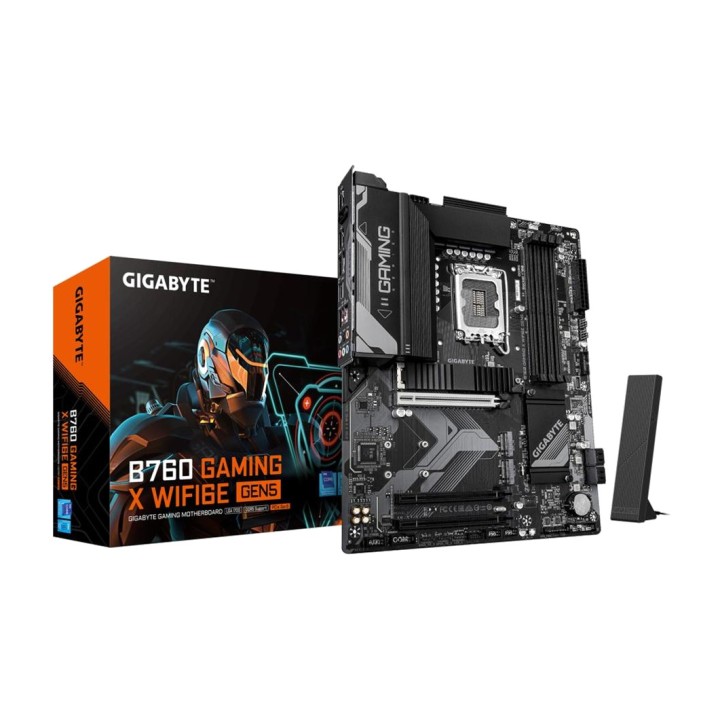

GIGABYTE ATX motherboard for Intel B760-GAMING X WIFI6E GEN5 LGA1700 DSP0000036831

Features of the GIGABYTE B760M G X WF6E ATX LGA1700 Motherboard with WiFi 6E
The GIGABYTE B760M G X WF6E is an ATX motherboard designed to get the most out of 12th, 13th and 14th generation Intel processors with an LGA1700 socket. Designed for enthusiasts, creators and gamers looking for stability, next-generation connectivity and expandability, this motherboard combines DDR5 support, WiFi 6E, PCIe 4.0 and RGB lighting. A complete option for building a modern system that is ready for the future.
Powerful Intel and memory compatibility DDR5
Equipped with the Intel B760 chipset, this motherboard is compatible with a wide range of Intel Core CPUs, including powerful 14th-generation i9 processors. It supports up to 256 GB of DDR5 memory at speeds of up to 5600 MHz, with ECC or non-ECC, in a dual-channel configuration.

LGA1700 socket for 12th, 13th and 14th Gen Intel Core
4 DDR5 DIMM slots, up to 5600 MHz
Compatible with buffered and unbuffered ECC and non-ECC modules

Advanced connectivity: WiFi 6E, 2.5GbE LAN and Bluetooth 5.3
The B760M G X WF6E is equipped with the latest networking technologies. It features WiFi 6E and Bluetooth 5.3 powered by the Intel AX210 chip, along with a 2.5G Ethernet port for ultra-fast wired networking. Ideal for working, gaming online or streaming with complete stability.

Integrated Intel Wi-Fi 6E AX210
Realtek RTL8125 2.5 GbE LAN
Bluetooth 5.3

Ultra-fast storage with 3 M.2 PCIe slots 4.0
It features 3 M.2 NVMe PCIe 4.0 slots compatible with drives up to 22110 mm, allowing for a fast and versatile storage configuration. It also includes 4 SATA III ports for traditional HDDs or SSDs. Compatible with RAID 0, 1, 5 and 10 configurations.

3 M.2 PCIe slots 4.0 (22110)
4 SATA III connectors
Support for RAID 0 / 1 / 5 / 10

Graphics expansion and PCIe performance
The motherboard includes a PCIe x16 Gen 5 slot for high-performance graphics cards, along with 2 additional PCIe x16 Gen 3 slots for expansion cards. Ideal for demanding configurations and intensive use.

1 x PCIe x16 Gen 5
2 x PCIe x16 Gen 3
Supports resolutions up to 4096 x 2304 pixels

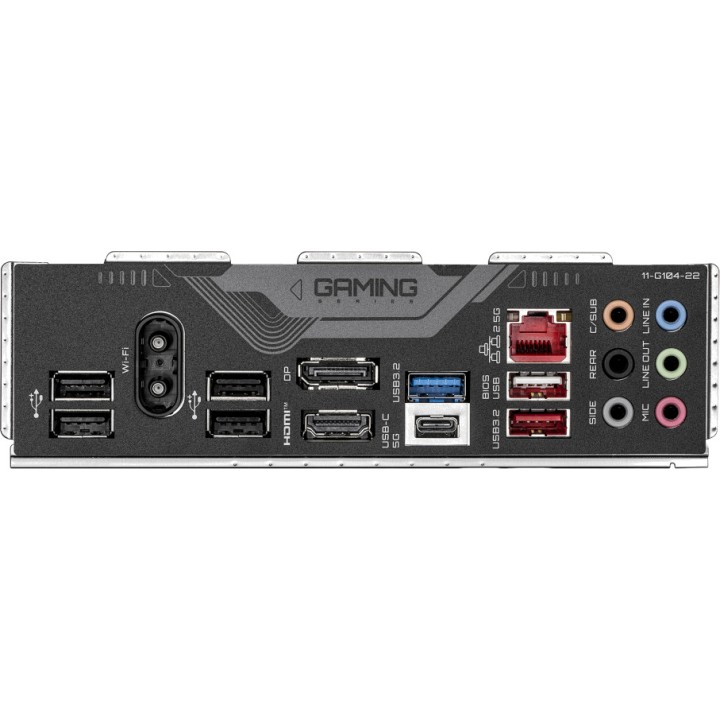

Comprehensive rear and front connectivity
It features a versatile rear panel with HDMI 2.1, DisplayPort 1.2, multiple USB 3.2 Gen 1/Gen 2 ports and audio jack connectors. Inside, it offers connectors for cooling, RGB, fans and water pumps.

1 x HDMI 2.1 + 1 x DisplayPort 1.2
1 x USB-C 3.2 Gen 1, 1 x USB-A 3.2 Gen 2, 5 x USB 2.0
7.1 audio with Realtek chip ALC897

Functional design with RGB and fan control
It features 4 connectors for RGB strips, support for 2 water pumps and up to 4 case fans. The design is intended to provide attractive looks and effective cooling, making it ideal for custom builds.

Addressable RGB connectors
Support for liquid cooling systems
Temperature, voltage and fan speed monitoring

Compatibility and ease of use
Compatible with Windows 10 and 11 64-bit versions, AMI UEFI BIOS and tools such as Norton Internet Security OEM included. Includes all the accessories required for installation, such as a WiFi antenna, screws and battery.

256 MB UEFI BIOS, version ACPI 5.0
Compatible with Windows 10/11 x64
3-year warranty

Other specifications

Form factor: ATX
Dimensions: 305 x 244 x 35 mm
Weight: 1.61 kg
Colour: Dark brown
Chipset: Intel B760
S/PDIF output and HDCP support
Direct support X 12
Volume (m ³): 0.0073
