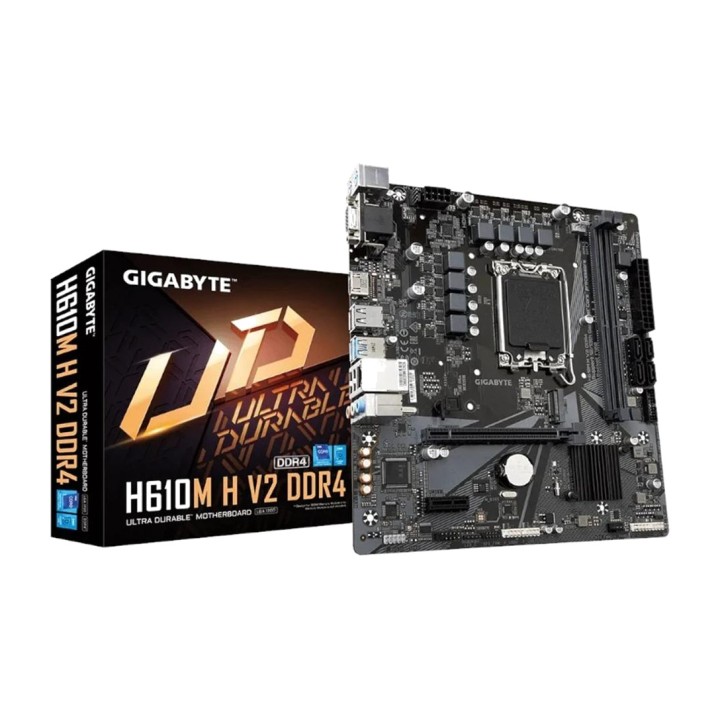

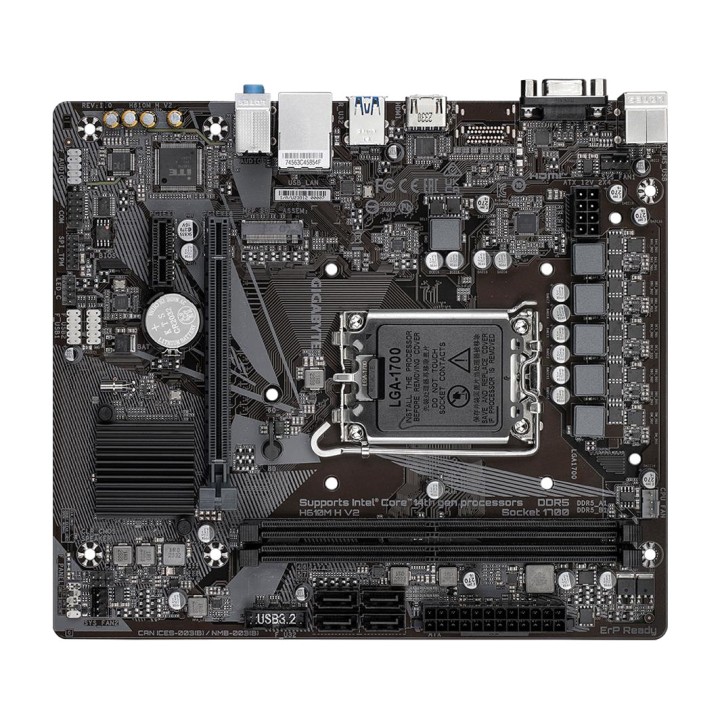

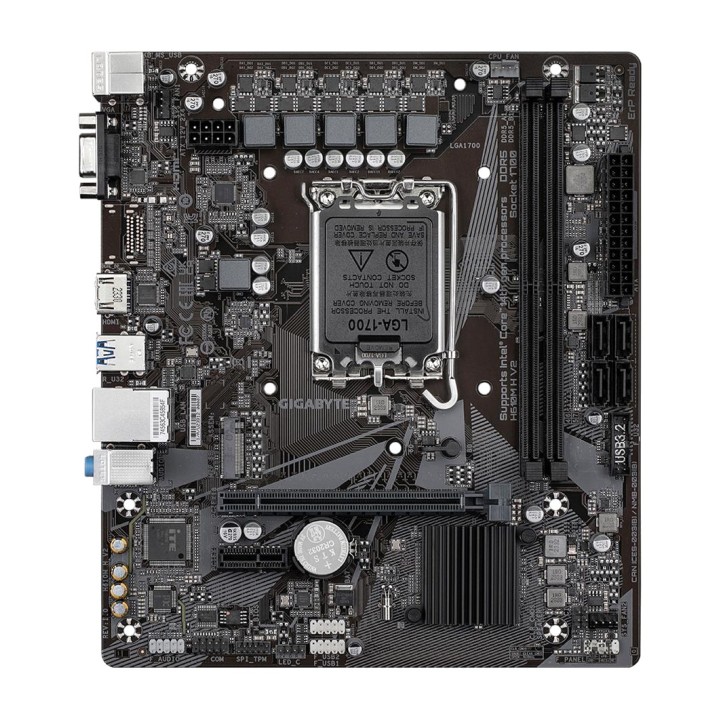

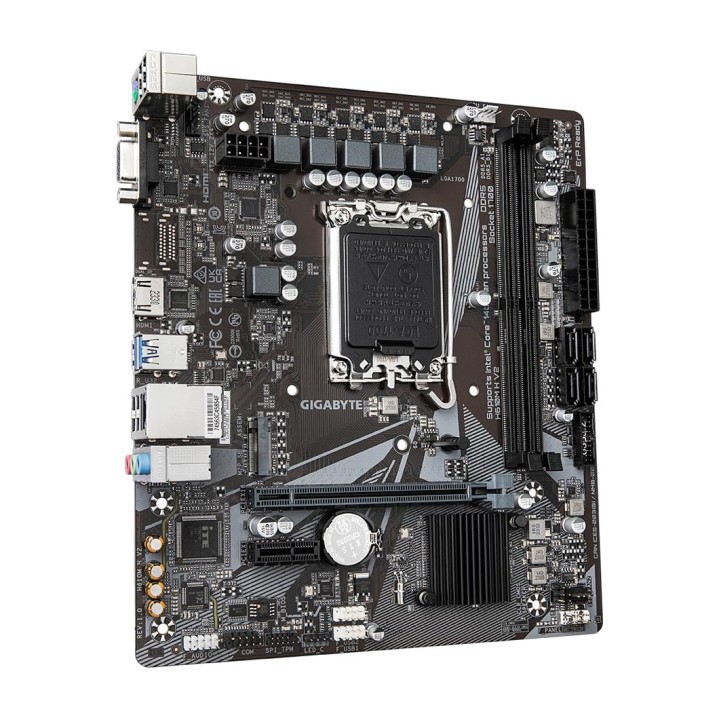

GIGABYTE Micro ATX motherboard for Intel H610M H V2 LGA1700 DSP0000035789

Features of the Gigabyte H610M H V2 DDR5 m ATX LGA1700
The **Gigabyte H610M H V2 motherboard** is a reliable, up-to-date solution for desktop PCs based on 14th-, 13th- and 12th-generation Intel processors. With a **compact micro ATX form factor** and DDR5 memory support, it is designed for those seeking **modern performance in an efficient, scalable system**. Ideal for users building PCs for office work, advanced home use or even basic professional tasks.
Current compatibility with Intel processors and memory DDR5
The H610M H V2 features an **LGA 1700 socket**, making it compatible with a wide range of Intel CPUs, from **Celeron to Core i9** across the last three generations. It has two DDR5 DIMM slots supporting up to **128 GB of RAM**, allowing you to take advantage of the **high transfer speeds** of this new generation of memory.

Compatible with 14th-, 13th- and 12th-generation Intel Core, Pentium Gold and Celeron processors
DDR5 support up to 5600 MT/s (depending on CPU)
2 DDR5 DIMM slots with a total capacity of up to 128 GB

Integrated graphics and modern connectivity options

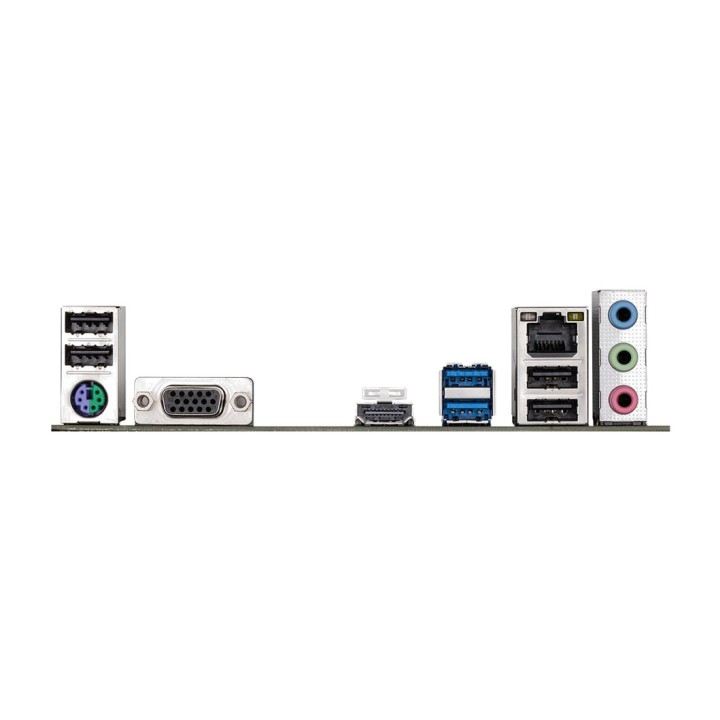

Thanks to its support for Intel integrated graphics, this motherboard offers HDMI and D-Sub video outputs, allowing you to use modern or traditional monitors. It also includes versatile connectivity options for storage and peripherals, including **M.2 for SSDs**, **USB 3.2 ports** and **Gigabit networking**.

1 x HDMI 2.1 (up to 4096 x 2160 at 60 Hz)
1 x D-Sub (up to 1920 x 1200 at 60 Hz)
1 x M.2 slot + 4 x SATA 6 Gb/s

Balanced connectivity and expansion
Includes PCIe 4.0 x16 and PCIe 3.0 x1 expansion slots, ideal for additional graphics or expansion cards. In terms of connectivity, it offers **up to 8 USB ports**, fan connectors, RGB headers and TPM 2.0 support, making this motherboard a solid foundation for both everyday use and secure integrations.

1 x PCIe 4.0 x16 + 1 x PCIe 3.0 x1
USB: 2 x USB 3.2 + 4 x rear USB 2.0
Integrated TPM connector and RGB header

High-definition audio and Gigabit networking
Equipped with a **Realtek high-definition audio chip**, the H610M H V2 supports surround sound configurations of up to 7.1 channels. The Realtek GbE network chip ensures a stable connection of up to **1 Gbps**, ideal for remote work, casual gaming or intensive browsing.

Multichannel audio (2/4/5.1/7.1 channels)
Realtek LAN GbE chip, 10/100/1000 Mbps
Software-based audio customization

Compact design and high compatibility
With a **Micro ATX** form factor measuring 23 x 21.5 cm, this motherboard is perfect for medium or small towers. It is also fully compatible with **64-bit versions of Windows 10 and Windows 11**, making it easy to build modern systems without complications.

Form factor: Micro ATX (23.0 cm x 21.5 cm)
Compatible with 64-bit Windows 10/11
Ideal for compact and efficient configurations

Other specifications

1 x 24-pin ATX connector + 1 x 8-pin ATX connector (12V)
3 fan connectors: CPU + 2 system
1 x USB 3.2 Gen 1 header + 2 x internal USB 2.0/1.1
1 x RGB LED connector
1 x module connector TPM (GC-TPM2.0 SPI V2)
1 x serial port + 1 x CMOS clear jumper
Audio: 3 rear connectors + software configuration
I/O controller: iTE I/O Controller Chip
Volume (m ³): 0.0034
