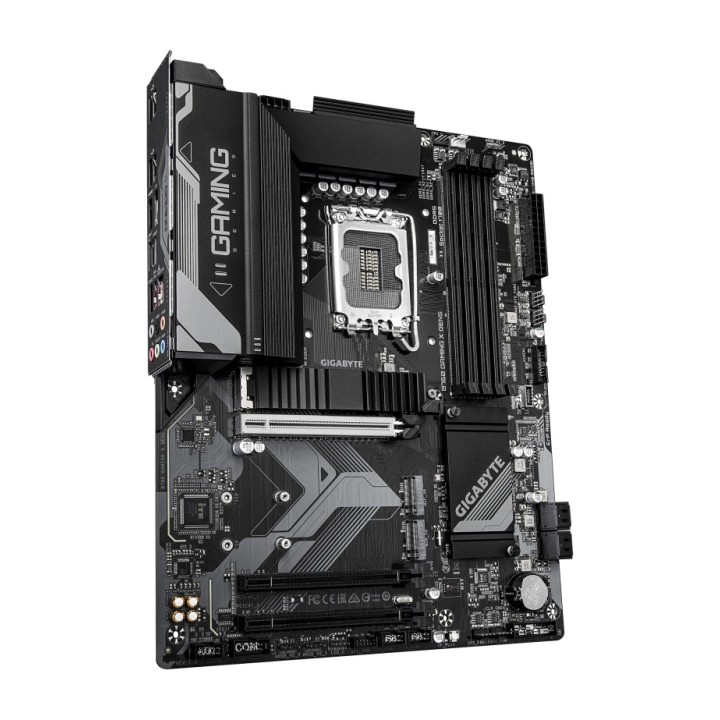

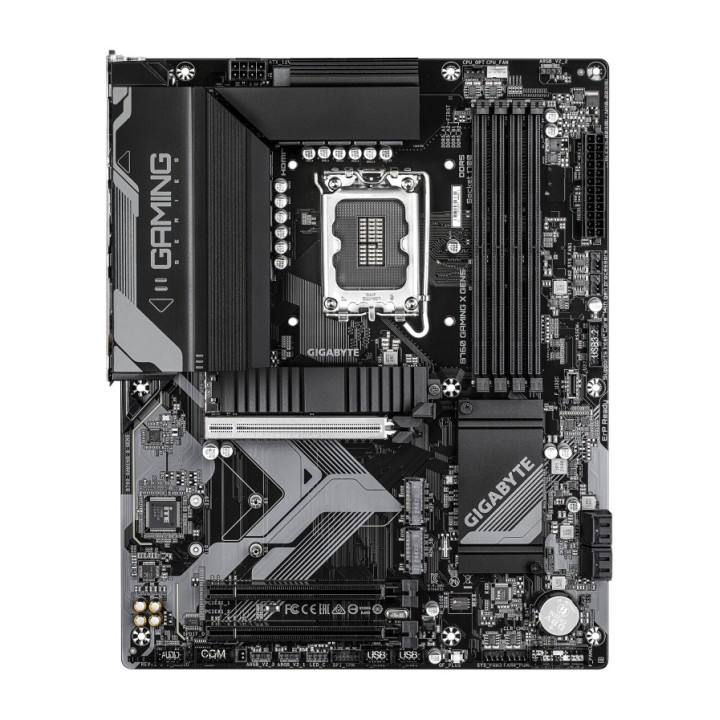

GIGABYTE ATX motherboard for Intel B760-GAMING X GEN5 LGA1700 DSP0000034983

Motherboard Features GIGABYTE B760 GAMING X DDR5 ATX
The **GIGABYTE B760 GAMING X** is an ATX motherboard designed to offer an excellent balance of **performance, connectivity and compatibility** with the latest generations of Intel processors. Ideal for demanding users looking to build a powerful PC for gaming, editing or intensive tasks, this motherboard supports **DDR5 memory**, up to **three M.2 PCIe 4.0 drives** and features a robust power delivery system to ensure stability even in high-performance scenarios.
Compatible with 12th, 13th and 14th generation Intel processors
Equipped with the **LGA 1700** socket and the **Intel B760** chipset, this motherboard is compatible with a wide range of Intel processors, from efficient **Intel Celeron** models to powerful **Core i9** processors. This lets you scale performance to suit your current and future needs.

Supports Intel Core i3, i5, i7 and i9 CPUs (12th, 13th and 14th gen)

Intel B760 chipset with Direct support X 12
Optimised power delivery design with 8-pin EPS connector

Support for high-performance DDR5 memory
With 4 DIMM slots, the B760 GAMING X lets you install up to **256 GB of DDR5 memory** at speeds of up to **5600 MHz**, providing an ideal environment for multitasking, advanced gaming or content creation.

Memory type: DDR5-SDRAM (unbuffered, ECC and non-ECC)

Up to 64 GB per slot (total 256 GB)
Supported speeds: 4400 / 4800 / 5200 / 5600 MHz

Ultra-fast storage with triple M.2 PCIe 4.0
Enjoy ultra-fast boot and load times thanks to its **three M.2 NVMe slots**, all compatible with **PCIe 4.0 x4**, ensuring high-speed data transfer for games and applications. It also has 4 SATA III ports for traditional storage.

3 x M.2 PCIe 4.0 slots (maximum size 22110)

4 x SATA III ports
Support for RAID 0, 1, 5 and 10

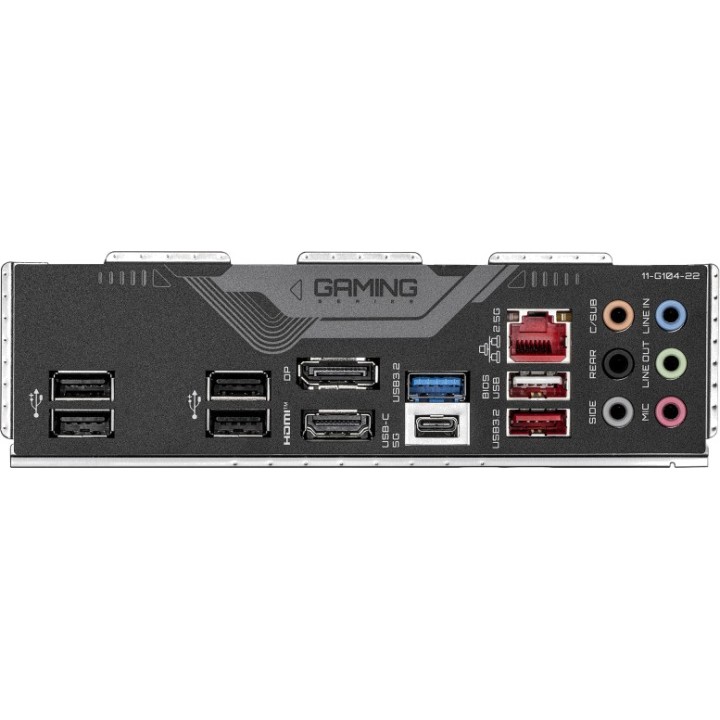

Modern, future-ready connectivity
It includes a comprehensive selection of the latest-generation USB ports, including **USB 3.2 Gen 2 Type A and Type C**, as well as **HDMI 2.1 and DisplayPort 1.2** video outputs. The 2.5 GbE Ethernet connection provides a fast, stable network, ideal for online gaming or large data transfers.

1 x HDMI 2.1 (up to 4096 x 2304 px)

1 x DisplayPort 1.2
Realtek RTL8125 2.5 GbE Ethernet
USB: 5 x USB 2.0, 1 x USB 3.2 Gen 1 Type A, 1 x USB 3.2 Gen 1 Type C, 1 x USB 3.2 Gen 2 Type A

Efficient thermal design and support for advanced cooling
Thanks to its multiple connectors for fans and water pumps, this motherboard allows complete control over airflow and cooling. It also includes sensors to monitor system temperature and voltage.

2 x CPU fan connectors

4 x chassis fan connectors
2 x water pump connectors
Temperature, voltage and cooling monitoring

Audio and aesthetics for a complete experience
It includes **7.1-channel** audio with a **Realtek ALC897** chip and support for customisable RGB lighting via its 4 LED strip connectors. The **dark brown** finish gives it a refined, modern look that suits any setup.

7.1-channel audio with Realtek ALC897

4 x RGB LED connectors + S/PDIF connector
ATX design 305 x 244 mm

Compatibility with Windows and modern BIOS
The GIGABYTE B760 GAMING X is compatible with **Windows 10 and 11 (64-bit)** and features an AMI UEFI BIOS with ACPI 5.0, SMBIOS 2.7 and DMI 2.7 management support for advanced, stable system configuration.

AMI UEFI BIOS of 256 MB

Windows support 10/11 x64
Included software: Norton Internet Security (OEM)

Other specifications

Power supply type: ATX

24-pin ATX connector + 8-pin EPS connector
1 x TPM connector, 1 x serial header
Supports HDD and SSD
Product colour: Dark brown
Weight: 1.56 kg (1.8 kg with packaging)
Packaging dimensions: 335 x 270 x 80 mm
Includes CR2032 battery and screws
Manufacturer's warranty: 3 years
Volume (m ³): 0.0073
