GIGABYTE Micro ATX motherboard for Intel B760M DS3H GEN5 LGA1700 DSP0000034982

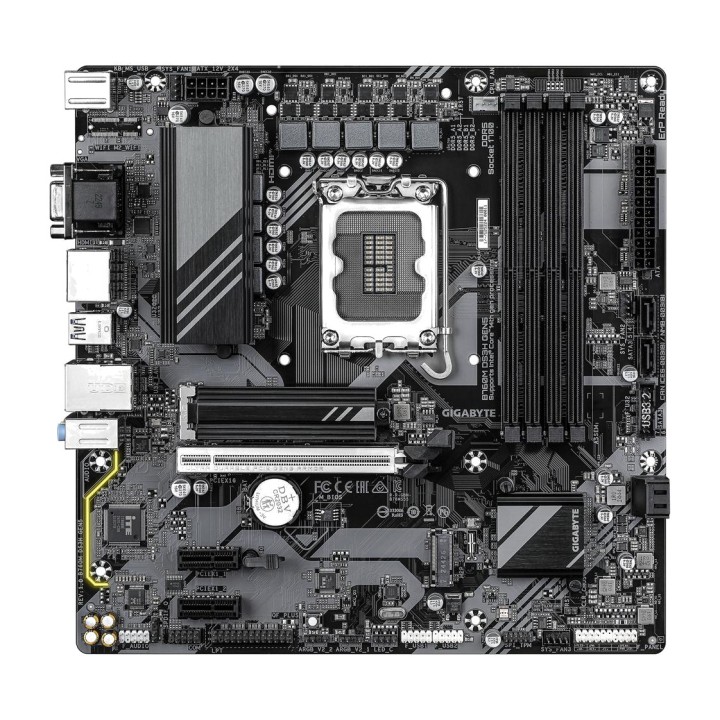

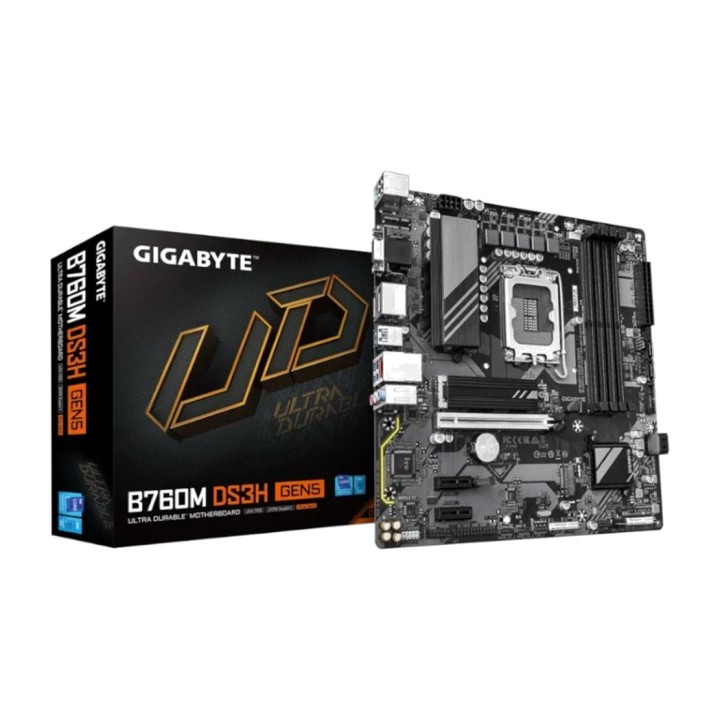

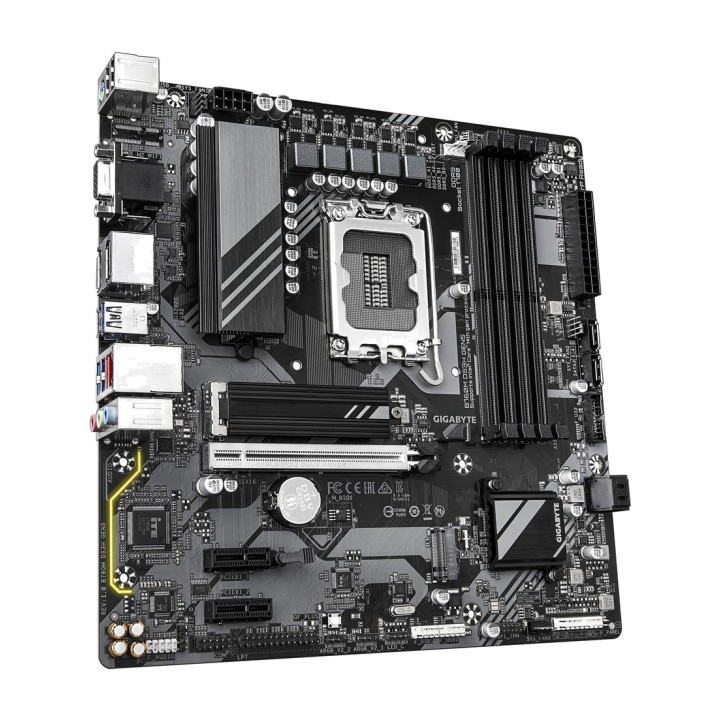

Gigabyte B760M DS3H GEN5 m Motherboard Features ATX LGA1700
The Gigabyte B760M DS3H GEN5 is a Micro ATX motherboard designed for those seeking a balance between performance, modern connectivity and compatibility with the new generation of Intel processors. Ideal for versatile desktop PCs, whether for gaming, productivity or advanced home use, this motherboard is based on the Intel B760 chipset and supports 12th, 13th and 14th generation Intel processors with an LGA1700 socket.
High-level compatibility with Intel processors
Thanks to its LGA1700 socket, this motherboard is compatible with a wide range of Intel Core, Pentium Gold and Celeron CPUs, allowing you to configure your PC to suit your needs and budget. It is optimised for the latest generations, including 14th and 13th generation Intel Core i9/i7/i5 processors.

LGA1700 socket for 12th, 13th and 14th generation Intel processors
Intel B760 Express chipset
Compatible with CPUs up to Intel Core i9

High-speed DDR5 memory
The Gigabyte B760M DS3H GEN5 supports up to 256 GB of DDR5 memory, with support for extreme frequencies in overclocked configurations. This provides plenty of scope for improved speed and performance, ideal for demanding tasks and next-generation games.

4 DDR5 DIMM slots, up to 256 GB
Supported frequencies up to 7600 MT/s (O.C.)
Dual-channel architecture and compatibility with XMP profiles

Ultra-fast, expandable storage
Equipped with two M.2 PCIe 4.0 x4 connectors and four SATA ports, this motherboard supports fast, flexible storage configurations. It also supports RAID configurations for greater security and performance.

2 x M.2 PCIe 4.0 x4 (2280)
4 x SATA 6 Gb/s
Support for RAID 0, 1, 5 and 10

Modern graphics connectivity and multiple displays
Thanks to its HDMI, D-Sub and DisplayPort outputs, the motherboard supports up to four displays simultaneously, making it ideal for multitasking or workstations. It supports 4K resolutions and technologies such as HDCP 2.3 and DisplayPort 1.2.

1 x HDMI (up to 4096 x 2160 at 60 Hz)
2 x DisplayPort (up to 4096 x 2304 at 60 Hz)
1 x D-Sub (up to 1920 x 1200 at 60 Hz)

Next-generation connectivity and ports
It features a wide range of USB ports, including USB 3.2 Gen 2 Type-C, for connecting the latest peripherals. It also includes 2.5 GbE LAN for faster, more stable connections.

1 x USB-C 3.2 Gen 2 (rear panel)
5 x USB 3.2 Gen 1 and 6 x USB 2.0
Realtek 2.5GbE LAN

Optimised audio and cooling
Thanks to its Realtek codec, the motherboard provides configurable multichannel high-definition audio via software. Its fan and LED connectors let you customise both the system's thermal performance and aesthetics.

7.1-channel HD audio with S/PDIF output
4 fan connectors (1 CPU + 3 system)
Compatibility with addressable RGB and RGB Gen2 LED strips

Compact and versatile Micro ATX design
With a 24.4 x 24.4 cm form factor, the B760M DS3H GEN5 motherboard is perfect for compact cases without compromising on expansion and connectivity. Ideal for versatile and upgradeable builds.

Micro ATX form factor
Ideal for compact cases
High compatibility with current components

Compatibility and operating systems
This motherboard is compatible with the latest Windows operating systems and is ready for building up-to-date, future-proof systems.

Compatible with Windows 11 (64-bit)
Compatible with Windows 10 (64-bit)

Other specifications

1 x PCIe x16 (4.0) slot + 2 x PCIe x1 (3.0)
Q-Flash Plus button and CMOS jumper
Support for TPM 2.0 via an additional module

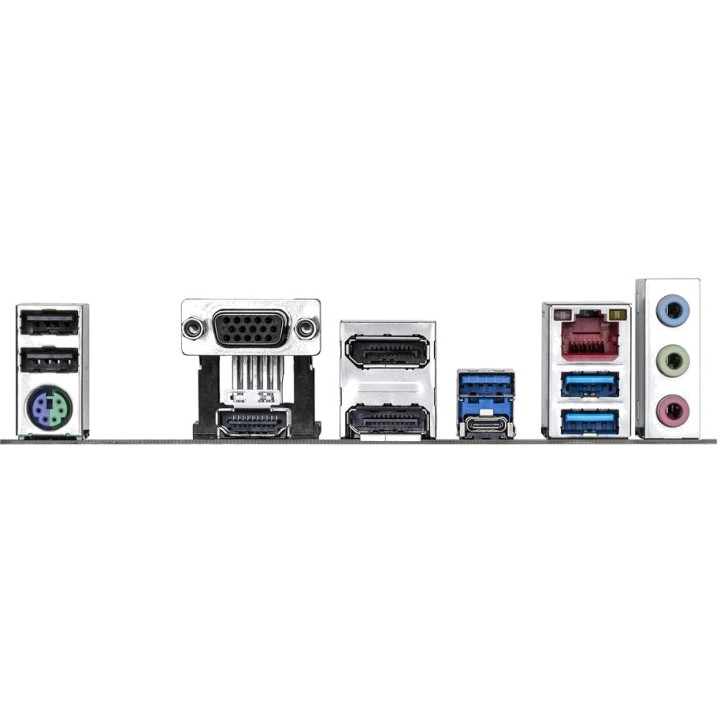

Rear panel with 3 audio connectors, RJ-45, PS/2 and video outputs
Volume (m ³): 0.0044
