GIGABYTE ATX motherboard for Intel Z790 EAGLE LGA1700 DSP0000034978

Motherboard Features GIGABYTE Z790 EAGLE DDR5

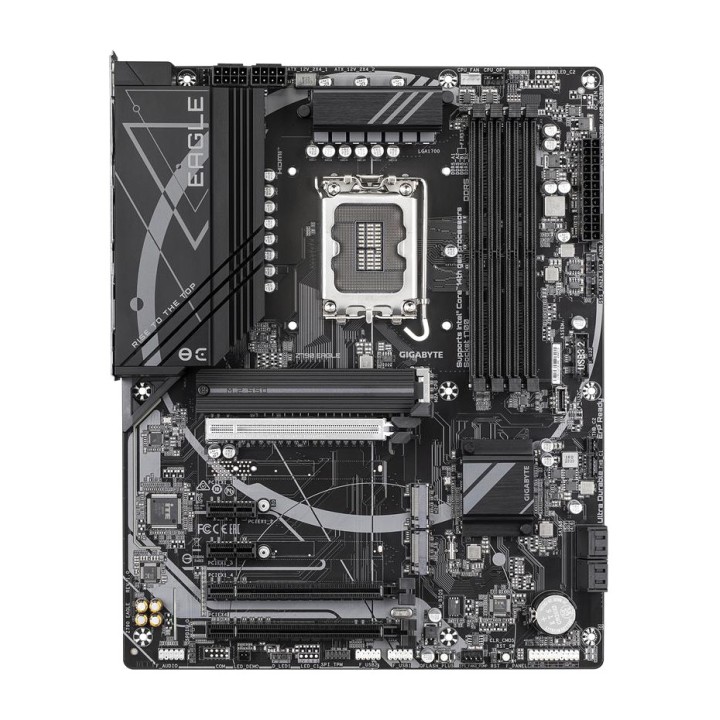

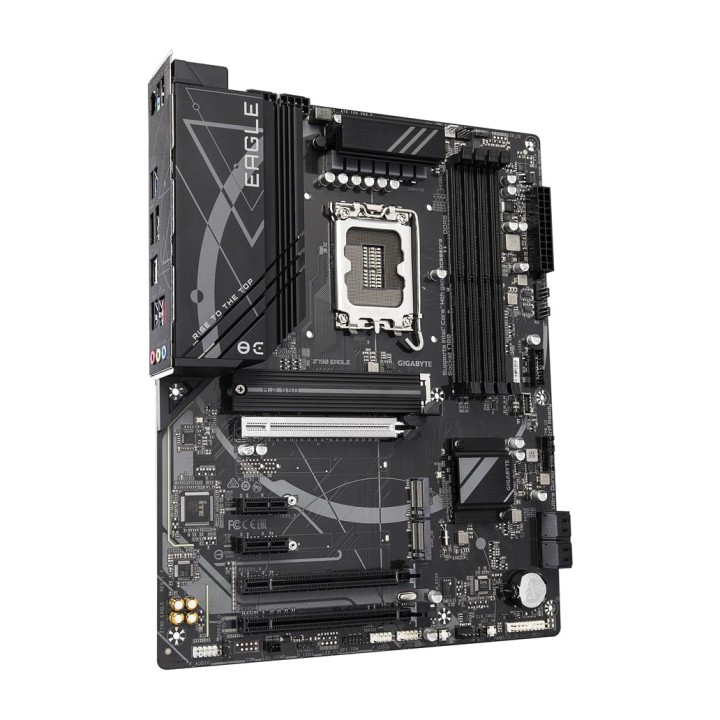

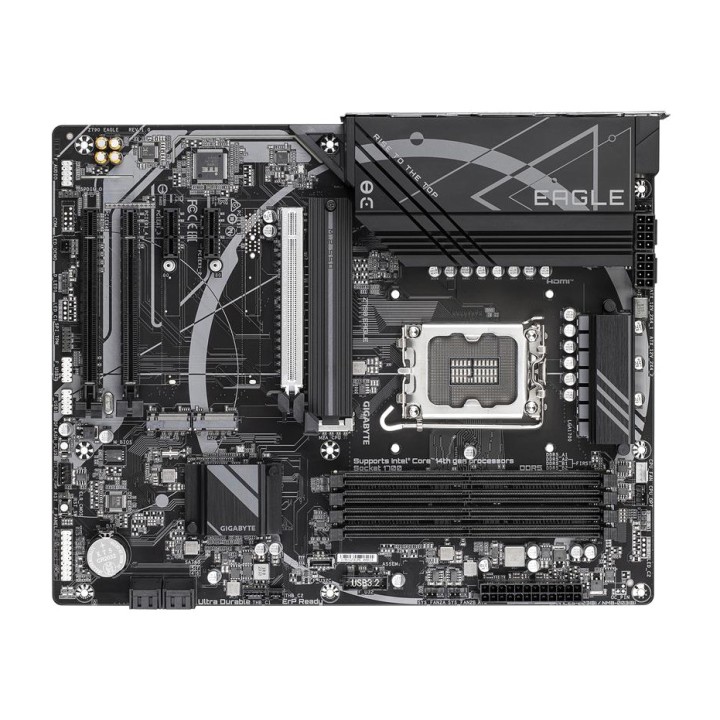

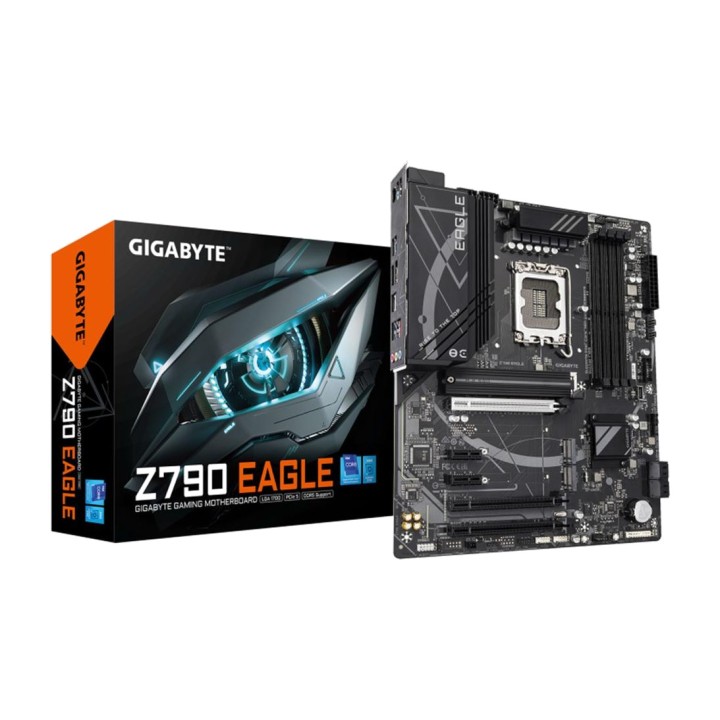

The **GIGABYTE Z790 EAGLE DDR5** is an ATX motherboard designed for those seeking **extreme performance, extensive expandability and support for the latest technologies**. Compatible with 12th, 13th and 14th generation Intel processors and high-speed DDR5 memory, it is ideal for **gaming PCs, demanding workstations or high-end custom builds**.
High performance with the Intel Z790 chipset and support DDR5
This motherboard is equipped with the **Intel Z790** chipset and supports **DDR5 memory** up to 7600 MHz (OC), ensuring a smooth experience in games, productivity tasks and content creation. It also supports up to **256 GB of RAM** across 4 DIMM slots.

Compatible with Intel® Core™, Pentium® and Celeron® processors (12th to 14th gen)
Supports up to 256 GB of dual-channel DDR5 memory
Supported memory speeds: up to 7600 MHz (OC)

Extensive connectivity and ultra-fast storage
With **3 M.2 PCIe 4.0 slots**, **4 SATA III ports** and RAID 0/1/5/10 support, this motherboard is ready for fast, versatile storage systems. It also includes a wide range of internal and rear connectors, ideal for users seeking **comprehensive connectivity and expansion options**.

3 M.2 PCIe 4.0 slots for NVMe SSDs
4 SATA III connectors for HDDs or SSDs
Support for RAID 0, 1, 5 and 10

Optimised external connectivity

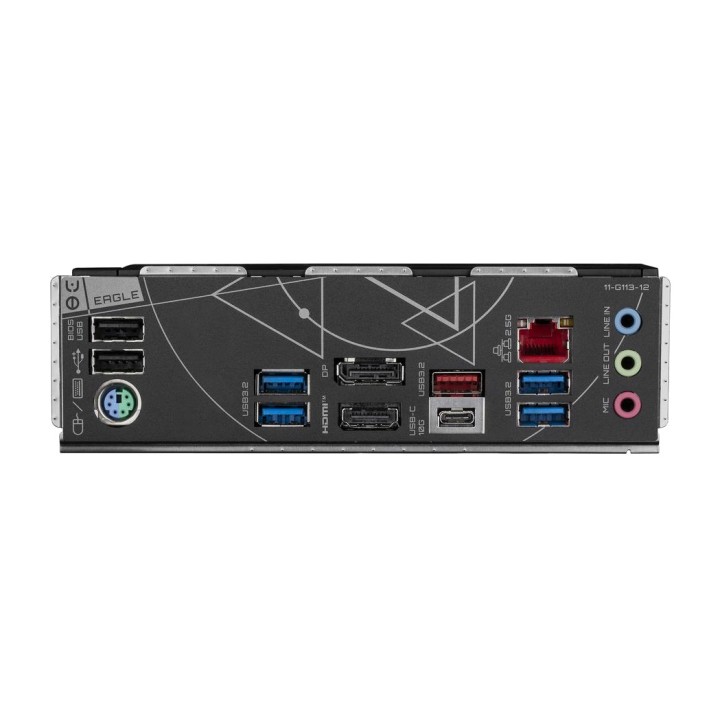

The rear panel provides everything needed for complete connectivity, including **USB 3.2 Gen 2 Type-C**, HDMI 2.1 and DisplayPort 1.2 video outputs, and **2.5 GbE** networking for a faster, more stable connection.

1 x HDMI 2.1, 1 x DisplayPort 1.2
6 rear USB ports (including USB-C)
2.5 GbE LAN with Realtek chip RTL8125

Robust design focused on thermal performance
It includes support for fans and water pumps, ideal for keeping the system cool even under load. It also features RGB connectors for aesthetic customisation.

2 CPU fan connectors + 4 chassis fan connectors
2 water pump connectors
2 addressable RGB headers

Surround sound and advanced BIOS
The GIGABYTE Z790 EAGLE DDR5 is equipped with a **Realtek ALC897 sound chip** for clear 7.1-channel audio and an easy-to-configure **AMI UEFI BIOS**, ideal for both advanced users and overclocking enthusiasts.

7.1-channel high-definition audio
256 MB UEFI BIOS with ACPI 5.0 support and SMBIOS 2.7
Support for Clear CMOS and secure updates

ATX design and full Windows compatibility
Its **standard ATX form factor**, ATX power supply and compatibility with 64-bit Windows 10/11 ensure easy integration into most current towers and setups.

Form factor: ATX (305 x 244 mm)
Compatible with Windows 10 x64 and Windows 11 x64
Includes Norton OEM software and mounting accessories

Other specifications

COLOUR: BLACK
DirectX version: 12.0, HDCP support
Maximum supported resolution: 4096 x 2304 pixels
Package weight: 1.79 kg
Manufacturer's warranty: 3 years
Volume (m ³): 0.0073
