GIGABYTE Micro ATX motherboard for Intel B760M-GAMING X WIFI6E GEN5 LGA1700 DSP0000034973

Features of the B760M GAMING X WIFI6E GEN5

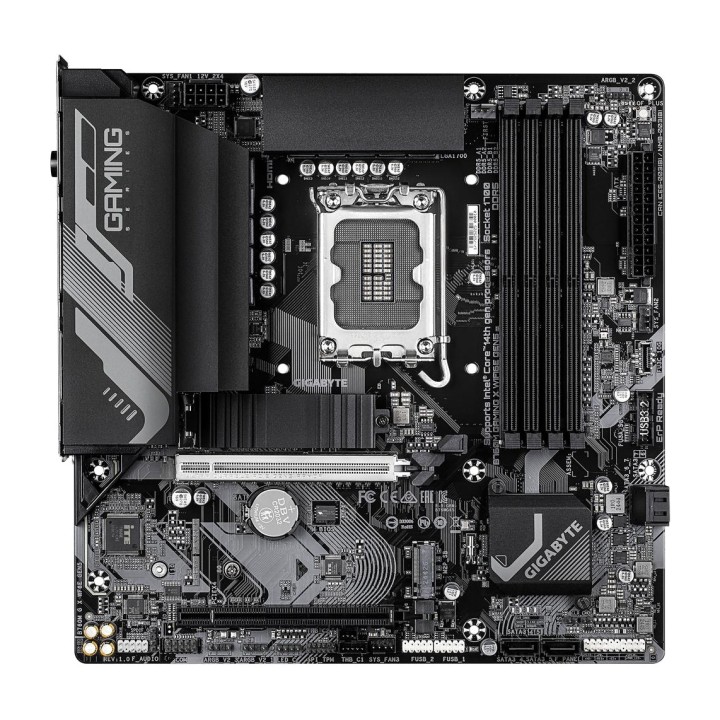

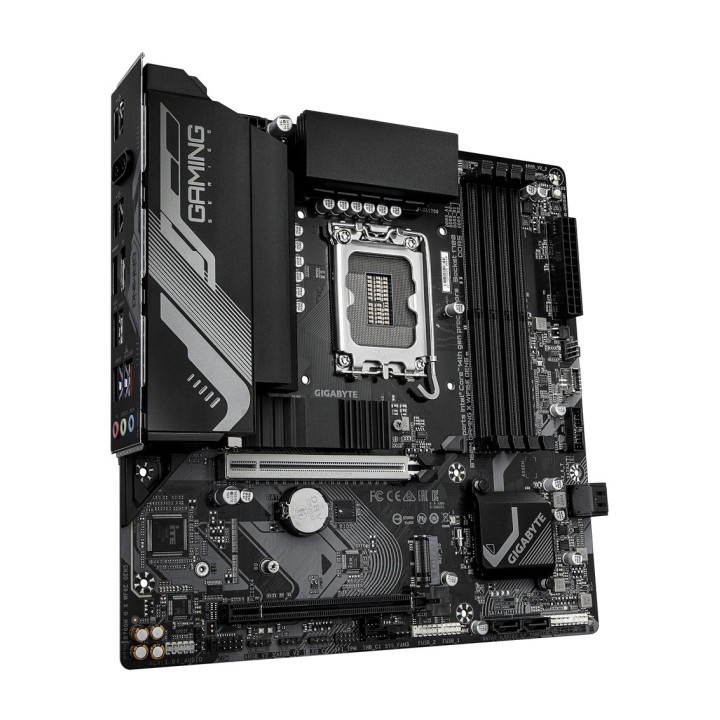

The **B760M GAMING X WIFI6E GEN5** is a powerful **micro-ATX** motherboard, ready for the present and future of PC gaming and productivity. Designed for **12th, 13th and 14th generation Intel Core processors** with an LGA 1700 socket, it combines a robust design with next-generation connectivity such as **DDR5, Wi-Fi 6E and PCIe Gen5**, providing an ideal foundation for high-performance systems.
Full compatibility with next-generation Intel processors
Thanks to its **Intel B760** chipset and support for Intel CPUs up to 14th-generation Core i9, this motherboard ensures compatibility and stability for building powerful, long-lasting systems. In addition, its **8+1+1-phase** digital VRM ensures precise power delivery, even under demanding workloads.

LGA 1700 socket compatible with Intel Core, Pentium and Celeron (12th to 14th gen)
Intel B760 chipset with memory overclocking support
8+1+1-phase VRM with passive cooling

High-speed, high-capacity DDR5 memory
Equipped with **4 DDR5 DIMM slots**, it supports up to **256 GB** of RAM in **dual-channel** configurations, with supported frequencies of up to **5600 MHz**. Ideal for demanding tasks such as competitive gaming, video editing or multitasking environments.

Compatible with ECC and non-ECC DDR5-SDRAM memory
Up to 64 GB per slot (total 256 GB)
Supported speeds: 5600 / 5200 / 4800 / 4400 MHz

Ultra-fast storage with PCIe 4.0 and RAID support
It features **2 PCIe 4.0 M.2 slots** and **4 SATA III ports**, allowing you to combine high-speed NVMe SSDs with traditional HDDs or SATA SSDs. It also supports **RAID 0/1/5/10** configurations for greater security or performance.

2 x M.2 (2280 and 22110) PCIe 4.0
4 x SATA III
Compatible with HDDs and SSDs / up to 6 drives

Advanced connectivity: Wi-Fi 6E, 2.5 GbE LAN and Bluetooth 5.3
Wireless connectivity is ensured by the **Intel Wi-Fi 6E AX210** module, compatible with 6 GHz networks and offering higher speeds for online gaming, streaming and remote work. It also features **2.5 GbE LAN** and **Bluetooth 5.3** for modern peripherals.

Intel Wi-Fi 6E (802.11ax) + 2 antennas included
Integrated Bluetooth 5.3
2.5 GbE LAN with Realtek chip RTL8125

Graphics expansion with PCIe 5.0 and output 4K
It features a **Gen 5.0 PCIe x16 slot** for next-generation graphics cards, offering maximum bandwidth. In addition, its **HDMI 2.1** and **DisplayPort 1.2** outputs allow you to connect monitors up to **4K** with a high refresh rate.

1 x PCIe x16 Gen 5.0
1 x PCIe x16 Gen 3.0
HDMI 2.1 + DisplayPort 1.2 / Maximum resolution 4096 x 2304 px

Functional design, efficient cooling and integrated RGB
It features connectors for CPU and chassis fans, support for liquid cooling and **4 RGB headers** for LED strips, all in a compact, efficient **micro-ATX** form factor. Ideal for mid-tower cases with style and good airflow.

1 CPU fan connector + 3 for chassis fans
Support for RGB LED strips (4 connectors)
Connectors for front panel, TPM, audio and more

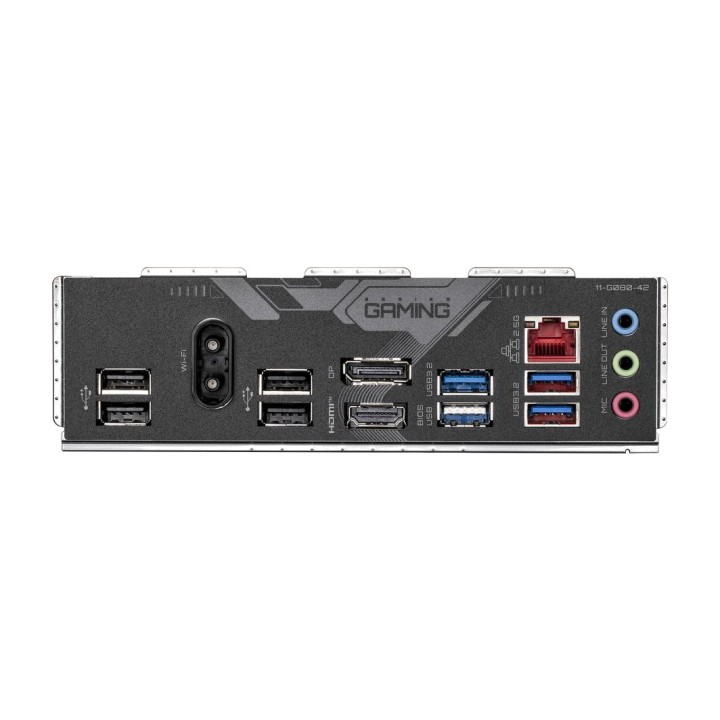

Comprehensive rear connectivity and high-quality sound
It features a balanced selection of ports with **8 USB ports (3.2 Gen 1 and USB 2.0)**, audio outputs, a microphone input and a **Realtek ALC897** sound chip with 7.1 audio support. Ideal for both gaming and content creation.

3 x USB 3.2 Gen 1 Type A + 5 x USB 2.0
1 x HDMI 2.1 / 1 x DisplayPort 1.2
7.1-channel audio / S/PDIF / microphone input

Reliability and warranty
With quality components, an updatable UEFI BIOS, support for Windows 10 and 11, and **3-year warranty**, the B760M GAMING X WIFI6E GEN5 is a well-balanced choice for those looking to build a modern, stable PC.

AMI UEFI BIOS / ACPI 5.0
Temperature, fan and voltage monitoring
Compatible with Windows 10 x64 and Windows 11 x64

Other specifications

Form factor: Micro-ATX (244 x 244 mm)
Net weight: 1.42 kg / Packaged weight: 1.6 kg
Colour: Dark brown

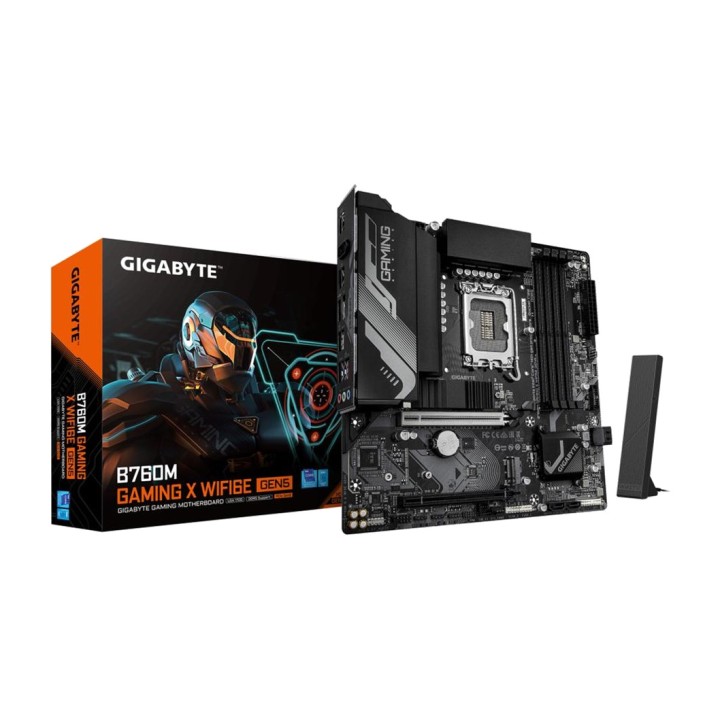

Includes Wi-Fi antennas, screws, CR2032 battery and Norton OEM software
Volume (m ³): 0.0051
