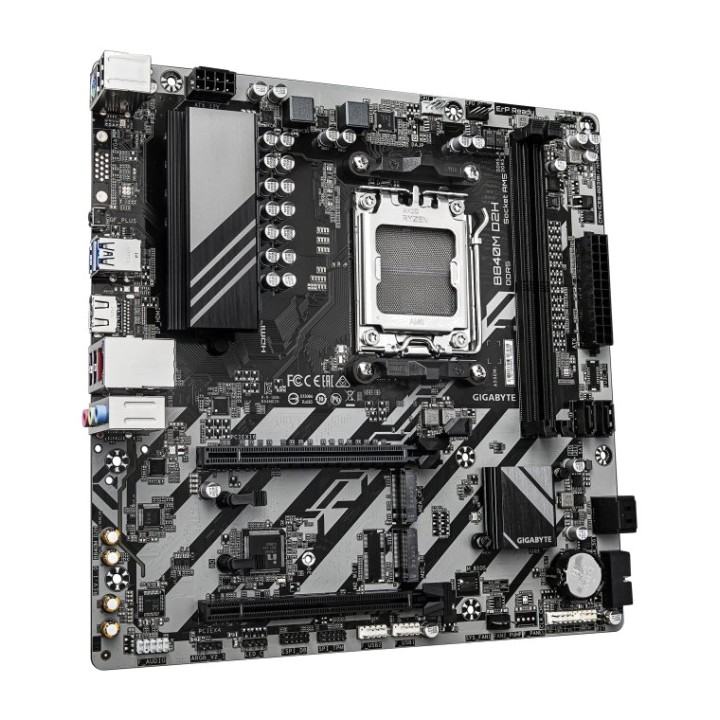

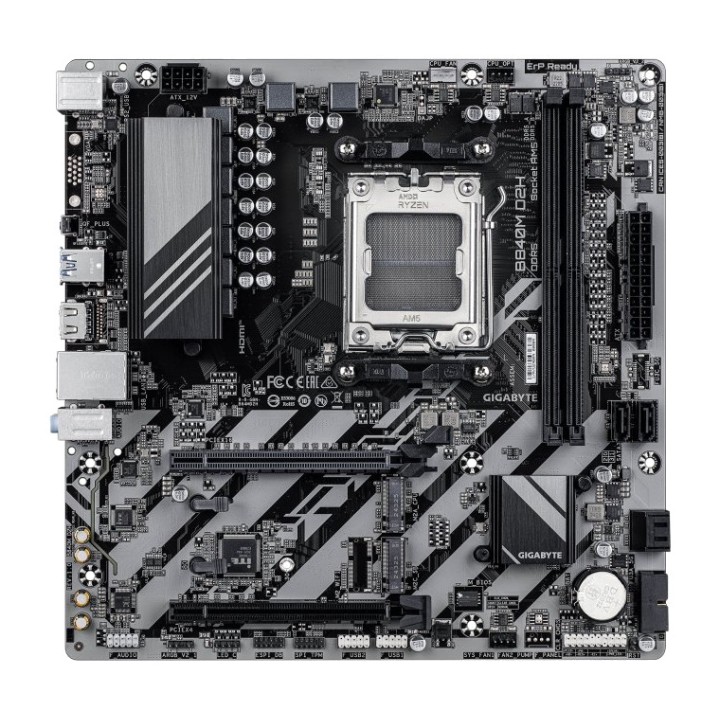

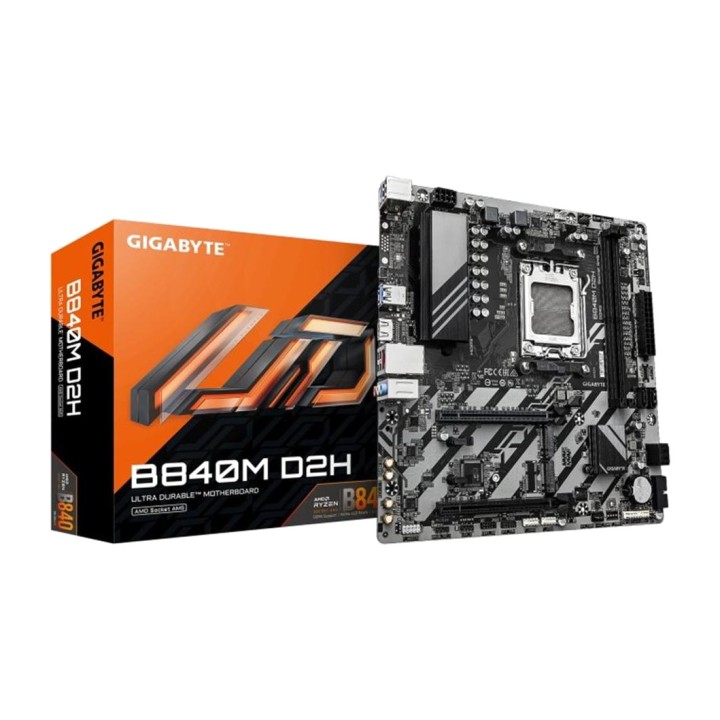

GIGABYTE Micro ATX motherboard for AMD B840M D2H AM5 DSP0000032847
Price:
€117.60
Tax included
DeliveryUpdating delivery estimate…Order within the next — to receive it approximately Updating delivery estimate…
Updating delivery estimate…
Cuándo es más probable que llegue
Calculado con 0 entregas recientes
Fechas estimadas para España peninsular; se ajustarán con tu código postal y forma de entrega.
The date corresponds to the item with the longest delivery time
IVA intracomunitario
La exención intracomunitaria puede aplicarse a una entrega a otro Estado miembro si el NIF-IVA es válido y el destino cumple los requisitos. La comprobación por sí sola no determina el tratamiento fiscal.
Cómo se comprueba el IVA¿Eres profesional del sector?
Puedes solicitar una cuenta profesional e indicar los datos de tu actividad. La solicitud queda pendiente de revisión; puedes consultar su estado en tu cuenta.
Más información sobre cuentas profesionalesCanarias, Ceuta y Melilla sin IVA español
El tratamiento depende del destino de entrega y de la coherencia de la dirección. Pueden corresponder IGIC, IPSI, aranceles u otros cargos locales.
Más información sobre destinos e impuestosFeatures of the Gigabyte B840M D2H Micro-ATX Socket Motherboard AM5
The **Gigabyte B840M D2H** is a motherboard designed for users seeking **power, versatility and reliability** in a compact form factor. Compatible with the latest-generation **AMD Ryzen processors**, this Micro-ATX model combines **high-speed DDR5 support**, **dual M.2 slots** and **2.5G LAN connectivity**, making it an ideal choice for building systems for **gaming, content creation or professional use**.
Compatible with the new generation of Ryzen processors
Equipped with an **AM5** socket and **AMD B840** chipset, this motherboard is fully compatible with the **AMD Ryzen 7000, 8000 and 9000 series**, allowing you to take advantage of the latest processing technology.
Supports 5th-generation Ryzen processors
AM5 socket with 5+2+2-phase digital VRM
Thermal design optimised for high performance
High-speed DDR5 memory
The B840M D2H supports **up to 128 GB of DDR5 memory** in dual-channel mode, with speeds of up to **7600 MHz (OC)**. This provides greater bandwidth and energy efficiency, ideal for **intensive multitasking and demanding workloads**.
2 slots DDR5 DIMM
Speeds from 4400 to 7600 MHz (OC)
Non-ECC, unbuffered memory
Ultra-fast storage with dual M.2
Includes **two M.2 slots** for NVMe SSDs: one PCIe 4.0 x4 and another PCIe 3.0, delivering **near-instant boot and load times**. It also supports up to **6 storage drives** and RAID 0/1/10 configurations.
1 x M.2 PCIe 4.0 (up to 2580)
1 x M.2 PCIe 3.0 (up to 2280)
4 SATA III ports
Fast and stable connectivity
Thanks to the **Realtek RTL8125** controller, this motherboard offers a **2.5 Gigabit Ethernet** network connection, ideal for **online gaming, 4K streaming or networked work environments**.
2.5GbE LAN with bandwidth management
Realtek controller RTL8125
Compatible with Windows 10 and 11 (64-bit)

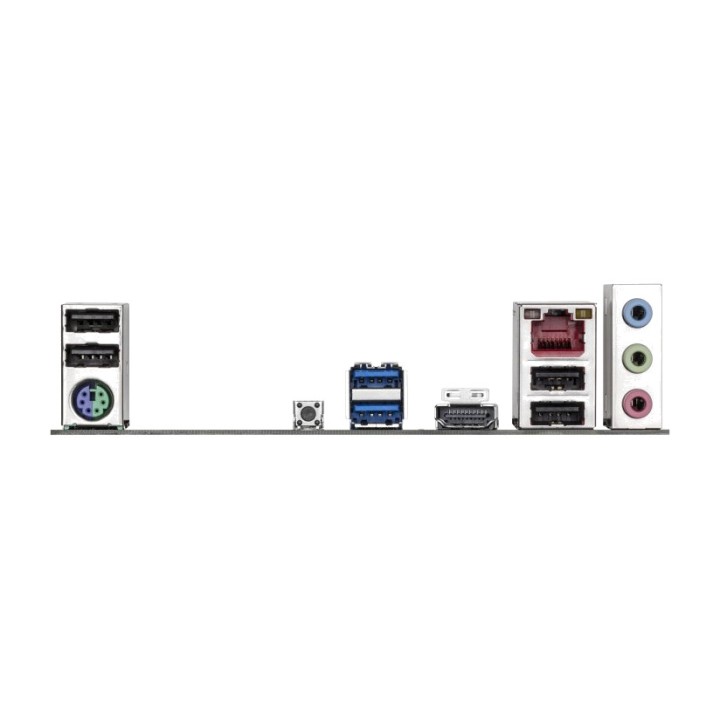

Versatile connectivity and rear ports
Despite its compact Micro-ATX form factor, the B840M D2H includes a good selection of ports for everyday use. It also offers HDMI 2.1 output for resolutions up to **4K@60Hz**.
1 x HDMI 2.1 (up to 4096x2160 px)
6 USB ports (4x USB 2.0, 2x USB 3.2 Gen 1)
1 x RJ-45 LAN, 7.1-channel HD audio (Realtek ALC897)
Compact and reliable design
With a **Micro-ATX** form factor and a robust structure, this motherboard is designed for compact systems without compromising stability. The monitoring system allows precise control of temperature, cooling and voltage.
Micro-ATX form factor (244 x 244 mm)
Passive cooling system
Bracket for RGB LED strips (3 connectors)
Other technical details
Audio: 7.1-channel HD with Realtek ALC897
256 MB UEFI BIOS, Clear CMOS support
Chipset : AMD B840
PCIe slots: 1 x16 Gen 4, 1 x16 Gen 3
Other specifications
Included software: Norton® Internet Security OEM
Screws and CR2032 battery included
Weight: 940 g | Dimensions: 244 x 244 x 35 mm
Official warranty: 3 years
Volume (m ³): 0.0044
The **Gigabyte B840M D2H** is a motherboard designed for users seeking **power, versatility and reliability** in a compact form factor. Compatible with the latest-generation **AMD Ryzen processors**, this Micro-ATX model combines **high-speed DDR5 support**, **dual M.2 slots** and **2.5G LAN connectivity**, making it an ideal choice for building systems for **gaming, content creation or professional use**.
Compatible with the new generation of Ryzen processors
Equipped with an **AM5** socket and **AMD B840** chipset, this motherboard is fully compatible with the **AMD Ryzen 7000, 8000 and 9000 series**, allowing you to take advantage of the latest processing technology.
Supports 5th-generation Ryzen processors
AM5 socket with 5+2+2-phase digital VRM
Thermal design optimised for high performance
High-speed DDR5 memory
The B840M D2H supports **up to 128 GB of DDR5 memory** in dual-channel mode, with speeds of up to **7600 MHz (OC)**. This provides greater bandwidth and energy efficiency, ideal for **intensive multitasking and demanding workloads**.
2 slots DDR5 DIMM
Speeds from 4400 to 7600 MHz (OC)
Non-ECC, unbuffered memory
Ultra-fast storage with dual M.2
Includes **two M.2 slots** for NVMe SSDs: one PCIe 4.0 x4 and another PCIe 3.0, delivering **near-instant boot and load times**. It also supports up to **6 storage drives** and RAID 0/1/10 configurations.
1 x M.2 PCIe 4.0 (up to 2580)
1 x M.2 PCIe 3.0 (up to 2280)
4 SATA III ports
Fast and stable connectivity
Thanks to the **Realtek RTL8125** controller, this motherboard offers a **2.5 Gigabit Ethernet** network connection, ideal for **online gaming, 4K streaming or networked work environments**.
2.5GbE LAN with bandwidth management
Realtek controller RTL8125
Compatible with Windows 10 and 11 (64-bit)
Versatile connectivity and rear ports
Despite its compact Micro-ATX form factor, the B840M D2H includes a good selection of ports for everyday use. It also offers HDMI 2.1 output for resolutions up to **4K@60Hz**.
1 x HDMI 2.1 (up to 4096x2160 px)
6 USB ports (4x USB 2.0, 2x USB 3.2 Gen 1)
1 x RJ-45 LAN, 7.1-channel HD audio (Realtek ALC897)
Compact and reliable design
With a **Micro-ATX** form factor and a robust structure, this motherboard is designed for compact systems without compromising stability. The monitoring system allows precise control of temperature, cooling and voltage.
Micro-ATX form factor (244 x 244 mm)
Passive cooling system
Bracket for RGB LED strips (3 connectors)
Other technical details
Audio: 7.1-channel HD with Realtek ALC897
256 MB UEFI BIOS, Clear CMOS support
Chipset : AMD B840
PCIe slots: 1 x16 Gen 4, 1 x16 Gen 3
Other specifications
Included software: Norton® Internet Security OEM
Screws and CR2032 battery included
Weight: 940 g | Dimensions: 244 x 244 x 35 mm
Official warranty: 3 years
Volume (m ³): 0.0044
- Brand
- GIGABYTE
- Reference
- DSP0000032847
- EAN-13
- 4719331868116
- Weight
- 0,941 kg
