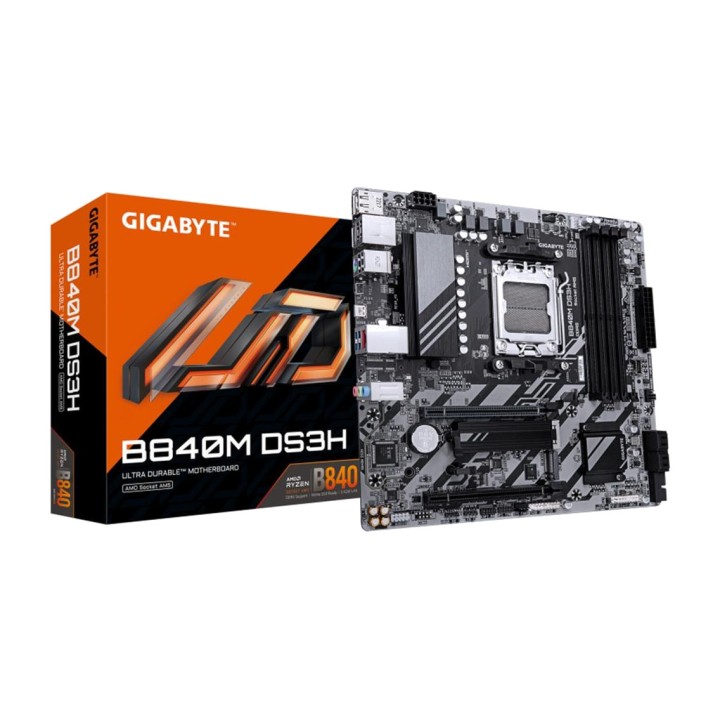

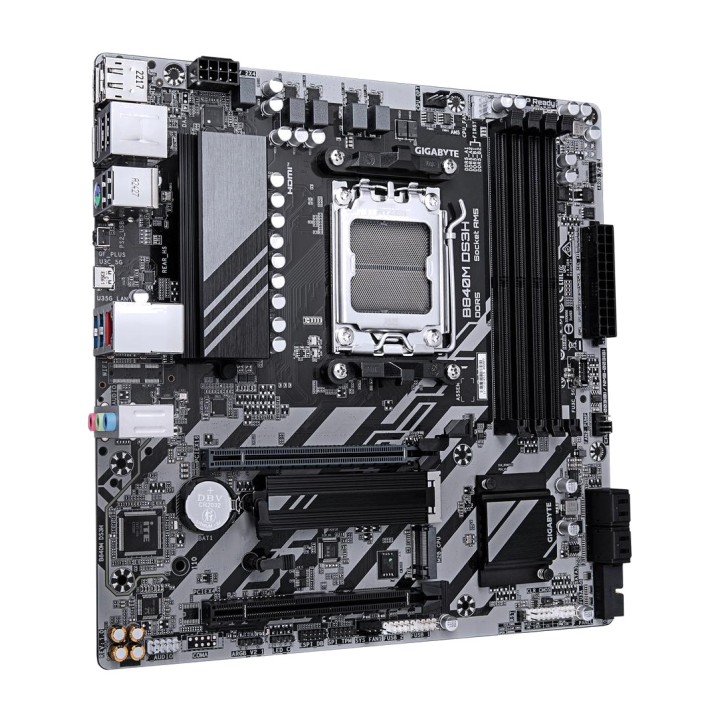

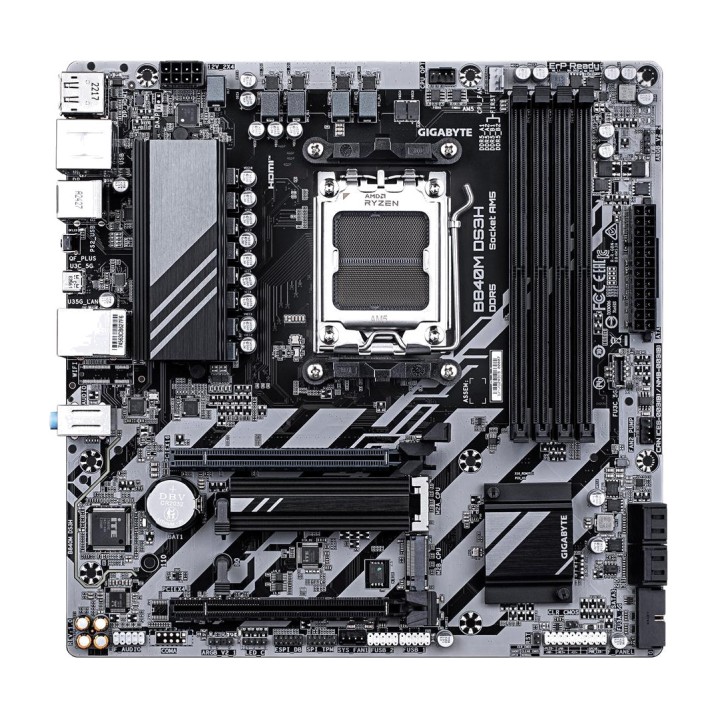

GIGABYTE Micro ATX motherboard for AMD B840M DS3H AM5 DSP0000030192

```
-WEIGHT AND DIMENSIONS
Height 35 mm
Width 244 mm
Depth 244 mm
Weight 1,05 kg

-MEMORY
Dual channel memory channels
ECC Non-ECC Compatibility
Maximum internal memory 256 GB
Maximum internal memory per slot 64 GB
Number of memory slots 4
Memory slot type DIMM
Bufferless memory Yes
Compatible memory type DDR5-SDRAM
Maximum memory clock speed 8200 MHz
Supported memory speeds 8200, 8000, 7950, 7900, 7800, 7600, 7400, 7200, 7000, 6800, 6666, 6600, 6400, 6200, 6000, 5600, 5200, 4800, 4400 MHz

-PROCESSOR
Processor manufacturer AMD
AMD Ryzen 7000 Series, 8000 Series, 9000 Series compatible processor
Processor socket Socket AM5
Supported processor sockets Socket AM5

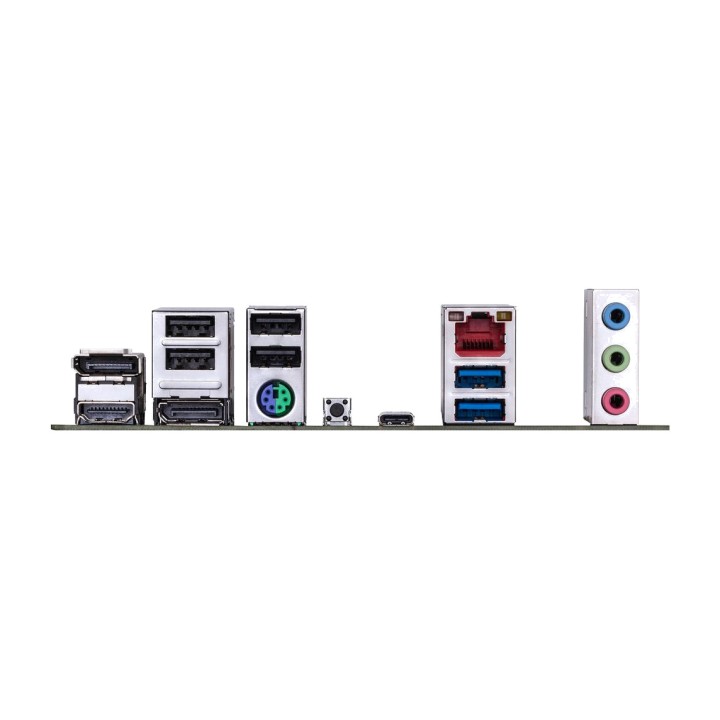

-Rear PANEL I/O PORTS
Number of USB 3.2 Gen 1 Type ports A 2
Number of USB 3.2 Gen 1 Type ports C 1
Number of USB 3.2 Gen 2 Type ports A 0
Number of USB 3.2 Gen 2 Type ports C 0
Number of ports USB 2.0 4
Mouse port PS/2 1
Number of VGA (D-Sub) ports 0
Number of ports DVI-D 0
Number of DisplayPorts 2
DisplayPort version 1.4
Number of ports HDMI 1
Version HDMI 2.1
Line input Yes
Microphone, input jack Yes
Headphone jacks 1

-INTERNAL I/O
USB 3.2 Gen connectors 1 2
USB 3.2 Gen connectors 2 0
USB 2.0, 2 connectors
ATX power connector (24 pins) Yes
EPS Power Connector (8 pins) Yes
Number of EPS connectors 8 pins 1
CPU Fan Connector Yes
Number of fan connectors for CPU 2
Number of chassis fan connectors 2
Number of connectors for water pumps 2
Front panel audio connector Yes
Front panel connector Yes
TPM Connector Yes
Connector for RGB LED strips Yes
Number of strip connectors LED RGB 3
Headers Thunderbolt Not specified
Number of connectors SATA III 4

-CONNECTIVITY
Realtek LAN controller RTL8125
Ethernet Yes
Interface type 2.5 Gigabit Ethernet
Wifi No

-EXPANSION SLOTS
Number of slots M.2 (M) 2
Maximum M.2 size (1st slot) 2580
PCIe generation 1st slot M.2 4.0
Maximum M.2 size (2nd slot) 25110
PCIe generation 2nd slot M.2 4.0
PCI Express x16 slots (Gen 3.x) 1
PCI Express x16 slots (Gen 4.x) 1

-PACKING CONTENT
Batteries included Yes
Screws included Yes
Software included: Norton Internet Security (OEM), bandwidth management software for LAN

-BIOS
Version ACPI 5.0
Types of BIOS UEFI AMI
BIOS memory size 256 MB/s
Version SMBIOS 2.7
CMOS Clear Jumper Yes
Version DMI 2.7

-GRÁFICOS
Direct version X 12.0
Maximum resolution 4096 x 2160 pixels
HDCP Yes
Parallel process support Not compatible

- FEATURES
ATX Power Supply
7.1 channel audio output channels
Realtek sound chip ALC897
Chipset AMD B840
AMD chipset family
Product color Dark brown
PC Component
Micro ATX form factor
Cooling Type Passive
System Health Monitoring Fan, Temperature, Voltage, Liquid Cooling
Compatible operating systems Windows 10 x64, Windows 11 x64

- STORAGE
Compatibility with RAID Yes
Supported RAID levels 0, 1, 10
Number of supported HDDs 4
Compatible storage unit quantity 6
Supported storage interfaces M.2, PCI Express 4.0, SATA III
Supported storage types HDD & SSD

-LOGISTICS DATA
Quantity per shipping box 1 piece

-BATTERY
Number of battery cells 1
Battery weight 3 g
Lithium weight per battery 0,07 g
Battery technology Lithium-Manganese Dioxide (LiMn O2)
BATTERY TYPE CR2032

-PACKAGING-
Package height 54 mm
Package width 265 mm
Package depth 265 mm
Package weight 1,13 kg

-TECHNICAL DETAILS
Warranty period 3 years
```
Volume (m ³): 0.0044
