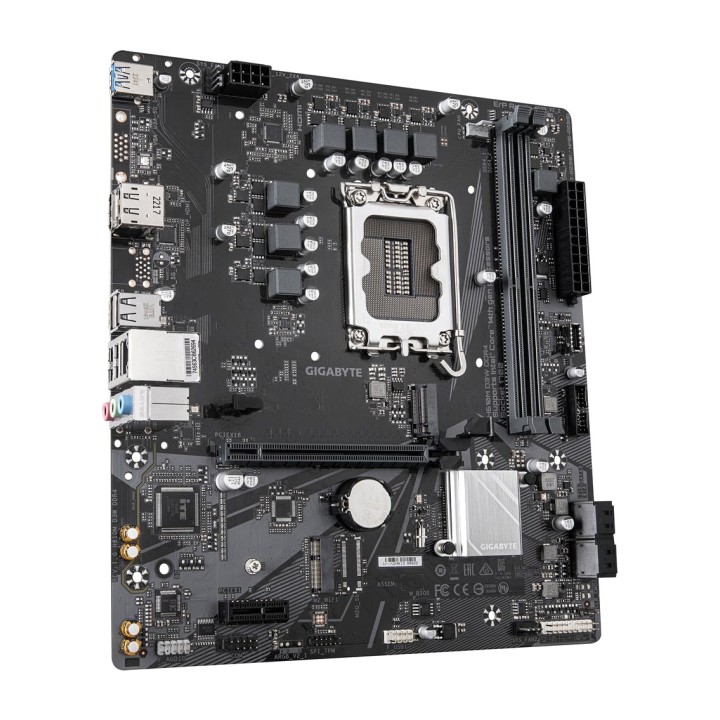

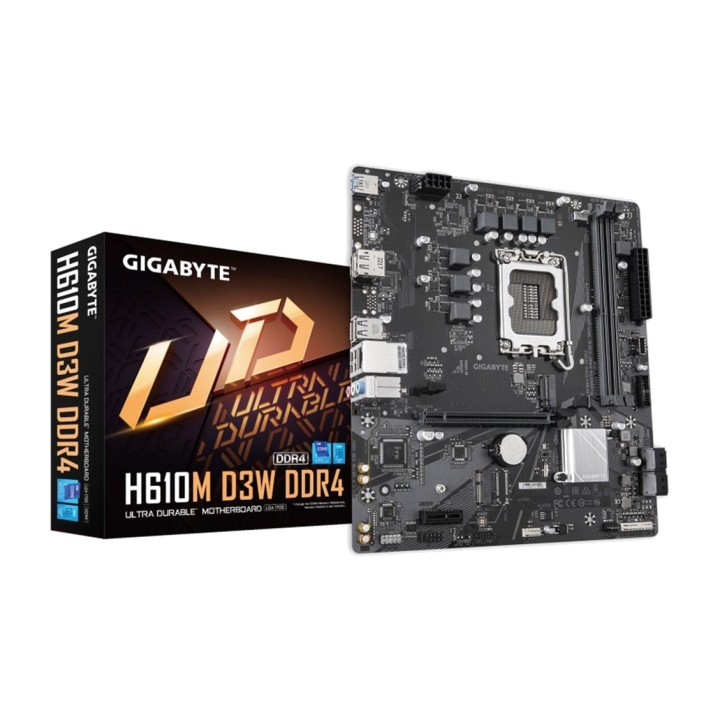

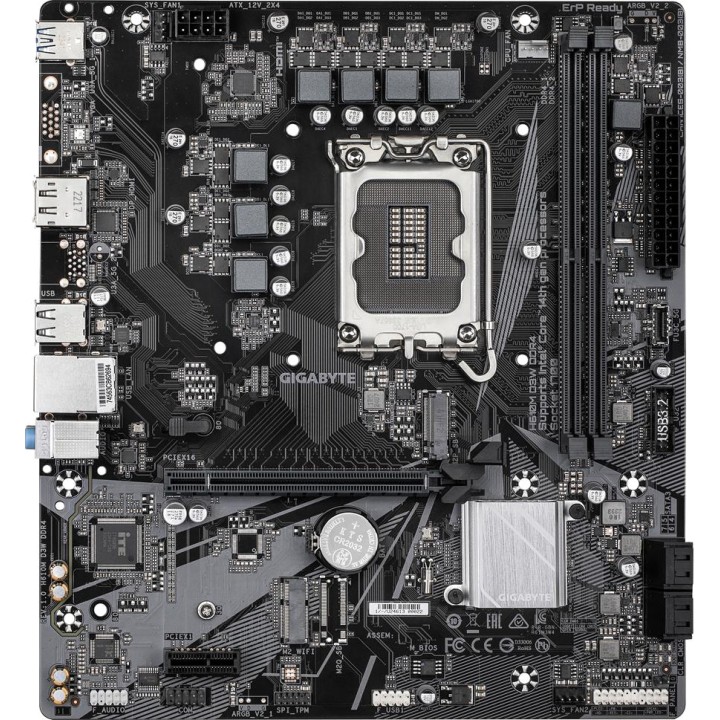

GIGABYTE Micro ATX motherboard for Intel H610M D3W DDR4 LGA1700 DSP0000030190

```
-WEIGHT AND DIMENSIONS
Height 35 mm
Width 244 mm
Depth 220 mm
Weight 770 g

-MEMORY
Dual channel memory channels
Compatibility with ECC and non-ECC
Maximum internal memory 64 GB
Maximum internal memory per slot 32 GB
Number of memory slots 2
Memory slot type DIMM
Bufferless memory Yes
Compatible memory type DDR4-SDRAM
Maximum memory clock speed 3200 MHz
Supported memory speeds 2133, 2400, 2666, 2933, 3000, 3200 MHz

-PROCESSOR
Processor manufacturer Intel
Compatible with Intel Celeron, Pentium, Core i3/i5/i7/i9 12th, 13th, and 14th generation processors
Processor socket LGA 1700
Supported processor sockets LGA 1700

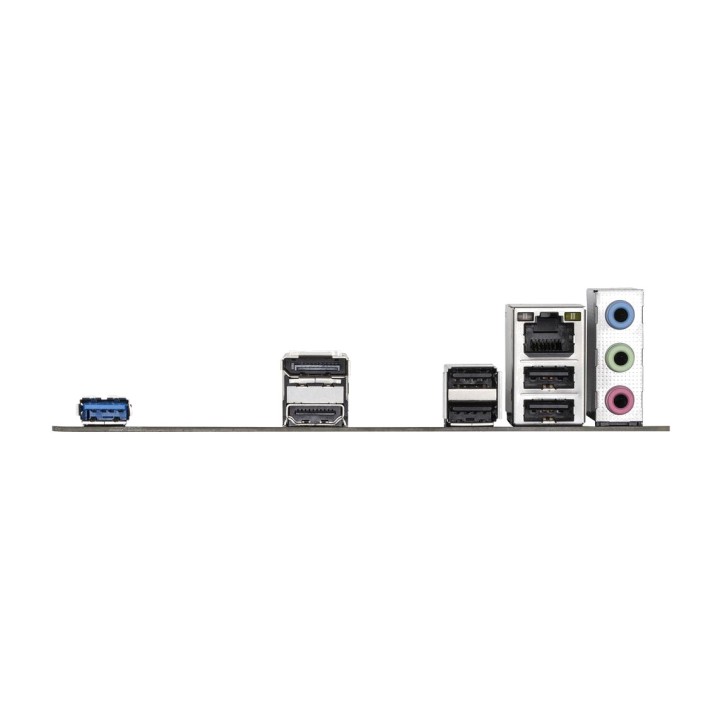

-Rear PANEL I/O PORTS
Number of USB 3.2 Gen 1 Type ports A 1
Number of USB 3.2 Gen 1 Type ports C 0
Number of USB 3.2 Gen 2 Type ports A 0
Number of USB 3.2 Gen 2 Type ports C 0
Number of ports USB 2.0 4
Number of Ethernet ports LAN (RJ-45) 1
Number of VGA (D-Sub) ports 0
Number of ports DVI-D 0
Number of DisplayPorts 1
DisplayPort version 1.2
Number of ports HDMI 1
Version HDMI 2.1
Line input Yes
Microphone, input jack Yes

-INTERNAL I/O
USB 3.2 Gen connectors 1 2
USB 3.2 Gen connectors 2 0
USB 2.0, connectors 1
ATX power connector (24 pins) Yes
EPS Power Connector (8 pins) Yes
Number of EPS connectors 8 pins 1
CPU Fan Connector Yes
Number of fan connectors for CPU 1
Number of chassis fan connectors 2
Serial port header 1
Front panel audio connector Yes
Front panel connector Yes
TPM Connector Yes
Number of connectors SATA III 4

-CONNECTIVITY
Realtek LAN controller RTL8111H
Ethernet Yes
Interface type Gigabit Ethernet
Wifi No

-EXPANSION SLOTS
Number of slots M.2 (M) 1
Maximum size of M.2 2280
PCI Express generation for M.2 3.0
PCI Express x1 slots (Gen 3.x) 1
PCI Express x16 slots (Gen 4.x) 1

-PACKING CONTENT
Batteries included Yes
Screws included Yes
Software included: Norton Internet Security (OEM), bandwidth management software for LAN

-BIOS
Version ACPI 5.0
Types of BIOS UEFI AMI
BIOS memory size 128 MB/s
Version SMBIOS 2.7
CMOS Clear Jumper Yes
Version DMI 2.7

-GRÁFICOS
Direct version X 12.0
Parallel process support Not compatible

- FEATURES
ATX Power Supply
7.1 channel audio output channels
Realtek sound chip ALC897
Intel chipset H610
Product color Gray
PC Component
Micro ATX form factor
Intel chipset family
System Health Monitoring Fan, Temperature, Voltage, Liquid Cooling
Compatible operating systems Windows 10, Windows 11

- STORAGE
Number of supported HDDs 4
Number of compatible storage units 5
Supported storage interfaces M.2, SATA III
Supported storage types HDD & SSD

-LOGISTICS DATA
Quantity per shipping box 1 piece
Country of origin China

-BATTERY
Number of battery cells 1
Battery weight 3 g
Lithium weight per battery 0,07 g
Battery technology Lithium-Manganese Dioxide (LiMn O2)
BATTERY TYPE CR2032

-PACKAGING-
Package height 54 mm
Package width 265 mm
Package depth 265 mm
Package weight 800 g

-TECHNICAL DETAILS
Warranty period 3 years
```
Volume (m ³): 0.0039
