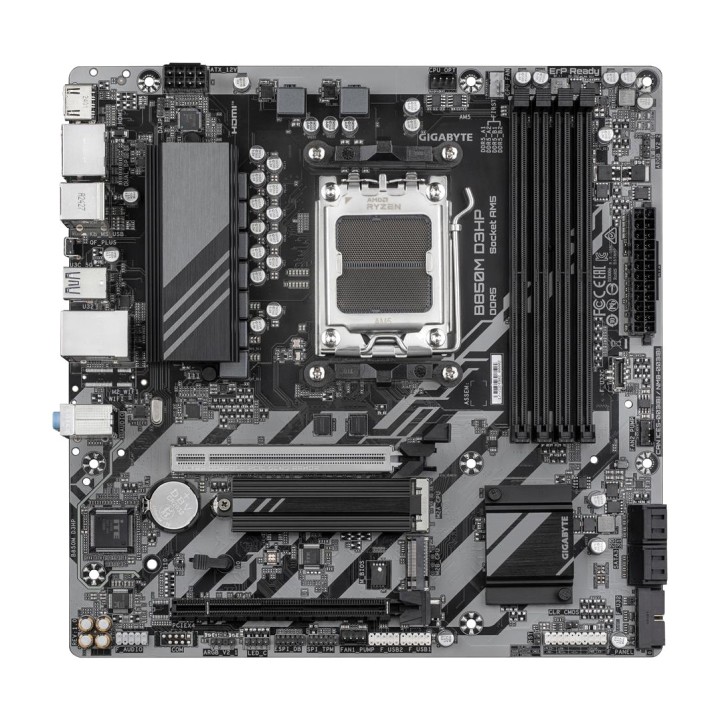

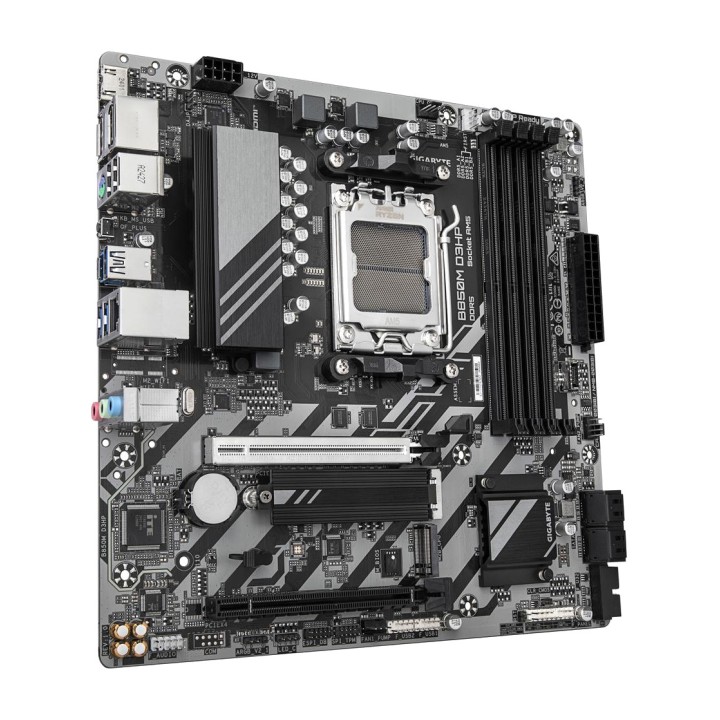

GIGABYTE Micro ATX motherboard for AMD B850M D3HP AM5 DSP0000029502
DeliveryUpdating delivery estimate…Order within the next — to receive it approximately Updating delivery estimate…
Updating delivery estimate…
Cuándo es más probable que llegue
Calculado con 0 entregas recientes
Fechas estimadas para España peninsular; se ajustarán con tu código postal y forma de entrega.
The date corresponds to the item with the longest delivery time
IVA intracomunitario
La exención intracomunitaria puede aplicarse a una entrega a otro Estado miembro si el NIF-IVA es válido y el destino cumple los requisitos. La comprobación por sí sola no determina el tratamiento fiscal.
Cómo se comprueba el IVA¿Eres profesional del sector?
Puedes solicitar una cuenta profesional e indicar los datos de tu actividad. La solicitud queda pendiente de revisión; puedes consultar su estado en tu cuenta.
Más información sobre cuentas profesionalesCanarias, Ceuta y Melilla sin IVA español
El tratamiento depende del destino de entrega y de la coherencia de la dirección. Pueden corresponder IGIC, IPSI, aranceles u otros cargos locales.
Más información sobre destinos e impuestos5+2+2 Phases VRM Digital with DrMOS for stable and efficient power delivery.
Compatible with AMD Ryzen Series 7000, 8000 and processors 9000.
Processor socket: Socket AM5.
- MEMORY
Memory compatibility DDR5-SDRAM.
Maximum memory capacity : 256 GB.
4 DIMM slots with Dual Channel support.
Maximum supported memory clock speed: 8200 MHz (OC).
Supported clock speeds: 4400, 4800, 5200, 8200 MHz.
Non-buffered memory and not ECC compatible.
- STORAGE
Compatibility with storage units: HDD and SSD.
Supported interfaces: M.2 (Gen 5.0 and Gen 4.0), SATA III.
Number of M.2 slots: 2 (1x PCIe Gen 5.0, 1x PCIe Gen 4.0).
Supported RAID levels : 0, 1, 10.
- CONNECTIVITY
Gigabit Ethernet (RJ-45).
Does not have built-in Wi-Fi.
- EXPANSION SLOTS
1 PCIe Gen 5 x16 slot with PCIe UD and EZ-Latch.
1 PCI Express x16 slot (Gen 3.x).

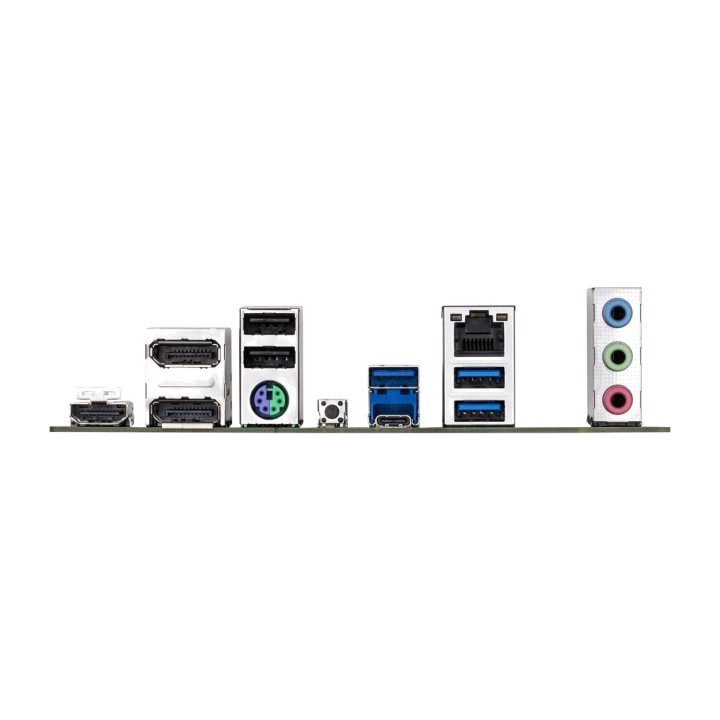

- REAR I/O PORTS
3 USB 3.2 Gen 1 Type A ports.
1 USB 3.2 Gen 1 Type C port.
2 ports USB 2.0.
1 HDMI port.
1 DisplayPort.
1 Ethernet port LAN (RJ-45).
1 headphone jack.
Microphone input.
- INTERNAL I/O
1 USB 3.2 Gen connector 1.
1 USB 3.2 Gen connector 2.
2 connectors USB 2.0.
ATX power connector (24 pins)
EPS power connector (8 pins).
2 connectors for CPU fans.
3 connectors for chassis fans.
4 SATA III connectors.
4 connectors for RGB LED strips.
TPM connector and serial port header.
- AUDIO AND GRAPHICS
Sound chip: Realtek ALC897 with 7.1 channel audio output.
DirectX version: 12.0.
HDCP compatibility.
Maximum resolution supported: 4096 x 2160 pixels.
- BIOS
Types of BIOS: UEFI AMI.
BIOS memory size: 256 MB/s.
ACPI version: 5.0.
Desktop management interface version (DMI): 2.7.
CMOS Cleaning Button and Clear CMOS Jumper.
- DIMENSIONS AND WEIGHT
Height: 35 mm.
Width: 244 mm.
Depth: 244 mm.
Weight: 1.3 kg.
- FORM FACTOR AND COMPATIBILITY
Form factor: micro ATX.
Chipset : AMD B850.
Compatible with Windows 10 x64 and Windows 11 x64.
- PACKAGE CONTENT
Antenna included.
Batteries included (Type CR2032 Lithium-Manganese Dioxide).
Screws included.
Software included: Norton Internet Security (OEM version) and LAN bandwidth management software.
- OTHER FEATURES
Feeding: ATX.
PC Health Monitoring: Fan, Temperature, Voltage and Water cooling.
Product color: Marrón.
Country of origin: China.
Warranty period: 3 years.
Volume (m ³): 0.0042
- Brand
- GIGABYTE
- Reference
- DSP0000029502
- EAN-13
- 4719331867058
- Weight
- 0,956 kg
