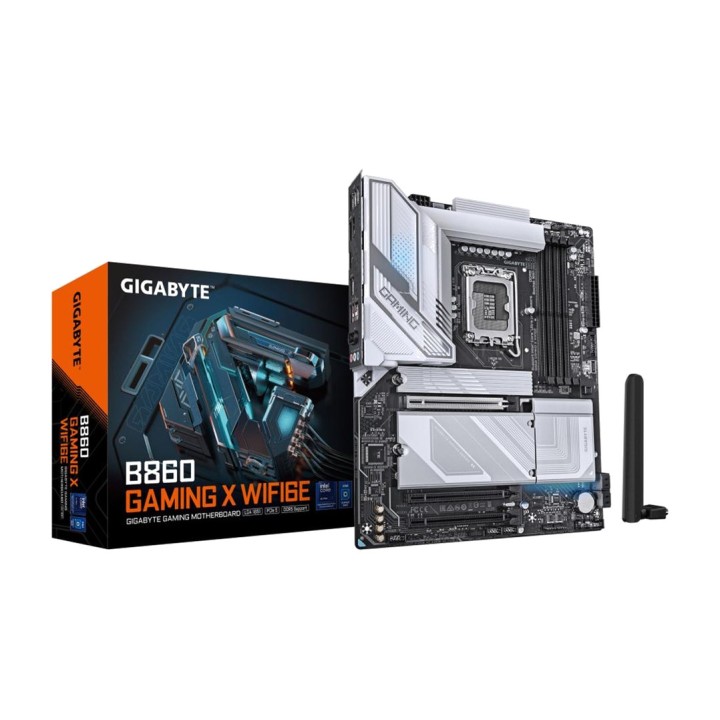

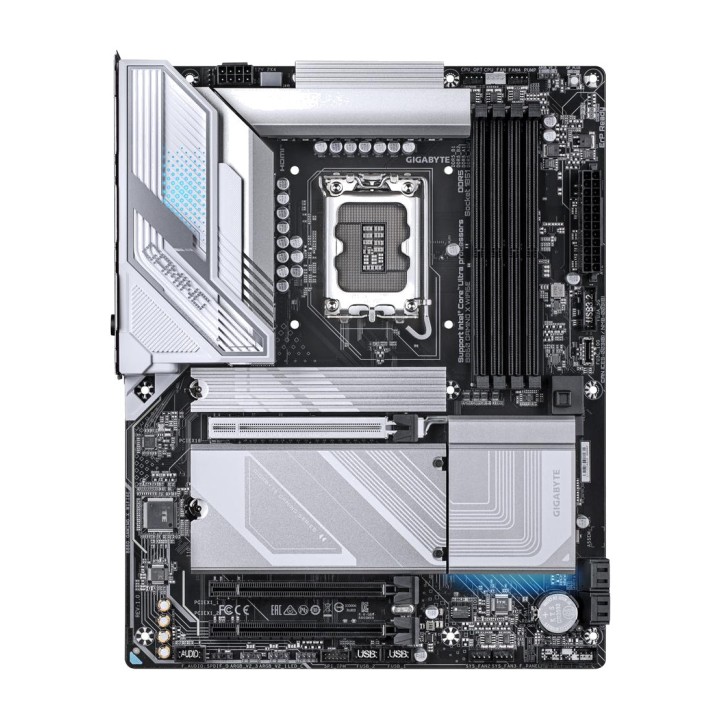

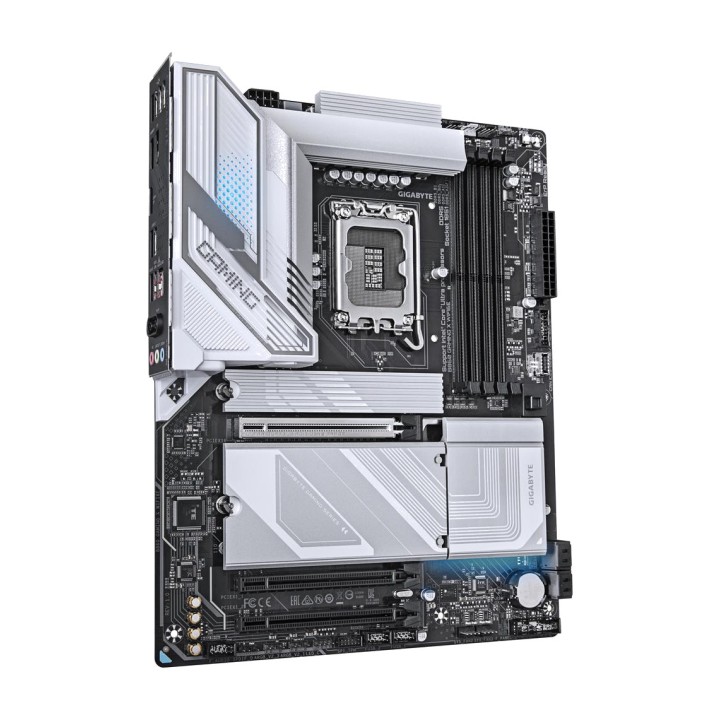

GIGABYTE ATX motherboard for Intel B860-GAMING X WIFI6E LGA1851 DSP0000029146

- FEEDING PHASES
Dual hybrid phases 12+1+2+1 50A PPAK VRM

- MEMORY
Memory channels: Dual channel
Compatibilidad ECC: ECC y no ECC
Maximum internal memory : 256 GB
Maximum internal memory per slot : 64 GB
Number of memory slots : 4
Memory slot type: DIMM
Velocidad del reloj de memoria máxima admitida: 9066 MHz
Velocidades de reloj soportadas: 5600, 6400, 9066 MHz
compatible memory types: DDR5-SDRAM

- PROCESSOR
Fabricante: Intel
Compatible processors: Intel Core Ultra (Series 1 and 2)
Processor socket: LGA 1851 (Socket V1)

- EXPANSION SLOTS
Ranura PCIe 5.0 x16 con Slot PCIE UD & EZ-Latch Plus
PCI Express x16 slots (Gen 5.x): 1
PCI Express x16 slots (Gen 4.x): 2
Slots M.2 (M): 3
1st M.2: PCIe 5.0, maximum size 25110
2nd M.2: PCIe 4.0, maximum size 22110
3rd M.2: PCIe 4.0, maximum size 22110
M.2 Gen5 con EZ-Latch Plus
Protector térmico M.2 (Ext.) con EZ-Latch Click

- STORAGE
Supported interfaces : M.2, SATA III
Supported unit types: HDD & SSD
Number of compatible storage drives : 7
Number of supported HDDs : 4
RAID compatibility: Yes
Levels RAID: 0, 1, 5, 10

- CONNECTIVITY
2.5GbE LAN (Realtek RTL8125)
Wi-Fi 6E (Intel Wi-Fi 6E AX211) con WIFI EZ-Plug
Bluetooth 5.3

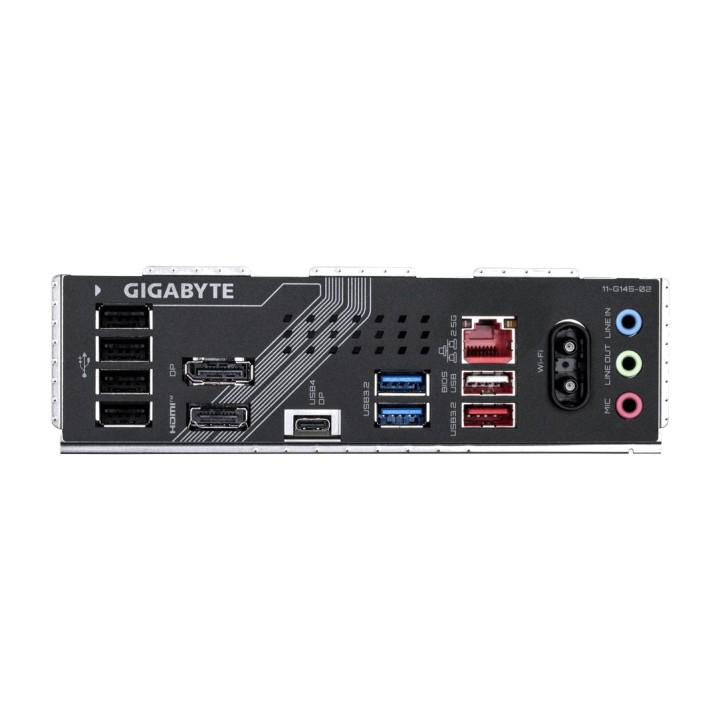

- REAR PANEL PORTS
USB 4.0 Type -C: 1
USB 3.2 Gen 2 Type -A: 1
USB 3.2 Gen 1 Type -A: 2
USB 2.0: 5
Ethernet port LAN (RJ-45): 1
Wi-Fi antenna connectors : 2
DisplayPort 2.1: 1
HDMI 2.1: 1
Headphone output : 1
Entrada de línea y micrófono: Sí

- INTERNAL PORTS
USB 3.2 Gen 1 (3.1 Gen 1): 1
USB 3.2 Gen 2 (3.1 Gen 2): 1
USB 2.0: 2
ATX power connector (24 pins): Yes
EPS power connector (8-pin) : 1
Fan connectors CPU: 2
Chassis fan connectors : 4
Water pump connectors : 2
connectors RGB LED: 4
TPM Connector: Yes
S/PDIF, conector de salida: Sí

- AUDIO
Sound chip: Realtek ALC897
Audio output channels: 7.1

- BIOS
BIOS Type: UEFI AMI
Memory size BIOS: 256 MB
ACPI version: 5.0
SMBIOS version: 2.7
Jumper Clear CMOS: Yes

- SYSTEM MONITORING
Temperature sensors, voltage sensors, fan and liquid cooling

- DIMENSIONS AND WEIGHT
Form factor: ATX
Dimensions: 305 mm x 244 mm x 35 mm
Peso: 1,93 kg

- COMPATIBILITY
Supported operating system: Windows 11 x64

- PACKAGE CONTENT
Antenna included: Yes
Screws included: Yes
Batteries included: Yes (CR2032, Lithium-Manganese Dioxide)
Software included: Norton Internet Security (OEM)

- WARRANTY
Warranty period: 3 years
Volume (m ³): 0.0073
