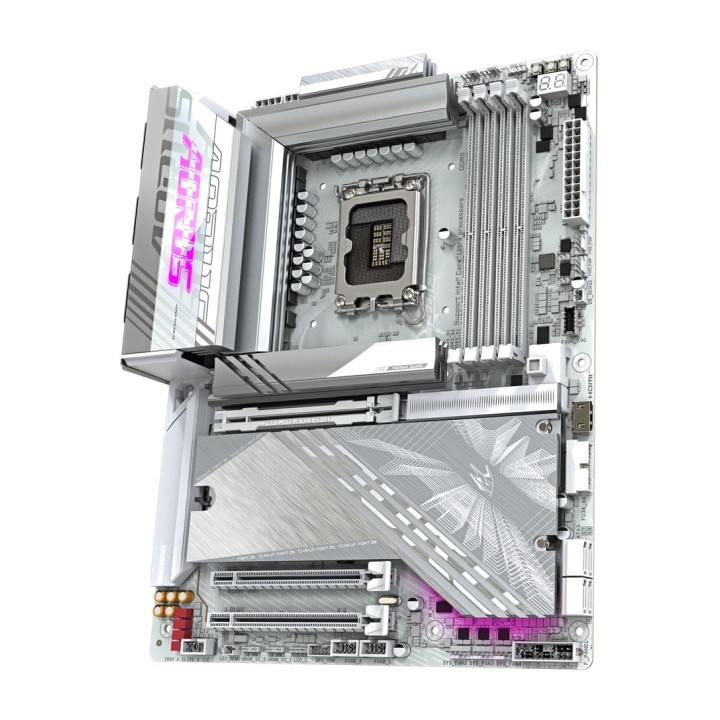

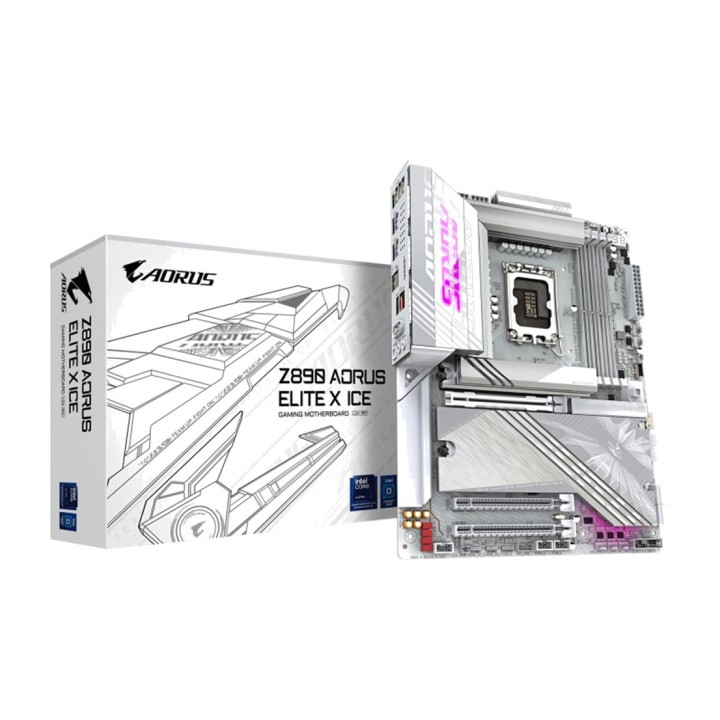

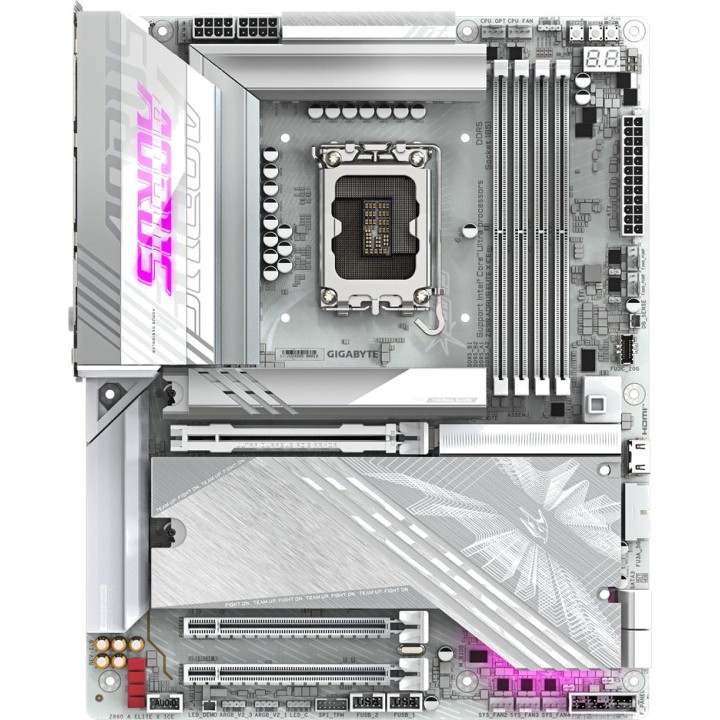

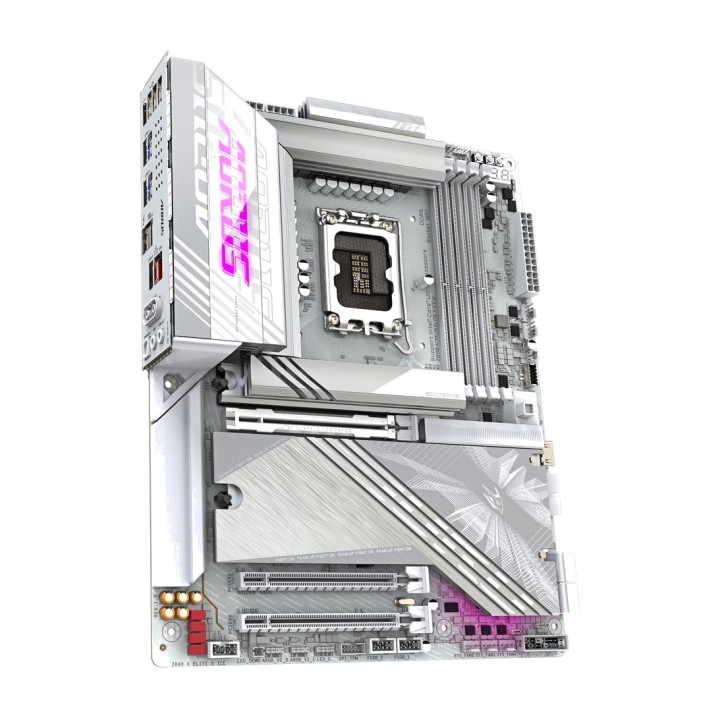

GIGABYTE ATX motherboard for Intel Z890 AORUS ELITE X ICE LGA1851 DSP0000028228

- PROCESSOR
Processor manufacturer: Intel
Processor socket: LGA 1851 (Socket V1)
Compatible processor: Intel Core Ultra (Series 2)
Max. number of SMP processors: 1
Maximum internal memory supported by the processor : 256 GB

- MEMORY
compatible memory types: DDR5-SDRAM
Number of memory slots : 4
Memory slot type: DIMM
Memory channels: Dual channel
Maximum internal memory : 256 GB
Supported module capacities : 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB
Maximum supported memory clock speed: 9500 MHz
Supported memory clock speeds: 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266, 8400, 8600, 8800, 8933, 9066, 9200, 9333, 9466, 9500 MHz
ECC: No

- storage
Supported storage drive interfaces : M.2, SATA III
Number of connectors SATA III: 4
Supported storage drive types: HDD & SSD
Number of compatible storage drives : 4
Levels RAID: 0, 1, 5, 10
Number of slots M.2 (M): 5

- GRAPHICS
Number of ports HDMI: 1
Number of DisplayPorts : 2
DirectX version: 12.0
S/PDIF output port: Yes
Integrated graphics adapter: No

- CONNECTIVITY
Ethernet: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
WLAN controller model: MediaTek MT7925
Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)
BLUETOOTH: YES
Bluetooth version: 5.4

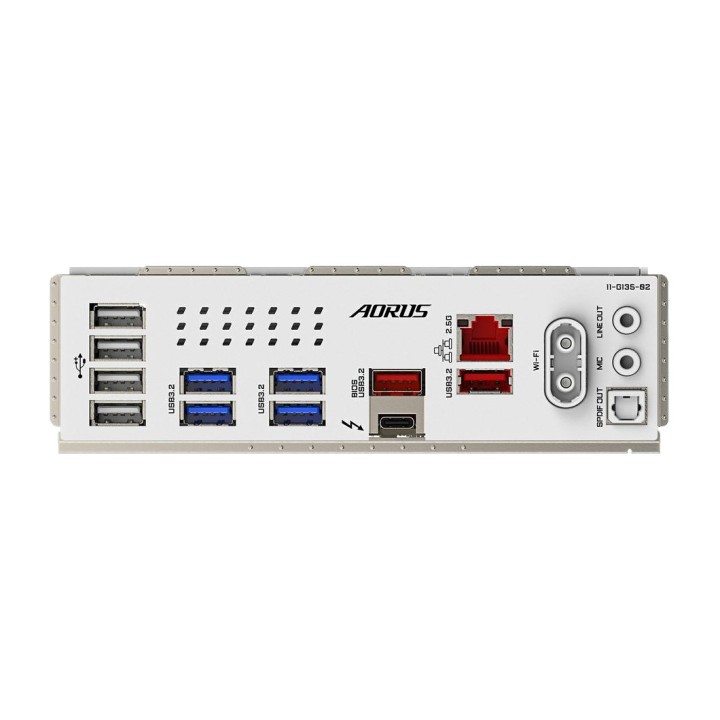

- REAR I/O PORTS
Number of ports USB 2.0: 4
Number of USB 3.2 Gen Type-A ports 1: 4
Number of USB 3.2 Gen Type-A ports 2: 2
Number of Thunderbolt ports : 1
Number of ports HDMI: 1
Number of DisplayPorts : 2
Ethernet LAN (RJ-45): 1
Microphone input jack: Yes

- INTERNAL I/O PORTS
connectors USB 2.0: 2
USB 3.2 Gen connectors 1: 1
USB 3.2 Gen connectors 2: 1
USB 3.2 Gen connectors 2x2: 1
TPM connector: Yes
ATX power connector (24-pin): Yes
12 V power connector: Yes
EPS power connectors (8-pin): Yes
RGB LED strip connector: Yes

- EXPANSION SLOTS
PCI Express x16 slots (Gen 5.x): 1
PCI Express x16 slots (Gen 4.x): 4

- Audio
Audio output channels: 7.1 channels
Sound chip: Realtek ALC1220

- BIOS
BIOS types: UEFI AMI
ACPI version: 5.0
BIOS memory size: 256 MB/s
SMBIOS BIOS version: 2.7
DMI interface version: 2.7
Clear CMOS Jumper: Yes
CMOS clear button: Yes

- Features
Chipset: Intel Z890
Product colour: White
Component for: PC
Form factor: ATX
Chipset family: Intel
PC health monitoring: Fan, Temperature, Voltage
Supported Windows operating systems: Windows 11 x64

- Dimensions
Height: 35mm
Width: 305 mm
Depth: 244 mm

- WEIGHT AND PACKAGING
Weight: 2,27 kg
Quantity per shipping carton: 1 piece(s)
Number of battery cells : 1
Battery weight: 3 g
Lithium weight per battery: 0,07 g
Battery technology: Lithium-Manganese Dioxide (LiMn O2)
BATTERY TYPE: CR2032

- PACKAGE DIMENSIONS
Package height: 80 mm
Package width: 335 mm
Package depth: 270 mm
Package weight: 2,55 kg

- INCLUDED SOFTWARE
Norton Internet Security (OEM version)
LAN bandwidth management software
Volume (m ³): 0.0073
