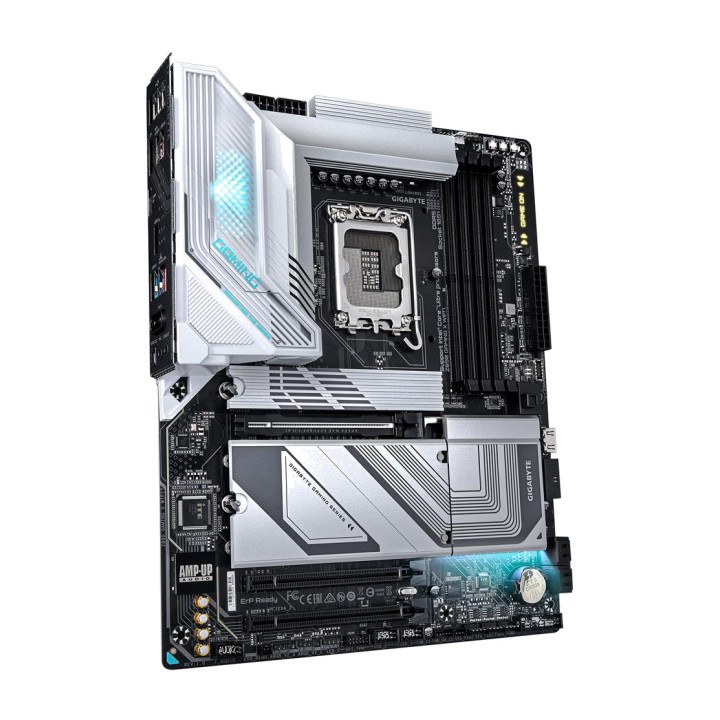

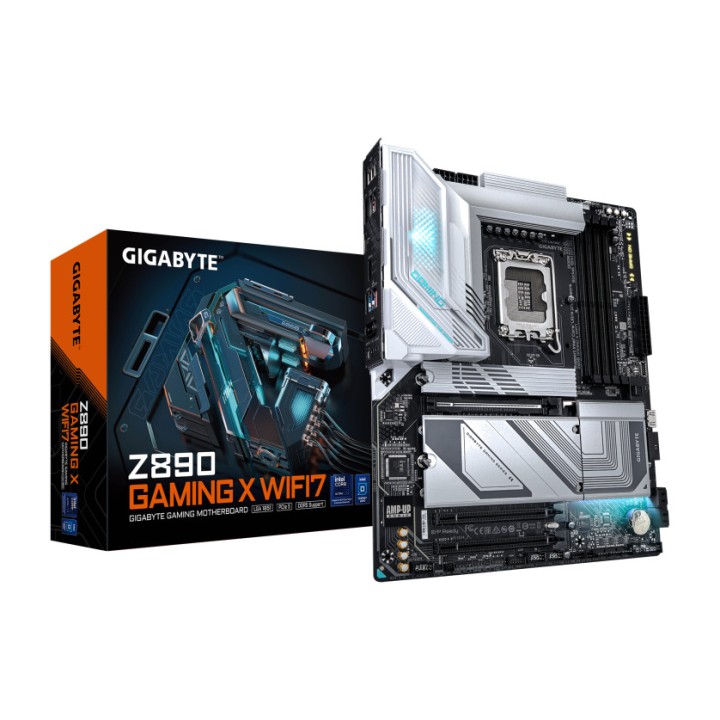

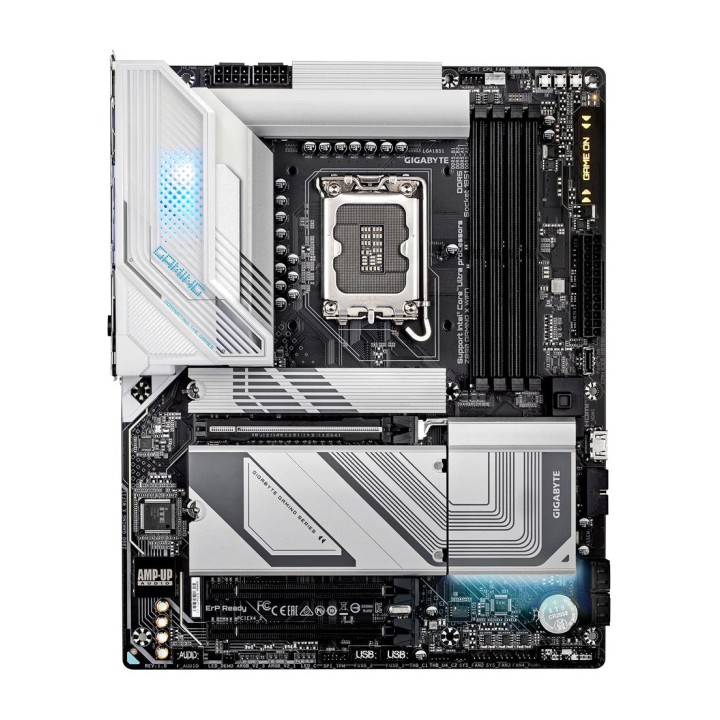

GIGABYTE ATX motherboard for Intel Z890-GAMING X WIFI7 LGA1851 DSP0000027998

- PROCESSOR
Processor manufacturer: Intel
Processor socket: LGA 1851 (Socket V1)
Compatible processor: Intel Core Ultra (Series 2)
Supported processor sockets : LGA 1851
Maximum internal memory supported by the processor : 256 GB

- CHIPSET
Chipset: Intel Z890
Chipset family: Intel

- MEMORY
compatible memory types: DDR5-SDRAM
Number of memory slots : 4
Memory slot type: DIMM
Memory channels: Dual channel
No ECC: Yes
Supported memory clock speeds: 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266, 8400, 8600 MHz
Maximum memory clock speed supported: 8800 MHz
Maximum internal memory : 256 GB
Supported memory module capacities : 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB

- STORAGE
Supported storage unit types: HDD & SSD
Supported storage drive interfaces : M.2, SATA III
Number of connectors SATA III: 4
Total number of connectors SATA: 4
Number of slots M.2 (M): 4
Number of supported HDDs : 8
Number of compatible storage drives : 4
RAID compatibility: Yes
Levels RAID: 0, 1, 5, 10

- GRAPHICS
DirectX version: 12.0

- INTERNAL I/O
USB 2.0, connectors : 2
USB 3.2 Gen 1 (3.1 Gen) connectors 1): 1
USB 3.2 Gen 2 (3.1 Gen connectors 2): 1
ATX power connector (24 pins): Yes
EPS power connector (8-pin): Yes
12V electrical connector: Yes
TPM Connector: Yes
Connector for RGB LED strips: Yes

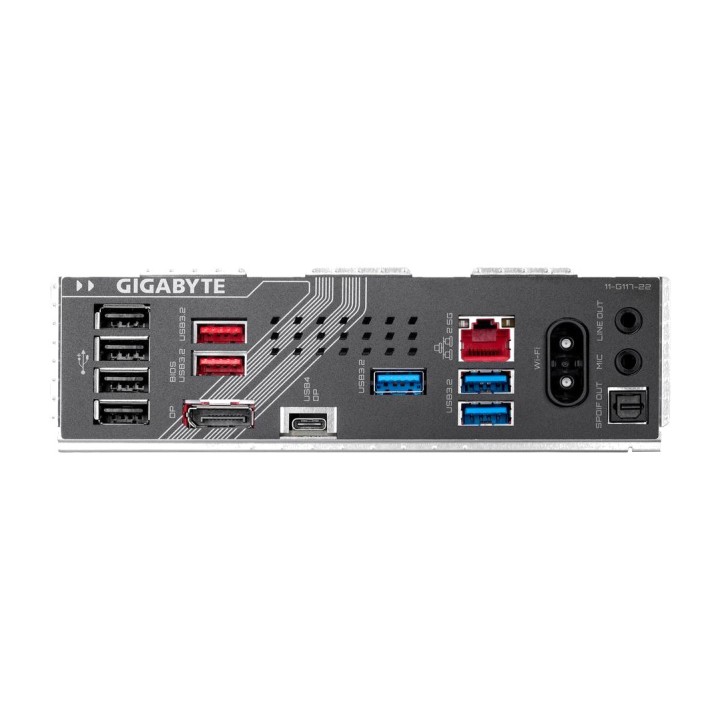

- REAR I/O PORTS
Number of ports USB 2.0: 4
Number of USB 3.2 Gen 1 (3.1 Gen Type-A ports 1): 3
Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports 2): 2
Number of ports HDMI: 1
Number of DisplayPorts : 2
Number of Thunderbolt ports : 2
Ethernet LAN (RJ-45) port quantity : 1
Microphone, input jack: Yes
S/PDIF output port: Yes

- CONNECTION
Ethernet: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Wifi: Yes
Standard Wi-Fi: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)
WLAN controller model: MediaTek MT7925
Bluetooth: Yes
Bluetooth version: 5.4

- EXPANSION
PCI Express x16 slots : 1

- AUDIO
Sound chip: Realtek ALC1220
Audio output channels: 7.1 channels

- BIOS
Types of BIOS: UEFI AMI
BIOS, memory size: 256 MB/s
ACPI version: 5.0
System management BIOS version (SMBIOS): 2.7
Desktop management interface version (DMI): 2.7
Jumper Clear CMOS: Yes
CMOS cleaning button: Yes

- FEATURES
Component for: PC
Form factor: ATX
Product color: Black
PC Health Monitoring: Fan, Temperature, Voltage
Supported Windows operating systems: Windows 11 x64

- DIMENSIONS
Width: 305 mm
Depth: 244 mm
Height: 35 mm

- PACKAGING
Package width: 335 mm
Package depth: 270 mm
Package height: 80 mm
Package weight: 2.55 kg

- BATTERY
Number of battery cells : 1
BATTERY TYPE: CR2032
Battery technology: Lithium-Manganese Dioxide (LiMn O2)
Battery weight: 3 g
Lithium weight per battery: 0,07 g

- LOGISTICS DATA
Quantity per shipping box: 1 piece(s)

- PACKAGE CONTENT
Batteries included: Yes
Software included: Norton Internet Security (OEM version) LAN bandwidth management software

- WEIGHT
Weight: 2,27 kg
Volume (m ³): 0.0072
